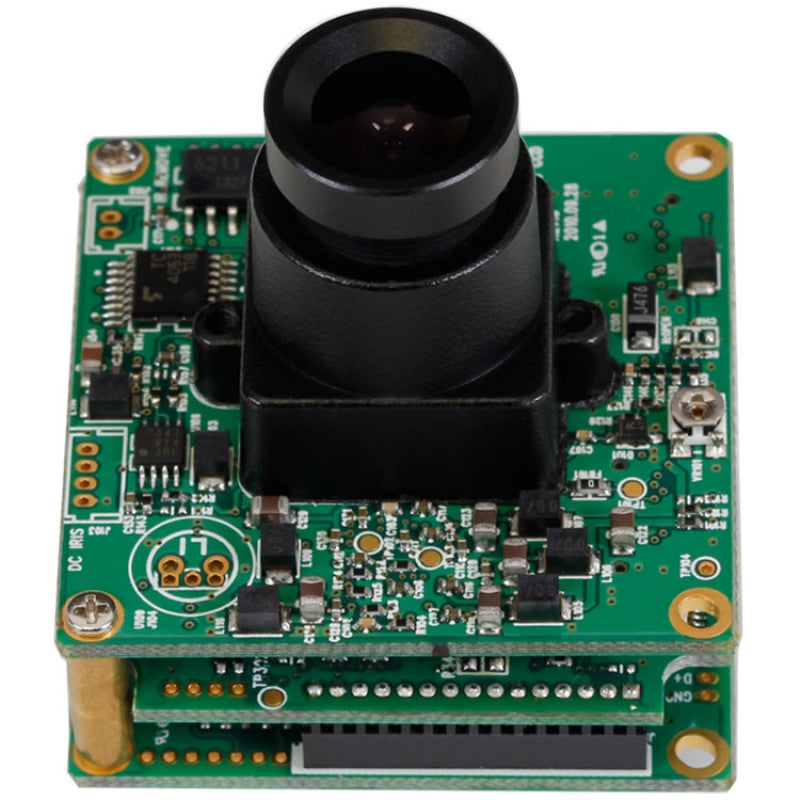

RHPC-650
The RHPC-650 surveillance camera boasts a high-performance 1/3" 960H SONY EXview HAD CCD ll sensor, delivering sharp and clear images at a remarkable 750TVL horizontal resolution. Its advanced digital day & night functionality guarantees exceptional video quality even in challenging low light environments. Compact in size at 32 x 32 mm, this camera is designed to thrive in various surveillance applications with its impressive minimum illumination of 0.05 Lux in color.
RHP IP LVDS Encoder Board
The RHP IP LVDS Encoder Board converts high-speed LVDS digital video into a fully networked IP video stream, enabling seamless integration with LAN-based and ONVIF-compliant systems. Designed for embedded and industrial applications, the encoder delivers high-quality H.264 or MJPEG video with multi-stream support, flexible bitrate control, and real-time network distribution. Ideal for systems requiring remote access, recording, and analytics, the RHP IP LVDS Encoder Board bridges sensor-level video to modern IP infrastructures with minimal latency and maximum compatibility.
The RHP IP LVDS Encoder Board is used to encode LVDS digital video such as output from a thermal or visible imaging sensor into an IP-based video stream for transmission over standard Ethernet networks. By converting raw video into H.264 or MJPEG streams, the board enables direct connection to network video recorders (NVRs), monitoring software, ONVIF-compatible systems, and custom applications. This allows imaging data to be viewed, recorded, analyzed, or distributed across local or remote networks, making it ideal for surveillance, industrial monitoring, and embedded vision systems where centralized access and scalability are required.
Software & Compatibility
SDK Support: ONVIF
Standards Compliance: IPv4, HTTP, UPnP, DNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP, Visca over IP (HTTP)
|
Applications: |
||
| Networked thermal and visible surveillance systems | Industrial process monitoring | Remote inspection and diagnostics |
| Embedded vision platforms with IP backhaul | Research, testing, and development systems | Edge devices feeding centralized analytics or AI servers |

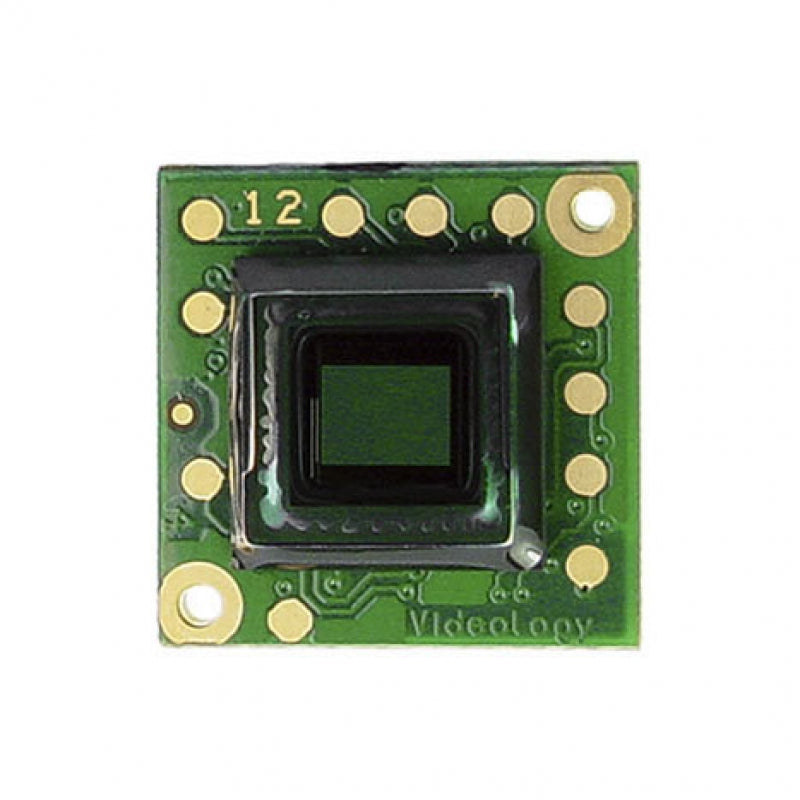

Videology 21B45M
Mini CMOS Color Camera
The Videology 21B45M color board camera is a ultra compact enclosed board camera with a 17mm x 17mm footprint.
The 21B45M color board camera series features a low power 1/4" CMOS image sensor with ultra wide temperature and vibration specifications. This enclosed camera version weighs in at about 6.4g (0.23 oz) Active pixel resolution is at 640x480 and a TV resolution of 420 TV lines. Optional models include balanced video output and can be prepared for computer control via I²C.
Videology 21B45M-12
Mini CMOS Color Camera
The Videology 21B45M-12 color board camera is a ultra compact board camera with a 14mm x 14mm unenclosed footprint.
The 21B45M-12 color board camera series features a low power 1/4" CMOS and CCD image sensors with ultra wide temperature and vibration specifications. This board camera version weighs in at about 0.5g (0.01 oz) without a lens mount. Active pixel resolution is at 640x480 and a TV resolution of 420 TV lines.
Optional models include balanced video output and can be prepared for computer control via I2C.
The all new High Definition RHPC-HD10 (DCC-SC01HD32 / VPC-HD10) HD board camera is an ultra compact board camera with brilliant 1280x720p HD video quality. This advanced board camera comes standard with an Analog Component (Y/Pb/Pr) video output and RGB video output.
The RHPC-HD10 HD board camera features a 42mm x 42mm footprint unenclosed, 50/60fps (selectable), a 1/3" CMOS (1.3 Megapixel) image sensor, On Screen Display, Slow Shutter, Digital Zoom and more, this HD board camera is perfect for applications requiring 16:9 720p video.
Also note, C/CS lens mounts are also available allowing the attachment of high quality lenses to the RHPC-HD10 HD board camera.
Board Camera Features
- 42mm (W) x 42mm (L) x 34mm (H) Form Factor
- Compact HD board camera
- 1/3 '' CMOS 1.3MP Image Sensor
- 1280 x 720 Resolution
- 50 or 60 Frames Per Second (selectable)
- HD Analog Component: Y/Pb/Pr Video Output
- HD Analog RGB Video Output
- > 600 TV Lines
- RS-232C Controllable
- On Screen Display Setup
- Slow Shutter Functionality
- Digital Zooming Available
- 9-15 Volts DC
- Video Iris Control
- Weighs only 1.5oz (42 grams)
Videology 21B45
Mini CMOS Color Day/Night Board Camera
This camera offers NTSC/PAL (true two field) analog composite video output, ensuring high-quality video feeds suitable for various professional applications. Moreover, its computer controllability through I2C allows for seamless integration and easy operation within complex systems.
For enhanced versatility, the optional Day/Night feature with a standard IR-cut filter optimizes image quality in both day and night conditions, making the Videology 21B45 a reliable and efficient choice for sensitive monitoring requirements.

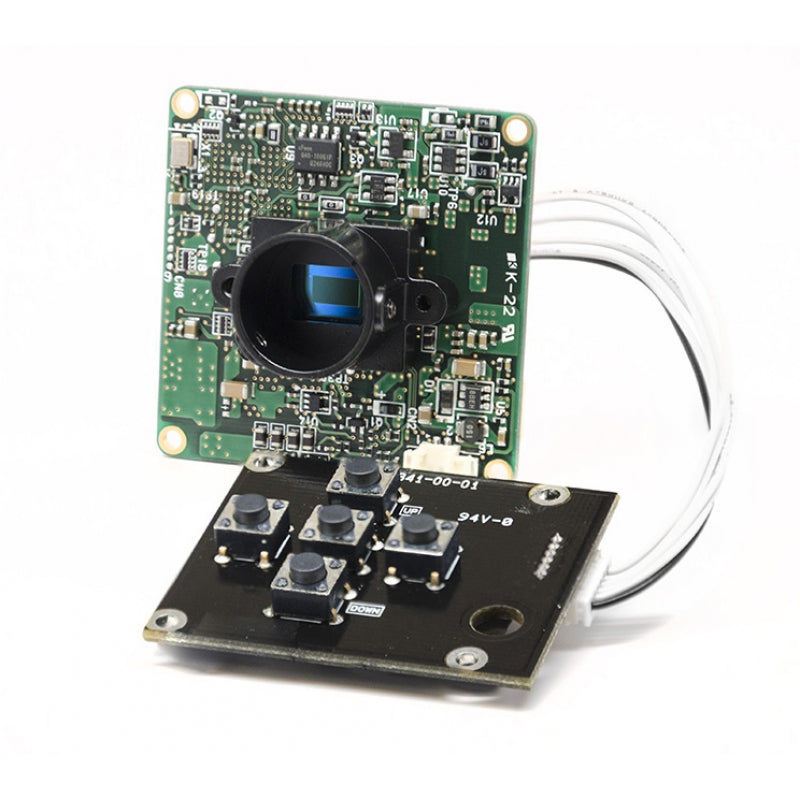

HD SDI Day/Night Board Camera
The RHPC-HDSDI-2.1 is the next generation in high-performance HD compact day/night board cameras.
This 2.1 Megapixel board camera boasts a high quality progressive scan Panasonic MOS image sensor.
Combined with a beautiful M12 mounted Vari-Focal lens (f=2.8~11.0mm), this camera captures beautiful images and video.
Capture Crisp HD Video up to 60fps
Capture images in 1920x1080 (1080p) at 30 frames per second or 1280x720 (720p) at 60 frames per second. The RHPC-HDSDI-2.1 provides HD-SDI (16:9) output over standard coaxial cable.
This allows easier upgrade installation over standard definition cameras. This saves the cost of re-cabling your installation with special HD or CAT5 cable. CVBS (4:3) (1.0Vp-p 75Ω) output in NTSC or PAL format is also available.
5 Key Push Button Switch for Camera Adjustments
|
|
Available as an optional accessory, we provide a 5 key push-button switch that allows camera adjustment via On Screen Display (OSD).
With this switch you can adjust several settings to control the picture quality of the board camera, which include: |
|
RHP-3GSDI-HDMI-S (sold separately)
3G/HD/SD-SDI to HDMI Video Converter with Scaling
|
Simultaneous 1 x HDMI and 2 x SDI Output Video Converter During the integration of your camera you may need a few things along the way. We currently have the RHP-3GSDI-HDMI-S which is a 3G/HD/SD-SDI to HDMI Converter with Scaling
|
What is 3G-SDI and HD-SDI? Generally spoken 3G-SDI is a successor technology to the well known and popular HD-SDI interface. It uses the same connectors and coaxial cables and is also completely downwards compatible. In a nutshell, it provides an increase in bandwidth which allows both higher resolutions and frame rates through a single connection. "Traditional" HD-SDI is a global standard, specified in SMPTE292M and allows HD video data to be transmitted as 10bit YUV (correctly: YCbCr) at 1.485 Gbit/s. Ancillary data such as time code and audio are embedded in the signal. Higher picture quality and frame rates such as RGB 4:4:4 or 50/60p can be realized through dual-link SDI connections. Dual link is also used for Stereo3D playback and record of two separate video streams in full resolution. |
|
What is HDMI? HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device.<1> HDMI is a digital replacement for existing analog video standards. Learn more » |
|
- 1/3" 960H SONY Double Scan Super HAD CCD ll
- 750 TVL Horizontal Resolution
- f = Pinhole, Board, DC IRIS (IR Remove) Varifocal Lens, C / CS (DC / Video)
- Manual / DC Iris Lens
- True Day & Night with ICR Mechanism
- Size: 1.5 x 1.5 inch (38 x 38 mm)
- Min. Illumination of 0.08 Lux (Color) / 0.04 Lux (B/W)
- 3D DNR / BLC / HLC / ATR / DSS / WDR /OSD
- 3x Digital Zoom
- DC 12V Power

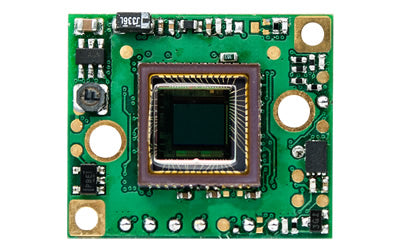

Videology 20C21XW
1/3 CMOS WDR Color Board Camera
The VIDEOLOGY 20C21XW 1/3" CMOS Color Camera stands out as a top-tier imaging solution with its impressive features. Equipped with a 1/3" CMOS color sensor, this camera delivers high-quality images with precision and clarity. Its ability to provide analog (CBVS) and digital (BT.656) video output simultaneously sets it apart, offering versatility in connectivity options.
Despite its powerful capabilities, the camera remains compact and resilient, housed in a miniature rugged 22mm x 26mm single board design. With a low 0.1 lux sensitivity, it ensures superior performance even in low-light conditions, capturing detailed footage with ease. Additionally, the inclusion of digital zoom, accessible via OSD or I2C option, enhances its functionality, allowing for precise adjustments to focus on specific details.
The VIDEOLOGY 20C21XW 1/3" CMOS Color Camera is a reliable and advanced tool for professionals seeking unparalleled imaging performance in various settings.

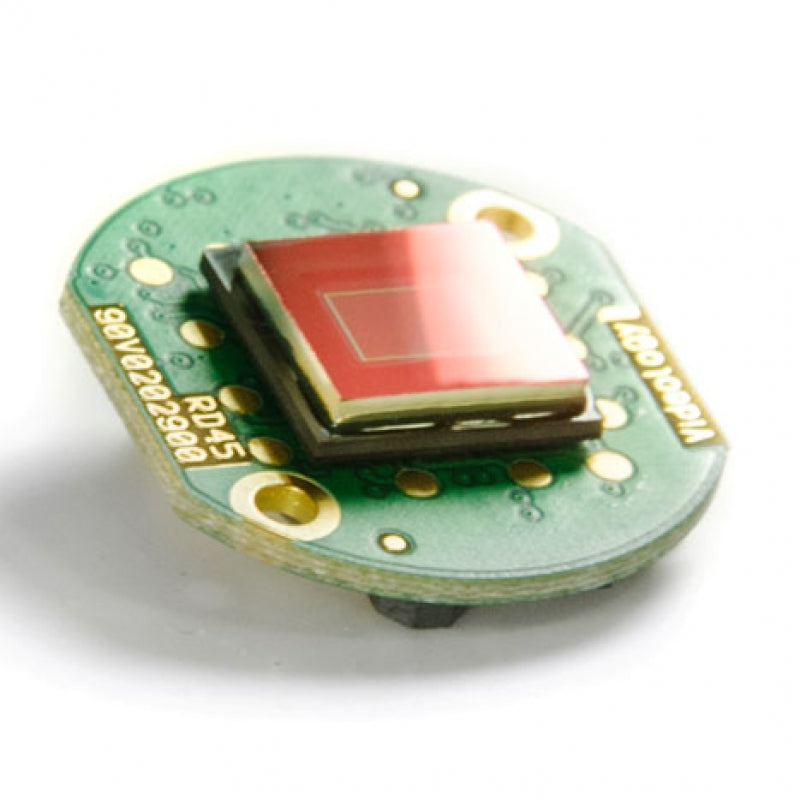

Videology 21RD45 - Round Color Board Camera, Ideal Miniature Size for Pipe Inspection
$190.00
Unit price perVideology 21RD45 - Round Color Board Camera, Ideal Miniature Size for Pipe Inspection
$190.00
Unit price perVideology 21RD45
Round Color Board Camera, Ideal Miniature Size for Pipe Inspection
The VIDEOLOGY 2XRD45 1/4" CMOS Round Color Board Camera, a professional-grade device equipped with a 1/4" CMOS color sensor that ensures exceptional image quality and clarity.
With an ultra-wide voltage range of 4.5VDC to 16VDC, this camera offers flexibility in power supply selection, catering to a variety of setups and configurations. Boasting high sensitivity at 0.3 lux, it excels in low-light conditions, delivering sharp and detailed footage in challenging environments. Additionally, the I2C control option allows for seamless customization of overlays and enables horizontal/vertical flip capabilities, giving users precise control over their imaging needs.
The VIDEOLOGY 2XRD45 sets a high standard for performance and versatility with inspection and monitoring applications.
RHPC-HD10
The RHPC-HD10 C/CS HD board camera features a 42mm x 42mm footprint unenclosed, 50/60fps (selectable), a 1/3" CMOS (1.3 Megapixel) image sensor, On Screen Display, Slow Shutter, Digital Zoom and more, this HD board camera is perfect for applications requiring 16:9 720p video.
Also note, C/CS lens mount allows the attachment of high quality lenses to the RHPC-HD10 HD board camera.
Features
- 42mm (W) x 42mm (L) x 34mm (H) Form Factor
- Compact HD board camera
- 1/3'' CMOS 1.3MP Image Sensor
- 1280 x 720 Resolution
- 50 or 60 Frames Per Second (selectable)
- HD Analog Component: Y/Pb/Pr Video Output
- HD Analog RGB Video Output
- > 600 TV Lines
- RS-232C Controllable
- On Screen Display Setup
- Slow Shutter Functionality
- Digital Zooming Available
- 9-15 Volts DC
- Video Iris Control
- Weighs only 1.5oz (42 grams)

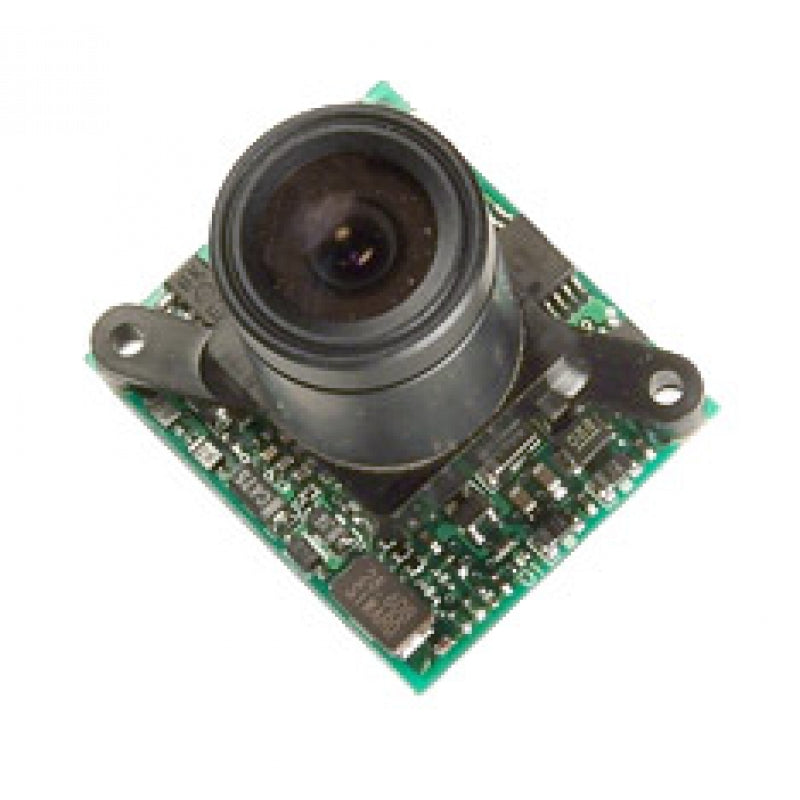

RHPC-1000
1/4" Standard Resolution Analog NTSC Color Board Camera
The RHPC-1000 is a standard resolution 1/4" CCD OEM board camera. With a 22x26mm single board base for the 1/4" image sensor, this camera is ideal for applications requiring a smaller platform. Using only a 5 Volt DC low power connection, this board camera can still provide great resolution, color, and quality video.
You can find the high resolution version of this board camera as the RHPC-2500. Both cameras provide excellent color video as extremely compact units.
The RHPC-1000 is the direct replacement for the Panasonic GP-KX161 (Standard Res) and the Panasonic GP-KX121 (Standard Res).
Board Camera Features
- 1/4" Color CCD
- 22x26 mm Single Board
- Extremely Compact
- High Resolution
- 5 volt DC Operation
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable via PC Software:
* PC Interface Required (RHPC-I2C with Software)
- Electronic Shutter
- Gain Control
- White Balance
- Color Balance
- Back light Compensation
- Mirror Effect
- Negative / Positive Image
- Monochrome (B&W) Mode
Videology 20RD45 - Round Color Board Camera, Ideal Miniature Size for Pipe Inspection
$190.00
Unit price perVideology 20RD45 - Round Color Board Camera, Ideal Miniature Size for Pipe Inspection
$190.00
Unit price perVideology 20RD45
Round Color Board Camera, Ideal Miniature Size for Pipe Inspection
The VIDEOLOGY 20RD45 1/4" CMOS Round Color Board Camera, a professional-grade device equipped with a 1/4" CMOS color sensor that ensures exceptional image quality and clarity.
With an ultra-wide voltage range of 4.5VDC to 16VDC, this camera offers flexibility in power supply selection, catering to a variety of setups and configurations. Boasting high sensitivity at 0.3 lux, it excels in low-light conditions, delivering sharp and detailed footage in challenging environments. Additionally, the I2C control option allows for seamless customization of overlays and enables horizontal/vertical flip capabilities, giving users precise control over their imaging needs.
The VIDEOLOGY 20RD45 sets a high standard for performance and versatility with inspection and monitoring applications.

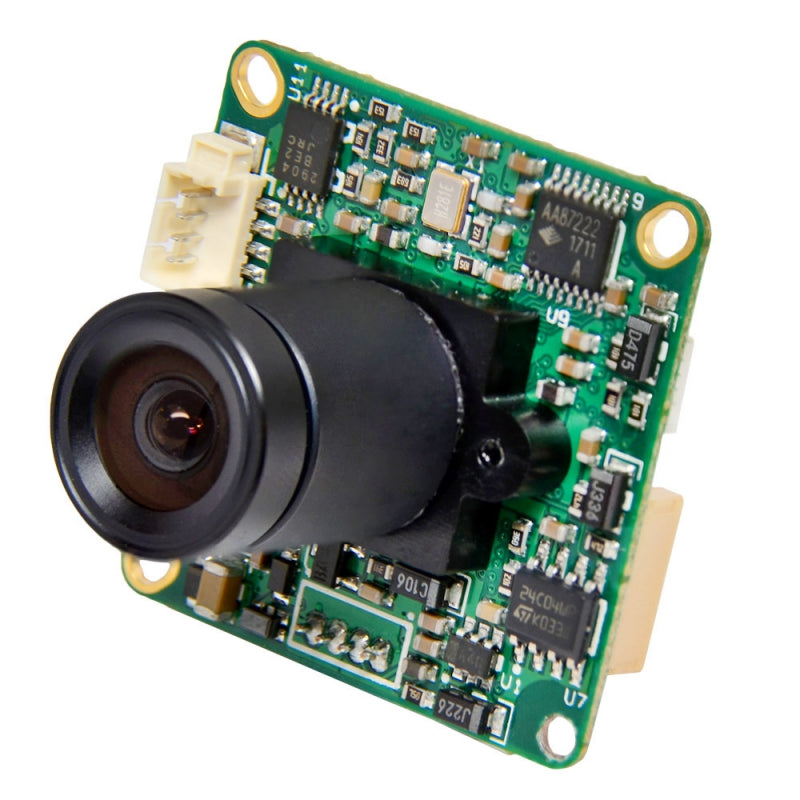

RHPC-920 Color Board Camera
The RHPC-920 is a high resolution 1/4" CCD color board camera. This 32x32mm compact single board form factor features 768(H) x 494(V) resolution, internal synchronization, 12 volts DC operation and parameters controllable via Connector include:
- Mirror Mode
- Flickerless Mode
- Auto Gain Control (AGC)
- Auto White Balance (AWB)
- Auto Level Control (ALC)
- Backlight Compensation (BLC)
With an array of lens options the RHPC-920 is ideal for many lightweight OEM applications.
32x32mm Compact Form Factor
Designed to fit into tight spaces, the RHPC-920 boasts a 32x32mm compact form factor
RHPC-1005
1/4" Standard Resolution Analog PAL Color Board Camera
The RHPC-1005 is a standard resolution 1/4" CCD OEM board camera. With a 22x26mm single board base for the 1/4" image sensor, this board camera is ideal for applications requiring a smaller platform. Using only a 5 Volt DC low power connection, this board camera can still provide great resolution, color, and quality video.
You can find the high resolution version of this camera as the RHPC-2500. Both cameras provide excellent color video as extremely compact units.
The RHPC-1005 is the direct replacement for the Panasonic GP-KX161 (Standard Res) and the Panasonic GP-KX121 (Standard Res).
Board Camera Features
- 1/4" Color CCD
- 22x26 mm Single Board
- Extremely Compact
- High Resolution
- 5 volt DC Operation
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable via PC Software:
* PC Interface Required (RHPC-I2C with Software)
- Electronic Shutter
- Gain Control
- White Balance
- Color Balance
- Back light Compensation
- Mirror Effect
- Negative / Positive Image
- Monochrome (B&W) Mode
