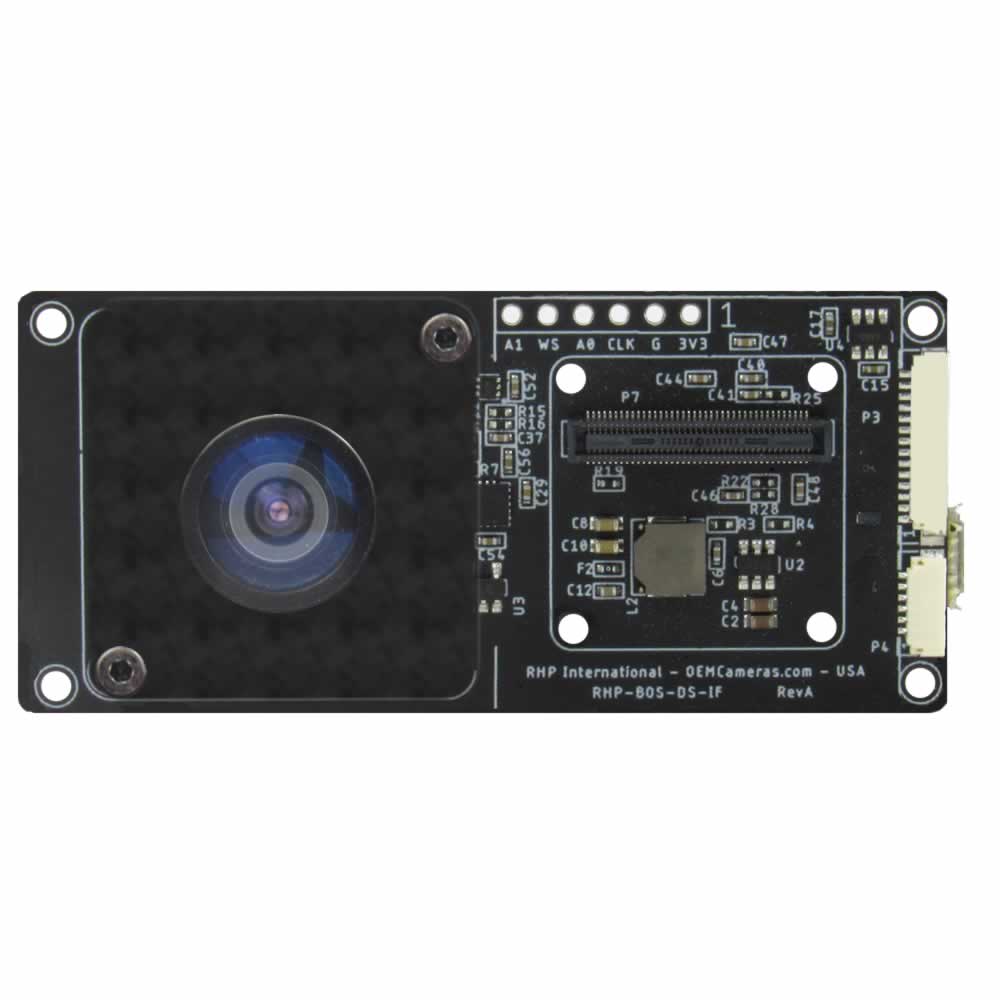

RHP-BOS-DS-IF
Boson Dual Sensor Interface
The RHP-BOS-DS-IF Dual Thermal Sensor Interface is an innovative solution that combines a Thermal and Visible Camera on one board. With Dual Camera Control via Serial Connection, it allows users to easily switch between thermal and visible imaging modes. The interface provides Push Button, SBUS, PWM or Wireless Joystick control, and works with 6 to 26 Volt DC power sources. The Multi Window Mode, PiP, Split View, Single and Quad view options make it easy to view video in various formats. The 1920 x 1080 HD Visible camera is included on board, along with an IMU for easy integration and gimbal compatibility.
Options for connecting the BOS-DS-IF are:
- USB
- S-Bus (16 Channels)
- PWM (5 channels)
Multiple window modes:
Picture in Picture mode
Allows you to view one camera in a small frame and the other camera in the background.
Single View mode
See the complete view of either camera on the screen.
Split View Mode
Monitor both streams shown side by side.
Change Parameters On-The-Fly!
Customize Your Control
Power Protection
RHP-BOS-DS-IF Dimensions

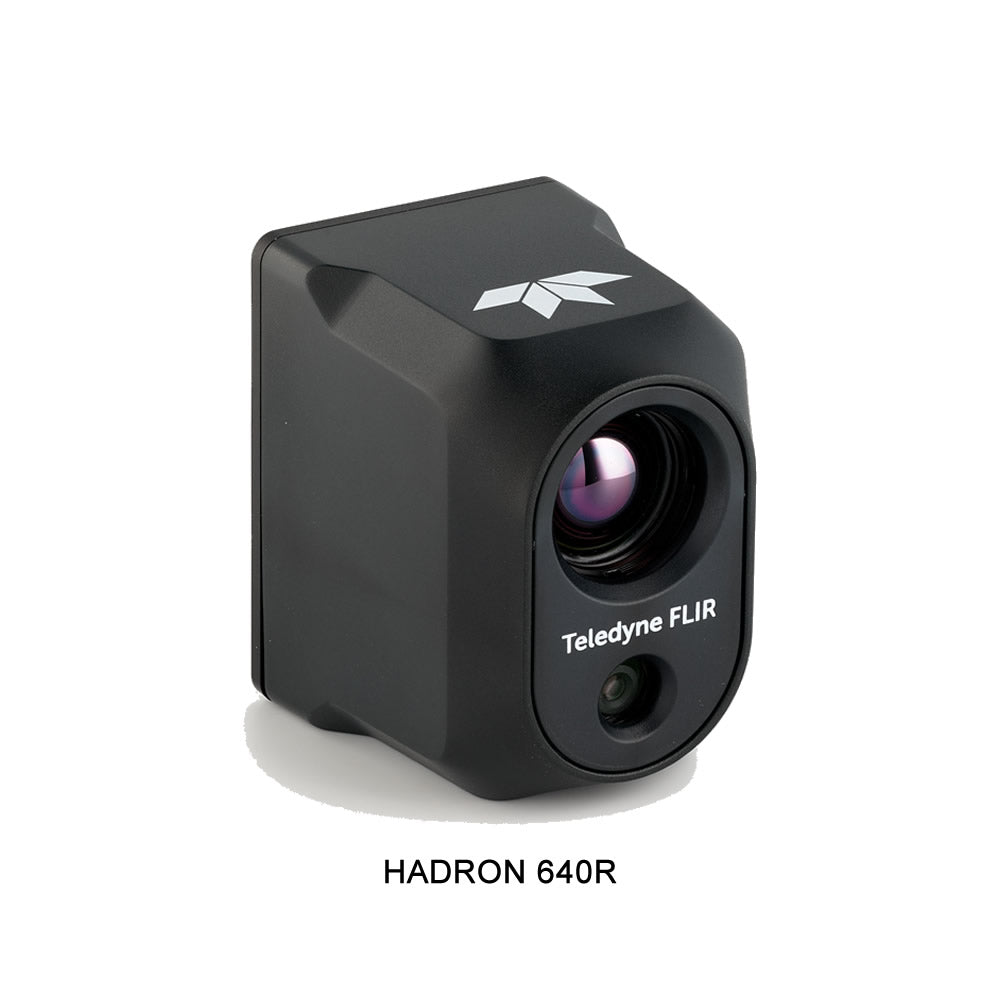

Teledyne FLIR Hadron 640R
High Performance, Dual Thermal and Visible OEM Camera Module
The ITAR-free Hadron 640 series pairs a 64MP visible camera with a performance-leading 640x512 resolution radiometric Boson® or Boson+ thermal camera in a single easy-to-integrate module. With a size, weight, and power (SWaP) optimized design, it is an ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and emerging AI applications utilizing Teledyne FLIR Prism™ software.
Hadron 640 models share mechanical and electrical interfaces simplifying design. Compatible with Teledyne FLIR’s Prism AI detection, tracking, and classification models and Prism ISP libraries for super-resolution, turbulence mitigation, contrast enhancement, and more, Hadron 640 series enables effective AI-based applications. With drivers available for market leading processors from NVIDIA®, Qualcomm®, and more plus industry-leading integration support, Hadron 640 also reduces development cost and shortens time to market.
INDUSTRY-LEADING THERMAL AND VISIBLE CAMERA PERFORMANCE
Collect high-speed, dual VGA radiometric thermal and HD visible imagery in all light conditions.
- AI-ready with Teledyne FLIR Prism AI and ISP
- 64MP visible camera resolution
- Flexible dual 60 Hz video output via USB or MIPI
- Available radiometric, 640x512 resolution
Boson+ provides industry leading NEDT of ≤20 mK
BUILT FOR INTEGRATORS
Reduce development cost and time to market with a solution from a single, reliable supplier.
- ITAR-free and classified under US Department of Commerce jurisdiction as ECCN 6A003.b.4.b
- Drivers and sample code available for NVIDIA Jetson Nano, Qualcomm RB5, and more
- Highly qualified, technical services team available to support integration
- Evaluate capabilities with Prism Development Kit for Qualcomm RB5
OPTIMIZE DESIGN AND OPERATION TIME WITH COMPACT, LIGHTWEIGHT, AND LOW-POWER MODULE
The performance, reliability and support expected from Teledyne FLIR and the industry’s most versatile HD+ MWIR camera portfolio.
- Low, steady state power consumption at 1.8W
- IP54-rated dust and water protection
- Lightweight 56g enables longer flight time and extends battery life
- Shared mechanical and electrical interface across all models

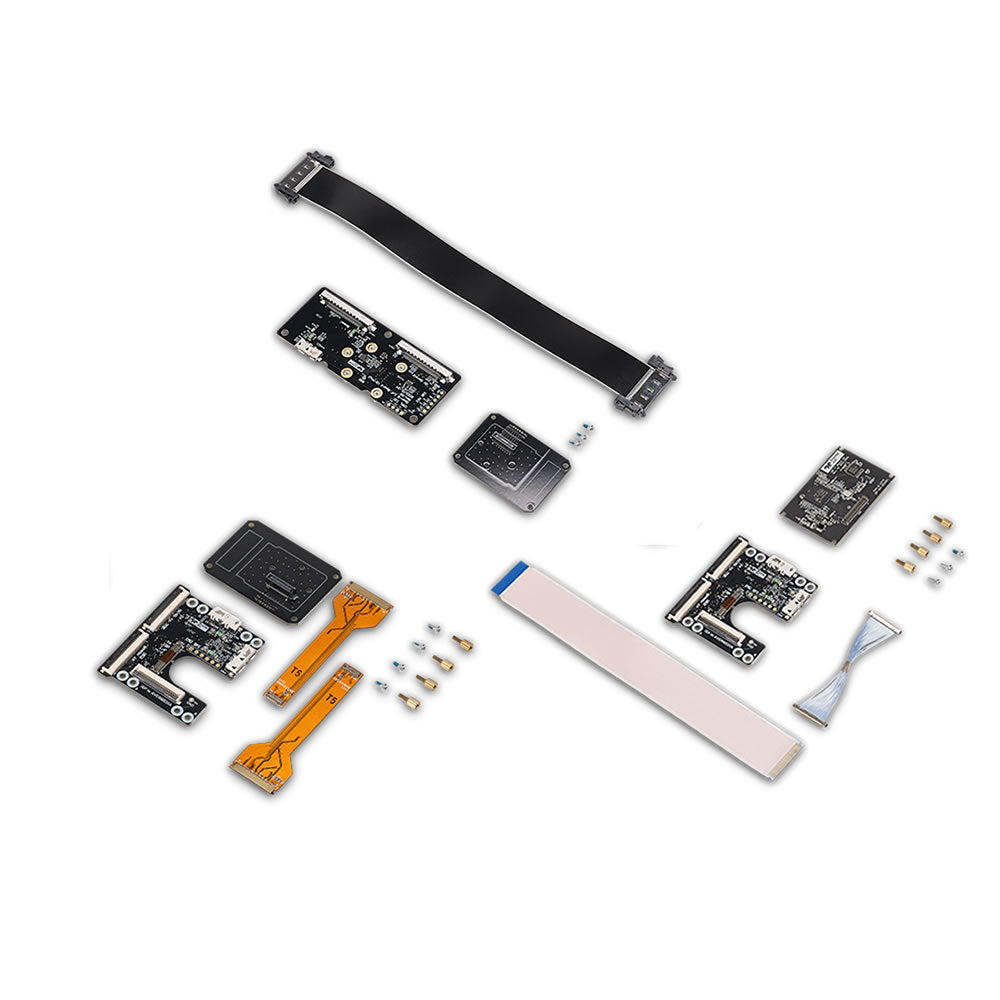

Hadron™ 640R Development Kits
High Performance, Dual Thermal and Visible OEM Camera Module
Hadron™ 640R development kits pair the performance-leading Hadron 640R with hardware and reference software drivers for quick integration with development boards supporting the Qualcomm RB5, the NVIDIA Jetson Nano, and the Qualcomm Snapdragon 865.
The development kits enable integrators to start imaging and controlling the infrared thermal and visible camera in hours, saving potentially weeks of development time and cost. Hadron 640R includes a 64 MP visible camera and a 640x512 resolution radiometric Boson® providing the ability to see through total darkness, smoke, most fog, and glare as well as take the temperature of every pixel in the scene.
With a size, weight, and power (SWaP) optimized design and the rapid development kits, the Hadron 640R is the ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and AI-ready applications where battery life and run-time are mission critical.
- Includes interface boards and cabling hardware (development board not included)
- Reference drivers available for specified development boards from Avermedia, Lantronix, and Qualcomm
- Supports Linux and Android development
- US-based technical services team available to support integration
- 64 MP visible camera resolution
- Compact, radiometric, 640 x 512 resolution Boson provides the temperature of every pixel
- Flexible dual 60Hz video output via USB or MIPI
- Low, steady state power consumption at 1.8W
- IP54-rated dust and water protection
- Lightweight 56g enables longer flight time and extends battery life

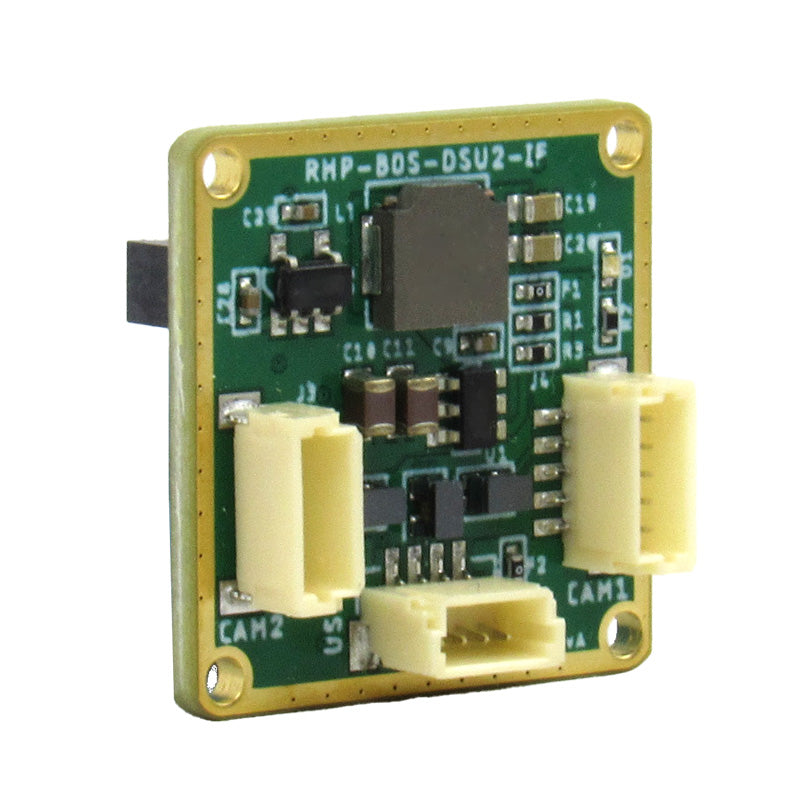

RHP-BOS-DSU2-IF
Dual Sensor Board for Boson and E/O
Enter a new realm of technological efficiency with the RHP-BOS-DSU2-IF Dual Sensor Board for Boson/Boson+ by RHP International.
This board offers Dual USB Video over a single interface for a seamless, high-quality display experience. Designed to be used with any combination of Boson/Boson+ using a custom bracket allows you to optically center the cameras ensuring unmatched precision imaging and reduced visual distortion.
This dual sensor Board features two additional USB ports to connect other sensors or cameras making it a versatile choice for multiple applications. Despite its capabilities, the device features a small form factor ensuring it adapts perfectly to any setup without occupying space. With a wide input range of 5-17 Volts DC, it becomes an ideal choice for Drone, UAV, and UGV Implementation.
The device requires no drivers for operation, offering a simplified plug-and-play experience. It is compatible with varied operating systems like Windows, Mac, and Linux adding to its versatility.
