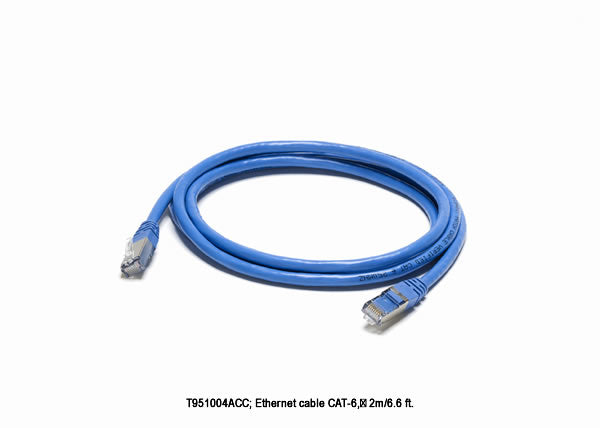

This cable is used to connect the infrared camera to Ethernet.
| Physical data | |
|---|---|
|
Weight
|
80 g (2.8 oz.)
|
|
Cable length
|
2.0 m (6.6 ft.)
|
|
Connector
|
RJ-45 to RJ-45
|
|
Cable type
|
CAT-6
|
| Shipping information | |
|---|---|
|
Packaging, type
|
Cardboard box
|
|
Packaging, weight
|
130 g (4.6 oz.)
|
|
Packaging, size
|
202 × 146 × 25 mm (8.0 × 5.7 × 1.0 in.)
|
|
EAN-13
|
7332558006320
|
|
UPC-12
|
845188006679
|
|
Country of origin
|
Sweden
|

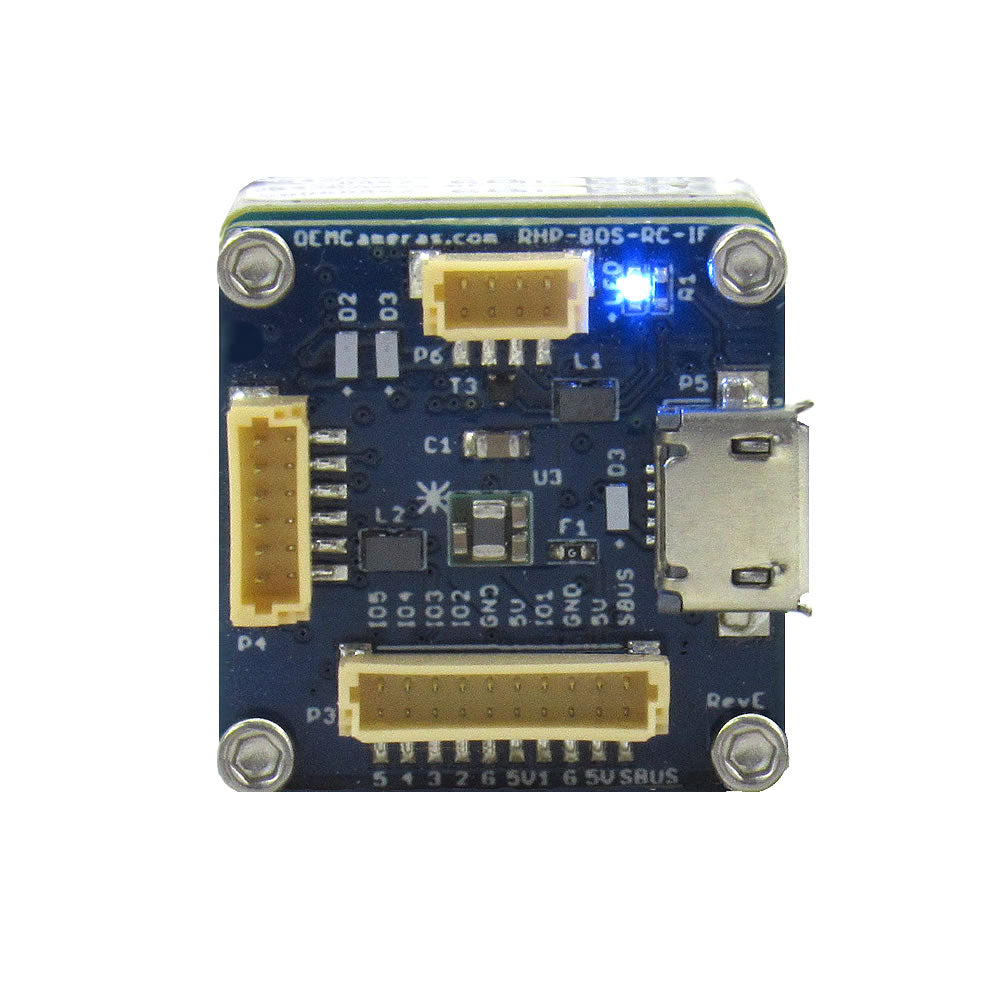

RHP-BOS-RC-IF
RC-IF Remote Control Interface for the FLIR Boson and Boson+
Ideal for sUAS and UAV operations, the RHP-BOS-RC-IF for FLIR Boson offers a streamlined way to control the FLIR Boson thermal imaging camera. Weighing only 5.8 grams, this device features 6 to 26 Volts DC Input with reverse polarity protection, ensuring safe and reliable operations. With the available S-Bus and PWM connections, drone pilots can easily manipulate their FLIR Boson parameters – Remotely! Additionally, this interface includes USB video support, two composite video outputs, and a USB video output for added convenience.
Integrating the Boson Thermal Camera into your UAS has never been easier.
Control the Boson Camera Remotely
The RHP-BOS-RC-IF allows you to control the Boson camera remotely using a 16 Channel S-Bus Signal or up to 5 PWM Signals from your wireless Joystick Remote Control System.
Assign Parameters
Any available parameter on the Boson can be assigned to knobs, switches or levers on a Joystick Remote Controller or direction pad and adjust camera parameters ‘on-the-fly’.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-RC-IF can be powered from the 4-Pin JST to USB or 6-Pin JST with a 5-26VDC power source
16 Channel S-Bus & 5 Channel PWM Remote Control Interface Module
- Control Camera Features Remotely
- Powers RC Wireless Receiver
- Wide Input Voltage Range
- Reverse Polarity Protection
- Dual Video Outputs
- Setup and Calibration Software Included

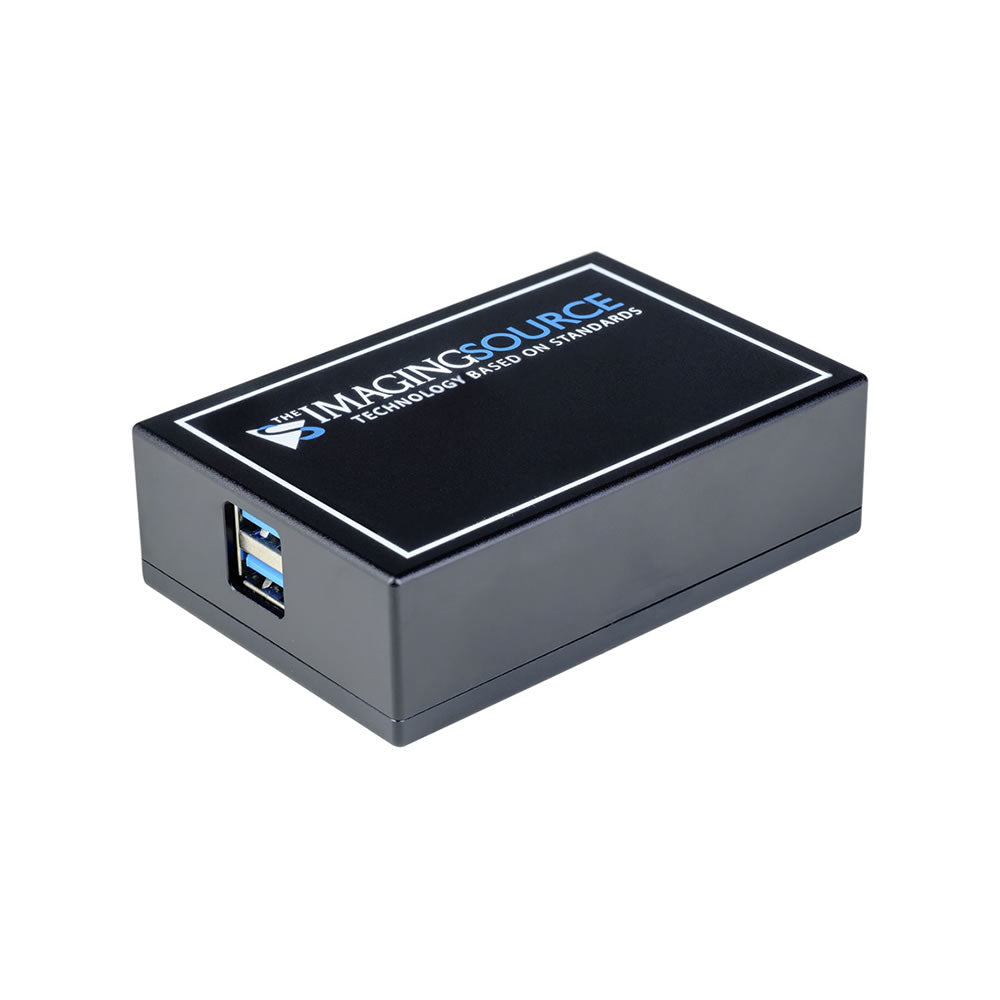

Imaging Source DFG/USB2pro
Video-to-USB 2.0 converter
Typical machine vision applications use dedicated computers to perform image processing and analysis.
Some simple monitoring and visualization tasks do not, however, require these levels of image processing. Such tasks are most efficiently solved by delivering images directly from camera to monitor—eliminating the need for and associated costs of dedicated computer hardware.
Expressly designed for this purpose, the USB-to-HDMI converter generates an HDMI signal from The Imaging Source’s USB3 camera image data. Camera settings like exposure and gain can be configured via an on-screen menu and are automatically restored on startup.
Features:
- Supports all DMK/DFK 33, 37 and 38 series cameras from The Imaging Source
- Supports resolutions up to 4K (3840x2160) at 15 fps; Full HD up to 60 fps
- Supports monitors up to 4K native resolution
- Easy-to-use on-screen menus for camera and display settings via USB keyboards

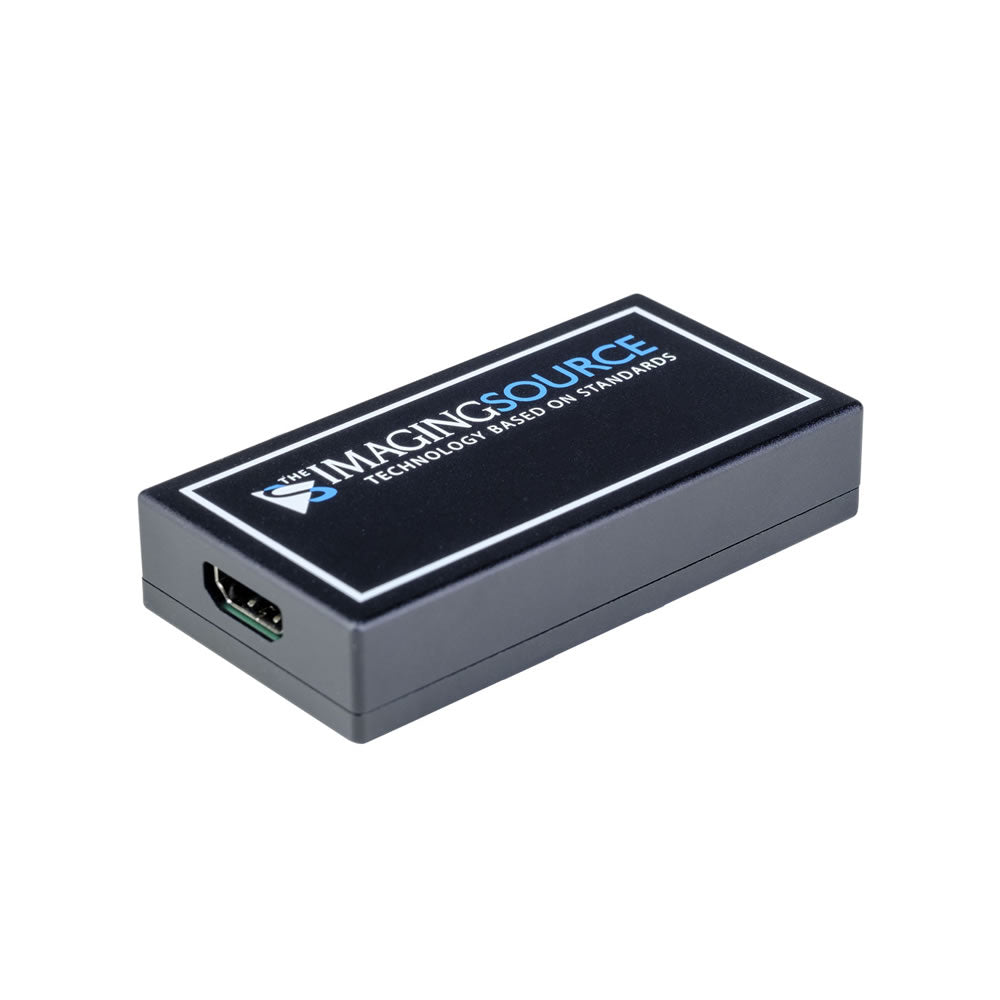

DFG/HDMI
HDMI-to-USB converter
Capture HD or 4K HDMI input signals through a standard USB 3.0 interface
The Imaging Source's HDMI-to-USB converter (DFG/HDMI) captures digital images from HDMI video sources such as medical and industrial imaging devices, computers and other video equipment. The uncompressed video signal can then be processed or recorded via The Imaging Source's free software tools: IC Measure, IC Capture and IC Imaging Control SDK. A selection of supported resolutions include 1920x1080 (Full HD) at 60 fps, 3840x2160 (4K) at 30 fps and 4096x2160 (4K) at 30 fps. This robust and cost-optimized converter is quickly connected and can be used with Windows or Linux-based operating systems.
The Imaging Source offers various video signal converters for a wide range of input signals and applications: Convert analog (PAL, NTSC, CCIR, EIA) or SDI video signals to digital image data streams; capture video signals from an HDMI source via USB 3.0 interface; reduce system footprint by directly connecting an HDMI display with any of The Imaging Source's USB industrial cameras using the USB-to-HDMI Converter.

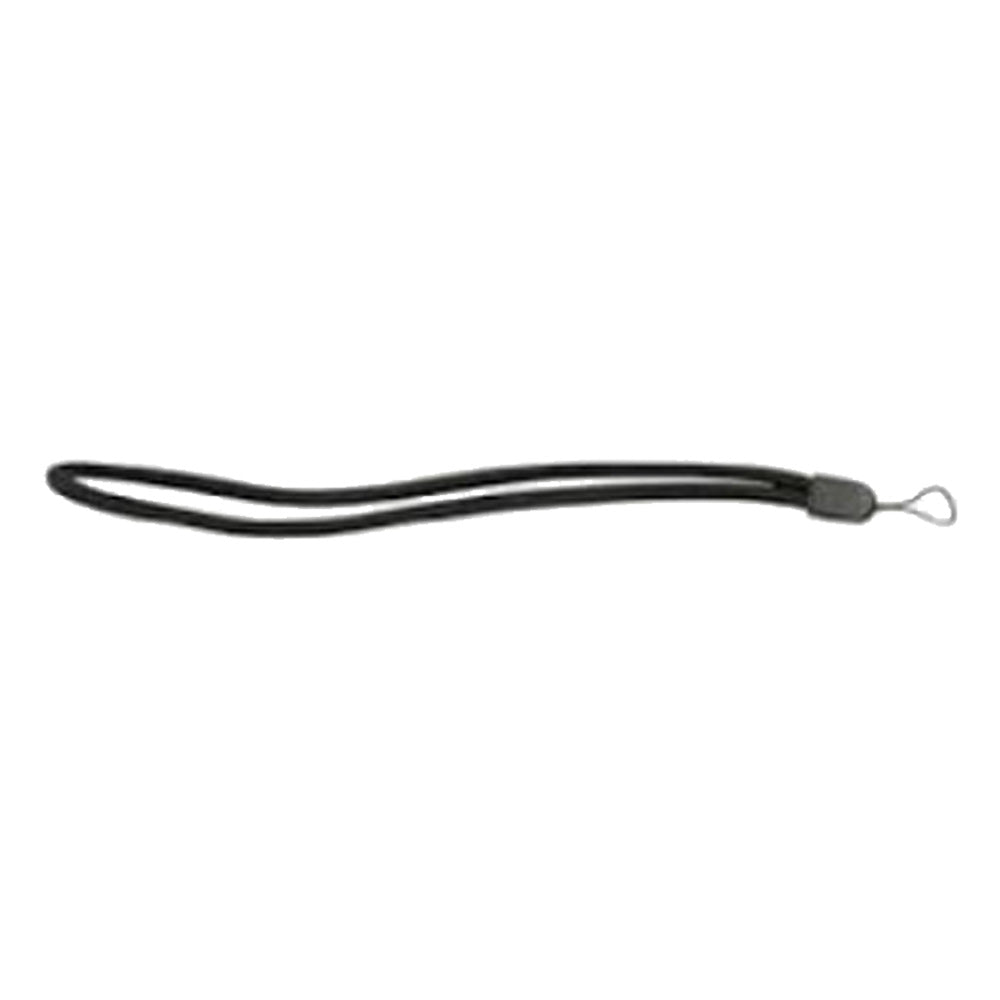

Black camera lanyard for Scout II Series
