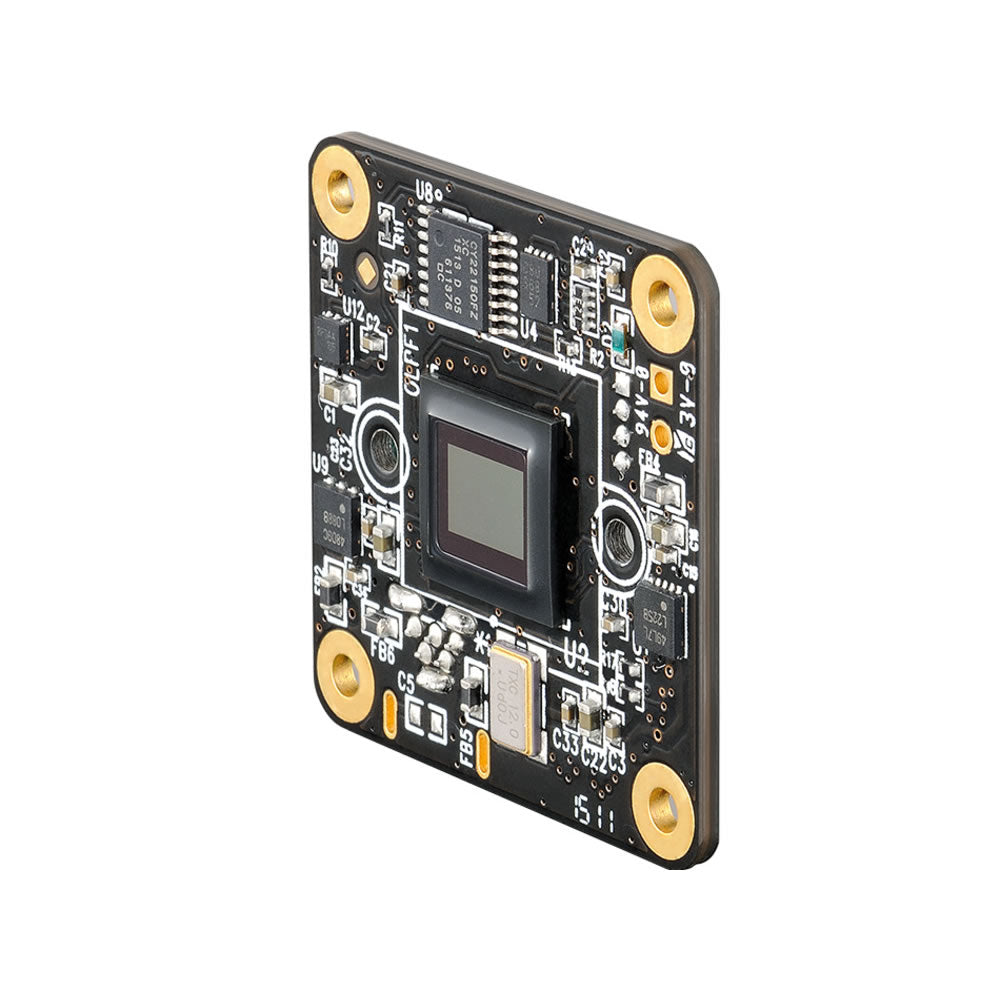

DFM 42BUC03-ML
USB 2.0 color board camera
The DFM 42BUC03-ML camera is a high quality USB 2.0 CMOS Color Board Camera with Trigger at an unbelievably low cost. With resolutions from 640x480 to 1280x960, this board camera can provide great detail in every image with its Progressive Scan CMOS CCD image sensor. Frame rates can reach up to 49 frames per second at 640x480.
With an amazingly compact 30(H) x 30(W) x 25(L)mm form factor, this cost effective USB board camera is one of the best cameras you will find. Drivers and Software are included with this camera. Please note, lens is not included.
Please note:
- Lens Mount and Lens Not Included
- This camera is also on a 2-4 week lead time on all new orders
System Requirements
- Pentium III/800 MHz, 128 MB of Ram
- Graphics Card with 24/32 bit Color
- Windows XP, Vista (32 & 64 bit) or Windows 7 (32 & 64 bit)
- DirectX 9.0c or Higher
| Resolution | Format | Frames Per Second (FPS) |
Sensitivity |
| 640x480 (RGB24/RGB32/Y800) |
1/5.5" | 49 | 2.0 V/lux-sec |
| 1024x768 (RGB24/RGB32/Y800) |
1/4" | 31 | 2.0 V/lux-sec |
| 1280x720 (RGB24/RGB32/Y800) |
1/3" | 33 | 2.0 V/lux-sec |
| 1280x960 (RGB24/RGB32/Y800) |
1/3" | 25 | 2.0 V/lux-sec |
| * Configurable with the shipped software | |||
DMM 42BUC03-ML
USB 2.0 monochrome board camera
The DMM 42BUC03-ML camera is a high quality USB 2.0 CMOS Monochrome Board Camera with Trigger at an unbelievably low cost. With resolutions from 640x480 to 1280x960, this board camera can provide great detail in every image with its Progressive Scan CMOS CCD image sensor. Frame rates can reach up to 49 frames per second at 640x480.
With an amazingly compact 30(H) x 30(W) x 25(L)mm form factor, this cost effective USB board camera is one of the best cameras you will find. Drivers and Software are included with this camera. Please note, lens is not included.
Please note:
- Lens Mount and Lens Not Included
- This camera is also on a 2-4 week lead time on all new orders
System Requirements
- Pentium III/800 MHz, 128 MB of Ram
- Graphics Card with 24/32 bit Color
- Windows XP, Vista (32 & 64 bit) or Windows 7 (32 & 64 bit)
- DirectX 9.0c or Higher
| Resolution | Format | Frames Per Second (FPS) |
Sensitivity |
| 640x480 (RGB24/Y800) |
1/5.5" | 49 | 2.0 V/lux-sec |
| 1024x768 (RGB24/Y800) |
1/4" | 31 | 2.0 V/lux-sec |
| 1280x720 (RGB24/Y800) |
1/3" | 33 | 2.0 V/lux-sec |
| 1280x960 (RGB24/Y800) |
1/3" | 25 | 2.0 V/lux-sec |
| * Configurable with the shipped software | |||

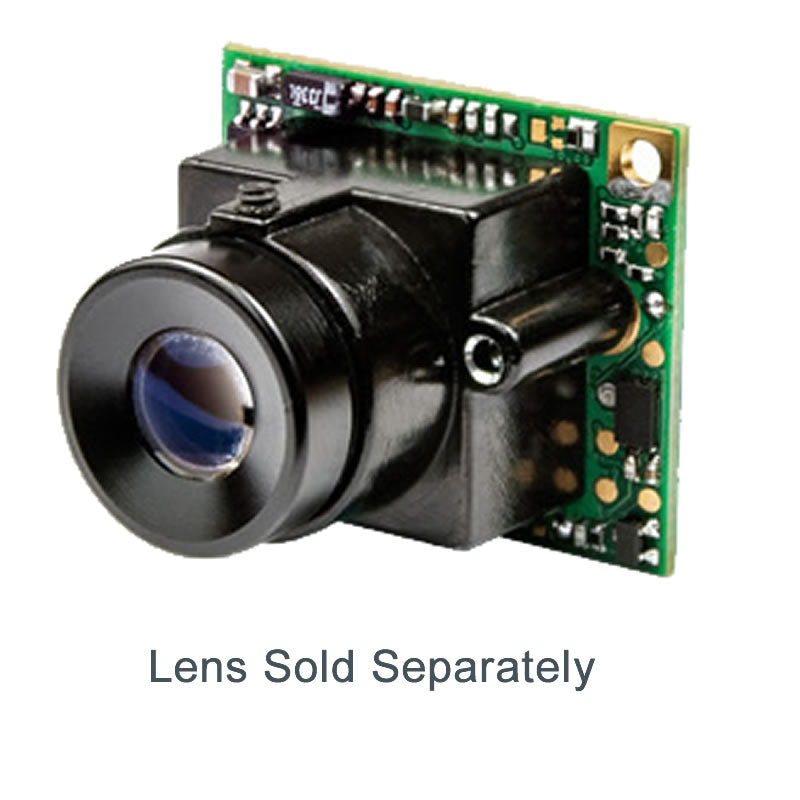

Videology 21C21XW
1/3 CMOS WDR Color Board Camera
The VIDEOLOGY 21C21XW 1/3" CMOS Color Camera stands out as a top-tier imaging solution with its impressive features. Equipped with a 1/3" CMOS color sensor, this camera delivers high-quality images with precision and clarity. Its ability to provide analog (CBVS) and digital (BT.656) video output simultaneously sets it apart, offering versatility in connectivity options.
Despite its powerful capabilities, the camera remains compact and resilient, housed in a miniature rugged 22mm x 26mm single board design. With a low 0.1 lux sensitivity, it ensures superior performance even in low-light conditions, capturing detailed footage with ease. Additionally, the inclusion of digital zoom, accessible via OSD or I2C option, enhances its functionality, allowing for precise adjustments to focus on specific details.
The VIDEOLOGY 21C21XW 1/3" CMOS Color Camera is a reliable and advanced tool for professionals seeking unparalleled imaging performance in various settings.
The Imaging Source DFM 37UX290-ML USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 2.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact design and support a variety applications.
The DFM 37UX290-ML color camera supports multiple pixel formats with variable bits per-pixel settings. The names of the pixel formats and the way to select them depends on the driver used to control the camera.
Imaging Source DFM 37UX273-ML
USB 3.1 Color Board Camera
The Imaging Source DFM 37UX273 USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
These cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy.
Additionally, the sensor size (1/2.9) means they can be combined with a variety of low-priced standard lenses available.
DFM 37UX265-ML
USB 3.1 color board camera
The Imaging Source DFK 37BUX265 USB 3.1 Color Industrial Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX265LQR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 3.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.
Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.
DFM 37UX252-ML
USB 3.1 color board camera
The Imaging Source DFM 37BUX252 USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX252LQR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 3.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.
Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.
DFM 37UX264-ML
USB 3.1 color board camera
The Imaging Source DFK 37BUX264 USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX264LQR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 5 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.
Additionally, their sensor size (2/3") means they are easily combined with a variety of low-priced standard industrial lenses available.
DFM 37UX178-ML
USB 3.1 color board camera
The Imaging Source DFK 37BUX178 ML USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Starvis (IMX178LQJ) rolling-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 6.3 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.
Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.
DFM 37UX250-ML
USB 3.1 color board camera
The Imaging Source DFM 37UX250-ML USB 3.1 color board cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX250LQR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 5 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.
Additionally, their sensor size (2/3") means they are easily combined with a variety of low-priced standard industrial lenses available.
DFM 37UX226-ML
USB 3.1 color board camera
The Imaging Source DFK 37UX226-ML USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony CMOS Starvis (IMX226CQJ) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.
The 12 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.
Additionally, the 1/1.7" sensor size means it can be easily combined with a variety of low-priced standard industrial lenses available.
Imaging Source DFM 37UX462-ML
USB 3.1 color board camera
The Imaging Source DFM 37UX462-ML USB 3.1 color board cameras are equipped with highly-sensitive, low-noise Sony STARVIS rolling-shutter sensor delivers outstanding image quality and good NIR sensitivity. The DFM 37UX462-ML camera can automatically control gain and exposure time. These automatic functions are enabled by default.
The USB3 Vision standard (USB 3.1- Gen. 1), ensures stability and compatibility for easy integration and flexible configuration. Even at high frame rates, the DFM 37UX462-ML delivers distortion-free images and are well-suited for applications such as intelligent traffic systems (ITS), automated optical inspection (AOI) and microscopy.
