Environmental Enclosure
for the Teledyne FLIR Boson
In today's technological world, it is crucial to protect your Teledyne FLIR Boson Thermal Imaging Camera from environmental factors that can lead to costly damages and loss of productivity. The RHP Boson Environmental Enclosure is a cutting-edge solution that ensures the safety and longevity of your valuable devices. With its IP67 rating and exceptional features, this enclosure is the ultimate choice for safeguarding your camera.
IP67 Rated Protection
One of the standout features of the RHP Boson Environmental Enclosure is its IP67 rating. This international standard certifies the enclosure's ability to provide complete protection against the intrusion of dust and water.
IP67 rating stands for:
- IP (Ingress Protection)
- 6 (dust-tight protection)
- 7 (protection to withstand temporary submersion in water up to depths of 150mm to 1000mm deep for 30 minutes).
Whether the Boson is operating in a dusty industrial environment or exposed to heavy rainfall in an outdoor setting, the Boson Environmental Enclosure guarantees uncompromised protection against these elements.
| Strength and Durability | The Boson Enclosure is made from black anodized machined aluminum, offering exceptional strength and durability. It keeps your device protected even in demanding environments. | |
| 40mm Diamond Coated Germanium Glass: Crystal Clear Vision | Features 40mm diamond-coated Germanium glass for crystal clear vision and precise temperature readings. The coating protects against scratches and damage for long-term use. | |
| Anti-Reflective Coating: Optimal Performance | Internal anti-reflective DLC coating minimizes glare and reflections, ensuring optimal performance even in bright lighting conditions. | |
| Easy Installation with Two x 1/4-20 Mount Points | Dual 1/4"-20 mounts allow flexible and easy installation on walls, ceilings, or other surfaces. | |
| Convenient Connectivity with 4-Pin Hirose to JST Connector | Provides a secure connection between the interface board and enclosure, ensuring reliable operation. | |
| 4-Pin to USB2 Cable Included: Seamless Integration | Includes a 4-pin to USB2 cable for easy setup and seamless integration into existing systems. |
RHP Boson LVDS Encoder Board
| VERSATILE POWER INPUT RANGE | 1080P OUTPUT | PROFILES TO SONY BLOCK CAMERAS |
| With the 5-26VDC input range (6V-26VDC recommended), this encoder board provides seamless power integration. It offers the convenience of power-over-LVDS interface capability, enabling efficient performance |
The output over LVDS ensures seamless integration with your current systems, preserving backwards compatibility. The LVDS IP Encoder enables ONVIF compliant output for enhanced connectivity options. | Auto power-up profile is specifically tailored for Sony block cameras, streamlining your workflow. |
| SPECIFICATIONS: | ||
| Power | 5-26VDC Input (6V-26VDC recommended) - Power over LVDS interface is possible. | |
| Video Output | Upscale video to 1080p and output over LVDS for backwards compatibility with existing systems | |
| Video Over Ethernet | Compatible with LVDS IP Encoder for ONVIF compliant output | |
| Size | Compatible with LVDS IP Encoder for ONVIF compliant output | |
| Weight | 13 grams | |
| Power Consumption | 0.25A @ 5V / 1.25W Max. | |
RHP-BOS-USBC-IF
Video Power Communication Interface
The Low Profile BOSON USB-C Interface Module for the Teledyne FLIR Boson Thermal Imaging Camera is a cutting-edge accessory designed to elevate the performance of the FLIR camera system. This professional-grade VPC Kit features a reversible USB-C connector, ensuring ease of use and compatibility with modern devices. Notably, the module seamlessly supports both USB2 and USB3 speeds, providing versatility for various applications.
The inclusion of Sync IO enables users to synchronize images with other devices, enhancing workflow efficiency. Moreover, this module empowers users to stream multiple 16-bit video streams at a full 60Hz, delivering crystal-clear imagery for detailed analysis.
Designed to enhance usability, it fits perfectly with the Boson Tripod mount, facilitating thermal heatsinking for prolonged usage without compromising performance. Furthermore, its design matches the FLIR USB-C USB 2.0 VPC Kit profile, ensuring seamless integration and backwards compatibility with existing systems, thus making it a vital addition for professionals seeking top-tier thermal imaging capabilities.
VPC Kit with Reversible USB-C Connector
The BOSON USB-C Interface Module comes equipped with a VPC kit that includes a reversible USB-C connector. This modern connector allows for easy and hassle-free connections, saving you time and effort. Whether you are transferring data or connecting to other devices, the VPC kit ensures a reliable and efficient experience every time.
Supports both USB2 and USB3 Speeds
One of the standout features of the BOSON USB-C Interface Module is its ability to support both USB2 and USB3 speeds. This versatility means that you can use the module with a wide range of devices, ensuring seamless compatibility with your existing setup. Say goodbye to compatibility issues and enjoy high-speed data transfer no matter what devices you are using.
Sync I/O for Image Synchronization
Do you need to synchronize images across multiple devices? The BOSON USB-C Interface Module has you covered with its Sync IO feature. This handy function allows you to synchronize images with other devices effortlessly, making it ideal for professional applications such as video editing, image processing, and more.
Stream Multiple 16bit Video Streams at Full 60Hz
For professionals working with high-quality video streams, the BOSON USB-C Interface Module is a game-changer. This module allows users to stream multiple 16bit video streams at full 60Hz, providing a smooth and uninterrupted viewing experience. Whether you are editing videos or streaming content, this module offers the performance you need.
Fits with Boson Tripod Mount for Thermal Heatsinking
Worried about overheating during long periods of use? The BOSON USB-C Interface Module is designed to fit seamlessly with the Boson Tripod Mount, providing thermal heatsinking capabilities. This ensures that your module stays cool and reliable even during extended use, giving you peace of mind and uninterrupted performance.
Matches FLIR USB-C USB 2.0 VPC Kit Profile
Compatibility is key, especially when it comes to technology. The BOSON USB-C Interface Module matches the FLIR USB-C USB 2.0 VPC kit profile, ensuring seamless compatibility with existing systems. Whether you are upgrading your setup or integrating new devices, this module offers the flexibility you need without any compatibility issues.
RHP-BOS-VPC-IF
Video Power Communication Interface
The RHP Boson VPC Interface is a remarkable low profile electronic module geared towards offering simple integration with the FLIR Boson. Its cutting-edge design includes reverse polarity protection, which secures your device from any irreversible damage due to voltage. It features 5 to 26v input, a vital function that enables this interface module to deliver consistent power for extended use.
Its USB video support allows you to stream video via USB, and the Sync in/out ensures synchronization with other devices. Experience seamless performance with this efficient and dependable interface module.
Simple Integration
The Low Profile Boson VPC Interface Module simplifies integration. Two alternate Video & Power connections on the Low Profile Boson VPC Interface Module allows for a variety of installation options.
FLIR Boson GUI Friendly
You can adjust all the parameters available on the FLIR Boson using the FLIR Boson GUI when connected to your PC via the supplied USB cable.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-VPC-IF can be powered from the alternate 6-Pin JST ports to USB or a 5-26VDC power source
* Please Note: External Sync is disabled on Boson ≤9Hz Cameras.
The use of external sync on these cameras is not supported because pulses cannot be correlated to a specific output frame because of the way the reduced frame rate video is created. If attempted, the camera will reject commands to begin external sync mode.
This kit includes:
- 6-PIN JST to USB/RCA Video cable (x1)
- 6-PIN JST to Bare End Leads (x2)
- M1.6 Screws (x4)
- Allen Key (x1)
- RHP BOS VPC-IF Board (x1)
- Quick Start Guide (x1)
| Power Requirements: | 5 Volts DC - 25 Volts DC |
| Power Dissipated: | Avg. 0.84W - Max. 2W |
| Dimensions: | 21mm x 21mm |
| Weight: | 3 grams |
| Control: | USB 2.0 |
| Video Output: | NTSC 30Hz / PAL 25Hz (switchable via GUI) |
RHP-BOS-VPC3-IF - USB3
Video Power Communication Interface
Introducing the Low Profile VPC Interface Module, specifically designed for the FLIR Boson. With improved heat dissipation, this module ensures optimal performance in even the most demanding environments. With Video Power & Communication support and reverse polarity voltage protection, this module is compatible with power ranging from 5 to 26 volts DC. Power can be supplied via USB3, and video support is also available through USB3. Stream video to a PC via USB3 and enjoy seamless Sync-In/Out capabilities with this state-of-the-art interface module.
Simple Integration
The Low Profile Boson VPC Interface Module simplifies integration. Two alternate Video & Power connections on the Low Profile Boson VPC Interface Module allows for a variety of installation options.
FLIR Boson GUI Friendly
You can adjust all the parameters available on the FLIR Boson using the FLIR Boson GUI when connected to your PC via the supplied USB cable.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-VPC-IF can be powered from the alternate 6-Pin JST ports to USB or a 5-26VDC power source
* Please Note: External Sync is disabled on Boson ≤9Hz Cameras.
The use of external sync on these cameras is not supported because pulses cannot be correlated to a specific output frame because of the way the reduced frame rate video is created. If attempted, the camera will reject commands to begin external sync mode.
This kit includes:
- 6pin JST (USB2.0 + Sync)
- 7pin JST (USB3)
- M1.6 Screws (x4)
- Allen Key (x1)
- RHP BOS VPC3-IF Board (x1)
- Quick Start Guide (x1)
| Power Requirements: | 5 Volts DC - 25 Volts DC |
| Power Dissipated: | Avg. 0.84W - Max. 2W |
| Dimensions: | 21mm x 21mm |
| Weight: | 3 grams |
| Control: | USB 3.0 |
| Video Output: | 6pin JST (USB2.0 + Sync) and 7pin JST (USB3) |
RHP-BOS-RC-IF
RC-IF Remote Control Interface for the FLIR Boson and Boson+
Ideal for sUAS and UAV operations, the RHP-BOS-RC-IF for FLIR Boson offers a streamlined way to control the FLIR Boson thermal imaging camera. Weighing only 5.8 grams, this device features 6 to 26 Volts DC Input with reverse polarity protection, ensuring safe and reliable operations. With the available S-Bus and PWM connections, drone pilots can easily manipulate their FLIR Boson parameters – Remotely! Additionally, this interface includes USB video support, two composite video outputs, and a USB video output for added convenience.
Integrating the Boson Thermal Camera into your UAS has never been easier.
Control the Boson Camera Remotely
The RHP-BOS-RC-IF allows you to control the Boson camera remotely using a 16 Channel S-Bus Signal or up to 5 PWM Signals from your wireless Joystick Remote Control System.
Assign Parameters
Any available parameter on the Boson can be assigned to knobs, switches or levers on a Joystick Remote Controller or direction pad and adjust camera parameters ‘on-the-fly’.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-RC-IF can be powered from the 4-Pin JST to USB or 6-Pin JST with a 5-26VDC power source
16 Channel S-Bus & 5 Channel PWM Remote Control Interface Module
- Control Camera Features Remotely
- Powers RC Wireless Receiver
- Wide Input Voltage Range
- Reverse Polarity Protection
- Dual Video Outputs
- Setup and Calibration Software Included

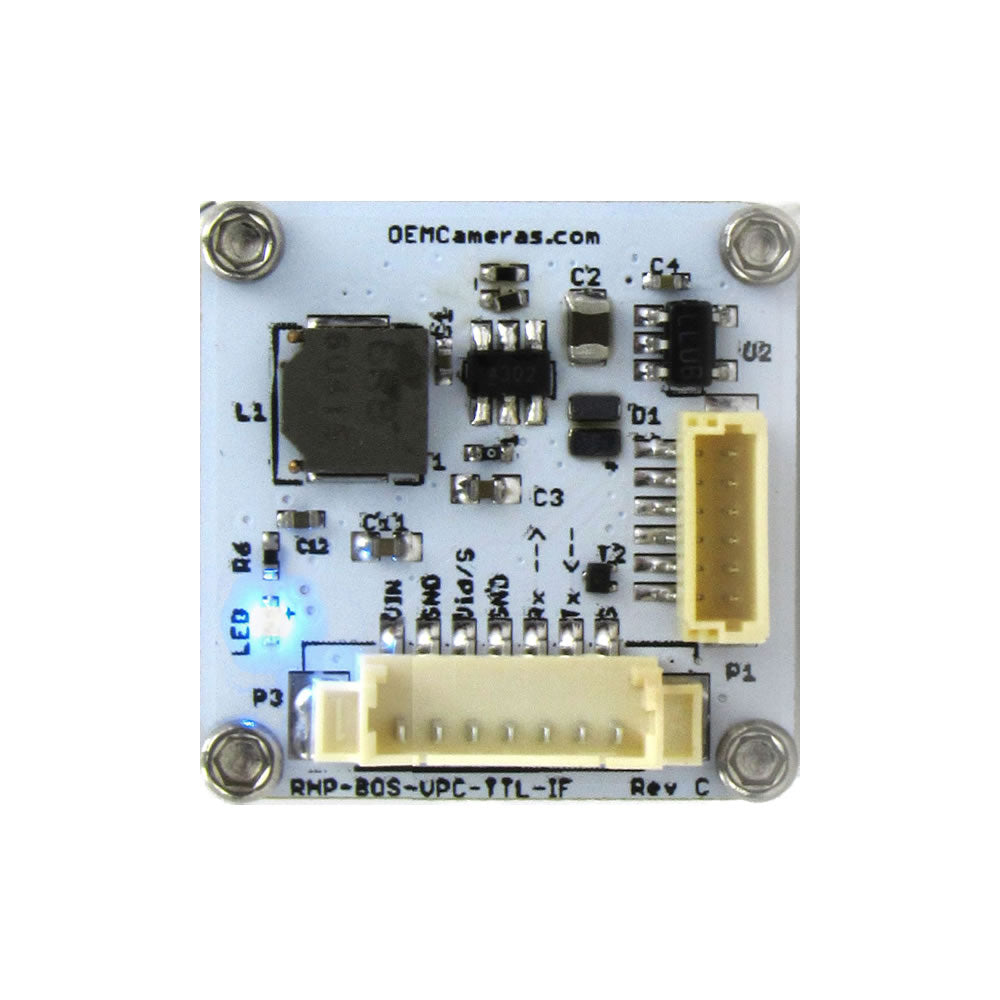

RHP-BOS-VPC-TTL-IF
Video Power Communication (VPC) Transistor-Transistor Logic Interface Module
The RHP BOS VPC TTL Interface is an indispensable module for achieving cohesive and uninterrupted video communication. Its low-profile design boasts both USB and TTL connection capability, rendering it an effortless interface for video and power communication needs. In addition to its user-friendly functionalities, this interface module ensures consistent and dependable performance, courtesy of its reverse polarity protected 5-26 volt input. Furthermore, the VPC TTL Interface Module offers added versatility with two composite video outputs and an alternate USB video output. Sync can also be enabled in lieu of video output, for one or both connectors.
Power Protection
With the intelligent polarity sensing protection, power can be provided via the USB connection or DC Voltage using the provided 6-Pin Video/Power cable or the 7-Pin Pico Blade cable.
3 Video Output Options
Video can be viewed through either the supplied JST to USB/Video cable, JST to Bare End Lead cable or 7-Pin Pico Blade to Bare End Lead cable.
Sync Ready*
Either video output can be changed to provide Sync Input/Output, via a jumper on the back of the RHP-VPC-TTL Board.
Control is maintained over USB or 3.3V TTL signals. This makes TTL Support available for any project integration.
*Please Note: External Sync is disabled on Boson <9 Hz Cameras.
The use of external sync on these cameras is not supported because pulses cannot be correlated to a specific output frame because of the way the reduced frame rate video is created. If attempted, the camera will reject commands to begin external sync mode.
This kit includes:
- 6-PIN JST to USB/RCA Video cable (1)
- 6-PIN JST to Bare End Leads (1)
- 7-PIN PICO Blade to Bare End Leads (1)
- M1.6 6mm Screws (4)
- M1.6 10mm Screws (4)
- Rear Cover for VPC-TTL Board (1)
- Allen Key (1)
- RHP VPC-TTL-IF Board (1)
- Quick Start Guide (1)
| Power Requirements: | 5 Volts DC - 26 Volts DC |
| Power Dissipated: | Avg. 0.84W - Max. 2W |
| Dimensions: | 21mm x 21mm |
| Weight: | 3 grams |
| Control: | USB 2.0 and/or 3.3V TTL (1.8V Logic Available) |
| Video Output: | NTSC 30Hz / PAL 25Hz |
| Sync Output: (if configured) | Master/Slave |

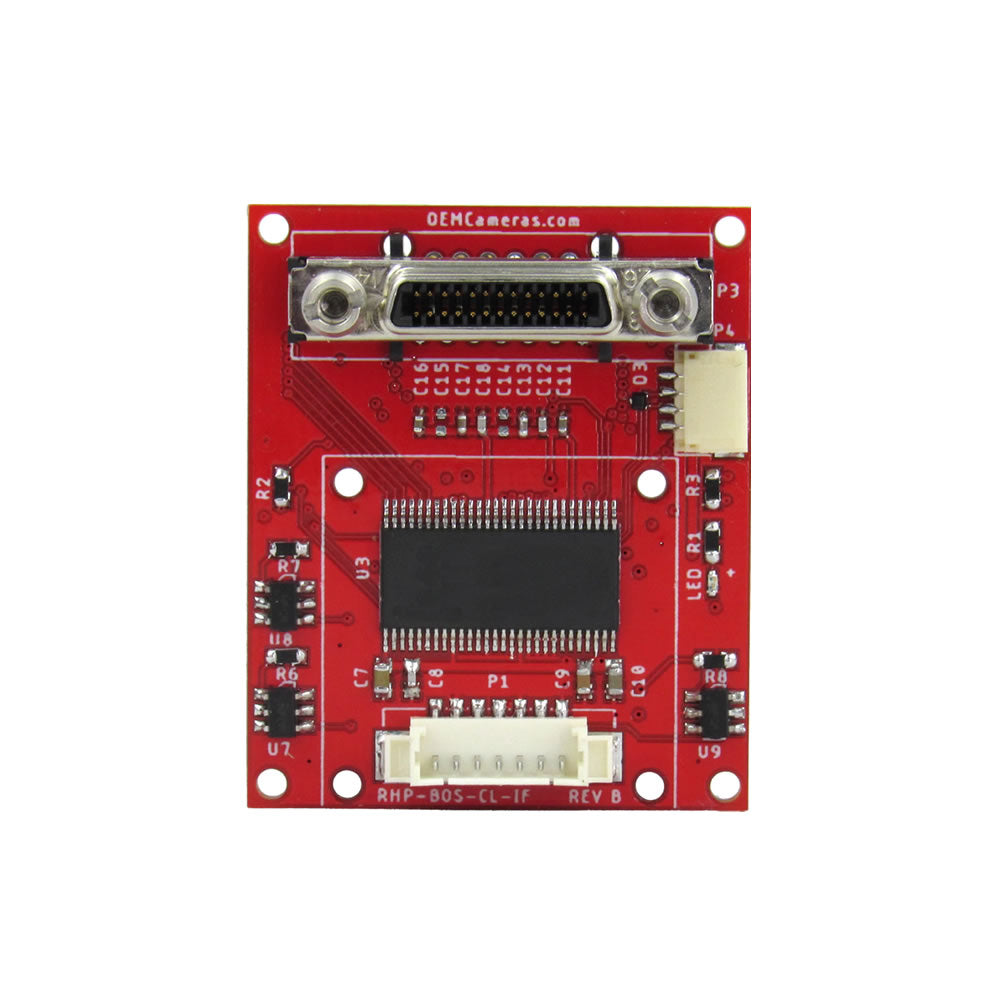

RHP-BOS-CL-SY-IF
Camera Link Module
The RHP Boson Camera Link Interface Board offers both versatility and power. Its SDR-26 Base Mode Video Output, combined with a wide input voltage range of 5-26VDC, makes it an ideal choice for many different applications. With multiple power inputs and Reverse Polarity Protection, it is a reliable option. Additionally, the Master/Slave Sync Option allows for even greater flexibility. The USB Video and Control, as well as the 3.3V TTL/UART Control, make managing every aspect an easy task. Moreover, this board is fully compatible with the Boson Tripod Mount Adapter.
Master Mode
With External Sync Master mode, a Boson camera sends output pulses that indicate to external equipment when frame data acquisition has begun. This output will be at approximately 60 Hz.
Sync Mode
With External Sync Master mode, a Boson camera sends output pulses that indicate to external equipment when frame data acquisition has begun. This output will be at approximately 60 Hz.
Slave Mode
When the External Sync State is in Slave mode, external equipment sends reference pulses to the Boson camera which begin the acquisition of each video frame by the Boson camera. The input signal rate ideally matches the nominal video acquisition rate of the Boson camera.
Please Note: External Sync is disabled on Boson ≤9Hz Cameras.
The use of external sync on these cameras is not supported because pulses cannot be correlated to a specific output frame because of the way the reduced frame rate video is created. If attempted, the camera will reject commands to begin external sync mode.
Camera Link + Sync (30Hz Only)
It is also possible to enable master/slave sync communication with the RHP-BOS-CL-SY-IF Camera Link module.
The Master/Slave Sync Option allows the Boson to be connected in parallel with a 3.3v buffered port.
The BOS-CL-SY-IF’s microcontroller circuit provides a 3.3V TTL/UART (Universal Asynchronous Receiver/Transmitter) Control to transmit and receive serial data.
Designed with
Implementation in mind
Our development team works hard to create functional and practical products with implementation.
The BOS-CL-SY-IF design allows it to be mounted to the FLIR Boson Tripod Bracket. which provisions for standard 1/4" x 20 tripod mounting.
The footprint of the tripod bracket can easily be adapted for custom mounting use.
Command and Control
The camera uses serial communication at 921600 Baud by creating a virtual COM Port on your computer for USB communications.
The BOS-CL-SY-IF USB Video and Control can be performed through the FLIR Camera Controller Graphical User Interface (GUI) , which enables remote command and control of Boson.
Power Protection
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-CL-SY-IF can be powered in multiple ways:
- 4-pin JST to USB cable (provided) to allow standard 5VDC (up to 26VDC).
- 7-pin pico blade connector with voltages ranging from 5-26VDC for both the camera and interface.
RHP-BOS-RC-HD-IF
Integrate the Teledyne FLIR Boson into your UAS.
The RHP BOSON RC-HD-IF REMOTE CONTROL INTERFACE is the perfect solution where HD thermal Video is needed. With 6 to 26 Volts DC input, HD and Composite outputs, and Reverse Polarity Protection, this interface is built for durability. Control the interface with an RC Receiver, enjoy USB Video Support, and take advantage of features like S-Bus & PWM compatibility and compatibility with most digital HDMI transmitters. Paired with the Setup and Calibration Software and a weight of only 12 grams, this interface is easy to install and perfect for any use case.
The RHP-BOS-RC-HD-IF is used to control the Boson camera remotely using a 16-channel S-Bus signal or up to 5 PWM signals from your wireless joystick remote control system. It allows for the assignment of available parameters on the Boson to any knob, switch, or lever on your remote controller, giving you the ability to adjust camera parameters on-the-fly. The module can accept a wide input voltage range of 6 to 26 Volts DC with reverse polarity protection while powering your Remote Control receiver with a regulated 5 Volts DC. It has both HD and composite video outputs, enabling it to connect to two separate video devices with no signal loss. With the HD video output, video signal can be transmitted securely through a video transmitter in 720 or 1080p, while the analog output makes it possible to connect to a recording device.
Customize and Save Configurations
Save configurations for different applications.
• Control via PC
• 16 Channels (S-Bus)
• 5 Channel PWM.
• 5 Channel D-Pad.
• Customize and Assign parameters.
Video Outputs
Output video signals to Analog and HD simultaneously.
• Composite Output
for use with analog transmitters.
• HD Output
use with the latest digital technology.
• Ideal for digital SD recording devices
Control the Boson Remotely
Assign any available parameter on the Boson for ‘on-the-fly’ control.
• Continuous Digital Zoom
• Color Palette Selection
• (FFC)Flat Field Correction
• (DDE)Digital Detail Enhancement
• Wired or Wireless control
RHP-BOS-DS-IF
Boson Dual Sensor Interface
The RHP-BOS-DS-IF Dual Thermal Sensor Interface is an innovative solution that combines a Thermal and Visible Camera on one board. With Dual Camera Control via Serial Connection, it allows users to easily switch between thermal and visible imaging modes. The interface provides Push Button, SBUS, PWM or Wireless Joystick control, and works with 6 to 26 Volt DC power sources. The Multi Window Mode, PiP, Split View, Single and Quad view options make it easy to view video in various formats. The 1920 x 1080 HD Visible camera is included on board, along with an IMU for easy integration and gimbal compatibility.
Options for connecting the BOS-DS-IF are:
- USB
- S-Bus (16 Channels)
- PWM (5 channels)
Multiple window modes:
Picture in Picture mode
Allows you to view one camera in a small frame and the other camera in the background.
Single View mode
See the complete view of either camera on the screen.
Split View Mode
Monitor both streams shown side by side.
Change Parameters On-The-Fly!
Customize Your Control
Power Protection
RHP-BOS-DS-IF Dimensions
RHP IP LVDS Encoder Board
The RHP IP LVDS Encoder Board converts high-speed LVDS digital video into a fully networked IP video stream, enabling seamless integration with LAN-based and ONVIF-compliant systems. Designed for embedded and industrial applications, the encoder delivers high-quality H.264 or MJPEG video with multi-stream support, flexible bitrate control, and real-time network distribution. Ideal for systems requiring remote access, recording, and analytics, the RHP IP LVDS Encoder Board bridges sensor-level video to modern IP infrastructures with minimal latency and maximum compatibility.
The RHP IP LVDS Encoder Board is used to encode LVDS digital video such as output from a thermal or visible imaging sensor into an IP-based video stream for transmission over standard Ethernet networks. By converting raw video into H.264 or MJPEG streams, the board enables direct connection to network video recorders (NVRs), monitoring software, ONVIF-compatible systems, and custom applications. This allows imaging data to be viewed, recorded, analyzed, or distributed across local or remote networks, making it ideal for surveillance, industrial monitoring, and embedded vision systems where centralized access and scalability are required.
Software & Compatibility
SDK Support: ONVIF
Standards Compliance: IPv4, HTTP, UPnP, DNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP, Visca over IP (HTTP)
|
Applications: |
||
| Networked thermal and visible surveillance systems | Industrial process monitoring | Remote inspection and diagnostics |
| Embedded vision platforms with IP backhaul | Research, testing, and development systems | Edge devices feeding centralized analytics or AI servers |

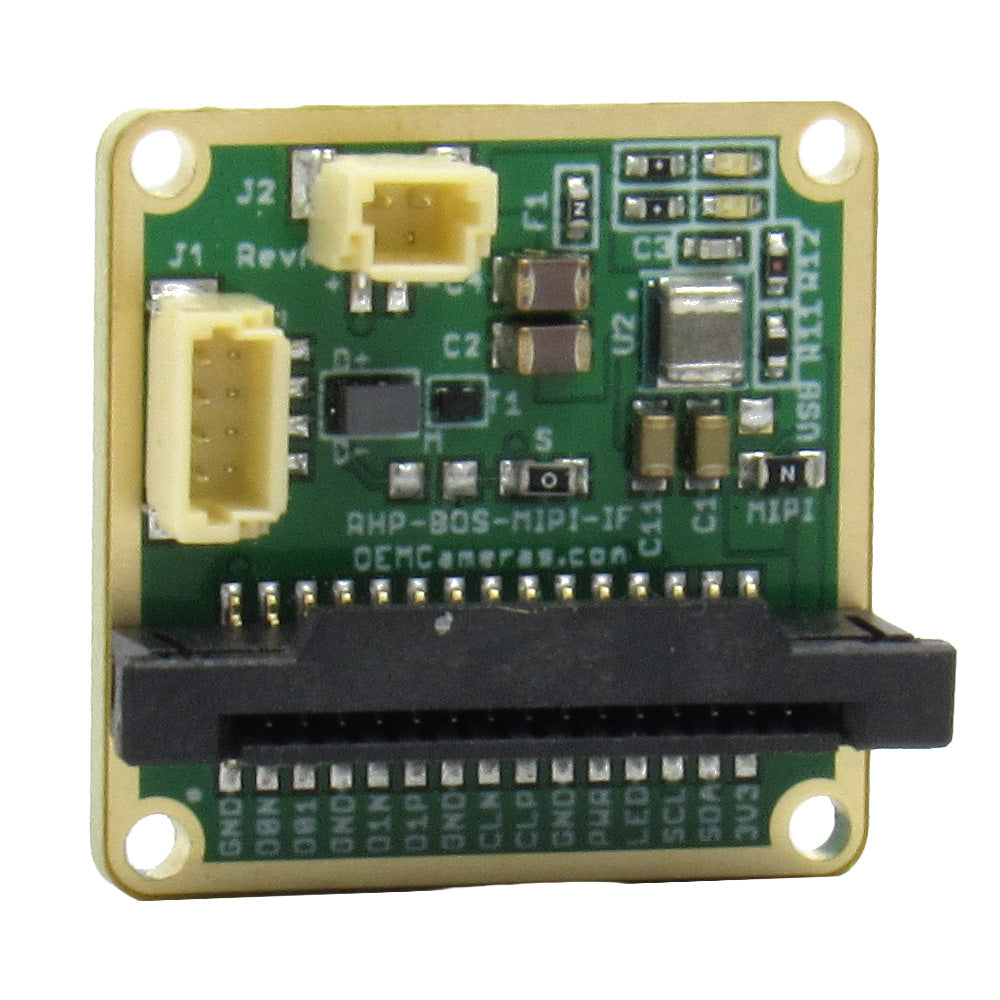

Teledyne FLIR Boson MIPI Development Accessory Board
Take your imaging projects to the next level with the Teledyne FLIR MIPI Development Accessory Board. Featuring support for pixel formats like RAW8, 16-bit UYVY, and RAW14, this board offers unparalleled flexibility for your thermal imaging needs.
Whether you're working in single channel mode or dual channel mode, this accessory board provides incredible image quality and clarity. And with a lightning-fast MIPI DDR clock rate of 246 MHz and a latency under 4.8ms, you can count on this board for seamless image processing.
Camera Link Accessory Kit
For the FLIR Boson Thermal Imaging Cameras
Expansion board for Boson cameras that matches the functionality of the VPC module, and enables the camera to be interfaced to a Camera Link frame grabber, allowing the capture of digital 16-bit video data.
(This product does not include Camera Link cable, frame grab board, or data capture software.)

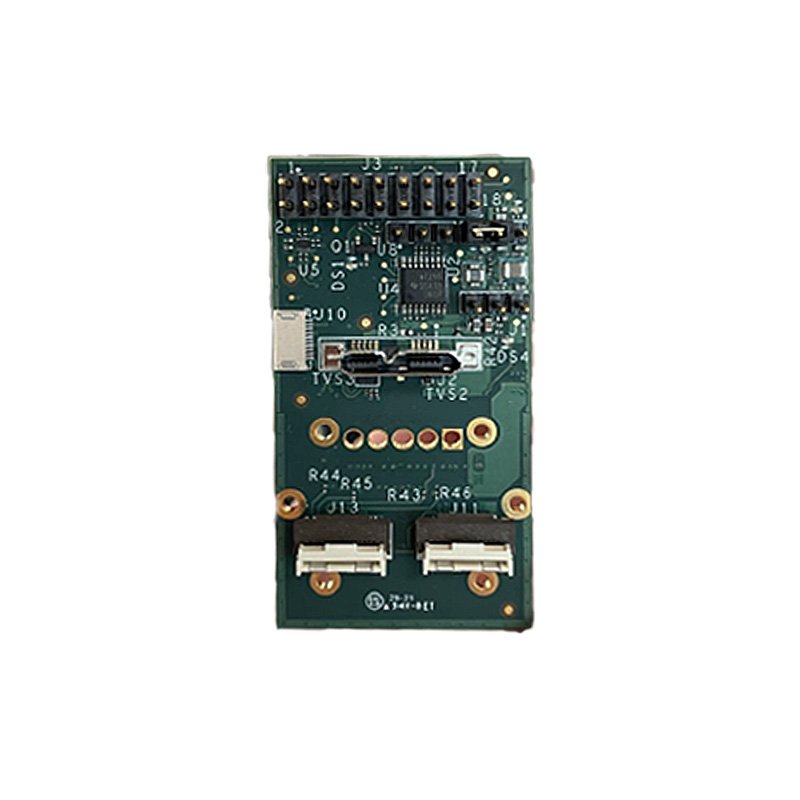

Boson Test Board, Detail PCB ASSEMBLY

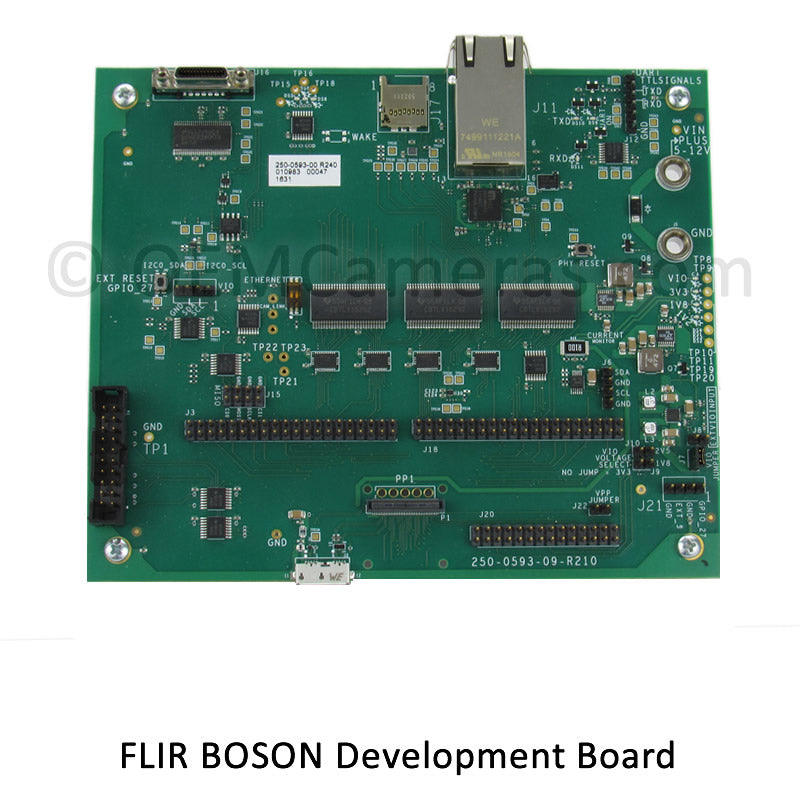

Boson Development Board
The Development breakout board for Boson users and integrators that need easy access to the Boson I/O and interfaces. This board is intended for user development purposes, and is not intended or rated for long term reliability over temperature.
It provides full access to the Boson 80-pin connector with a number of connectors:
- standard USB-3 micro-B (Super Speed) receptacle
- standard SDR-26 receptacle with Camera-Link compliant output
- SDIO card slot
- UART header
- I2C header
- SPI header
- Power jacks

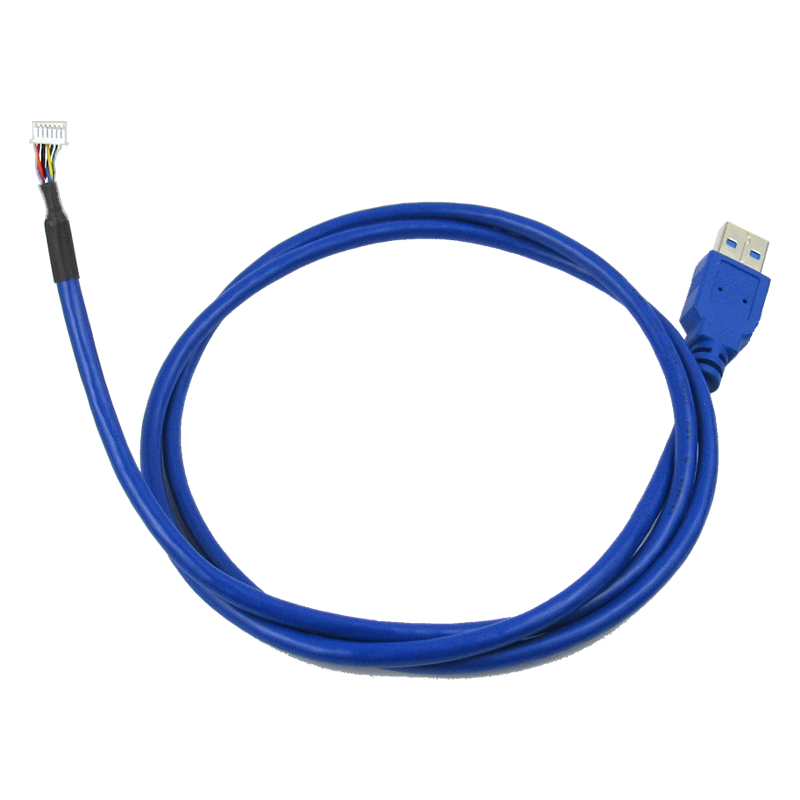

3' Cable USB 3 connector to a Female 7 Pin JST connector for use with the Low Profile BOSON VPC3 Interface Module with USB3.
