RHP Boson LVDS Encoder Board
| VERSATILE POWER INPUT RANGE | 1080P OUTPUT | PROFILES TO SONY BLOCK CAMERAS |
| With the 5-26VDC input range (6V-26VDC recommended), this encoder board provides seamless power integration. It offers the convenience of power-over-LVDS interface capability, enabling efficient performance |
The output over LVDS ensures seamless integration with your current systems, preserving backwards compatibility. The LVDS IP Encoder enables ONVIF compliant output for enhanced connectivity options. | Auto power-up profile is specifically tailored for Sony block cameras, streamlining your workflow. |
| SPECIFICATIONS: | ||
| Power | 5-26VDC Input (6V-26VDC recommended) - Power over LVDS interface is possible. | |
| Video Output | Upscale video to 1080p and output over LVDS for backwards compatibility with existing systems | |
| Video Over Ethernet | Compatible with LVDS IP Encoder for ONVIF compliant output | |
| Size | Compatible with LVDS IP Encoder for ONVIF compliant output | |
| Weight | 13 grams | |
| Power Consumption | 0.25A @ 5V / 1.25W Max. | |

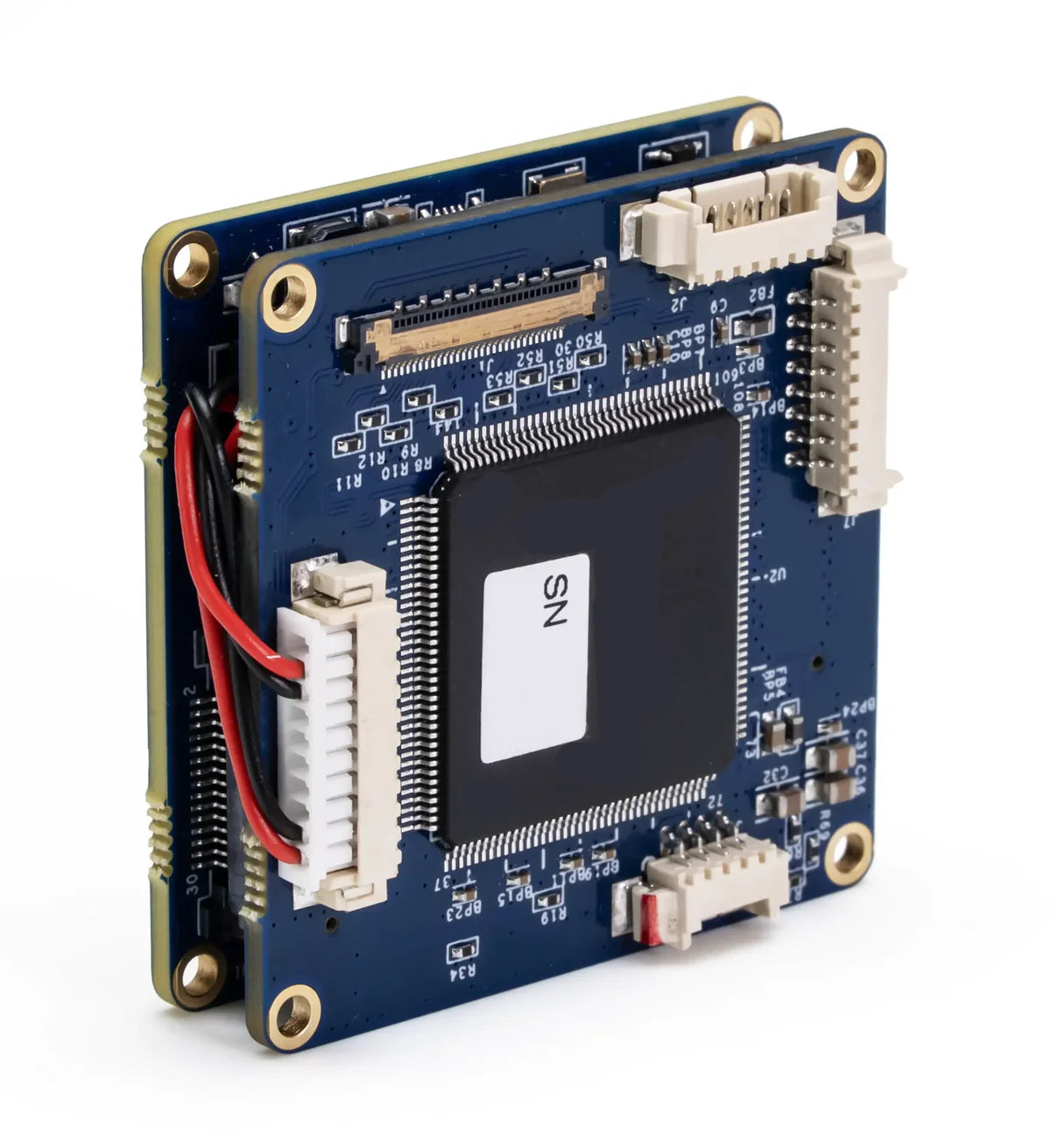

RHP IP LVDS Encoder Board
The RHP IP LVDS Encoder Board converts high-speed LVDS digital video into a fully networked IP video stream, enabling seamless integration with LAN-based and ONVIF-compliant systems. Designed for embedded and industrial applications, the encoder delivers high-quality H.264 or MJPEG video with multi-stream support, flexible bitrate control, and real-time network distribution. Ideal for systems requiring remote access, recording, and analytics, the RHP IP LVDS Encoder Board bridges sensor-level video to modern IP infrastructures with minimal latency and maximum compatibility.
The RHP IP LVDS Encoder Board is used to encode LVDS digital video such as output from a thermal or visible imaging sensor into an IP-based video stream for transmission over standard Ethernet networks. By converting raw video into H.264 or MJPEG streams, the board enables direct connection to network video recorders (NVRs), monitoring software, ONVIF-compatible systems, and custom applications. This allows imaging data to be viewed, recorded, analyzed, or distributed across local or remote networks, making it ideal for surveillance, industrial monitoring, and embedded vision systems where centralized access and scalability are required.
Software & Compatibility
SDK Support: ONVIF
Standards Compliance: IPv4, HTTP, UPnP, DNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP, Visca over IP (HTTP)
|
Applications: |
||
| Networked thermal and visible surveillance systems | Industrial process monitoring | Remote inspection and diagnostics |
| Embedded vision platforms with IP backhaul | Research, testing, and development systems | Edge devices feeding centralized analytics or AI servers |

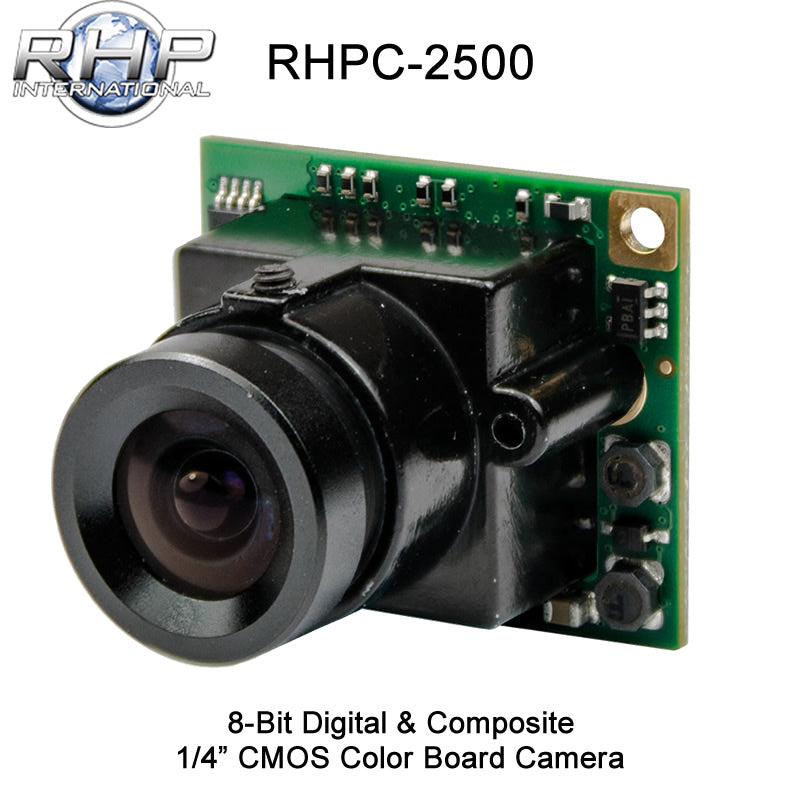

RHPC-2500
1/4" CMOS Color Board Camera
The RHPC-2500 is a popular high resolution 1/4" CMOS OEM board camera. Using a compact 22mm x 26mm single board base for the 1/4" image sensor, this board camera is ideal for applications requiring a smaller platform.
With a 5 Volt DC low power connection, this camera provides great resolution, color, and quality video.
The RHPC-2500 is also the direct replacement for the Panasonic GP-CX171 (High Res) and the RHPC-2000.
The RHPC-2500 does not require Heat Sync like the former GP-CX171, the RHPC-2500 also has the same hole pattern, connectors, and pin-out. Therefore this camera makes for a more compact replacement than its predecessors.
This camera features extra functions controllable via PC Software, which can be purchased separately. The software for this unit allows plenty of options for managing your video.
*PC Interface Required (RHPC-I2C with Software)
Board Camera Features:
- 1/4" Color CCD
- 22mm x 26mm Single Boards
- Extremely Compact
- High Resolution
- 5 volt DC Operation
- 8-Bit DIGITAL YUV & composite video output simultaneously
Parameters Controllable via PC Software:
- Electronic Shutter
- Gain Control
- White Balance
- Color Balance
- Back light Compensation
- Mirror Effect
- Negative / Positive Image
- Monochrome (B&W) Mode

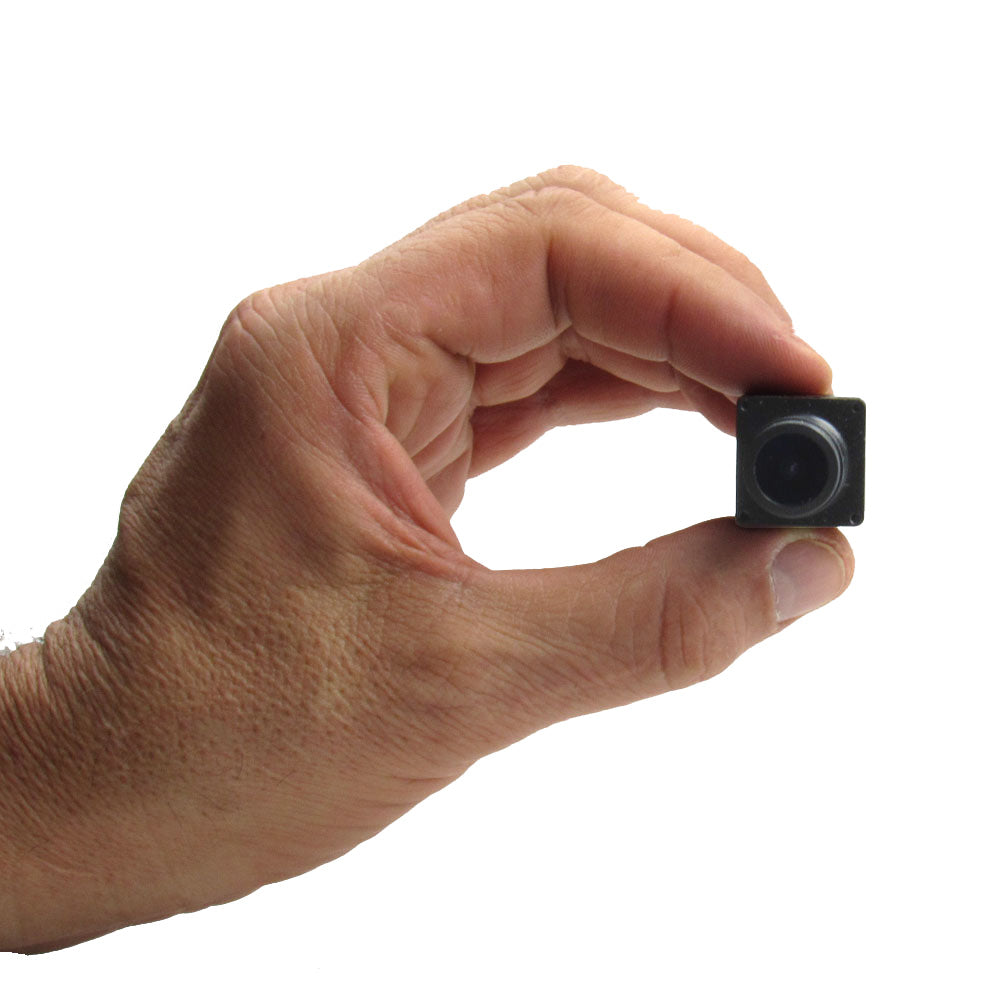

RHP-415C-8MP-KL
8MP 4K USB UVC Camera
Capture the finest details in stunning clarity with the cutting-edge RHP-415C-8MP-KL 8 megapixel 4K USB UVC camera. Manufactured by RHP International and featured on OEMCameras.com, this camera guarantees top-tier performance. The RHP-415C-8MP-KL camera offers a high resolution of 8 megapixels and outputs 4K video at a smooth 30 frames per second. Additionally, this color board camera can effortlessly manage different light conditions, ensuring vibrant and colorful imagery every time.
Additionally, this cutting-edge camera is UVC compatible, easing your integration with USB devices. It's the perfect asset for those seeking professional-level imaging performance. The RHP-415C-8MP-KL 8 megapixel 4K USB UVC camera from RHP International is a game-changer in visual technology
Designed with the user in mind, this color board camera brilliantly combines power and performance, making it an excellent choice for a range of applications that require high-quality imagery.
RHP-BOS-RC-IF
RC-IF Remote Control Interface for the FLIR Boson and Boson+
Ideal for sUAS and UAV operations, the RHP-BOS-RC-IF for FLIR Boson offers a streamlined way to control the FLIR Boson thermal imaging camera. Weighing only 5.8 grams, this device features 6 to 26 Volts DC Input with reverse polarity protection, ensuring safe and reliable operations. With the available S-Bus and PWM connections, drone pilots can easily manipulate their FLIR Boson parameters – Remotely! Additionally, this interface includes USB video support, two composite video outputs, and a USB video output for added convenience.
Integrating the Boson Thermal Camera into your UAS has never been easier.
Control the Boson Camera Remotely
The RHP-BOS-RC-IF allows you to control the Boson camera remotely using a 16 Channel S-Bus Signal or up to 5 PWM Signals from your wireless Joystick Remote Control System.
Assign Parameters
Any available parameter on the Boson can be assigned to knobs, switches or levers on a Joystick Remote Controller or direction pad and adjust camera parameters ‘on-the-fly’.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-RC-IF can be powered from the 4-Pin JST to USB or 6-Pin JST with a 5-26VDC power source
16 Channel S-Bus & 5 Channel PWM Remote Control Interface Module
- Control Camera Features Remotely
- Powers RC Wireless Receiver
- Wide Input Voltage Range
- Reverse Polarity Protection
- Dual Video Outputs
- Setup and Calibration Software Included
RHP-BOS-DS-IF
Boson Dual Sensor Interface
The RHP-BOS-DS-IF Dual Thermal Sensor Interface is an innovative solution that combines a Thermal and Visible Camera on one board. With Dual Camera Control via Serial Connection, it allows users to easily switch between thermal and visible imaging modes. The interface provides Push Button, SBUS, PWM or Wireless Joystick control, and works with 6 to 26 Volt DC power sources. The Multi Window Mode, PiP, Split View, Single and Quad view options make it easy to view video in various formats. The 1920 x 1080 HD Visible camera is included on board, along with an IMU for easy integration and gimbal compatibility.
Options for connecting the BOS-DS-IF are:
- USB
- S-Bus (16 Channels)
- PWM (5 channels)
Multiple window modes:
Picture in Picture mode
Allows you to view one camera in a small frame and the other camera in the background.
Single View mode
See the complete view of either camera on the screen.
Split View Mode
Monitor both streams shown side by side.
Change Parameters On-The-Fly!
Customize Your Control
Power Protection
RHP-BOS-DS-IF Dimensions
Environmental Enclosure
for the Teledyne FLIR Boson
In today's technological world, it is crucial to protect your Teledyne FLIR Boson Thermal Imaging Camera from environmental factors that can lead to costly damages and loss of productivity. The RHP Boson Environmental Enclosure is a cutting-edge solution that ensures the safety and longevity of your valuable devices. With its IP67 rating and exceptional features, this enclosure is the ultimate choice for safeguarding your camera.
IP67 Rated Protection
One of the standout features of the RHP Boson Environmental Enclosure is its IP67 rating. This international standard certifies the enclosure's ability to provide complete protection against the intrusion of dust and water.
IP67 rating stands for:
- IP (Ingress Protection)
- 6 (dust-tight protection)
- 7 (protection to withstand temporary submersion in water up to depths of 150mm to 1000mm deep for 30 minutes).
Whether the Boson is operating in a dusty industrial environment or exposed to heavy rainfall in an outdoor setting, the Boson Environmental Enclosure guarantees uncompromised protection against these elements.
| Strength and Durability | The Boson Enclosure is made from black anodized machined aluminum, offering exceptional strength and durability. It keeps your device protected even in demanding environments. | |
| 40mm Diamond Coated Germanium Glass: Crystal Clear Vision | Features 40mm diamond-coated Germanium glass for crystal clear vision and precise temperature readings. The coating protects against scratches and damage for long-term use. | |
| Anti-Reflective Coating: Optimal Performance | Internal anti-reflective DLC coating minimizes glare and reflections, ensuring optimal performance even in bright lighting conditions. | |
| Easy Installation with Two x 1/4-20 Mount Points | Dual 1/4"-20 mounts allow flexible and easy installation on walls, ceilings, or other surfaces. | |
| Convenient Connectivity with 4-Pin Hirose to JST Connector | Provides a secure connection between the interface board and enclosure, ensuring reliable operation. | |
| 4-Pin to USB2 Cable Included: Seamless Integration | Includes a 4-pin to USB2 cable for easy setup and seamless integration into existing systems. |

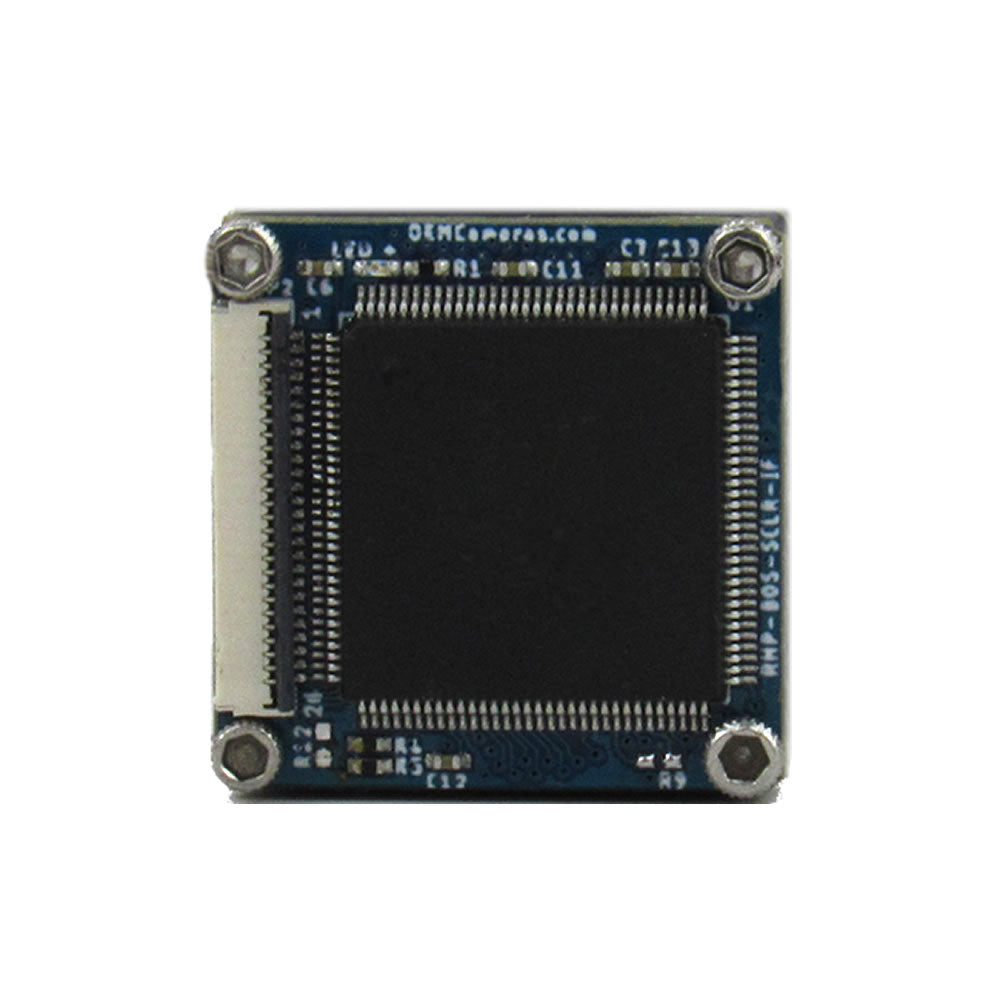

RHP-BOS-RC-HD-IF
Integrate the Teledyne FLIR Boson into your UAS.
The RHP BOSON RC-HD-IF REMOTE CONTROL INTERFACE is the perfect solution where HD thermal Video is needed. With 6 to 26 Volts DC input, HD and Composite outputs, and Reverse Polarity Protection, this interface is built for durability. Control the interface with an RC Receiver, enjoy USB Video Support, and take advantage of features like S-Bus & PWM compatibility and compatibility with most digital HDMI transmitters. Paired with the Setup and Calibration Software and a weight of only 12 grams, this interface is easy to install and perfect for any use case.
The RHP-BOS-RC-HD-IF is used to control the Boson camera remotely using a 16-channel S-Bus signal or up to 5 PWM signals from your wireless joystick remote control system. It allows for the assignment of available parameters on the Boson to any knob, switch, or lever on your remote controller, giving you the ability to adjust camera parameters on-the-fly. The module can accept a wide input voltage range of 6 to 26 Volts DC with reverse polarity protection while powering your Remote Control receiver with a regulated 5 Volts DC. It has both HD and composite video outputs, enabling it to connect to two separate video devices with no signal loss. With the HD video output, video signal can be transmitted securely through a video transmitter in 720 or 1080p, while the analog output makes it possible to connect to a recording device.
Customize and Save Configurations
Save configurations for different applications.
• Control via PC
• 16 Channels (S-Bus)
• 5 Channel PWM.
• 5 Channel D-Pad.
• Customize and Assign parameters.
Video Outputs
Output video signals to Analog and HD simultaneously.
• Composite Output
for use with analog transmitters.
• HD Output
use with the latest digital technology.
• Ideal for digital SD recording devices
Control the Boson Remotely
Assign any available parameter on the Boson for ‘on-the-fly’ control.
• Continuous Digital Zoom
• Color Palette Selection
• (FFC)Flat Field Correction
• (DDE)Digital Detail Enhancement
• Wired or Wireless control
Teledyne FLIR Hadron 640R
High Performance, Dual Thermal and Visible OEM Camera Module
The ITAR-free Hadron 640 series pairs a 64MP visible camera with a performance-leading 640x512 resolution radiometric Boson® or Boson+ thermal camera in a single easy-to-integrate module. With a size, weight, and power (SWaP) optimized design, it is an ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and emerging AI applications utilizing Teledyne FLIR Prism™ software.
Hadron 640 models share mechanical and electrical interfaces simplifying design. Compatible with Teledyne FLIR’s Prism AI detection, tracking, and classification models and Prism ISP libraries for super-resolution, turbulence mitigation, contrast enhancement, and more, Hadron 640 series enables effective AI-based applications. With drivers available for market leading processors from NVIDIA®, Qualcomm®, and more plus industry-leading integration support, Hadron 640 also reduces development cost and shortens time to market.
INDUSTRY-LEADING THERMAL AND VISIBLE CAMERA PERFORMANCE
Collect high-speed, dual VGA radiometric thermal and HD visible imagery in all light conditions.
- AI-ready with Teledyne FLIR Prism AI and ISP
- 64MP visible camera resolution
- Flexible dual 60 Hz video output via USB or MIPI
- Available radiometric, 640x512 resolution
Boson+ provides industry leading NEDT of ≤20 mK
BUILT FOR INTEGRATORS
Reduce development cost and time to market with a solution from a single, reliable supplier.
- ITAR-free and classified under US Department of Commerce jurisdiction as ECCN 6A003.b.4.b
- Drivers and sample code available for NVIDIA Jetson Nano, Qualcomm RB5, and more
- Highly qualified, technical services team available to support integration
- Evaluate capabilities with Prism Development Kit for Qualcomm RB5
OPTIMIZE DESIGN AND OPERATION TIME WITH COMPACT, LIGHTWEIGHT, AND LOW-POWER MODULE
The performance, reliability and support expected from Teledyne FLIR and the industry’s most versatile HD+ MWIR camera portfolio.
- Low, steady state power consumption at 1.8W
- IP54-rated dust and water protection
- Lightweight 56g enables longer flight time and extends battery life
- Shared mechanical and electrical interface across all models
Hadron™ 640R Development Kits
High Performance, Dual Thermal and Visible OEM Camera Module
Hadron™ 640R development kits pair the performance-leading Hadron 640R with hardware and reference software drivers for quick integration with development boards supporting the Qualcomm RB5, the NVIDIA Jetson Nano, and the Qualcomm Snapdragon 865.
The development kits enable integrators to start imaging and controlling the infrared thermal and visible camera in hours, saving potentially weeks of development time and cost. Hadron 640R includes a 64 MP visible camera and a 640x512 resolution radiometric Boson® providing the ability to see through total darkness, smoke, most fog, and glare as well as take the temperature of every pixel in the scene.
With a size, weight, and power (SWaP) optimized design and the rapid development kits, the Hadron 640R is the ideal dual sensor payload for integration into unmanned aircraft systems (UAS), unmanned ground vehicles (UGV), robotic platforms, and AI-ready applications where battery life and run-time are mission critical.
- Includes interface boards and cabling hardware (development board not included)
- Reference drivers available for specified development boards from Avermedia, Lantronix, and Qualcomm
- Supports Linux and Android development
- US-based technical services team available to support integration
- 64 MP visible camera resolution
- Compact, radiometric, 640 x 512 resolution Boson provides the temperature of every pixel
- Flexible dual 60Hz video output via USB or MIPI
- Low, steady state power consumption at 1.8W
- IP54-rated dust and water protection
- Lightweight 56g enables longer flight time and extends battery life
RHP-BOS-DSU2-IF
Dual Sensor Board for Boson and E/O
Enter a new realm of technological efficiency with the RHP-BOS-DSU2-IF Dual Sensor Board for Boson/Boson+ by RHP International.
This board offers Dual USB Video over a single interface for a seamless, high-quality display experience. Designed to be used with any combination of Boson/Boson+ using a custom bracket allows you to optically center the cameras ensuring unmatched precision imaging and reduced visual distortion.
This dual sensor Board features two additional USB ports to connect other sensors or cameras making it a versatile choice for multiple applications. Despite its capabilities, the device features a small form factor ensuring it adapts perfectly to any setup without occupying space. With a wide input range of 5-17 Volts DC, it becomes an ideal choice for Drone, UAV, and UGV Implementation.
The device requires no drivers for operation, offering a simplified plug-and-play experience. It is compatible with varied operating systems like Windows, Mac, and Linux adding to its versatility.
