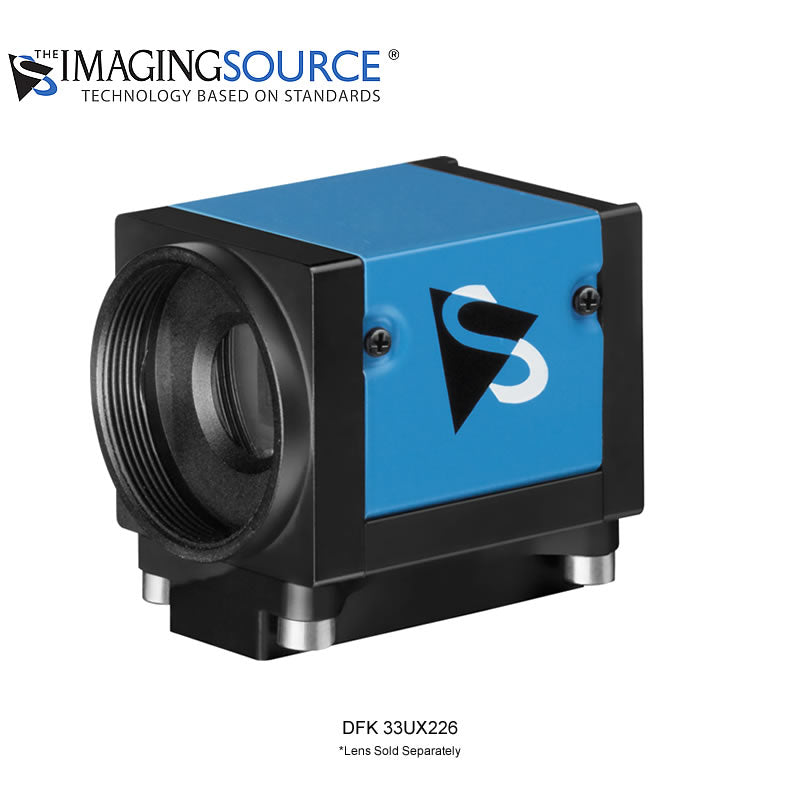

Imaging Source DFK 33UX226
USB 3.0 color microscope camera
Capture Exactly What You See Through The Ocular
The Imaging Source 12 megapixel microscope camera (DFK 33UX226) has been designed to be a cost-effective, versatile solution for demanding microscopy applications.
Thanks to the camera's USB 3.0 interface, 4,000×3,000, up to 30 fps is available on the host PC. The camera ships with Sony's 1/1.7 inch Sony CMOS Starvis sensor (IMX226CQJ) technology, and allows a maximum resolution of 12 megapixels.
Key Features:
- 1/1.7 inch Sony CMOS STARVIS sensor (IMX226CQJ)
- 4,000×3,000 (12 MP), up to 30 fps
- Rolling shutter
- Trigger and I/O inputs
- Windows and Linux software included
Imaging Source DFK 33UX183
USB 3.0 color microscope camera
The 33U series camera DFK 33UX183 with a Sony IMX183 sensor delivers 18 frames per second with a resolution of 5472x3648 (20 MP). 33U Series: The Imaging Source's largest selection of industrial cameras offers developers and integrators a broad selection of resolutions (up to 20 MP) and frame rates to meet diverse application needs and are ideal for continuous operation in industrial environments. The cameras' USB 3 interface (Micro-B connector) ensures efficient data transfer with high frame rates. The USB3 Vision standard allows for rapid integration into new and existing applications via The Imaging Source's IC Imaging Control 4 SDK as well as most other third-party image processing libraries.

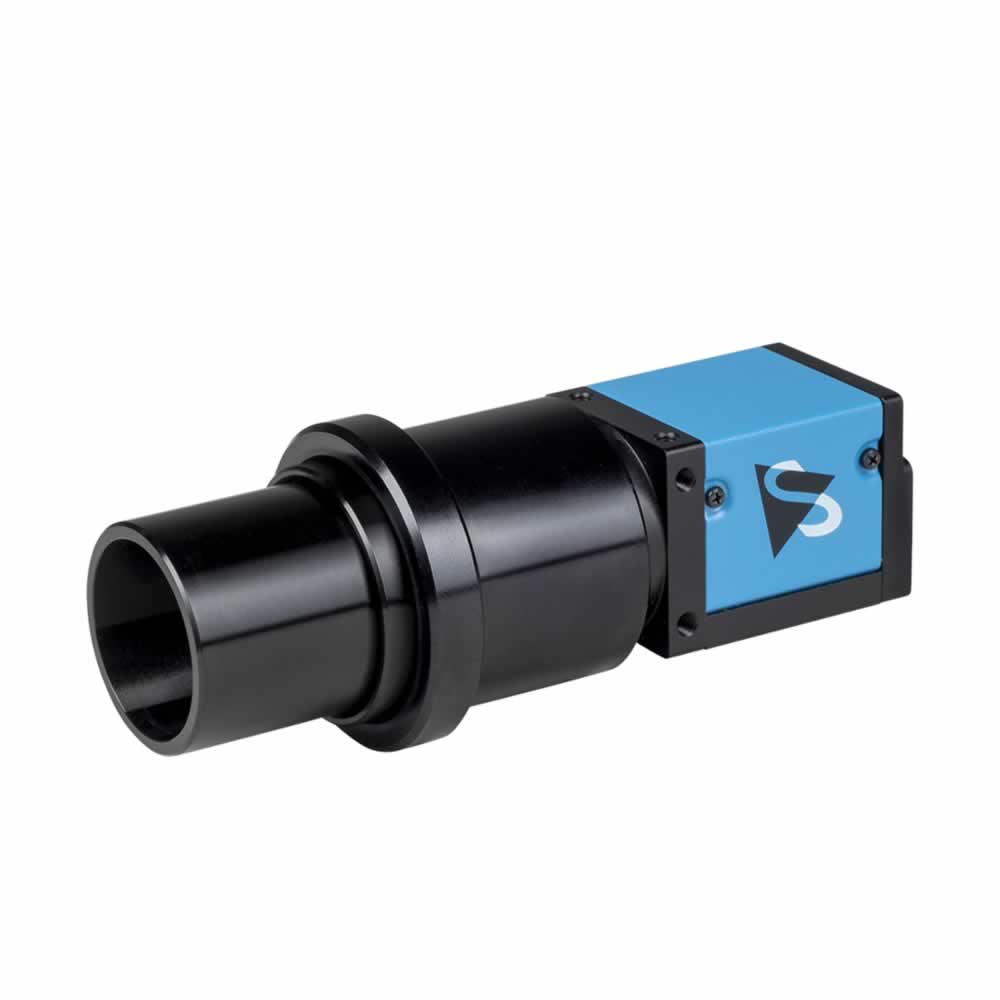

Imaging Source DFK MKU226 - 10x22
USB 3.0 color microscope camera
The new microscopy eyepiece cameras feature Sony's 12 MP IMX226 STARVIS sensors and offer imaging solutions for a variety of demanding microscopy applications. The color and monochrome camera models are available with a USB 3.0 interface. The camera is inserted directly into the microscope (replacing the eyepiece) and displays on-screen the image a viewer otherwise sees when looking through the eyepiece. With stereo microscopes, stereo images (i.e. depth images) can be easily generated with two eyepiece cameras.
The cameras are very light sensitive and are characterized by excellent image quality and high color fidelity. The free software, IC Measure, allows the user to set all camera parameters such as exposure time, contrast, brightness, color saturation, refresh rate, HDR and gamma. IC Measure also provides tools for calibration, measuring (lengths, angles, circles), labeling and archiving. The cameras and the included software deliver an unbeatable combination with an outstanding price-performance ratio.
(polarization with lambda compensator)
(polarization without compensator)
(bright field)
(bright field)
