- Video-to-USB 2.0 converter
- Video standards: PAL/NTSC, RS-170/CCIR
- RCA (Cinch): 1 input
- Y/C (S-Video): 1 input
- USB 2.0, Type B
- Manufactured by The Imaging Source
| GENERAL BEHAVIOR | |
| Video formats @ frame rate (maximum) | PAL: 768×576 (0.4 MP) @ 25 fps NTSC: 640×480 (0.3 MP) @ 30 fps |
| Video standards | PAL/NTSC, RS-170/CCIR |
| Analog inputs | RCA (Cinch): 1 input Y/C (S-Video): 1 input Multiplexed |
| Bus interface | USB 2.0, Type B |
| Color formats | UYVY, Y800 |
| Square pixels | yes |
| ENVIRONMENTAL | |
| Temperature (operating) | 0 °C to 45 °C |
| Temperature (storage) | -20 °C to 60 °C |
| Humidity (operating) | 20 % to 80 % (non-condensing) |
| Humidity (storage) | 20 % to 95 % (non-condensing) |
DFG/USB2pro
Video-to-USB 2.0 converter
Despite the fast growing world of digital cameras, there is still an enormous number of analog video sources. Using a Video-to-USB converter, such as the DFG/USB2pro and the DFG/USB2aud, analog video sources become usable in a digital environment.
The DFG/USB2pro converts analog video signals (PAL, NTSC, CCIR, EIA) into uncompressed image data streams. The DFG/USB2aud additionally converts analog audio signals.
Included:
- Converter
- Drivers compatible to DirectShow, DirectX, TWAIN, VfW, WDM, ActivVisionTools, HALCON, LabVIEW, Matlab, and NeuroCheck
- IC Capture camera control and acquisition software for W 7/8/10, Vista, XP
- IC Imaging Control Software Development Kit (SDK) including a .NET component, an ActiveX component, and a C++ class library for W 7/8/10, Vista, XP - Free barcode SDK for W 7/8/10
USB2.0 Cable - USB2-A-B-6 - 6Ft Type A to Mini B
This cable is used to connect the infrared camera to Ethernet.
| Physical data | |
|---|---|
|
Weight
|
80 g (2.8 oz.)
|
|
Cable length
|
2.0 m (6.6 ft.)
|
|
Connector
|
RJ-45 to RJ-45
|
|
Cable type
|
CAT-6
|
| Shipping information | |
|---|---|
|
Packaging, type
|
Cardboard box
|
|
Packaging, weight
|
130 g (4.6 oz.)
|
|
Packaging, size
|
202 × 146 × 25 mm (8.0 × 5.7 × 1.0 in.)
|
|
EAN-13
|
7332558006320
|
|
UPC-12
|
845188006679
|
|
Country of origin
|
Sweden
|

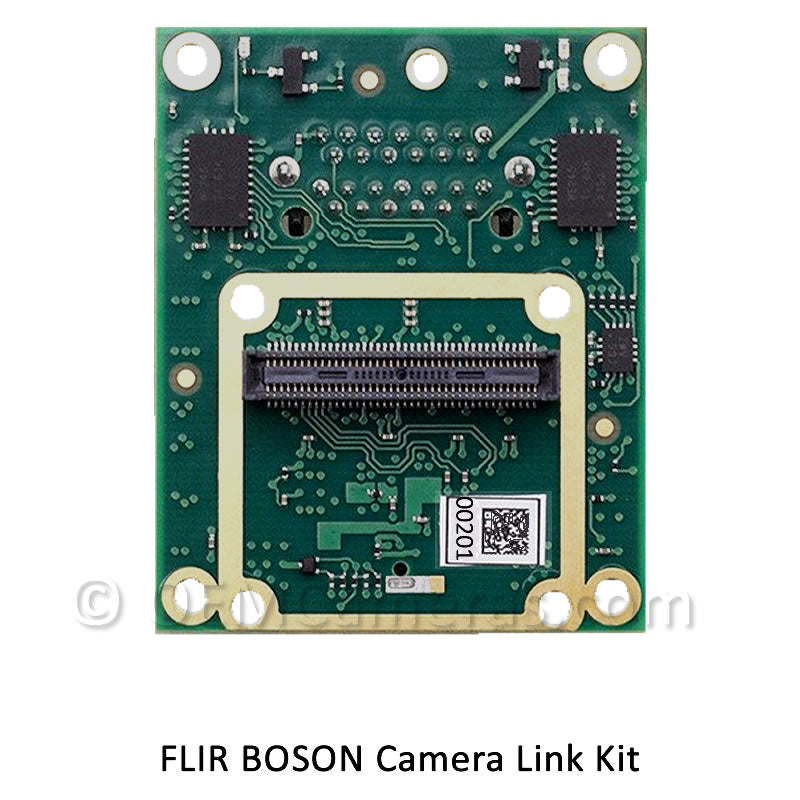

Camera Link Accessory Kit
For the FLIR Boson Thermal Imaging Cameras
Expansion board for Boson cameras that matches the functionality of the VPC module, and enables the camera to be interfaced to a Camera Link frame grabber, allowing the capture of digital 16-bit video data.
(This product does not include Camera Link cable, frame grab board, or data capture software.)
RHP-BOS-RC-IF
RC-IF Remote Control Interface for the FLIR Boson and Boson+
Ideal for sUAS and UAV operations, the RHP-BOS-RC-IF for FLIR Boson offers a streamlined way to control the FLIR Boson thermal imaging camera. Weighing only 5.8 grams, this device features 6 to 26 Volts DC Input with reverse polarity protection, ensuring safe and reliable operations. With the available S-Bus and PWM connections, drone pilots can easily manipulate their FLIR Boson parameters – Remotely! Additionally, this interface includes USB video support, two composite video outputs, and a USB video output for added convenience.
Integrating the Boson Thermal Camera into your UAS has never been easier.
Control the Boson Camera Remotely
The RHP-BOS-RC-IF allows you to control the Boson camera remotely using a 16 Channel S-Bus Signal or up to 5 PWM Signals from your wireless Joystick Remote Control System.
Assign Parameters
Any available parameter on the Boson can be assigned to knobs, switches or levers on a Joystick Remote Controller or direction pad and adjust camera parameters ‘on-the-fly’.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-RC-IF can be powered from the 4-Pin JST to USB or 6-Pin JST with a 5-26VDC power source
16 Channel S-Bus & 5 Channel PWM Remote Control Interface Module
- Control Camera Features Remotely
- Powers RC Wireless Receiver
- Wide Input Voltage Range
- Reverse Polarity Protection
- Dual Video Outputs
- Setup and Calibration Software Included
Side Mount Payload Bracket (1)
Side-mounting payload bracket for the PTU-5 pan tilt. Up to 3 lb capacity per side, 6 lb total with two side brackets. Side bracket use requires removal of the PTU-5 top bracket. (Side and top brackets cannot be used together at the same time.)

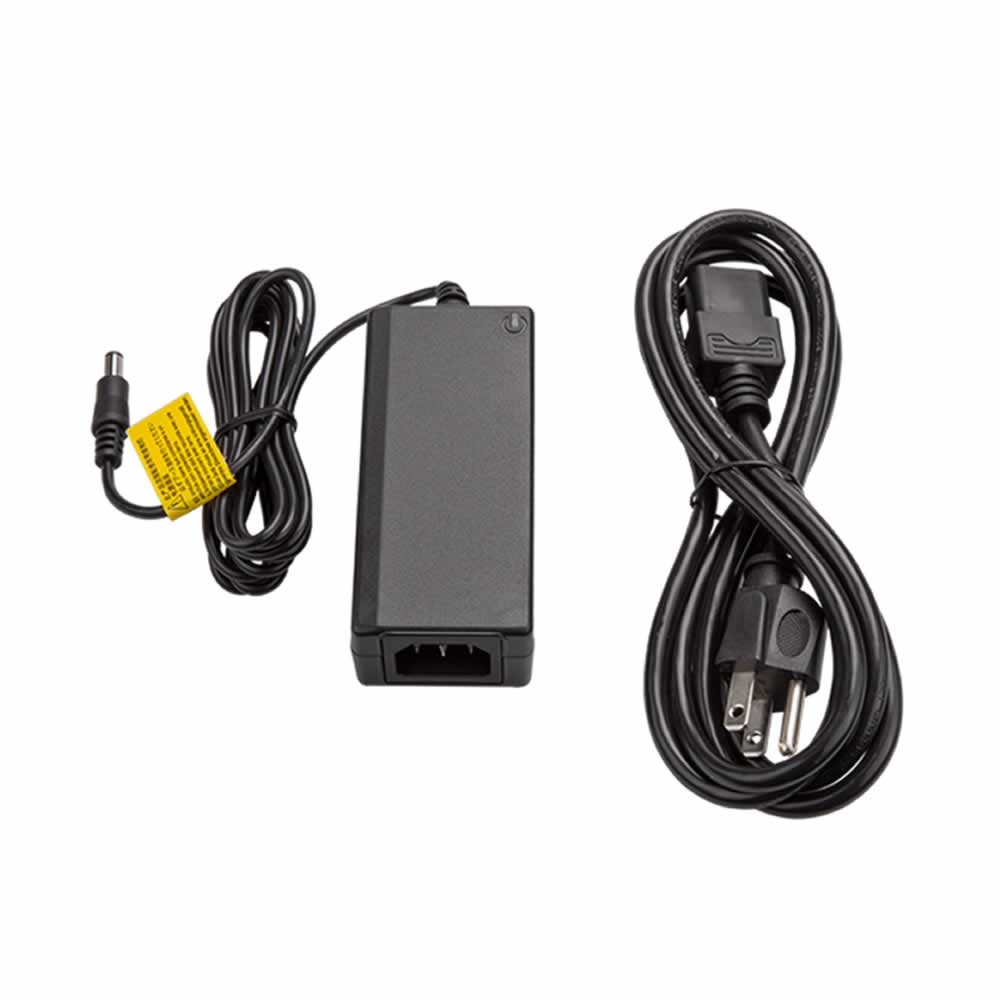

North American power supply for FLIR pan/tilt units.
Power supply, 30V, w AC Cord
European power supply for all FLIR pan/tilt units.
Power supply, 30V, w EURO Cord

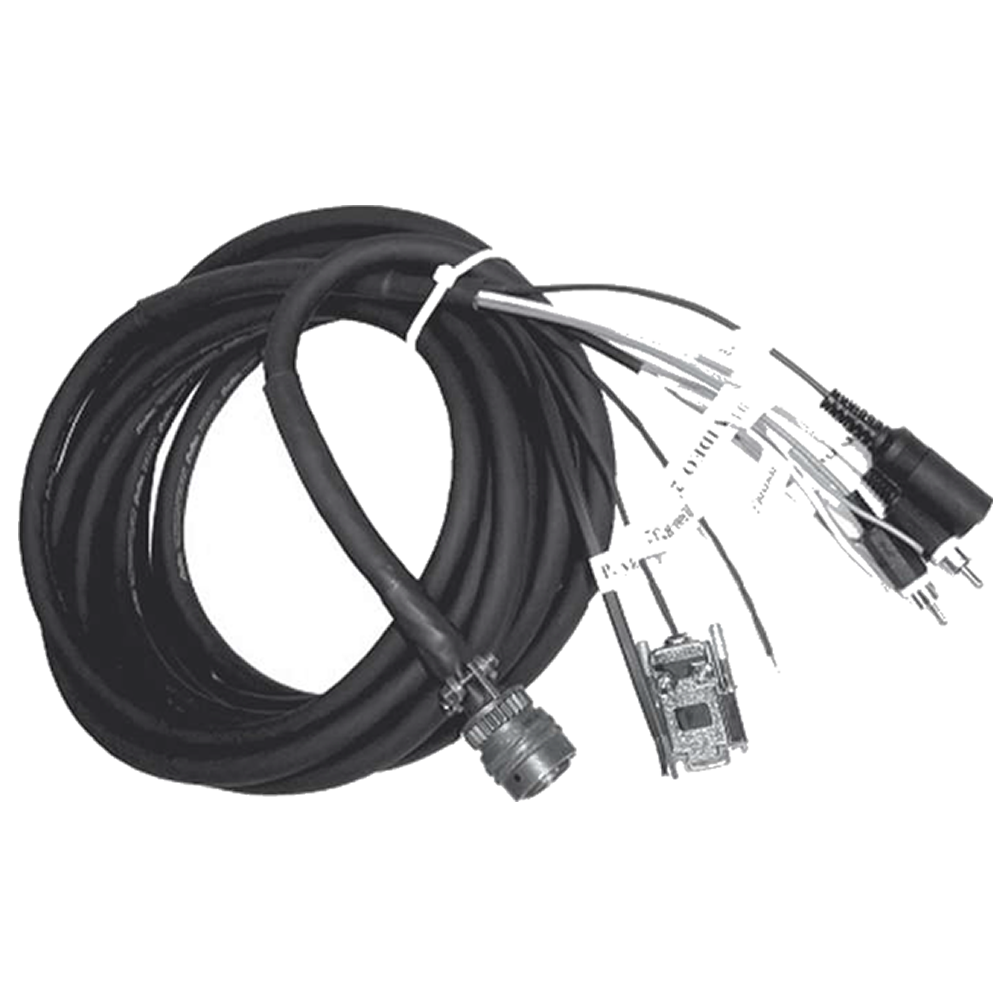

Breakout Cables
The breakout cable connects to the 32 pin base connector (MIL C 26482) on the PTU and terminates to standard connectors for power, serial communication, Ethernet, and payload signals.
The terminating connectors are:
- Power (DIN), 2x video (composite),
- RS 232 (DB 9, female),
- RS485 (RJ11),
- Ethernet (RJ45),
- Payload pass through conductors.
Part Number:
PTU CAB E 10BO (10')
PTU CAB E 50BO (50')
PTU CAB E 100BO (100')
| General description | |
|---|---|
|
Ethernet cable, M12 to RJ45, X-coded.
|
| Physical data | |
|---|---|
|
Weight
|
Dependent on cable size
|
|
Cable length
|
.3 m (1 ft.)
2 m (6.6 ft.)
10 m (32)
|
|
Connector
|
M12 to RJ45
|
|
Color
|
White
|
PT-Series Small Pole Adapter
High capacity pole mount for pole diameters between 80mm-150mm
North American power supply for FLIR pan/tilt units.
Power supply, 30V, w AC Cord
European power supply for all FLIR pan/tilt units.
Power supply, 30V, w EURO Cord
