- Stabilizes shaky camera images
- Works with Standard Analog Cameras
- Works with Standard Analog Cameras
- NTSC or PAL Video In and Out
- Composite Video In & Out (S-Video Optional)
- Unlimited Spatial Correction

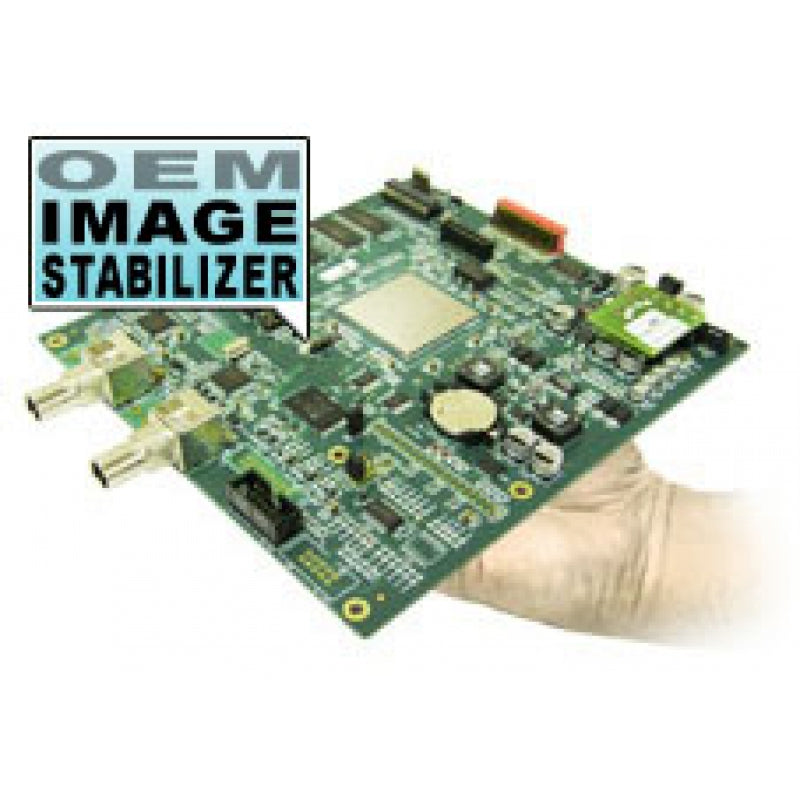

Digitally stabilize shaky and unsteady analog video images live or pre-recorded. Color, Monochrome, or Thermal cameras supported. Cameras mounted on poles, towers, UAVs, or vehicles that shake and vibrate can easily be steadied using the RHP-IS-OEM Digital Image Stabilizer.
- Works with Standard Analog Cameras
- NTSC or PAL Video In and Out
- Composite Video In & Out (S-Video Optional)
- Unlimited Spatial Correction
- Full Resolution
- Particularly Suitable for:
- Buses
- Trains
- Ships and Boats
- Airplanes and Helicopters
- Tall Buildings
- Bridges and Tunnels
- Coastal Surveillance at windy locations
- Factories with Vibration from Machinery or air conditioning
- Pole-Mounted Cameras e.g. Traffic monitoring.
Stabilized video from the RHP-IS-OEM video shows cleaner details. Sharp details are a requirement for good and high quality video. Steady video compresses better. Modern digital compressors use a lot of bits to encode moving features of a video. If the whole image shakes, it is all moving. This wastes an enormous number of bits.
Remove the shake and digital recorders store more video. For the same reason, stable images have higher compression and quality for remote and Internet viewing.
- Video-to-USB 2.0 converter
- Video standards: PAL/NTSC, RS-170/CCIR
- RCA (Cinch): 1 input
- Y/C (S-Video): 1 input
- USB 2.0, Type B
- Manufactured by The Imaging Source
| GENERAL BEHAVIOR | |
| Video formats @ frame rate (maximum) | PAL: 768×576 (0.4 MP) @ 25 fps NTSC: 640×480 (0.3 MP) @ 30 fps |
| Video standards | PAL/NTSC, RS-170/CCIR |
| Analog inputs | RCA (Cinch): 1 input Y/C (S-Video): 1 input Multiplexed |
| Bus interface | USB 2.0, Type B |
| Color formats | UYVY, Y800 |
| Square pixels | yes |
| ENVIRONMENTAL | |
| Temperature (operating) | 0 °C to 45 °C |
| Temperature (storage) | -20 °C to 60 °C |
| Humidity (operating) | 20 % to 80 % (non-condensing) |
| Humidity (storage) | 20 % to 95 % (non-condensing) |

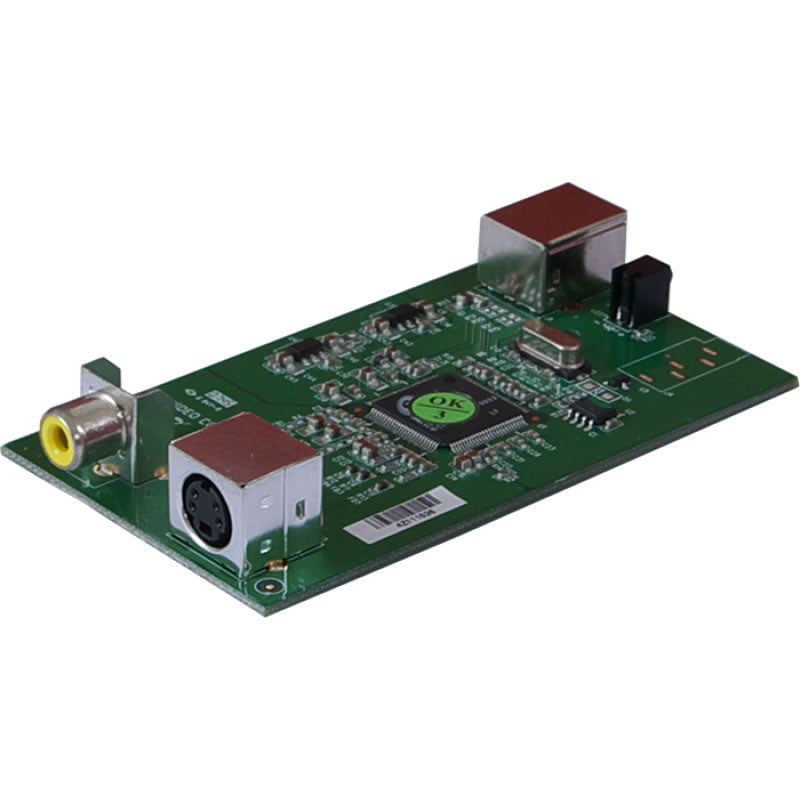

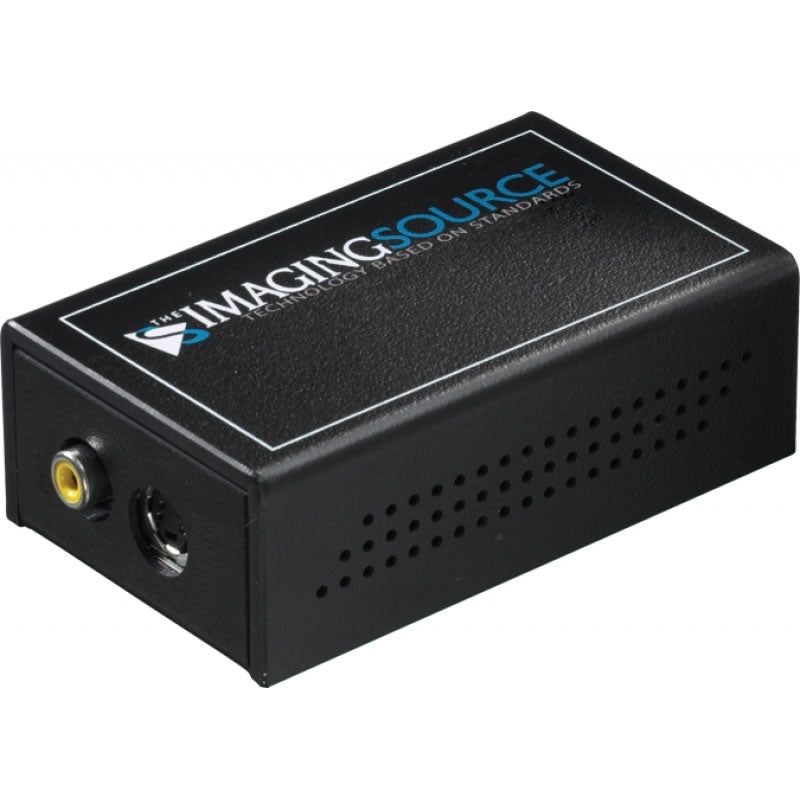

DFG/USB2pro
Video-to-USB 2.0 converter
Despite the fast growing world of digital cameras, there is still an enormous number of analog video sources. Using a Video-to-USB converter, such as the DFG/USB2pro and the DFG/USB2aud, analog video sources become usable in a digital environment.
The DFG/USB2pro converts analog video signals (PAL, NTSC, CCIR, EIA) into uncompressed image data streams. The DFG/USB2aud additionally converts analog audio signals.
Included:
- Converter
- Drivers compatible to DirectShow, DirectX, TWAIN, VfW, WDM, ActivVisionTools, HALCON, LabVIEW, Matlab, and NeuroCheck
- IC Capture camera control and acquisition software for W 7/8/10, Vista, XP
- IC Imaging Control Software Development Kit (SDK) including a .NET component, an ActiveX component, and a C++ class library for W 7/8/10, Vista, XP - Free barcode SDK for W 7/8/10

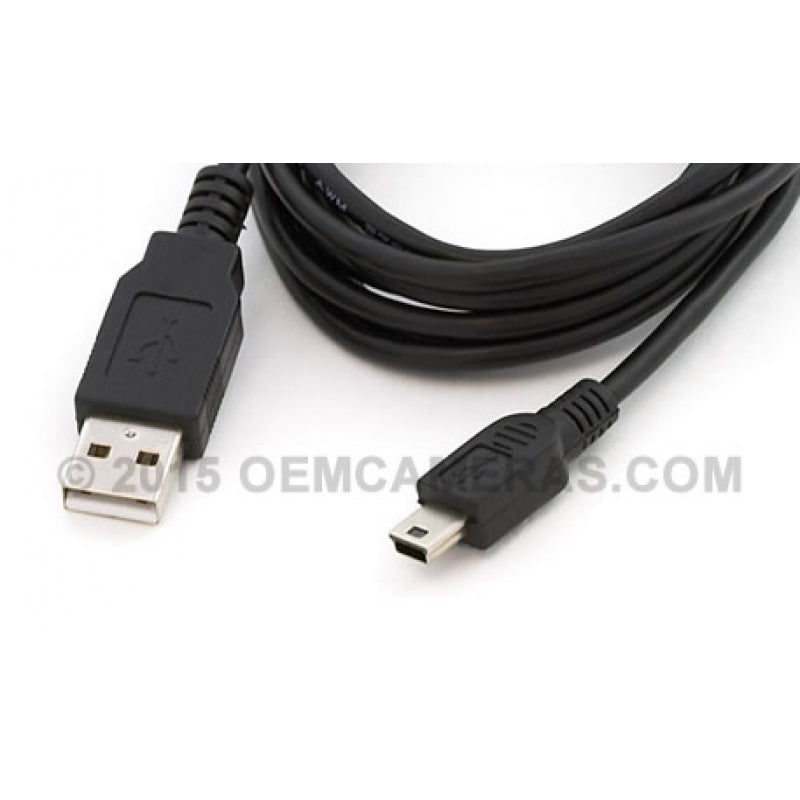

USB2.0 Cable - USB2-A-B-6 - 6Ft Type A to Mini B

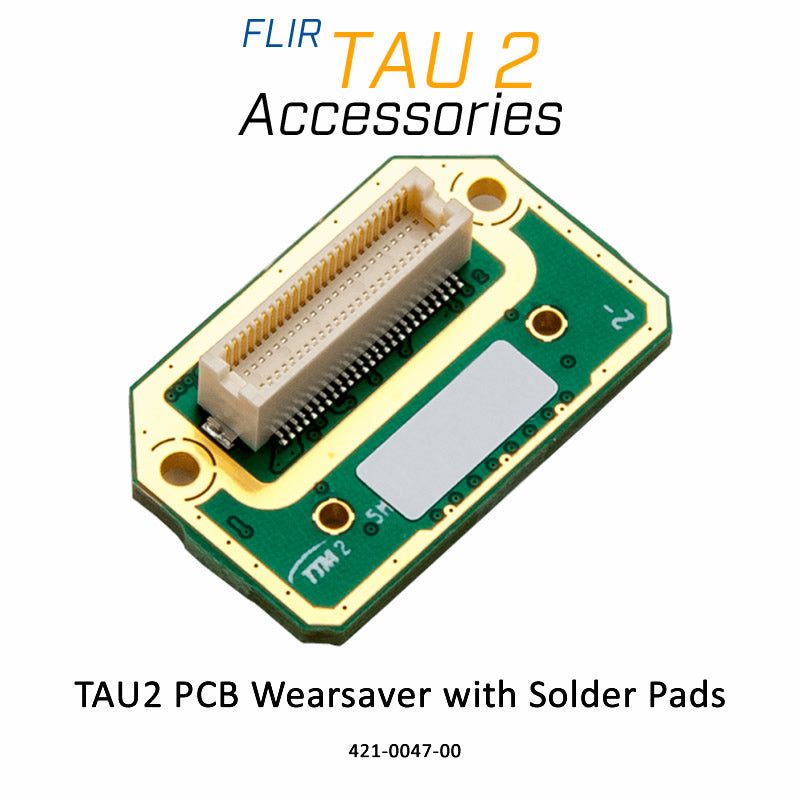

FLIR Tau PCB Wearsaver with Solder Pads
A low-profile adapter that attaches to the Tau's 50-pin Hirose connector, furnishing a solder pad interface. Schematic included.
The Tau2 Wearsaver was designed to be an internal engineering/manufacturing calibration accessory, rather than an OEM interface.
There is a Hirose mating connector on one side of the board, as shown in the picture below:
When the Wearsaver is attached to the Tau2 camera, there are no exposed connectors, just the solder pads for a 20-pin Samtec (and 14 pads for pogo pins).
The pad connections are limited to input power, RS-232, analog video, and LVDS.
The Wearsaver board does NOT provision for External Sync, Discretes, or CMOS signals.
The physical layout is shown in the picture below:

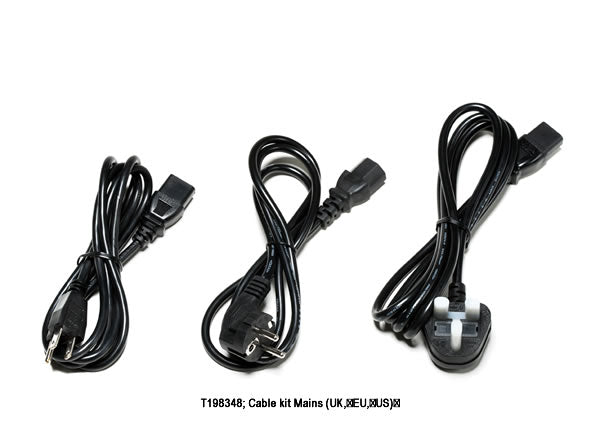

Cable kit consisting of three power cables (UK,EU,US).
RHP-BOS-RC-IF
RC-IF Remote Control Interface for the FLIR Boson and Boson+
Ideal for sUAS and UAV operations, the RHP-BOS-RC-IF for FLIR Boson offers a streamlined way to control the FLIR Boson thermal imaging camera. Weighing only 5.8 grams, this device features 6 to 26 Volts DC Input with reverse polarity protection, ensuring safe and reliable operations. With the available S-Bus and PWM connections, drone pilots can easily manipulate their FLIR Boson parameters – Remotely! Additionally, this interface includes USB video support, two composite video outputs, and a USB video output for added convenience.
Integrating the Boson Thermal Camera into your UAS has never been easier.
Control the Boson Camera Remotely
The RHP-BOS-RC-IF allows you to control the Boson camera remotely using a 16 Channel S-Bus Signal or up to 5 PWM Signals from your wireless Joystick Remote Control System.
Assign Parameters
Any available parameter on the Boson can be assigned to knobs, switches or levers on a Joystick Remote Controller or direction pad and adjust camera parameters ‘on-the-fly’.
Reverse Polarity Protected
With the intelligent polarity sensing protection, the RHP-BOS-RC-IF can be powered from the 4-Pin JST to USB or 6-Pin JST with a 5-26VDC power source
16 Channel S-Bus & 5 Channel PWM Remote Control Interface Module
- Control Camera Features Remotely
- Powers RC Wireless Receiver
- Wide Input Voltage Range
- Reverse Polarity Protection
- Dual Video Outputs
- Setup and Calibration Software Included

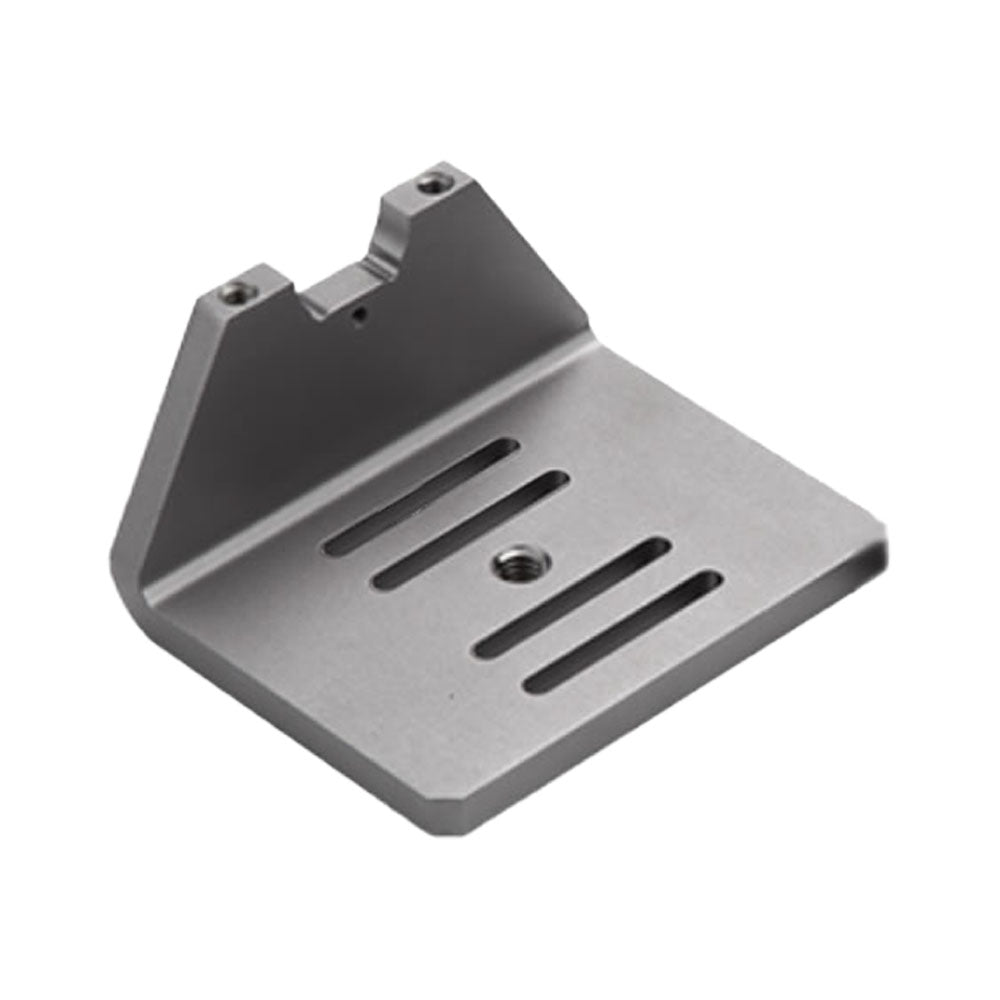

Side Mount Payload Bracket (1)
Side-mounting payload bracket for the PTU-5 pan tilt. Up to 3 lb capacity per side, 6 lb total with two side brackets. Side bracket use requires removal of the PTU-5 top bracket. (Side and top brackets cannot be used together at the same time.)

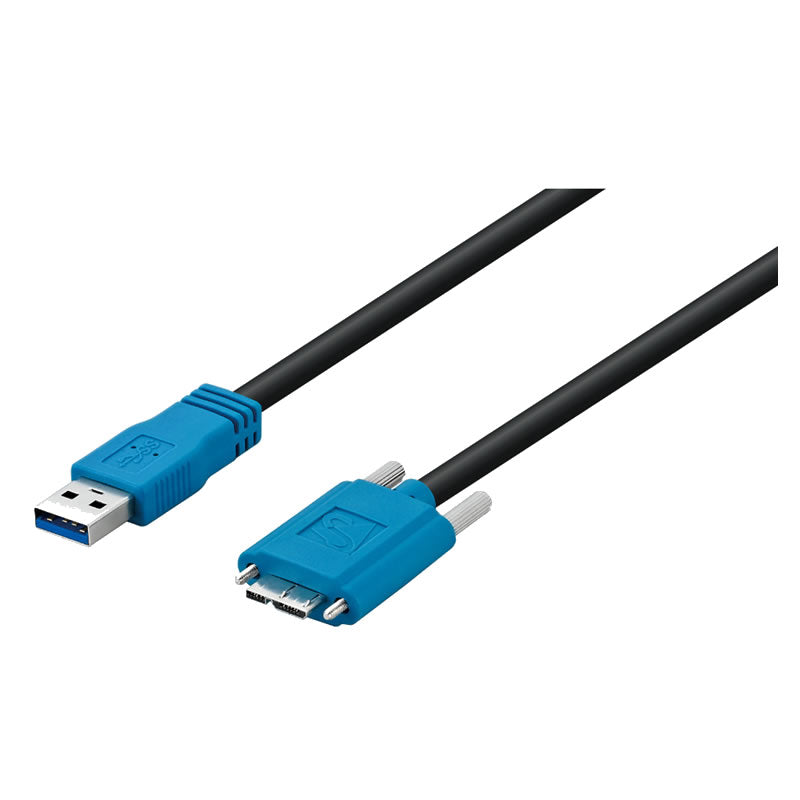

- USB 3.0 cable
- End 1: USB 3.0 (Type-A)
- End 2: USB 3.0 (Micro-B) Locking screws
- 3 m in length

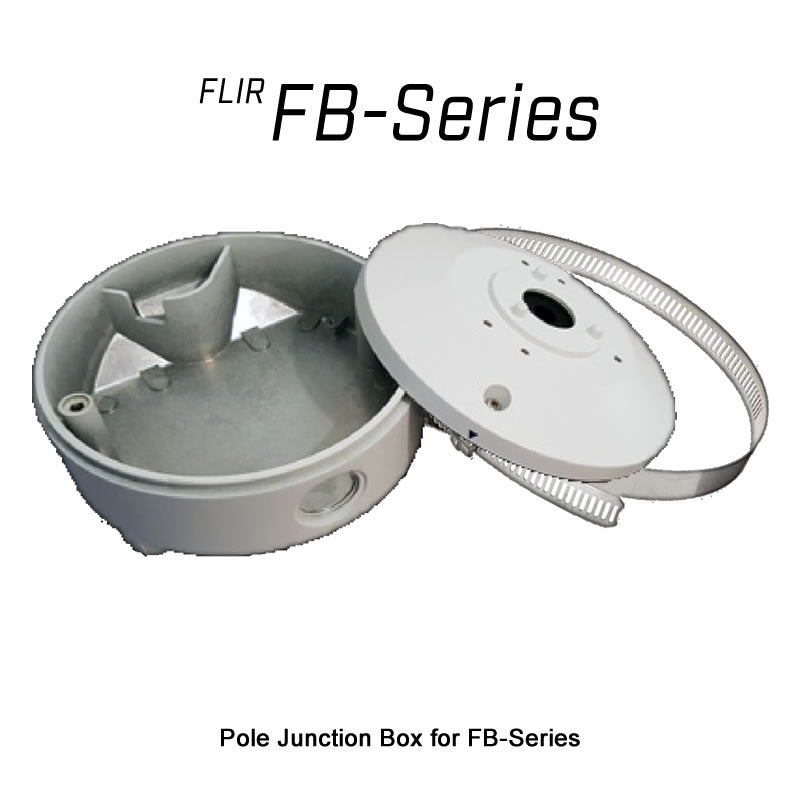

Pole Junction Box
Pole Junction Box for FB-Series Thermal Security Cameras.
Allows the FLIR FB Series O and FB Series ID cameras to be mounted on a Pole

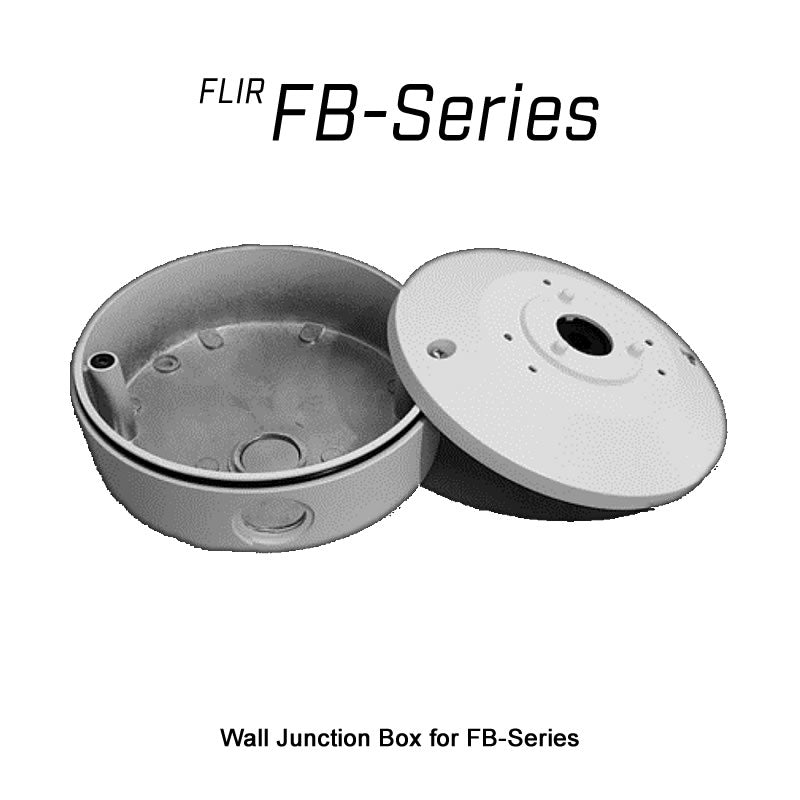

Wall Junction Box
Wall Junction Box for FB-Series
Allows the FLIR FB Series O and FB Series ID cameras to be mounted on a Wall
24VAC Outdoor Power Supply
The FLIR 24VAC Outdoor Power Supply provides power via two (2) fuse-protected outputs for FLIR thermal security cameras. The power supply offers a variety of configurations to power up to four outdoor units from a single source. With two 24 or 28 VAC outputs, the 24VAC Power Supply compensates for voltage losses over long wire runs and offers different input voltages. Capable of powering integrated systems, the power supply also allows for full use of cameras with pan/tilt, heating, and blowing functionalities.

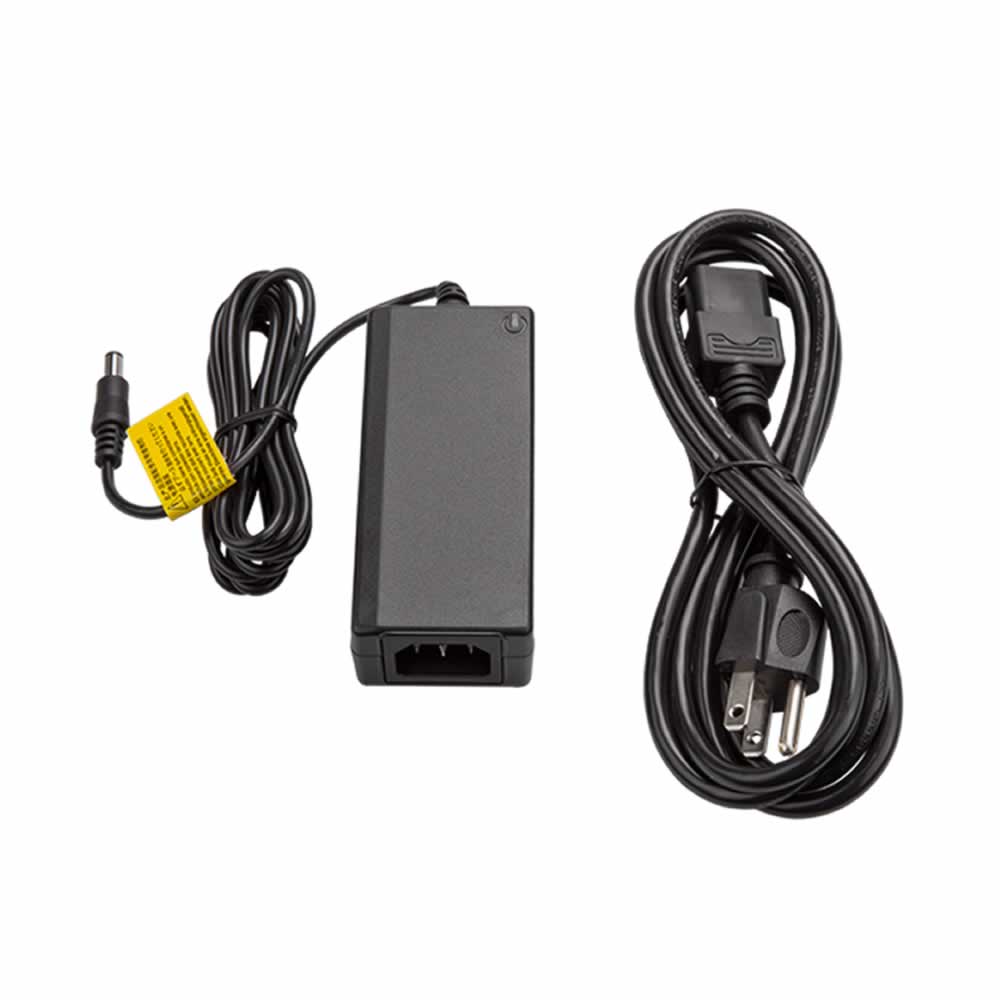

North American power supply for FLIR pan/tilt units.
Power supply, 30V, w AC Cord
European power supply for all FLIR pan/tilt units.
Power supply, 30V, w EURO Cord
Imaging Source DFG/USB2pro
Video-to-USB 2.0 converter
Typical machine vision applications use dedicated computers to perform image processing and analysis.
Some simple monitoring and visualization tasks do not, however, require these levels of image processing. Such tasks are most efficiently solved by delivering images directly from camera to monitor—eliminating the need for and associated costs of dedicated computer hardware.
Expressly designed for this purpose, the USB-to-HDMI converter generates an HDMI signal from The Imaging Source’s USB3 camera image data. Camera settings like exposure and gain can be configured via an on-screen menu and are automatically restored on startup.
Features:
- Supports all DMK/DFK 33, 37 and 38 series cameras from The Imaging Source
- Supports resolutions up to 4K (3840x2160) at 15 fps; Full HD up to 60 fps
- Supports monitors up to 4K native resolution
- Easy-to-use on-screen menus for camera and display settings via USB keyboards
