RHPC-HDSDI-2.1E
The RHPC-HDSDI-2.1E is the next generation in high-performance HD compact digital day/night enclosed board cameras. This 2.1 Megapixel board camera boasts a high quality progressive scan Exmor SONY CMOS image sensor. Combined with a beautiful f=3.6, 6, 8mm board lens with M12 Mount, this enclosed board camera captures beautiful images and video
What is 3G-SDI and HD-SDI?
3G-SDI is a successor technology to the well known and popular HD-SDI interface. It uses the same connectors and coaxial cables and is also completely downwards compatible. In a nutshell, it provides an increase in bandwidth which allows both higher resolutions and frame rates through a single connection.
"Traditional" HD-SDI is a global standard, specified in SMPTE292M and allows HD video data to be transmitted as 10bit YUV (correctly: YCbCr) at 1.485 Gbit/s. Ancillary data such as time code and audio are embedded in the signal.
Higher picture quality and frame rates such as RGB 4:4:4 or 50/60p can be realized through dual-link SDI connections. Dual link is also used for Stereo3D playback and record of two separate video streams in full resolution
What is HDMI?
HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device.<1> HDMI is a digital replacement for existing analog video standards.
Capture Crisp HD Video & Images up to 60fps
Capture video & images in 1920x1080 (1080p) at 30 frames per second or 1280x720 (720p) at 60 frames per second.
HD SDI Digital Day/Night Board Camera
The RHPC-HDSDI-2.1E is the next generation in high-performance HD compact digital day/night enclosed board cameras.
RHP-3GSDI-HDMI-S (sold separately)
3G/HD/SD-SDI to HDMI Video Converter with Scaling
Simultaneous 1 x HDMI and 2 x SDI Output Video Converter
During the integration of your camera you may need a few things along the way. We currently have the which is a 3G/HD/SD-SDI to HDMI Converter with Scaling
- Auto source format detection (3G/HD/SD).
- Built-in hardware scaling engine with anti-aliasing
- Simultaneous 1 x HDMI and 2 x SDI output.
- Splitter function
- Re-clock function (for SDI output)
-
1 Mini-USB port used for:
- Brightness, contrast, hue, saturation, configuration.
- Firmware upgrade.
Designed for Easy Installation
Power, Video cables, and Mounting Bracket are included

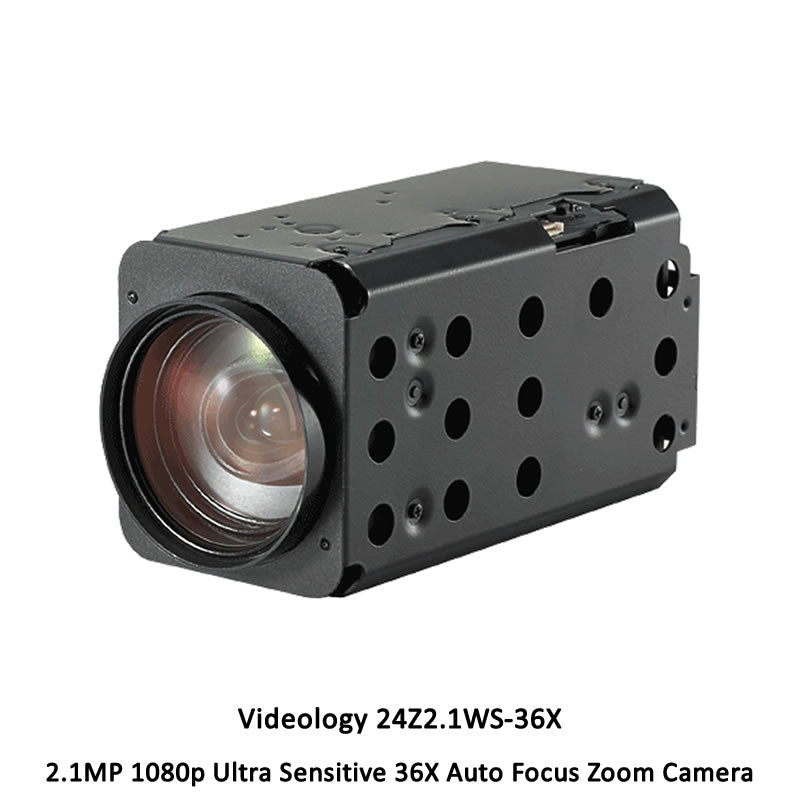

Videology 24Z2.1WS-36X
36x Autofocus Zoom Block Camera - Ultra Sensitive
Introducing the Videology 24Z2.1WS-36X Autofocus Zoom Block Camera, featuring a 2.1MP Sony 1/2" Image Sensor for superior color sensitivity to <0.037 Lux.
With 1080p/720p@60fps/50fps/30fps/25fps, 1080i 60/50fps resolution, this camera delivers exceptional image quality. The 36x optical zoom, 32x digital zoom, real-time True WDR @ 100dB, and digital noise reduction ensure clear and detailed footage in any lighting conditions. Extended SDI transmissions up to 500m (1650 ft) and full HD digital format using standard cabling make installation a breeze.
Power and control over the same cable with options for LVDS, EX-SDI, and CVBS analog video output. For HD-SDI, simply add on the converter model (60TR000X). Stay ahead of the curve with the Videology 24Z2.1WS-36X Camera.

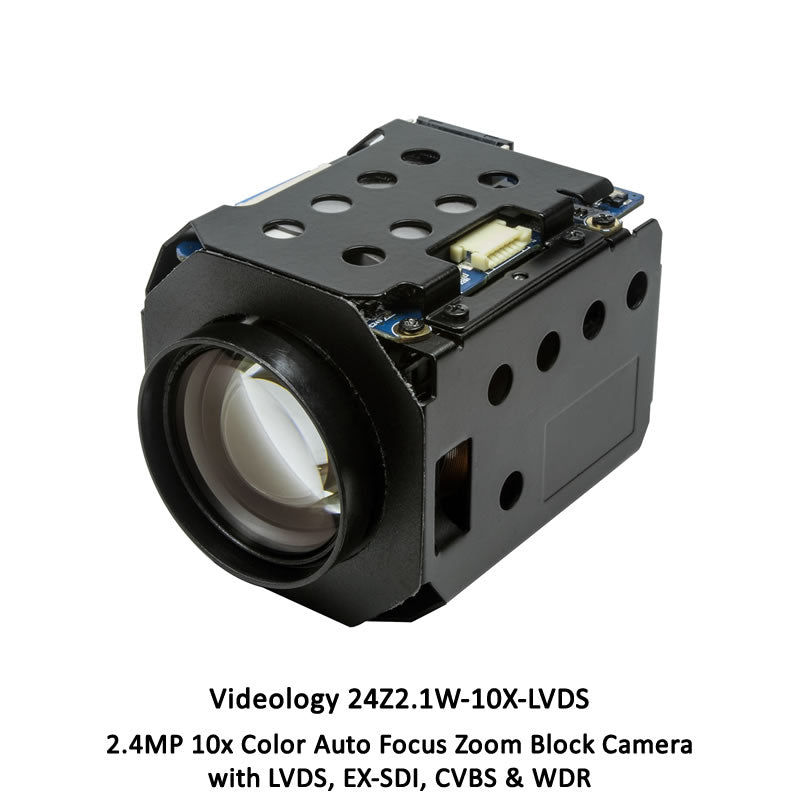

Videology 24Z2.1W-10X-LVDS-462
10x Autofocus Zoom Block Camera - LVDS
Introducing the Videology 24Z2.1W-10X-LVDS-462 10x Autofocus Zoom Block Camera - LVDS, equipped with a 1/2.8" SONY® STARVIS sensor IMX462LQR-C for exceptional image quality. This camera offers 1080p/720p@60fps/50fps/30fps/25fps, 10x Optical Zoom, 32x Digital Zoom, 5 Zoom Presets, Real Time True WDR, and Digital Noise Reduction.
Enjoy extended SDI transmissions up to 500m (1650 ft) with full HD digital format using standard cabling - coax, cat5/6. With a latency of <1 fps, power & control over the same cable, and LVDS, EX-SDI, CVBS analog video output, this camera is the perfect choice for professional video applications.
An ideal upgrade for analog camera users, the Basler ace GigE Camera is an economical Gigabit Ethernet camera. With a small form factor matching that of many analog cameras (29 x 29mm), the ACA640 can be a drop in replacement to an existing analog system,
This camera can use Power Over Ethernet (PoE) (2 GigE cables required), and is capable of using long cable lengths, and are the optimal choice for use on any factory floor.

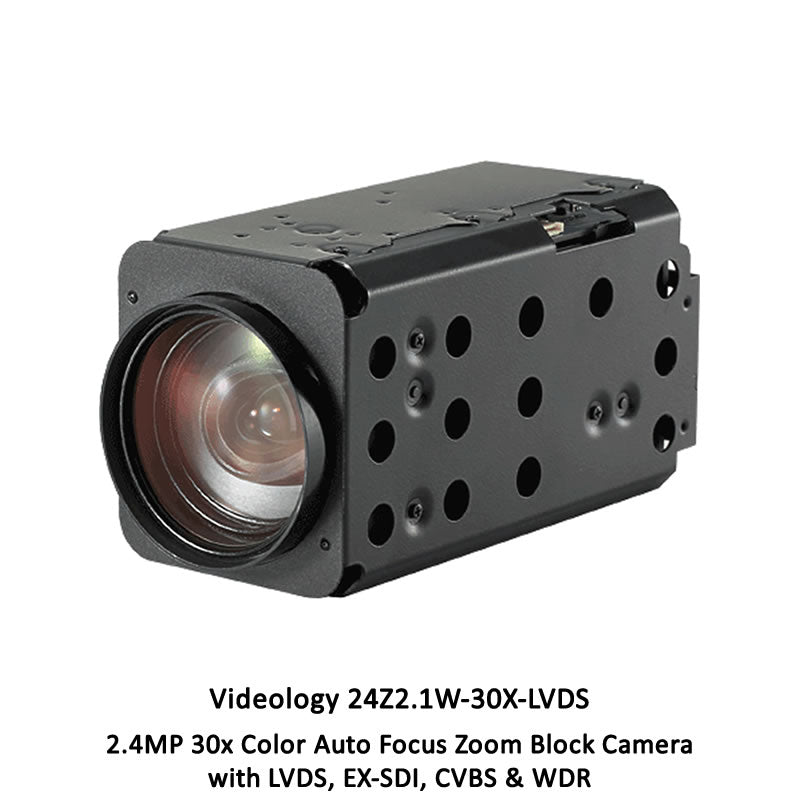

Videology 24Z2.1WS-30X-LVDS-385
30x Autofocus Zoom Block Camera - LVDS
Introducing the Videology 24Z2.1WS-30X-LVDS-385 30x Autofocus Zoom Block Camera - LVDS, equipped with a powerful 2.1MP Sony Exmor® 1/2" Image Sensor for crystal clear images. This camera offers a variety of resolutions including 1080p/720p@60fps/50fps/30fps/25fps and features a 30x Optical Zoom with 32x Digital Zoom for precise focus and control.
With Real Time True WDR, Digital Noise Reduction, and Extended SDI, you can expect exceptional image quality in any lighting conditions. Transmitting up to 500m (1650 ft) using standard cabling like coax and cat5/6, this camera also boasts low latency <1 fps and power & control over the same cable. Compatible with LVDS, EX-SDI, CVBS analog video output, and VISCA, PELCO-D, PELCO-P, UTC protocols, this camera is a versatile solution for various applications.

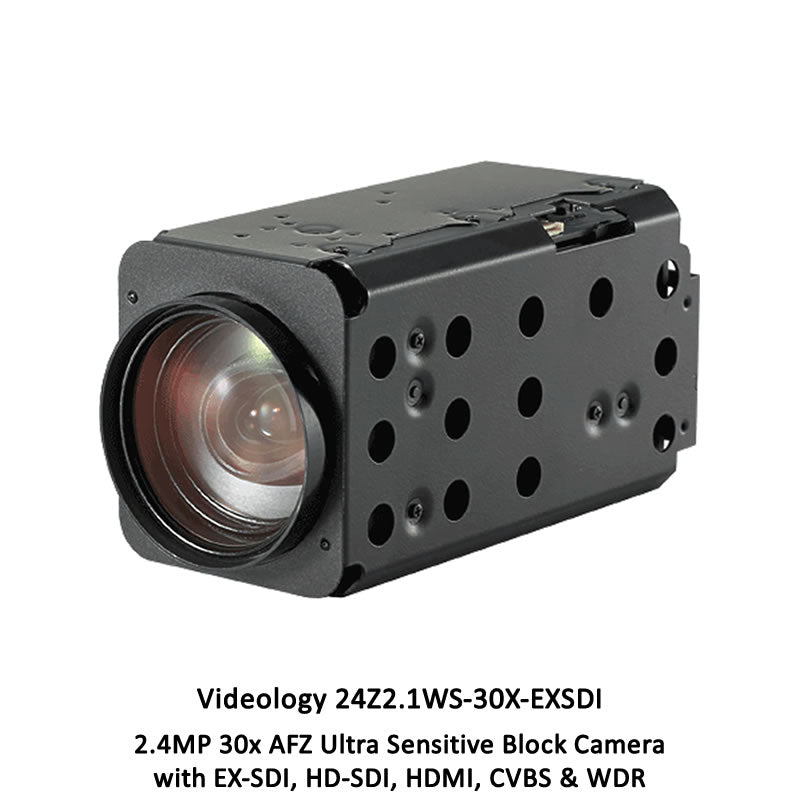

Videology 24Z2.1W-30X-EXSDI-344
30x Autofocus Zoom Block Camera - EXSDI
With extended SDI transmissions up to 500m, this camera ensures reliable connectivity in various environments. The HD-SDI and CVBS analog video output options provide versatility, while the low latency of less than 1fps ensures smooth, real-time video performance. Power and control can be delivered over the same cable, making installation and setup convenient and efficient.

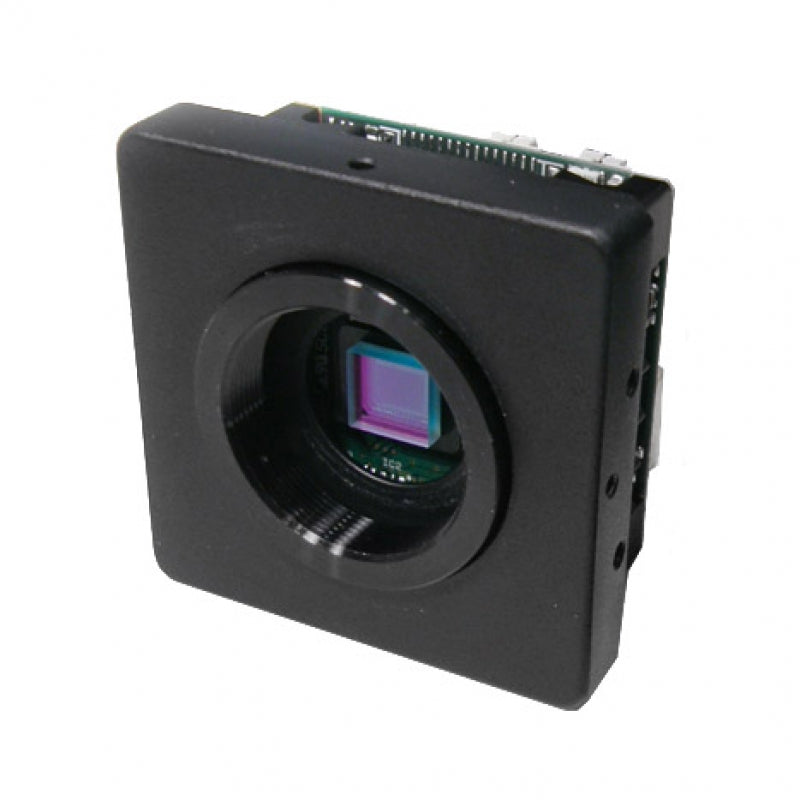

RHPC-HD10
The RHPC-HD10 C/CS HD board camera features a 42mm x 42mm footprint unenclosed, 50/60fps (selectable), a 1/3" CMOS (1.3 Megapixel) image sensor, On Screen Display, Slow Shutter, Digital Zoom and more, this HD board camera is perfect for applications requiring 16:9 720p video.
Also note, C/CS lens mount allows the attachment of high quality lenses to the RHPC-HD10 HD board camera.
Features
- 42mm (W) x 42mm (L) x 34mm (H) Form Factor
- Compact HD board camera
- 1/3'' CMOS 1.3MP Image Sensor
- 1280 x 720 Resolution
- 50 or 60 Frames Per Second (selectable)
- HD Analog Component: Y/Pb/Pr Video Output
- HD Analog RGB Video Output
- > 600 TV Lines
- RS-232C Controllable
- On Screen Display Setup
- Slow Shutter Functionality
- Digital Zooming Available
- 9-15 Volts DC
- Video Iris Control
- Weighs only 1.5oz (42 grams)
