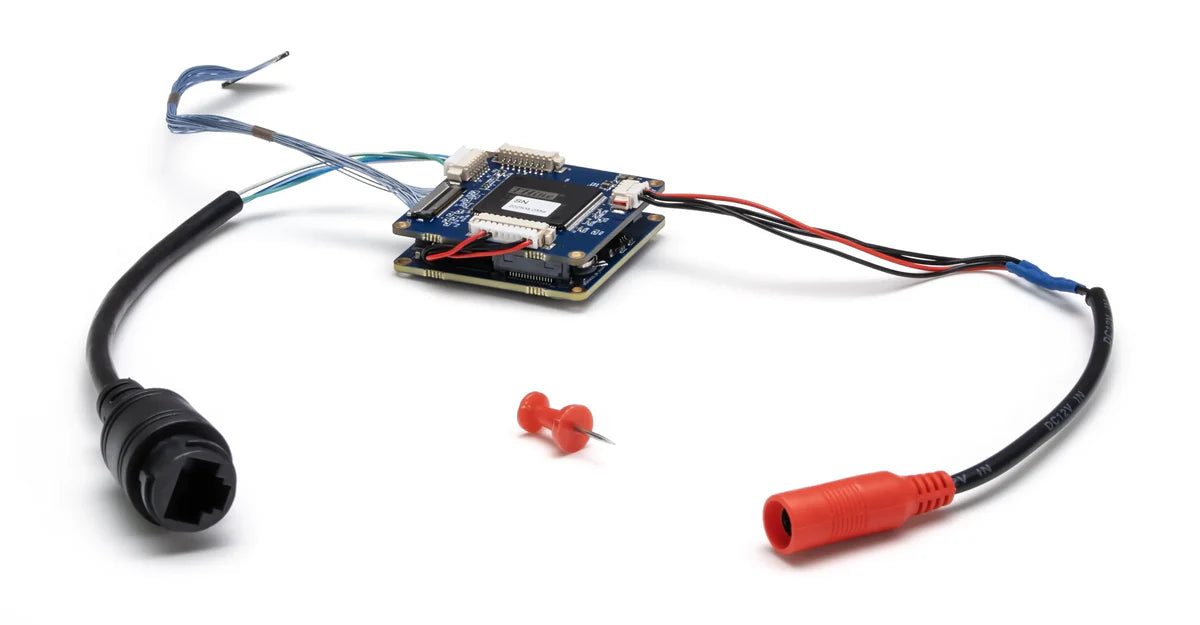

RHP IP LVDS2 Encoder Board

RHP-IP-LVDS2 IP Encoder Board is an advanced video encoder solution tailored for high-definition video applications within security, broadcasting, and industrial sectors. This versatile board converts LVDS (Low-Voltage Differential Signaling) input into high-quality IP video streams over H.264/H.265/MJPEG video compression, making it ideal for remote monitoring and large-scale video deployment for surveillance, robotic, and industrial vision applications.

Key Features:

• High-Performance Video Encoding: Supports H.264, H.265, and MJPEG compression formats with triple streaming + SVC stream capability, ensuring optimal video quality and compression to meet diverse network and storage requirements.

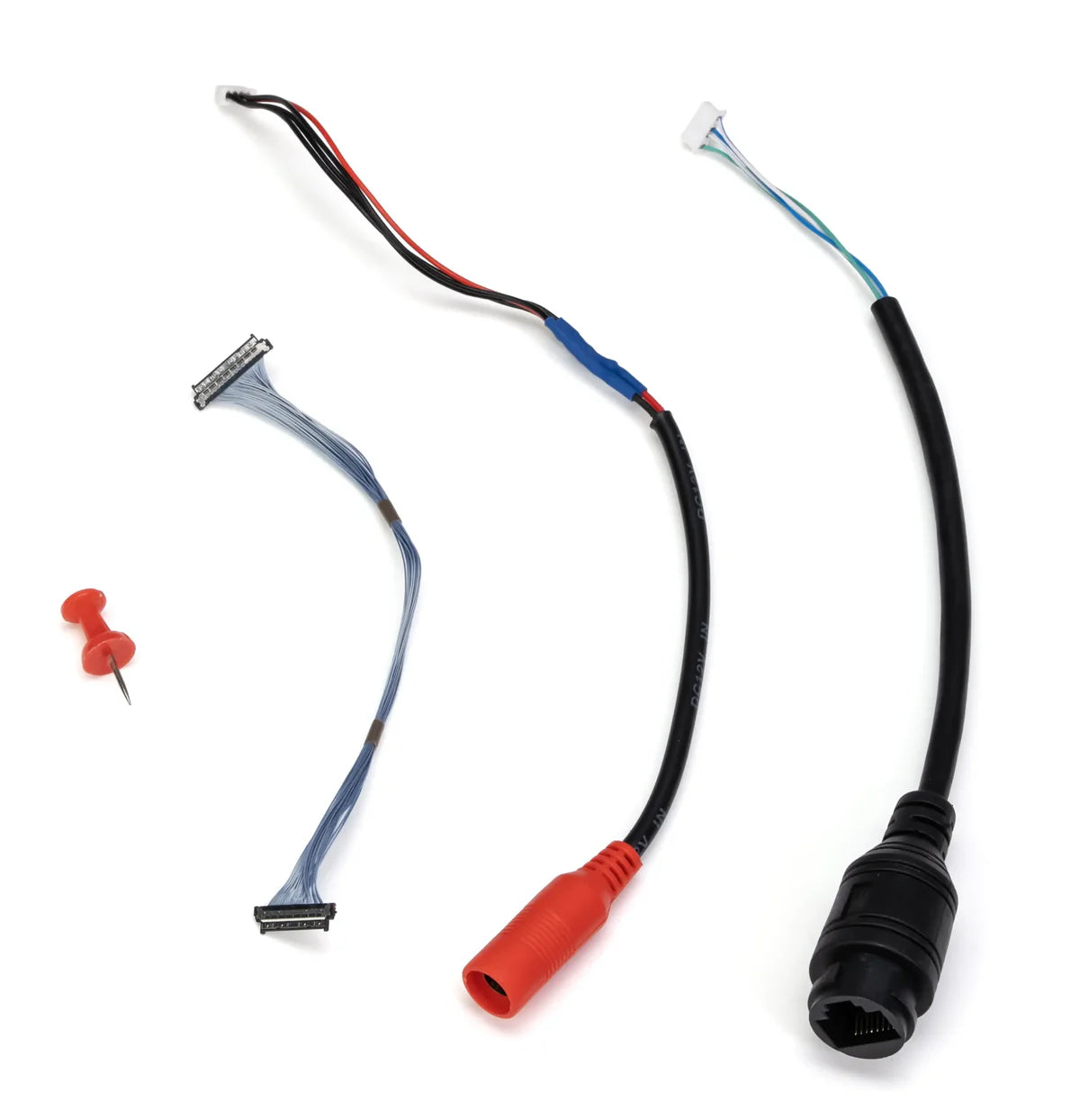

• High Definition Video Input: Accepts up to 2MP (1920 x 1080 at 30fps) video via a 30-pin micro coaxial cable, supporting both 4/8 lane LVDS inputs (Sony LVDS standard).
• Advanced Video Output: Features outputs including BT1120/BT601 16-bit, catering to various display and recording equipment.
• Robust Bitrate Control: Offers adjustable bitrate settings for main and secondary streams, ranging from 512 kbps to 10000 kbps, adjustable via CBR/VBR modes for tailored stream management.

Connectivity and Integration:

• Networking: Equipped with Ethernet 10/100 Mbps that supports IPv4, IPv6, ensuring seamless integration into existing network infrastructures with protocols such as IGMP, ICMP, ARP, and RTSP.
• Audio Capabilities: Includes audio input/output with G.711 u-law audio compression, enhancing video streams with high-quality synchronous audio.
• Extended Functionality: Features alarm in/out capabilities, RS-485 integration for PTZ control, and USB interfaces for expanded connectivity and control options.

User Interface and Software:

• Broad Protocol Support: Fully compliant with Onvif Profile S and ITX property protocols, facilitating integration with a wide range of network video recorders and management software.
• Advanced Security Features: Includes motion detection, region of interest, and privacy masking functionalities that offer enhanced security and user control.
