RHPC-925 Color Board Camera
The RHPC-925 is a high resolution 1/4" CCD color board camera. This 32x32mm compact single board form factor features 752(H) x 582(V) resolution, internal synchronization, 12 volts DC operation and parameters controllable via Connector include:
- Mirror Mode
- Flickerless Mode
- Auto Gain Control (AGC)
- Auto White Balance (AWB)
- Auto Level Control (ALC)
- Backlight Compensation (BLC)
With an array of lens options the RHPC-925 is ideal for many lightweight OEM applications.
32x32mm Compact Form Factor
Designed to fit into tight spaces, the RHPC-925 boasts a 32x32mm compact form factor
The RHPQ-755P is a powerful color OEM Board Camera for any application requiring a 26mmx22mm design and high quality image.
Board Camera Features
- 1/4" Color Sony CCD
- 26x22mm Single Board Camera
- Aspherical Plastic Lens
(to avoid defect by vibration) - Option: OLPF*/IR Cut Filter Removed for improved infrared (low light) sensitivity
- 5 to 12 Volts DC Operation
- High Temperature/Low Tolerance Components
- Over/Reverse Current protection
- Optical Low Pass Filter
* High Resolution Versions Available
* Low Quantity Orders Available as of September 2009
The RHPC-115E is a standard resolution monochrome board camera. This board camera provides excellent monochrome video, and are also sensitive to infrared light.
This 42x42mm single board camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution (resolutions below) with crisp monochrome images, and high quality video.
Board Camera Features
- 1/4" Monochrome Super HAD CCD
- 42x42mm Single Board Camera
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable on PC Board:
- Back light Compensation
(Full Screen or Center) - Electronic Iris
- Auto or OFF
- Auto. Gain Control ON or MANUAL
The RHPC-110E is a standard resolution monochrome board camera. Both cameras provide excellent monochrome video, and are also sensitive to infrared light.
This 42x42mm single board camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution (resolutions below) with crisp monochrome images, and high quality video.
Board Camera Features
- 1/4" Monochrome Super HAD CCD
- 42x42mm Single Board Camera
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable on PC Board:
- Back light Compensation
(Full Screen or Center) - Electronic Iris
- Auto or OFF
- Auto. Gain Control ON or MANUAL
The RHPC-315E is a high resolution monochorme board camera. This board camera provides excellent monochrome video and have extra functions controllable via PC Software.
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a higher resolution than the 110E/115E, crisp monochrome images, and quality video.
Board Camera Features
- 1/4" Monochrome Super HAD CCD
- 42x42mm Single Board Camera
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
The software provided with this board camera allows plenty of options for managing your video.
Parameters Controllable on PC Board:
- Back light Compensation
(Full Screen or Center) - Electronic Iris
- Auto or OFF
- Auto. Gain Control ON or MANUAL
The RHPC-310E is a high resolution monochrome board camera. This board camera provides excellent monochrome video and have extra functions controllable via PC Software.
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This board camera will provide a higher resolution than the 110E/115E, crisp monochrome images, and quality video.
Board Camera Features
- 1/4" Monochrome Super HAD CCD
- 42x42mm Single Board Camera
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
The software provided with this board camera allows plenty of options for managing your video.
Parameters Controllable on PC Board:
- Back light Compensation
(Full Screen or Center) - Electronic Iris
- Auto or OFF
- Auto. Gain Control ON or MANUAL
The RHPQ-755N is a powerful color OEM Board Camera for any application requiring a 26mmx22mm design and high quality image.
Board Camera Features
- 1/4" Color Sony CCD
- 26x22mm Single Board Camera
- Aspherical Plastic Lens
(to avoid defect by vibration) - Option: OLPF*/IR Cut Filter Removed for improved infrared (low light) sensitivity
- 5 to 12 Volts DC Operation
- High Temperature/Low Tolerance Components
- Over/Reverse Current protection
- Optical Low Pass Filter
* High Resolution Versions Available
The RHPC-370A is a high resolution monochrome board camera. This board camera provides excellent monochrome video and are also sensitive to infrared light.
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide high resolution video with crisp monochrome images.
Board Camera Features
- 1/3" High Resolution Analog EIA (NTSC) Monochrome Board Camera
- 42x42mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable via Jumpers & Contacts:
- Back light Compensation
( Full Screen or Center ) - Electronic Iris
- Auto or OFF
- Automatic Gain Control ON or OFF

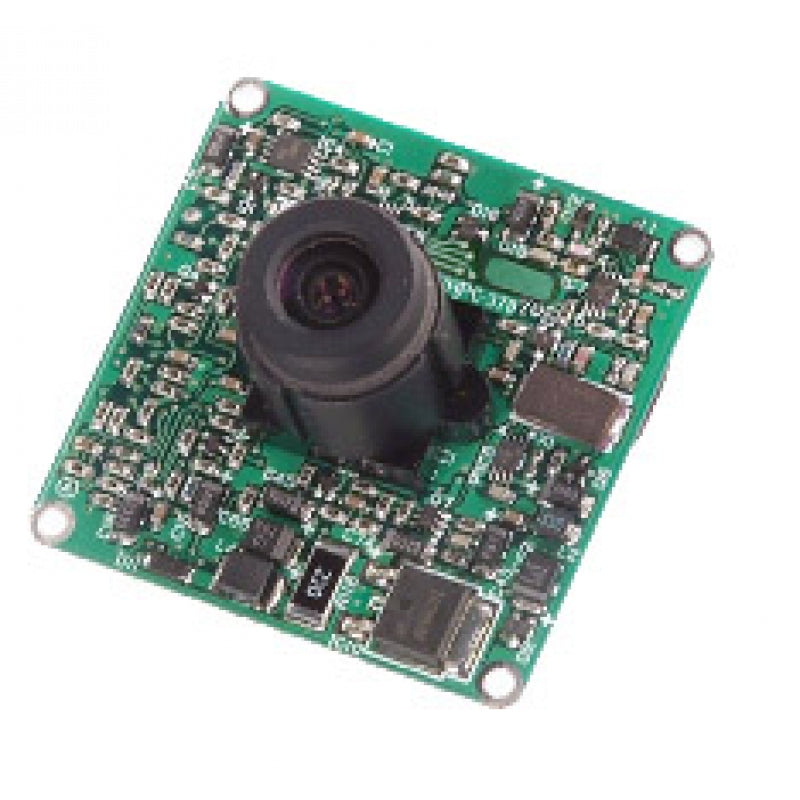

The RHPC-170A is a standard resolution monochrome board camera. This camera provides excellent monochrome video and are also sensitive to infrared light.
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution with crisp monochrome images, and quality video.
Board Camera Features
- 1/3" Monochrome Super HAD CCD
- 42x42mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable via Jumpers & Contacts:
- Back light Compensation
(Full Screen or Center) - Electronic Iris
- Auto or OFF
- Automatic Gain Control ON or OFF

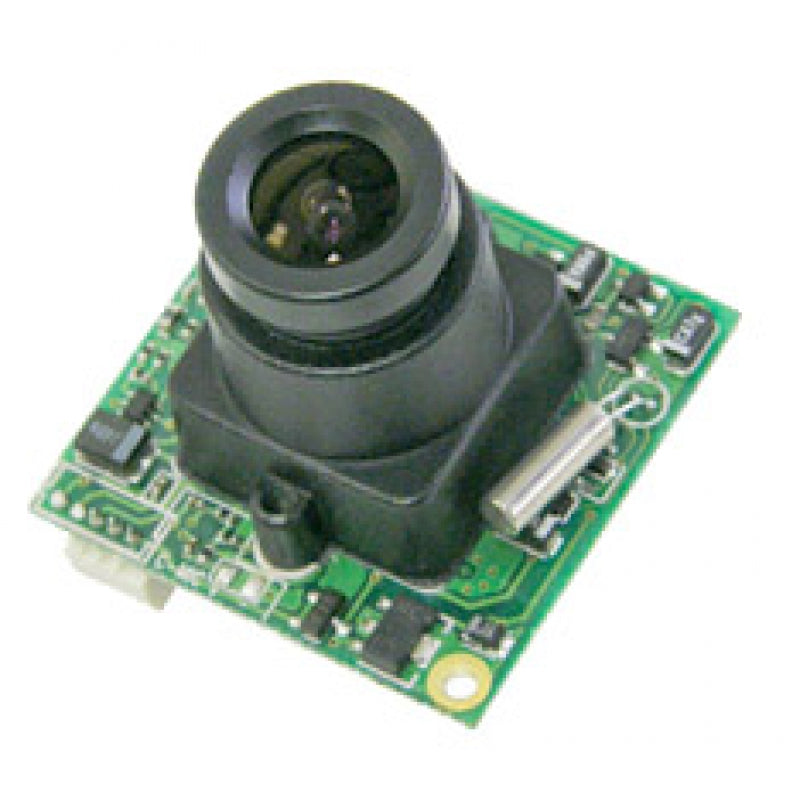

RHPC-600E
1/3” High Resolution Monochrome Board Camera
The RHPC-600 OEM board camera is a high resolution monochrome board camera that displays an extremely sharp image with 600 TV lines of resolution at a sensitivity of 0.003 Lux at Faceplate.
With a 1/3" SONY EXview HAD™ Monochrome CCD, 30x30mm board foot print, and 12Volt DC operation, this camera is our smallest and most powerful monochrome camera to date.
Board Camera Features
- SONY 1/3" EXview HAD CCD (HI-RES Monochrome)
- 30 x 30mm Single Board
- 12Volt DC Operation
- Power/Video Cable Included:
Power Coaxial: 5.5mm x 2.1mm (Center Positive)
Video: BNC Female

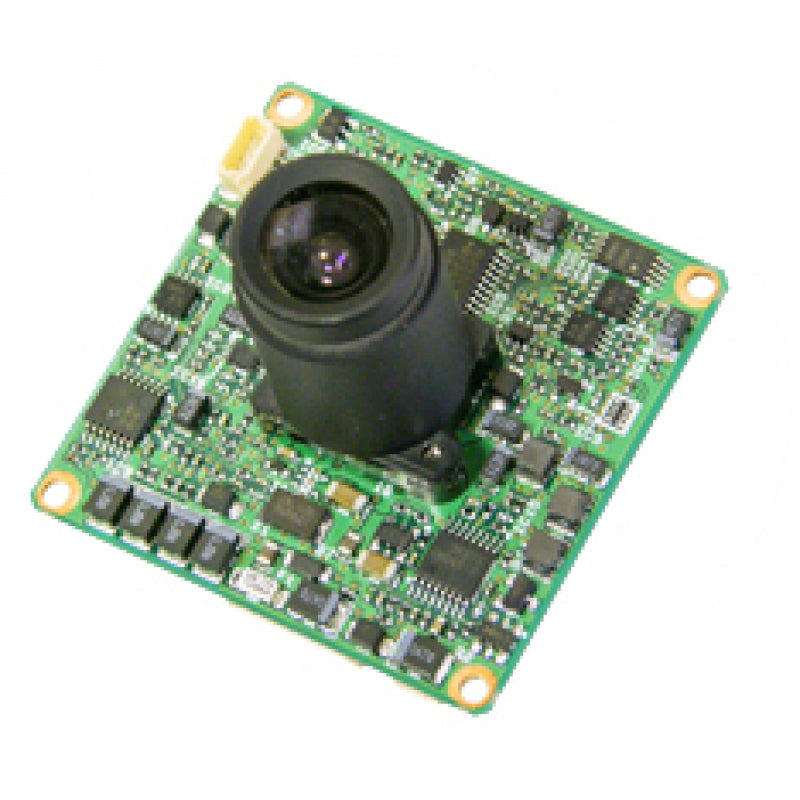

RHPC-890A 1/3 board camera
The RHPC-890A is a high resolution board camera that provides excellent color video and has extra functions controllable via PC Software.
The RHPC-890A is the replacement for our RHPC-790B-795B. This board camera presents a smaller form factor in a single board platform.
This 42 x 42mm Board Camera works using a 10.5 - 15 Volt DC connection for operation.
Board Camera Features
- 1/3" Color CCD
- 42 x 42mm Single Board
- Y/C (S-Video) & Composite Output
- Internal & External Synchronization
- 10.5 - 15 Volt DC Operation
- 0.5 Lux Sensitivity
- 4X Digital Zoom
Various Parameters and Settings are Controllable Via: Software and Resistive Jumpers (RE600)
- Gain
- Shutter Speed
- White Balance
- 4X Digital Zoom
- Back Light Compensation
- External Synchronization
- Phase Adjustment
RHPC-600C
High Resolution Monochrome Board Camera
The RHPC-600 OEM board camera is a high resolution monochrome board camera that displays an extremely sharp image with 600 TV lines of resolution at a sensitivity of 0.003 Lux at Faceplate.
With a 1/3" SONY EXview HAD™ Monochrome CCD, 30x30mm board foot print, and 12Volt DC operation, this board camera is our smallest and most powerful monochrome camera to date.
Board Camera Features
- SONY 1/3" EXview HAD CCD (HI-RES Monochrome)
- 30 x 30mm Single Board
- 12Volt DC Operation
- Power/Video Cable Included:
Power Coaxial: 5.5mm x 2.1mm (Center Positive)
Video: BNC Female
DFM 42BUC03-ML
USB 2.0 color board camera
The DFM 42BUC03-ML camera is a high quality USB 2.0 CMOS Color Board Camera with Trigger at an unbelievably low cost. With resolutions from 640x480 to 1280x960, this board camera can provide great detail in every image with its Progressive Scan CMOS CCD image sensor. Frame rates can reach up to 49 frames per second at 640x480.
With an amazingly compact 30(H) x 30(W) x 25(L)mm form factor, this cost effective USB board camera is one of the best cameras you will find. Drivers and Software are included with this camera. Please note, lens is not included.
Please note:
- Lens Mount and Lens Not Included
- This camera is also on a 2-4 week lead time on all new orders
System Requirements
- Pentium III/800 MHz, 128 MB of Ram
- Graphics Card with 24/32 bit Color
- Windows XP, Vista (32 & 64 bit) or Windows 7 (32 & 64 bit)
- DirectX 9.0c or Higher
| Resolution | Format | Frames Per Second (FPS) |
Sensitivity |
| 640x480 (RGB24/RGB32/Y800) |
1/5.5" | 49 | 2.0 V/lux-sec |
| 1024x768 (RGB24/RGB32/Y800) |
1/4" | 31 | 2.0 V/lux-sec |
| 1280x720 (RGB24/RGB32/Y800) |
1/3" | 33 | 2.0 V/lux-sec |
| 1280x960 (RGB24/RGB32/Y800) |
1/3" | 25 | 2.0 V/lux-sec |
| * Configurable with the shipped software | |||
The RHPC-375A is a high resolution monochrome board camera. This board camera provides excellent monochrome video and are also sensitive to infrared light.
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide high resolution video with crisp monochrome images.
Board Camera Features
- 1/3" High Resolution Analog CCIR (PAL) Monochrome Board Camera
- 42x42mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable via Jumpers & Contacts:
- Back light Compensation
( Full Screen or Center ) - Electronic Iris
- Auto or OFF
- Automatic Gain Control ON or OFF
The RHPC-175A is a standard resolution monochrome board camera. This board camera provides excellent monochrome video and are also sensitive to infrared light.
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution with crisp monochrome images, and quality video.
Board Camera Features
- 1/3" Monochrome Super HAD CCD
- 42x42mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.
Parameters Controllable via Jumpers & Contacts:
- Back light Compensation
(Full Screen or Center) - Electronic Iris
- Auto or OFF
- Automatic Gain Control ON or OFF
