Board Cameras

RHPQ-945N

The RHPQ-945N / RHPQ-945P is a powerful OEM Board Camera for any application requiring a 42mmx42mm design and high quality image.

• 1/3" Color Sony CCD
• 42mm x 42mm Single Board Camera
• Color/Monochrome - Day/Night
• Frame Integration
• Vari-Focal Auto-Iris Day-Night Lens
• Internal or External Synchronization
• 12 Volt DC Operation
• Horizontal & Vertical Image Flip Function
• Parameters Controllable Via Connector: External Sync, Frame Integration, Color Bar Output, Day/Night Mode, Vertical Flip, Horizontal Flip, Back Light Compensation, Auto White Balance, Auto Gain Control, Fixed Shutter

* High Resolution Versions Available

RHPC-795BDN

This camera is available in both high and low resolution options, and includes a "Day/Night" feature using an IR Cut Filter.

The 790BDN/795BDN is a high resolution Camera. This Day / Night camera can provide excellent color video and have extra functions controllable via PC Software.

This 42x42mm Dual Board Camera works using only a 12Volt DC connection for operation. This camera will provide a higher resolution, crisp color images, and quality video.

The software provided with this unit allows plenty of options for managing your video.

• 1/3" Color CCD
• 42x42 + 32x32mm Dual Boards
• Internal or External Synchronization
• High Sensitivity
• Auto Switching IR Cut Filter
• 12Volt DC Operation
• Low Smear
• Y/C Video Output
• Sensitive Near Infra Red Region

Videology 24B1.3XUSB-C

High Definition 1.3 Megapixel B&W Single Board Camera with USB Video Output

The Videology 24B1.3xUSB is a ½” CMOS based b/w single board USB camera offering an easy means of displaying and capturing high quality video and images on any USB 2.0 equipped desktop or laptop computer running a supported Microsoft® OS.

Because it is USB based, there is no need for a frame grabber. Instead, a single USB cable provides power, video frames, control and data transfer.

• All of our USB cameras share the same simple, powerful API allowing easy migration from one camera to another.
• SDKs are available for OEMs (for an additional fee).
• Housings: Mechanical design options can be quoted to OEMs.

This camera can utilize a CS, M12 or M12 pinhole mount lens that is not Auto Iris.

Videology 21C21XW

1/3 CMOS WDR Color Board Camera

The VIDEOLOGY 21C21XW 1/3" CMOS Color Camera stands out as a top-tier imaging solution with its impressive features. Equipped with a 1/3" CMOS color sensor, this camera delivers high-quality images with precision and clarity. Its ability to provide analog (CBVS) and digital (BT.656) video output simultaneously sets it apart, offering versatility in connectivity options.
Despite its powerful capabilities, the camera remains compact and resilient, housed in a miniature rugged 22mm x 26mm single board design. With a low 0.1 lux sensitivity, it ensures superior performance even in low-light conditions, capturing detailed footage with ease. Additionally, the inclusion of digital zoom, accessible via OSD or I²C option, enhances its functionality, allowing for precise adjustments to focus on specific details.

The VIDEOLOGY 21C21XW 1/3" CMOS Color Camera is a reliable and advanced tool for professionals seeking unparalleled imaging performance in various settings.

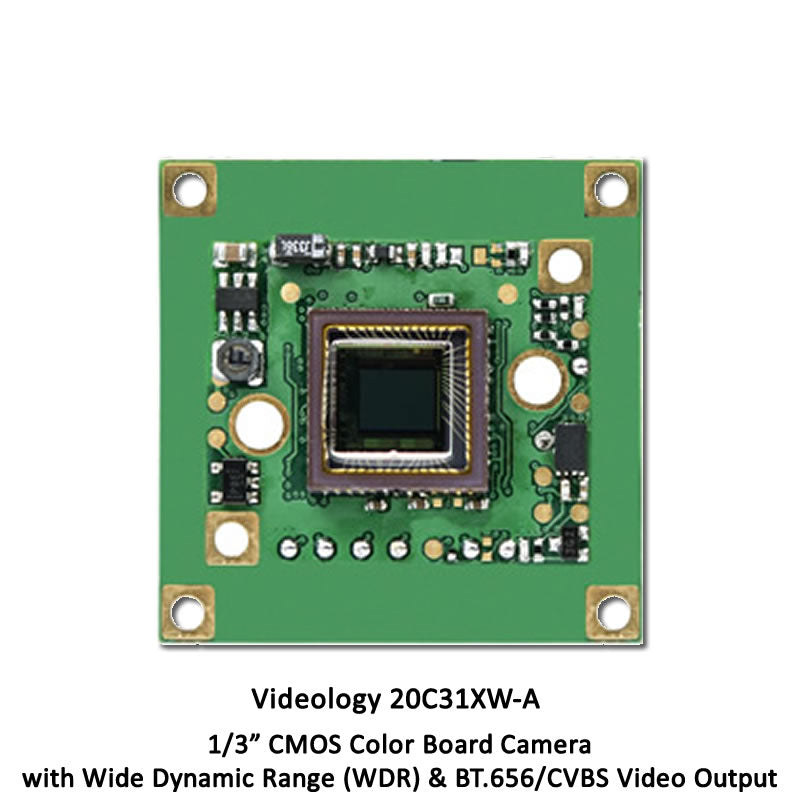

Videology 20C31XW-A

1/3" CMOS Color Board Camera

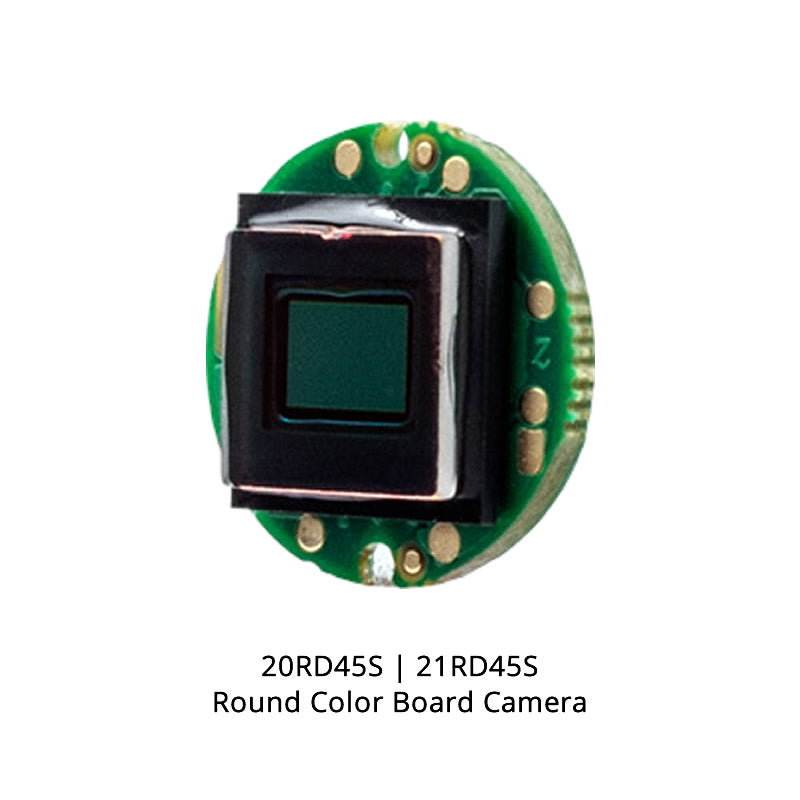

Videology 20RD45S

Round Color Board Camera

Introducing the Videology 20RD45S Round Color Board Camera, a cutting-edge device designed with precision and professional-grade features to meet your surveillance needs. Equipped with a 1/4" industrial grade CMOS sensor, this camera ensures exceptional image quality for optimal performance.
Operating at a power input range of 3.2VDC – 3.8VDC (max) and consuming less than 1 Watt of power, it combines efficiency with functionality. With high sensitivity of 0.3 lux, this camera captures clear images even in low-light conditions, providing reliable surveillance around the clock. Its ultra-mini 13mm round board makes it versatile for installations where space is limited, without compromising on quality.

The Videology 20RD45S is a top-of-the-line solution that delivers professional-grade monitoring capabilities in a compact and efficient design.

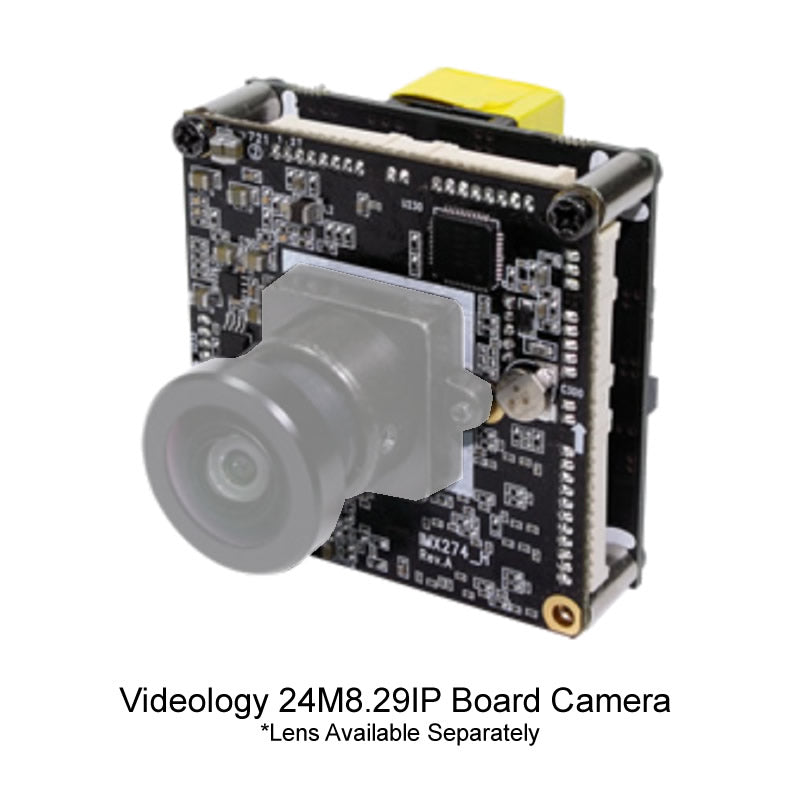

Videology 24M8.29NIP

4K IP Board Camera, Low Latency, with DOL WDR

The Videology 24M8.29NIP incorporates such features as 4K resolution, Digital Overlap Wide Dynamic Range (DOL-WDR), IP video server and H.265 compression, all in a single front board.

The 42mm x 42mm board camera 8.29 MP sensor outputs resolution of 3840x2160 @30fps. Compression options are H.265, H.264 and MJPEG with triple output stream each individually configured. The camera communication is ONVIF compliant for fast integration into security systems and can be powered via the ethernet port (PoE).

The camera has cross-browser capability. ActiveX and IE are used to configure all aspects of the camera.

The Imaging Source DMM 27UR0135-ML camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The camera ships with the very sensitive 1/3 inch On Semiconductor CMOS AR0135 sensor.

With up to 60 images per second, the DMM 27UR0135-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses.

The Imaging Source DFM 37UX290-ML USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 2.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact design and support a variety applications.

The DFM 37UX290-ML color camera supports multiple pixel formats with variable bits per-pixel settings. The names of the pixel formats and the way to select them depends on the driver used to control the camera.

Imaging Source DMM 37UX273-ML USB 3.1 Monochrome Board Camera

The Imaging Source DMM 37BUX252 USB 3.1 Monochrome Industrial Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 1.6 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy.

Additionally, their sensor sizes (1/1.9") mean they are easily combined with a variety of low-priced standard industrial lenses available.

Imaging Source DMM 37UX290-ML USB 3.1 monochrome board camera

The Imaging Source DMM 37UX290-ML USB 3.1 Monochrome Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 2.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact design and support a variety applications.

The DMM 37UX290-ML color camera supports multiple pixel formats with variable bits per-pixel settings. The names of the pixel formats and the way to select them depends on the driver used to control the camera.

Imaging Source DFM 37UX273-ML

USB 3.1 Color Board Camera

The Imaging Source DFM 37UX273 USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

These cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy.

Additionally, the sensor size (1/2.9) means they can be combined with a variety of low-priced standard lenses available.

DFM 37UX265-ML

USB 3.1 color board camera

The Imaging Source DFK 37BUX265 USB 3.1 Color Industrial Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX265LQR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 3.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.

Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.

Imaging Source DMM 37UX265-ML USB 3.1 monochrome board camera

The Imaging Source DMM 37BUX265 USB 3.1 Monochrome Industrial Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX265LLR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 3.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.

Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.

DFM 37UX252-ML

USB 3.1 color board camera

The Imaging Source DFM 37BUX252 USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX252LQR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 3.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.

Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.
