DMM 42BUC03-ML
USB 2.0 monochrome board camera
The DMM 42BUC03-ML camera is a high quality USB 2.0 CMOS Monochrome Board Camera with Trigger at an unbelievably low cost. With resolutions from 640x480 to 1280x960, this board camera can provide great detail in every image with its Progressive Scan CMOS CCD image sensor. Frame rates can reach up to 49 frames per second at 640x480.
With an amazingly compact 30(H) x 30(W) x 25(L)mm form factor, this cost effective USB board camera is one of the best cameras you will find. Drivers and Software are included with this camera. Please note, lens is not included.
Please note:
- Lens Mount and Lens Not Included
- This camera is also on a 2-4 week lead time on all new orders
System Requirements
- Pentium III/800 MHz, 128 MB of Ram
- Graphics Card with 24/32 bit Color
- Windows XP, Vista (32 & 64 bit) or Windows 7 (32 & 64 bit)
- DirectX 9.0c or Higher
| Resolution | Format | Frames Per Second (FPS) |
Sensitivity |
| 640x480 (RGB24/Y800) |
1/5.5" | 49 | 2.0 V/lux-sec |
| 1024x768 (RGB24/Y800) |
1/4" | 31 | 2.0 V/lux-sec |
| 1280x720 (RGB24/Y800) |
1/3" | 33 | 2.0 V/lux-sec |
| 1280x960 (RGB24/Y800) |
1/3" | 25 | 2.0 V/lux-sec |
| * Configurable with the shipped software | |||
Videology 20B45M-12
Mini CMOS Color Camera
The Videology 20B45M-12 color board camera is a ultra compact board camera with a 14mm x 14mm unenclosed footprint.
The 20B45M-12 color board camera series features a low power 1/4" CMOS and CCD image sensors with ultra wide temperature and vibration specifications. This board camera version weighs in at about 0.5g (0.01 oz) without a lens mount. Active pixel resolution is at 640x480 and a TV resolution of 420 TV lines. Optional models include balanced video output and can be prepared for computer control via I²C.
Videology 20B45M
Mini CMOS Color Camera
The Videology 20B45M color board camera is a ultra compact enclosed board camera with a 17mm x 17mm footprint.
The 20B45M color board camera series features a low power 1/4" CMOS image sensor with ultra wide temperature and vibration specifications. This enclosed camera version weighs in at about 6.4g (0.23 oz) Active pixel resolution is at 640x480 and a TV resolution of 420 TV lines. Optional models include balanced video output and can be prepared for computer control via I²C.
RHPQ-725P
The RHPQ-725N / RHPQ-725P is a powerful OEM Board Camera for any application requiring a 32mmx32mm design and high quality image.
- 1/3" Color CCD
- 32x32mm Single Board
- 350 TV Lines
- Video Iris
- Signal Output
(Option Factory Setting) - Low Noise
- 12 Volt DC Operation
* High Resolution Versions Available
RHPQ-710C
The RHPQ-710C / RHPQ-710E is a powerful OEM Board Camera for any application requiring a 32mmx32mm design and high quality image.
- 1/4" SONY Monochrome CCD
- 32x32mm Single Board
- 350 TV Lines
- Clear Picture Controlled by DSP
- Low Noise
- 5 Volts DC to 14 Volt DC Operation
- Optional Connector Positions Available
* High Resolution Versions Available
RHPQ-725N
The RHPQ-725N is a powerful OEM Board Camera for any application requiring a 32mmx32mm design and high quality image.
- 1/3" Color CCD
- 32x32mm Single Board
- 350 TV Lines
- Video Iris Signal Output
(Option Factory Setting) - Low Noise
- 12 Volt DC Operation
* High Resolution Versions Available
RHPQ-710E
The RHPQ-710C / RHPQ-710E is a powerful OEM Board Camera for any application requiring a 32mmx32mm design and high quality image.
- 1/4" SONY Monochrome CCD
- 32x32mm Single Board
- 350 TV Lines
- Clear Picture Controlled by DSP
- Low Noise
- 5 Volts DC to 14 Volt DC Operation
- Optional Connector Positions Available
* High Resolution Versions Available
RHPQ-715N
The RHPQ-715N is a powerful OEM Board Camera for any application requiring a 32mmx32mm design and high quality image.
- 1/4" Color CCD
- 32x32mm Single Board
- 350 TV Lines
- Clear Picture Controlled by DSP
- Low Noise
- 5 Volts DC to 14 Volt DC Operation
- Optional Connector Positions Available
* High Resolution Versions Available

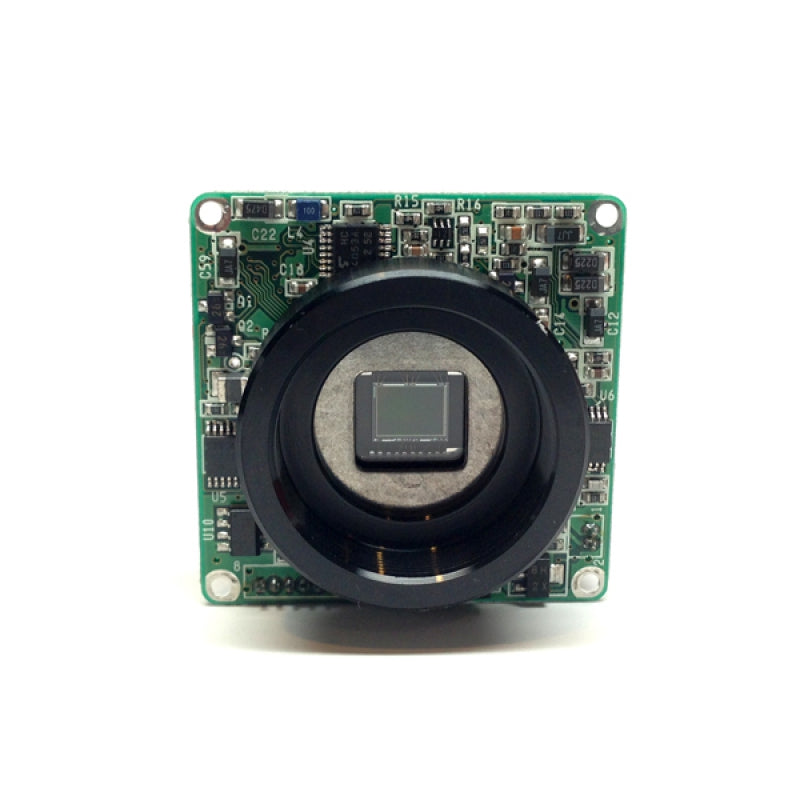

RHP-802H Monochrome Board Camera
Super High Sensitivity Adjacent to Near Infra-Red Ray Exposed Single PC Board.
Quick Specs (NTSC):
Effective Pixels: 380k
Scanning system: 2:1 Interlace
Synchronizing system: Internal
Gain Control: AGC HI:5~50B, LO: 5~32Db, <(OFF=5dB)>*
Gamma Correction: γ≒0.45, <(γ≒1.0>*
Min. Illumination: 0.0003lux @ F1.4
B.L.C.: ON/OFF
Shutter Speed: EI(1/60~1/100,000),
S/N Ratio: 50dB
Weight: 25g
*Available factory set options
CCD: 1/2"
Resolution: 570TVL
Power: DC+12V±10% 12VDC
RHPQ-715P
RHPQ-715P is a powerful OEM Board Camera for any application requiring a 32mmx32mm design and high quality image.
- 1/4" Color CCD
- 32x32mm Single Board
- 350 TV Lines
- Clear Picture Controlled by DSP
- Low Noise
- 5 Volts DC to 14 Volt DC Operation
- Optional Connector Positions Available
* High Resolution Versions Available
RHPC-705
The RHPC-700/705 is a standard resolution version of the RHPC-900/905. Both cameras provide excellent color video and have extra functions controllable via PC Software.
This 32x32mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution with crisp color images, and quality video.
The software provided with this unit allows plenty of options for enhancing and managing your video.
- 1/4" Color CCD
- 32x32mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
Parameters Controllable via PC Software:
* PC Interface Required (23X REM with Software)
Please contact us for further information.
- Mirror Image
- Negative / Positive Image
- Gain Control
- Fixed Shutter Speed
- Edge Enhancement
- White Balance
- Croma
- Aperture
RHPQ-945P
The RHPQ-945N / RHPQ-945P is a powerful OEM Board Camera for any application requiring a 42mmx42mm design and high quality image.
- 1/3" Color Sony CCD
- 42mm x 42mm Single Board Camera
- Color/Monochrome - Day/Night
- Frame Integration
- Vari-Focal Auto-Iris Day-Night Lens
- Internal or External Synchronization
- 12 Volt DC Operation
- Horizontal & Vertical Image Flip Function
- Parameters Controllable Via Connector: External Sync, Frame Integration, Color Bar Output, Day/Night Mode, Vertical Flip, Horizontal Flip, Back Light Compensation, Auto White Balance, Auto Gain Control, Fixed Shutter
* High Resolution Versions Available

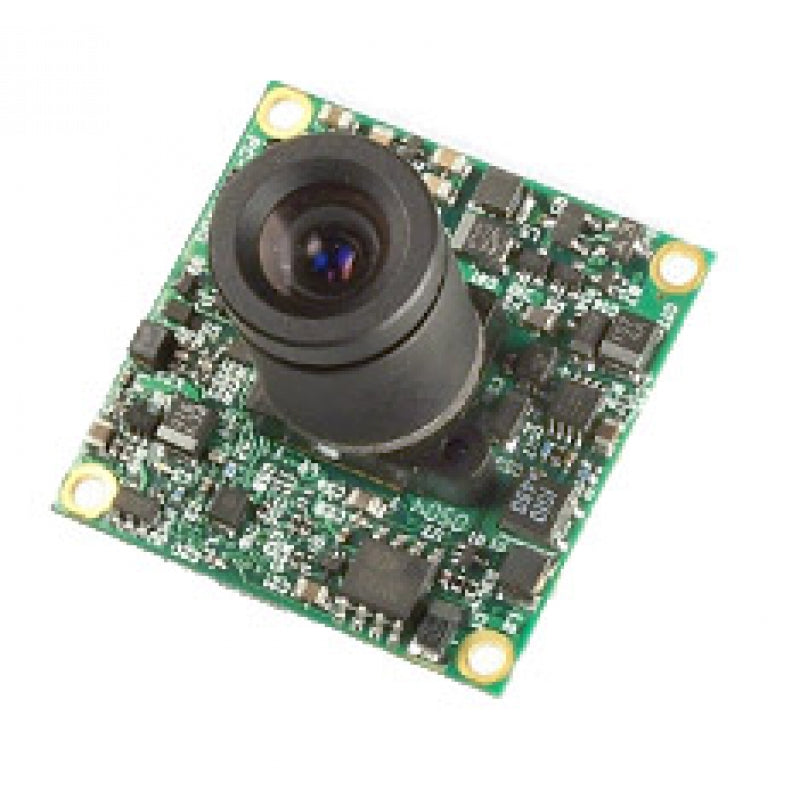

RHPC-700
The RHPC-700/705 is a standard resolution version of the RHPC-900/905. Both cameras provide excellent color video and have extra functions controllable via PC Software.
This 32x32mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution with crisp color images, and quality video.
The software provided with this unit allows plenty of options for enhancing and managing your video.
- 1/4" Color CCD
- 32x32mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
Parameters Controllable via PC Software:
* PC Interface Required (23X REM with Software)
* Software is highly recommended for engineers only
- Mirror Image
- Negative / Positive Image
- Gain Control
- Fixed Shutter Speed
- Edge Enhancement
- White Balance
- Croma
- Aperture
RHPC-685B
High Resolution Color Board Camera
RHPC-685B
High Resolution Color Board Camera
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a higher resolution than the 280B/285B, crisp color images, and quality video.
The software provided with this unit allows plenty of options for managing your video.
Board Camera Features
- 1/3" Color CCD
- 42x42mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
Parameters Controllable via PC Software & Dry Contacts:
* PC Interface Required (RE680 with Software)
Please contact us for further information.
- Text Overlay
- Mirror Image
- Negative / Positive Image
- Gain Control
- Fixed Shutter Speed
- Edge Enhancement
- White Balance
- Croma
- Aperture
Please contact us for further information.
RHPC-680B
High Resolution Color Board Camera
This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a higher resolution than the 280B/285B, crisp color images, and quality video.
The software provided with this unit allows plenty of options for managing your video.
Board Camera Features
- 1/3" Color CCD
- 42x42mm Single Board
- Internal or External Synchronization
- 12Volt DC Operation
- Low Smear
Parameters Controllable via PC Software & Dry Contacts:
* PC Interface Required (RE680 with Software)
Please contact us for further information.
- Text Overlay
- Mirror Image
- Negative / Positive Image
- Gain Control
- Fixed Shutter Speed
- Edge Enhancement
- White Balance
- Croma
- Aperture
