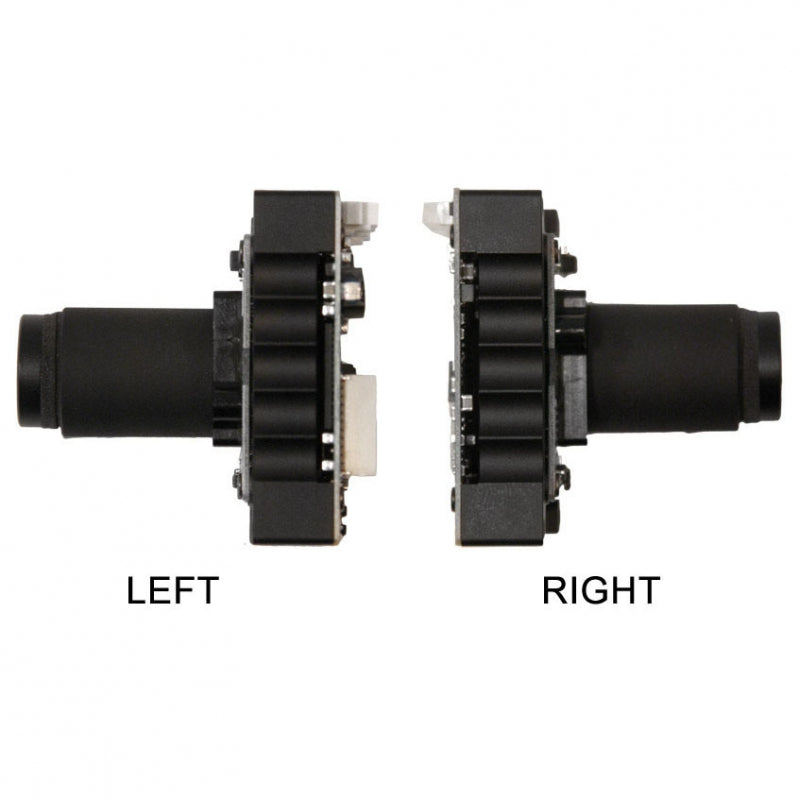

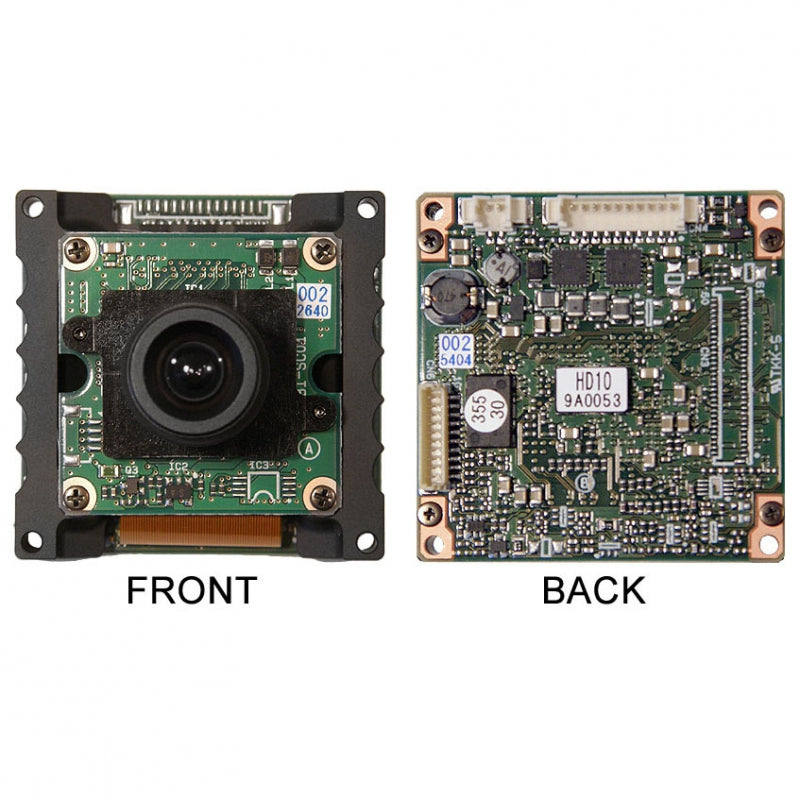

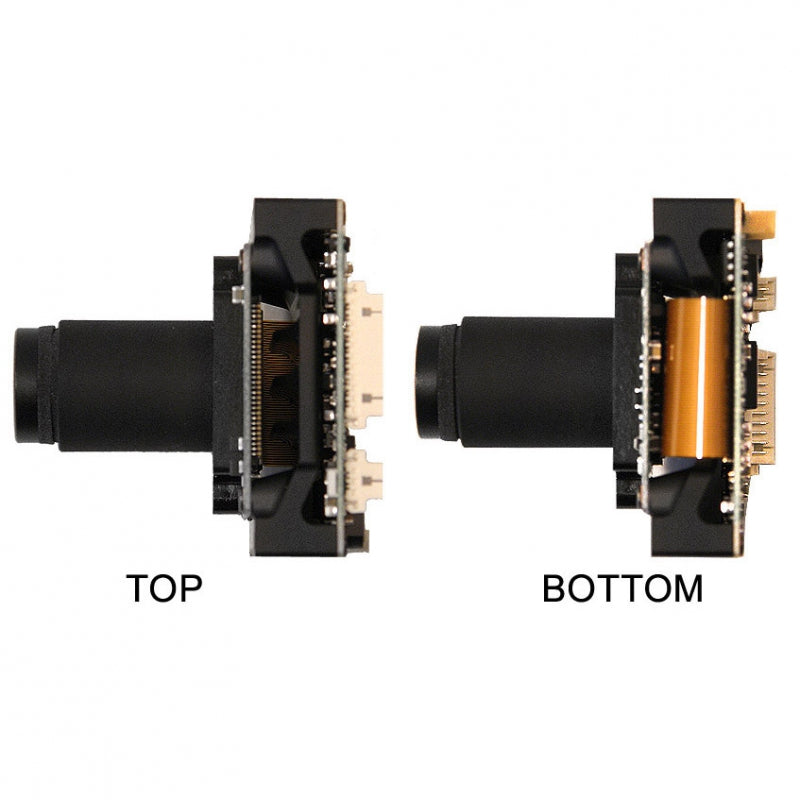

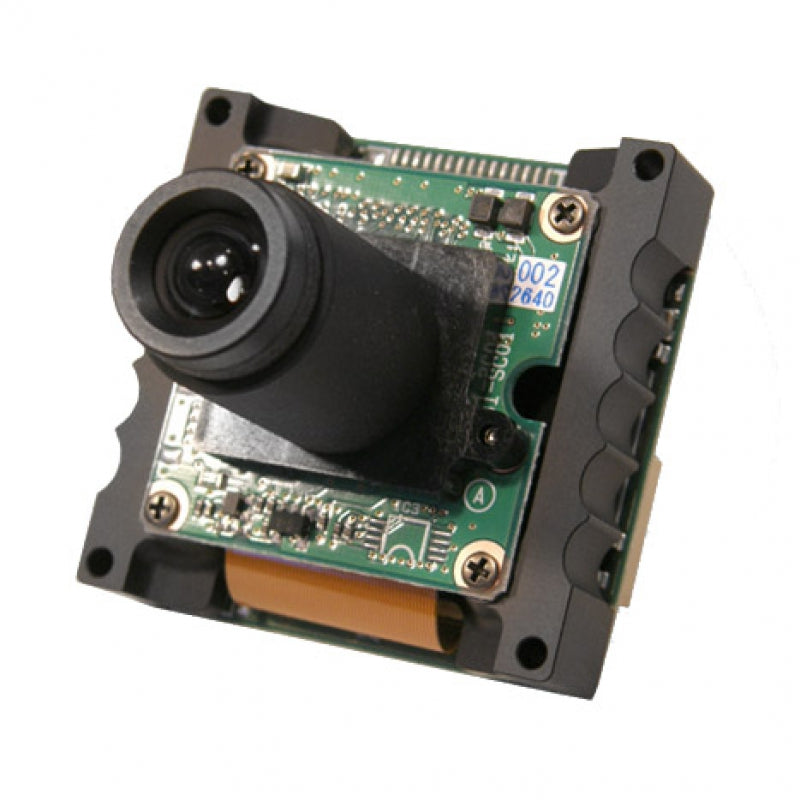

RHPC-HD10 HD Color Board Camera

$899.00

• High Definition Analog Color 720p HD Board Camera
• 42mm (W) x 42mm (L) x 34mm (H) Form Factor
• Compact HD board camera
• 1/3 '' CMOS 1.3MP Image Sensor
• 1280 x 720 Resolution
• 50 or 60 Frames Per Second (selectable)
• HD Analog Component: Y/Pb/Pr Video Output
• HD Analog RGB Video Output

SKU: RHPC-HD10

$899.00

Description

Specifications

Downloads

The all new High Definition RHPC-HD10 (DCC-SC01HD32 / VPC-HD10) HD board camera is an ultra compact board camera with brilliant 1280x720p HD video quality. This advanced board camera comes standard with an Analog Component (Y/Pb/Pr) video output and RGB video output.

The RHPC-HD10 HD board camera features a 42mm x 42mm footprint unenclosed, 50/60fps (selectable), a 1/3" CMOS (1.3 Megapixel) image sensor, On Screen Display, Slow Shutter, Digital Zoom and more, this HD board camera is perfect for applications requiring 16:9 720p video.

Also note, C/CS lens mounts are also available allowing the attachment of high quality lenses to the RHPC-HD10 HD board camera.

Board Camera Features

42mm (W) x 42mm (L) x 34mm (H) Form Factor
Compact HD board camera
1/3 '' CMOS 1.3MP Image Sensor
1280 x 720 Resolution
50 or 60 Frames Per Second (selectable)
HD Analog Component: Y/Pb/Pr Video Output
HD Analog RGB Video Output
> 600 TV Lines
RS-232C Controllable
On Screen Display Setup
Slow Shutter Functionality
Digital Zooming Available
9-15 Volts DC
Video Iris Control
Weighs only 1.5oz (42 grams)

Resolution

1280 × 720

Pixel Pitch

3.63μm x 3.63μm

Frame Rate

60fps Horizontal Frequency 45 kHz Vertical Frequency 60 Hz

Shutter

1/60(60fps, 59.94fps),1/50(50fps)

Continuous Digital Zoom

1x to 4x zoom

Symbology

ON the display of the title indication. Alphanumeeric characters and symbols can be displayed. [ENTER] to go to the next menu to enable to edit.

Dimensions (L x W x H)

42mm (W) x 42mm (L) x 34mm (H) Form Factor

Weight

Approx. 45g with lens

Input Voltage

9 - 15 VDC

Power Consumption

2.0W (Max. 2.4 W) at 12 VDC

Video Channels

Analog Component Output : Y/Pb/Pr 1Vp-p (3 Values, Sync signals) 75Ωterminal RGB Output : RGB 1Vp-p (without SYNC )75Ω terminal HD, VD TTLlevel (over 2.1V 1kΩ terminal)

Control Channels

Operatable via RS232C. 9600bps(typ), with no parity, stop pit: 1bit Communication speed selection : 2400, 4800, 9600, 19200 bps

Operating Temperature Range

-5°C - +45°C - Max. 80% (No Condensation)

Non-Op. Temp. Range

-25 - +60 ℃ Humidity: 20 - 80%RH with no condensation
