Sort by:
669 products
669 products

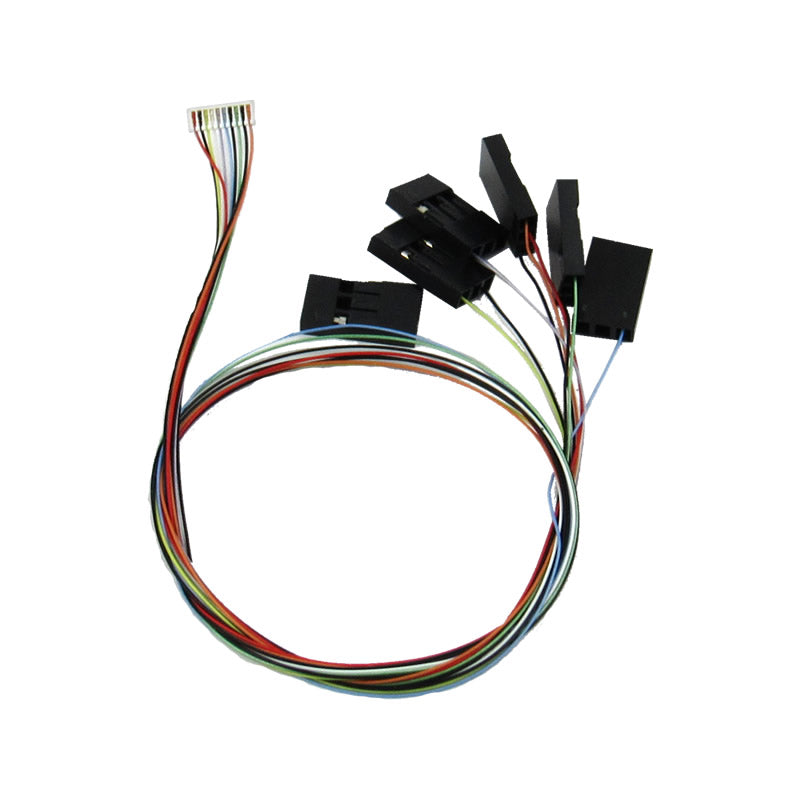

- 1 foot length
- 10 Pin JST SUR connector to 6 Dupont connectors
- Configured for use with the RHP-BOS-RC-IF

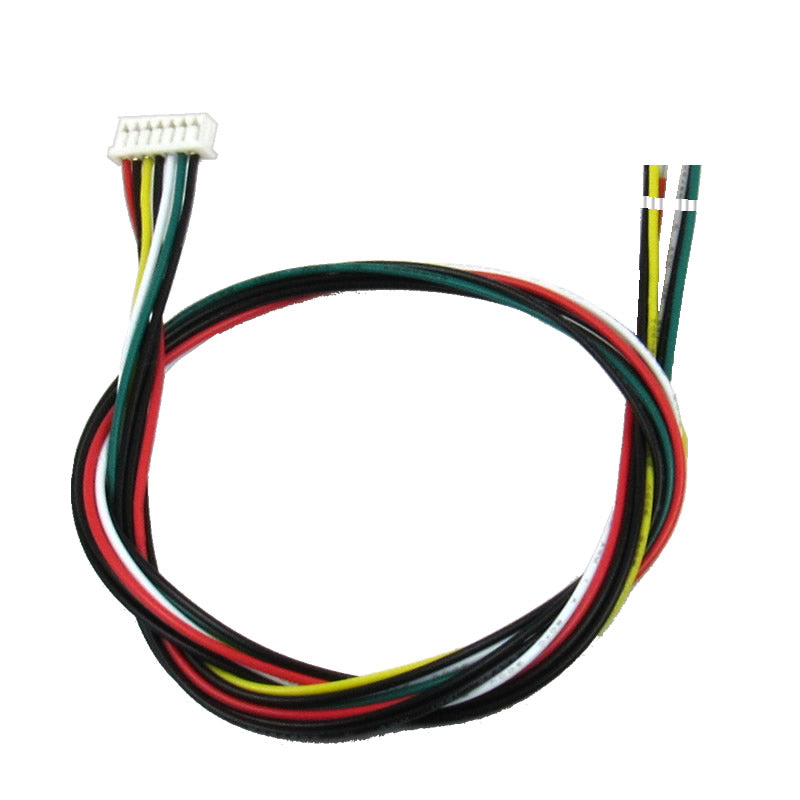

10 Pin JST connector to SUR 32AWG Connectors. This can be used with the RHP-BOS-RC-HD-IF interface.

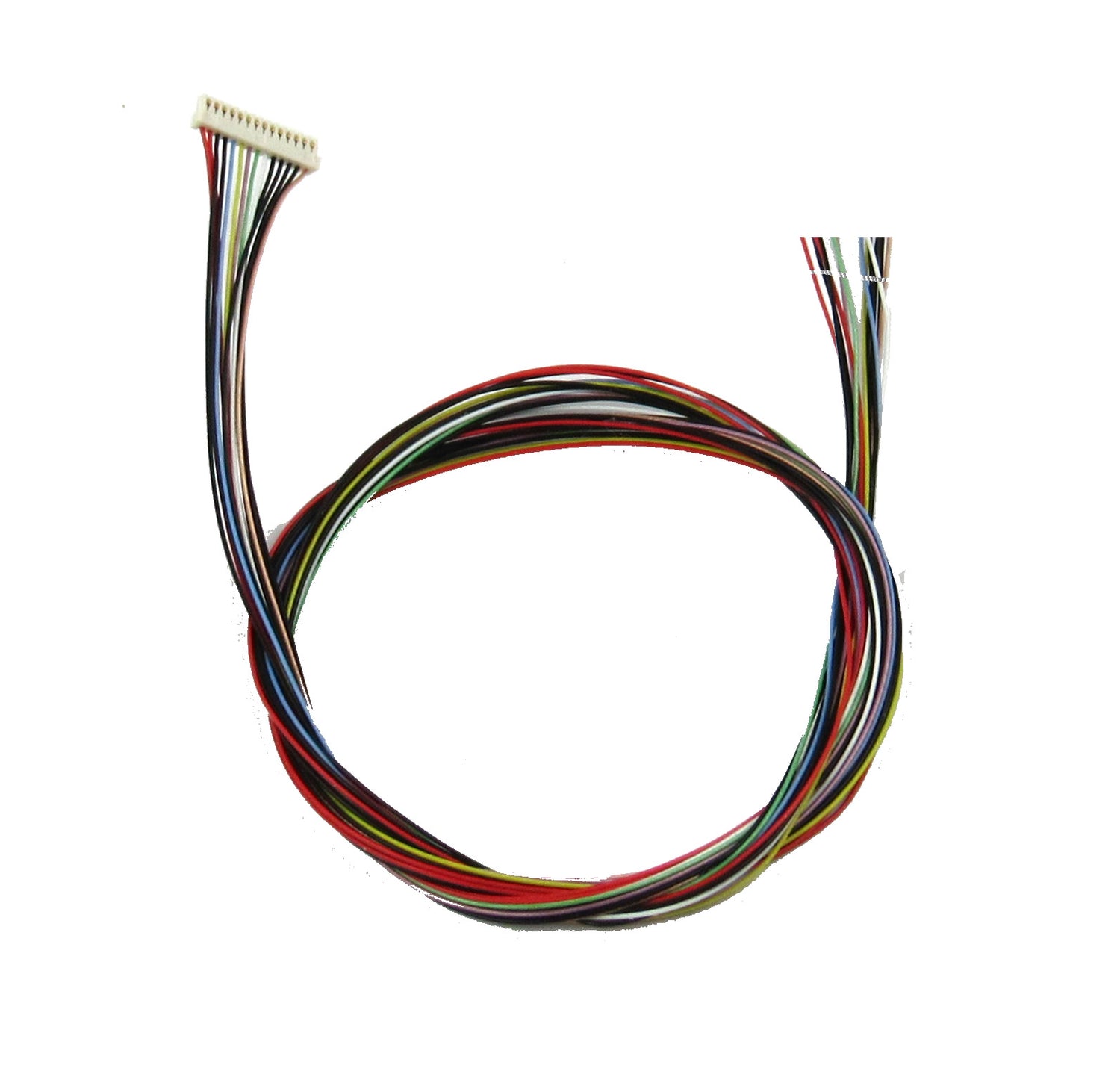

1 foot long, 14 Pin connector to Bare Wires that is configured for use with the RHP-BOS-DS-IF
2.0mm 16MP
Fixed Focal M-12 Lens
1/2.3” Image Format
|
Image Format |
1/2.3" |
|
Focal Length |
2.0mm |
|
Aperture, (F-Stop) |
F2.2 |
|
Back Focal Length |
4.8mm |
|
Field of View (D x H x V) |
200° x 200° x 140° |
|
Image Circle |
Ø 6.2 |
|
Operation |
Iris Fixed Focus Manual |
|
Distortion |
<-98% |
|
Minimum Object Distance |
0.2m |
|
Lens Construction |
8-7 |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
22mm x 18.88mm |
|
Weight |
6.5g |
2.1mm 1MP
Fixed Focal M-12 Lens
1/3” Image Format
|
Image Format |
1/3” |
|
Focal Length |
2.1mm |
|
Aperture, (F-Stop) |
F1.8 |
|
Back Focal Length |
6.2mm wth Ø.3 IR filter |
|
Field of View (D x H x V) |
170°/ 130°/ 96° |
|
Operation |
Iris Fixed Focus Manual |
|
Distortion |
<-36.9% |
|
Minimum Object Distance |
0.2m |
|
Lens Construction |
8-7 |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
16mm x 18.7mm |
|
Weight |
5.0g |
2.5mm 3MP
Fixed Focal M-12 Lens
1/2.7” Image Format
|
Image Format |
1/2.7” |
|
Focal Length |
2.5mm |
|
Aperture, (F-Stop) |
F2.0 |
|
Back Focal Length |
5.4mm |
|
Field of View (D x H x V) |
160.2°/ 136.5°/ 73.2° |
|
Operation |
Iris Fixed |
|
Distortion |
-31.6% |
|
Minimum Object Distance |
0.2m |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
17.5mm x 15.72mm |
|
Weight |
5.0g |
2.5mm 5MP
Fixed Focal M-12 Lens
1/2.5” - 1/2.8" Image Format
|
Image Format |
1/2.5" |
1/2.8" |
|
Focal Length |
2.5mm |
|
|
Aperture, (F-Stop) |
F2.4 |
|
|
Back Focal Length |
4.7mm |
|
|
Field of View (D x H x V) |
166° 132° 89.8° |
150.2° 130.5° 73.2° |
|
Effective Diameter |
N/A |
|
|
Operation |
Iris Fixed Focus Manual |
|
|
Distortion |
<-83% |
|
|
Minimum Object Distance |
0.2m |
|
|
Lens Construction |
7 glasses |
|
|
Mount |
M-12 Board |
|
|
Dimensions (Ø x L) |
17mm x 19.14mm |
|
|
Weight |
11.5g |
|
2.5mm 5MP
Fixed Focal M-12 Lens
1/3” Image Format
|
Image Format |
1/3” |
|
Focal Length |
2.5mm |
|
Aperture, (F-Stop) |
F2.8 |
|
Back Focal Length |
2.8mm |
|
Field of View (D x H x V) |
142.8 x 121.8 x 66.2 |
|
Effective Diameter |
N/A |
|
Operation |
Iris: Fixed Focus: Manual |
|
Distortion |
-6.5% |
|
Minimum Object Distance |
40cm |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
Ø 16mm x 18.4mm |
|
Weight |
5.5g |
|
IR Cut Filter |
650nm ±10nm |
2.78mm 12MP
Fixed Focal M-12 Lens
1/2.5” Image Format
|
Image Format |
1/2.5” |
|
Focal Length |
2.78mm |
|
Aperture, (F-Stop) |
F2.2 |
|
Back Focal Length |
4.92mm |
|
Field of View (D x H x V) |
112° x 100° x 80° |
|
Effective Diameter |
N/A |
|
Operation |
Iris: Fixed Focus: Manual |
|
Distortion |
<-3% |
|
Minimum Object Distance |
2m |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
18mm x 18.36mm |
|
Weight |
8.0g |
2.9mm 3MP
Fixed Focal M-12 Lens
1/2.7” Image Format
|
Image Format |
1/2.7" |
|
Focal Length |
2.9mm |
|
Aperture, (F-Stop) |
F2.0 |
|
Back Focal Length |
6.3mm |
|
Field of View (D x H x V) |
140.5° x 119.8° x 65.1° |
|
Operation |
Iris Fixed Focus Manual |
|
Optical Distortion |
<-59.0% |
|
Minimum Object Distance |
0.95m |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
14.0mm x15.18mm |
|
Weight |
5.0g |
2.9mm 3MP
Fixed Focal M-12 Lens
1/2.5” Image Format
|
Image Format |
1/2.5" |
|
Focal Length |
2.9mm |
|
Aperture, (F-Stop) |
F1.6 |
|
Back Focal Length |
5.1mm |
|
Field of View (D x H x V) |
152° x 117.5° x 86.5° |
|
Effective Diameter |
N/A |
|
Operation |
Iris Fixed Focus Manual |
|
Distortion |
<-63% |
|
Minimum Object Distance |
0.2m |
|
Lens Construction |
8 glasses |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
17mm x22.22mm |
|
Weight |
7.5g |
Videology 2.97mm
Fixed Focal M-12 Lens
1/3” Image Format
|
Image Format |
1/3" |
|
Focal Length |
2.97mm |
|
Aperture, (F-Stop) |
F2.0 |
|
Back Focal Length |
6.1mm |
|
Field of View (D x H x V) |
130° x 96.4° x 71.9° |
|
Effective Diameter |
N/A |
|
Operation |
Iris Fixed Focus Manual |
|
Distortion |
<-54.4% |
|
Minimum Object Distance |
40cm |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
Ø 14.80mm x 15.0mm |
|
Weight |
5.9g |
Videology 3.37mm 8MP
Fixed Focal M-12 Lens
1/2.3” Image Format
|
Sensor |
CCD/CMOS |
|
Image Format |
1/2.3" |
|
Focal Length |
3.37mm |
|
Aperture, (F-Stop) |
F2.8 |
|
Back Focal Length |
5.93mm |
|
Field of View (D x H x V) |
130° x 96.4° x 71.9° |
|
Effective Diameter |
N/A |
|
Operation |
Iris Fixed Focus Manual |
|
Distortion |
<1% |
|
Minimum Object Distance |
0.2m |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
18.8mm x 22.28mm |
|
Weight |
8g |
3.4mm 12.4MP
Fixed Focal M-12 Lens
1/2.3” Image Format
|
Sensor |
CCD/CMOS |
|
Image Format |
1/2.3" |
|
Focal Length |
3.4mm |
|
Aperture, (F-Stop) |
F2.8 |
|
Back Focal Length |
5.93mm |
|
Field of View (D x H x V) |
99°/ 85°/ 69° |
|
Effective Diameter |
N/A |
|
Operation |
Iris Fixed Focus Manual |
|
Distortion |
<1% |
|
Minimum Object Distance |
0.2m |
|
Mount |
M-12 Board |
|
Dimensions (Ø x L) |
14mm x 18.8mm x 22.36mm |
|
Weight |
8g |
