VS-2514H1 Fixed Focal Lens

$0.00

• High Resolution CCTV Lens
• 4 to 9 Megapixels
• 25mm Focal Length
• C-Mount
• 1" sensor support
• F1.4 ~ 16

This item is available by quote only. View your quote list

SKU: VS-2514H1

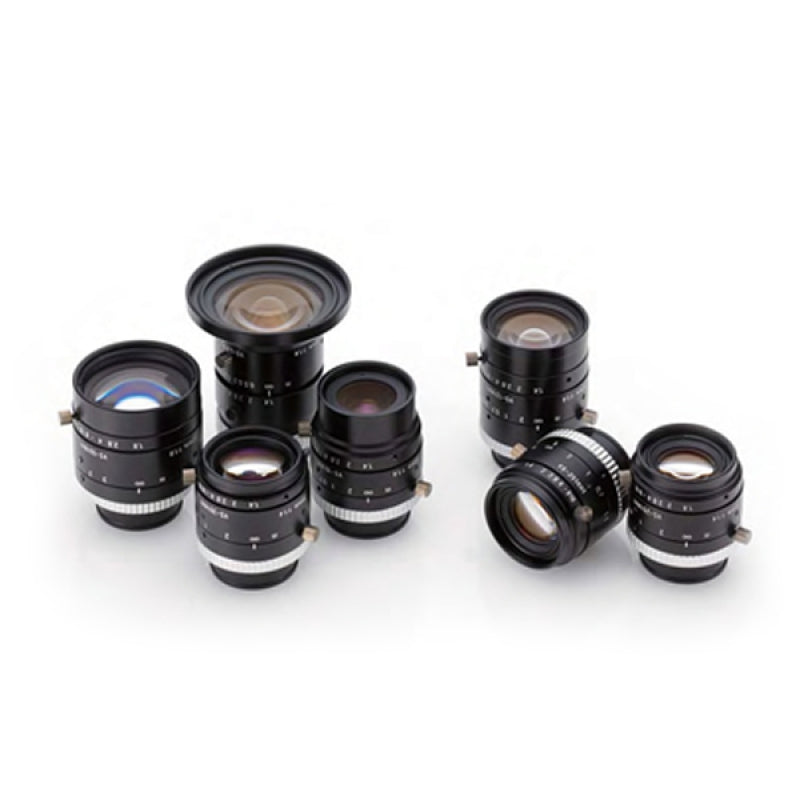

lens_vs-h1-800x800_2

VS-2514H1 Fixed Focal Lens

$0.00

$0.00

Description
Specifications
Downloads
The upgraded version of our SV-H series to increase the sensor size support to 1". With its high resolution it is very effective for a large variety of machine vision applications. A core focus of the design was to minimize distortion while maintaining a high contrast in order to deliver the best possible image by a fixed focal lens.

The VS-H1 Series are megapixel CCTV lenses applicable to 1” camera (4 to 9 Megapixels). This series features 9 models available from f=6mm to f=100mm, bright F-no’s for high-speed CMOS sensors, low distortion and high contrast.

  • Focal Lenght: 25mm
  • FNO: 1.4～16
  • Mod w/out extension ring: 300mm
  • Angle of View (VxH): 25.1x25.1
  • Camera Mount: C-Mount
  • Sensor Size (Max): 1"
