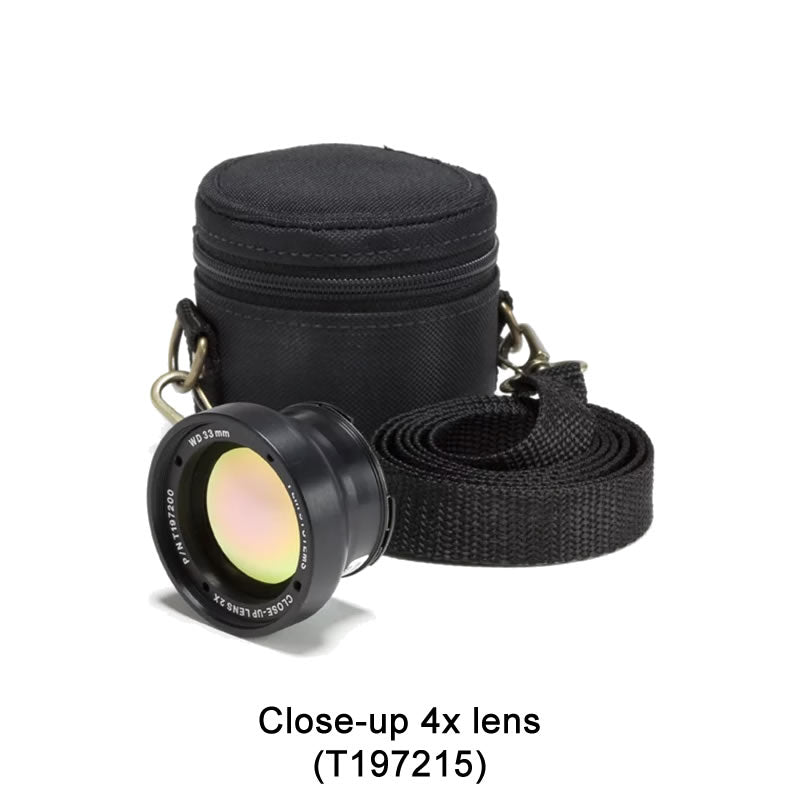

Close-up 4x lens (T197215)

$2,930.00

•Field of view (FOV): 32(H) x 24(V)
•Magnifying factor: 4x
•Working distance: 79mm
•Depth of field: ?2.0mm
•Focal length: 73mm (2.9 in.)
•F-number: 1.3
•Spatial resolution (IFOV)*:
•200 µm for 160 x 120 pixels
•160 µm for 200 x 150 pixels
•133 µm for 240 x 180 pixels
•100 µm for 320 x 240 pixels
*Depends on the IR resolution of the camera:

SKU: T197215
close-up-ir-lens-4x

Close-up 4x lens (T197215)

$2,930.00

$2,930.00

Description
Specifications
Downloads

For R&D usage or development purposes. As an example looking at PCB's or small electronic components.

What's In The Box

Lens

Lens Comparison

Lens Options&l
