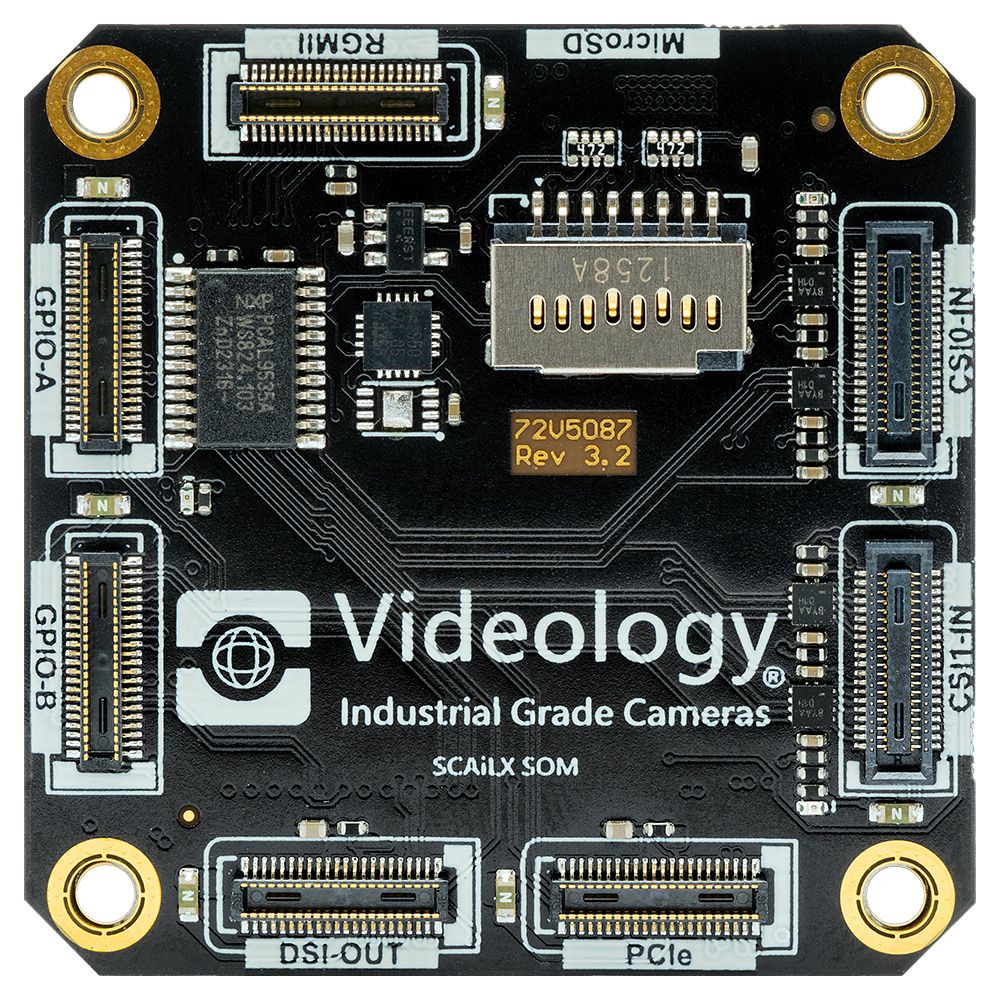

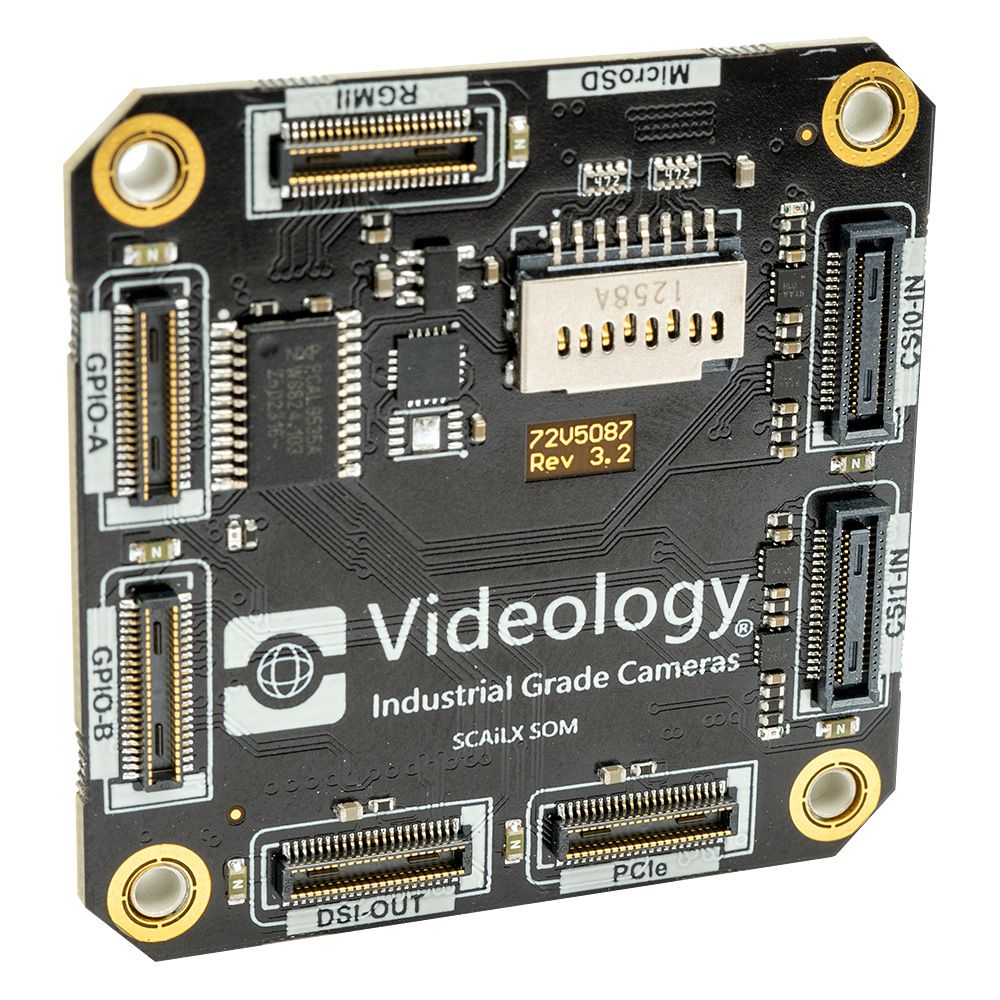

SCAILX-SOM-AI Universal SoM Board for Edge Vision AI

SCAILX-SOM-AI

Universal SoM Board for Edge Vision AI

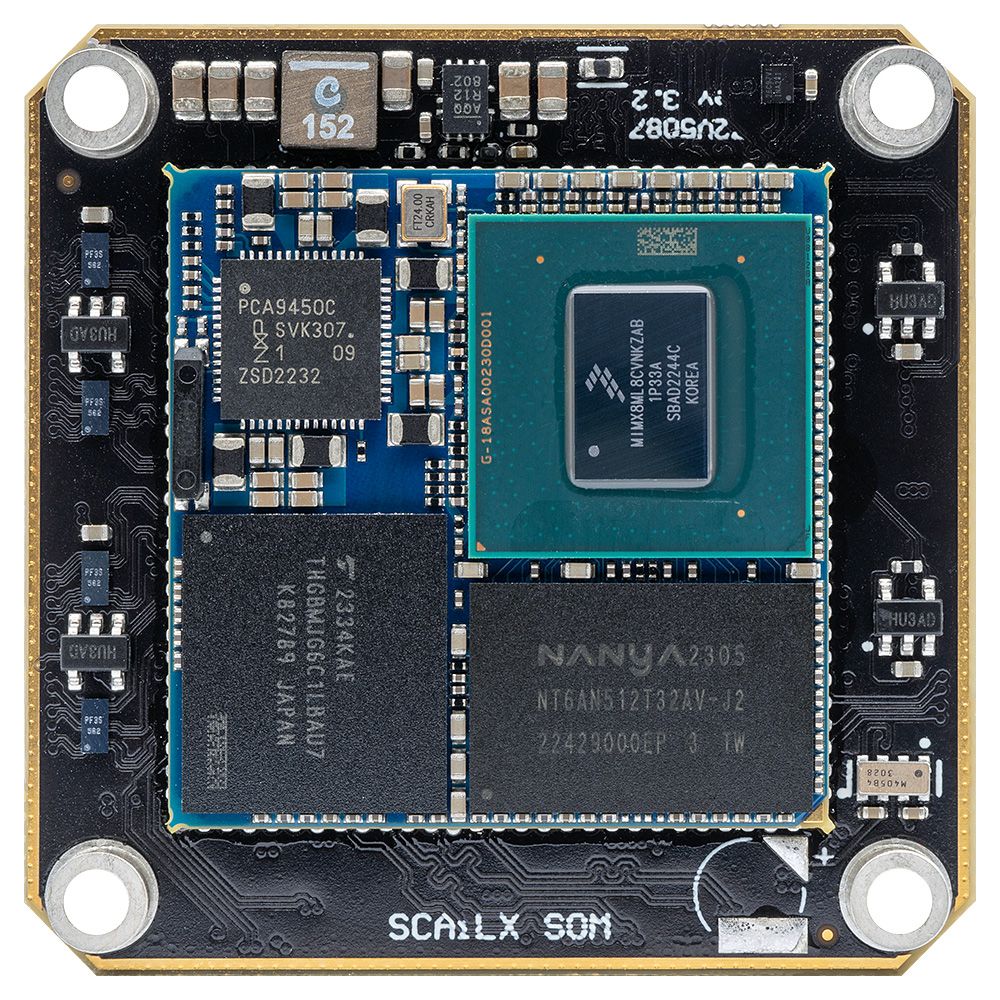

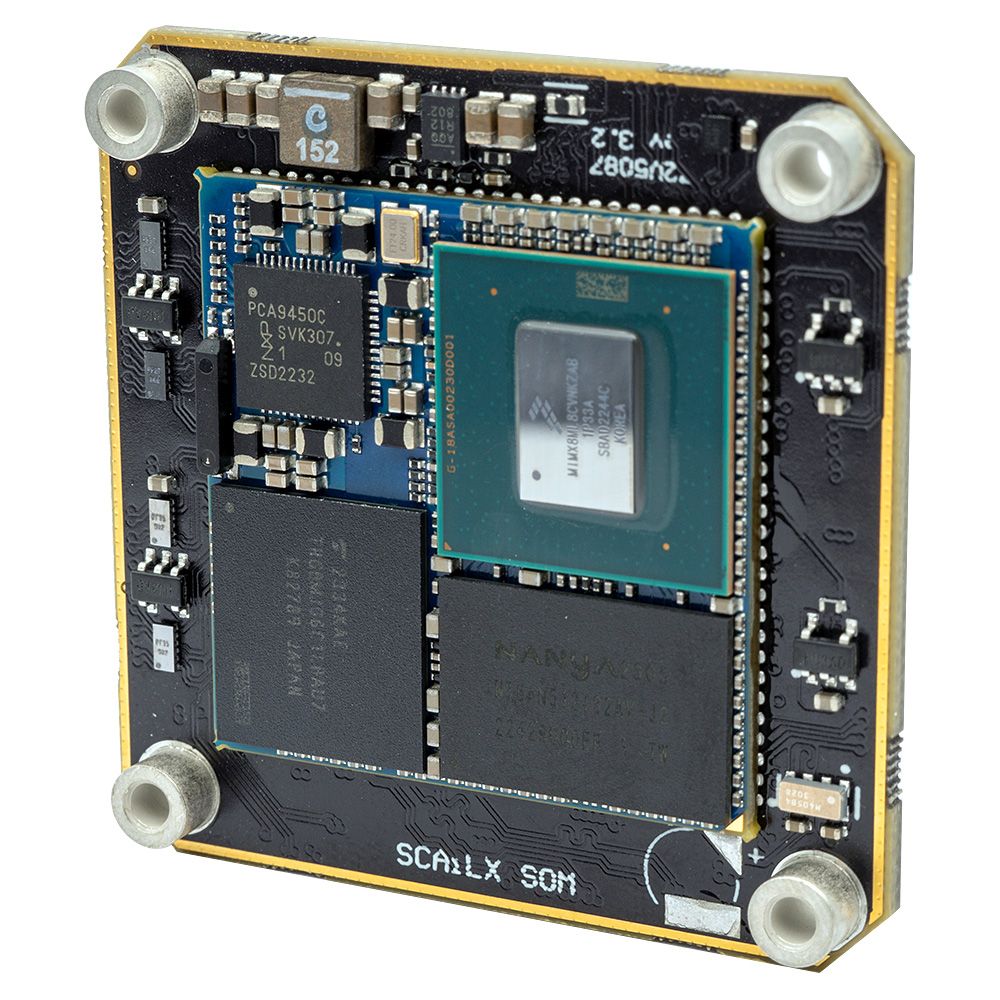

Introducing the Videology SCAiLX - 42 x 42mm Universal SoM Board for Edge Vision AI. Powered by the NXP I.MX 8M Plus 1.6 GHz processor, this board features a Neural Processing Unit (NPU) with 2.3 TOPS, ensuring high-performance AI capabilities. With 2 GB LPDDR4 RAM and 8 GB eMMC flash, it provides ample memory and storage for your edge AI applications. The board also comes equipped with 2x MIPI-CSI and supports 2x 1080p@60 max, as well as hardened H.264/H.265 ENC/DEC for efficient video processing.

i.MX8M Plus Edge AI modular platform

The SCAILX-SOM-AI module is a universal interface board with a iMX8M Plus processor with AI capabilities and specific connectivity towards vision solutions.

Zoom block interfacing

The SCAILX-SOM-AI platform supports a range of LVDS zoom block cameras, including the Sony FCB-EV7520A, FCBEV9520L, Tamron MP1010M-VC, MP3010M-EV and the Videology Zoom Block camera series, such as 24Z2.1W-10X/-20X/-
30X/-40X/-55X and the 25Z2.4W-36X Global Shutter*.
*: ask for availability or check list of supported cameras

Board level interfacing

MIPI board level cameras can be used with the SCAILX-SOM-AI connecting to a MIPI-CSI port using a SCAILX-FLEX cable
(up to 48 cm). Color and monochrome cameras are supported. The cameras can be directly streamed and controlled via
the V4L (Video4Linux) software interfacing.
