RHPQ-755N Color Board Camera

$120.00

• 1/4" Color Sony CCD
• 26x22mm Single Board Camera
• Aspherical Plastic Lens
(to avoid defect by vibration)
• Option: OLPF*/IR Cut Filter Removed for improved infrared (low light) sensitivity
• 5 to 12 Volts DC Operation

SKU: RHPQ-755N

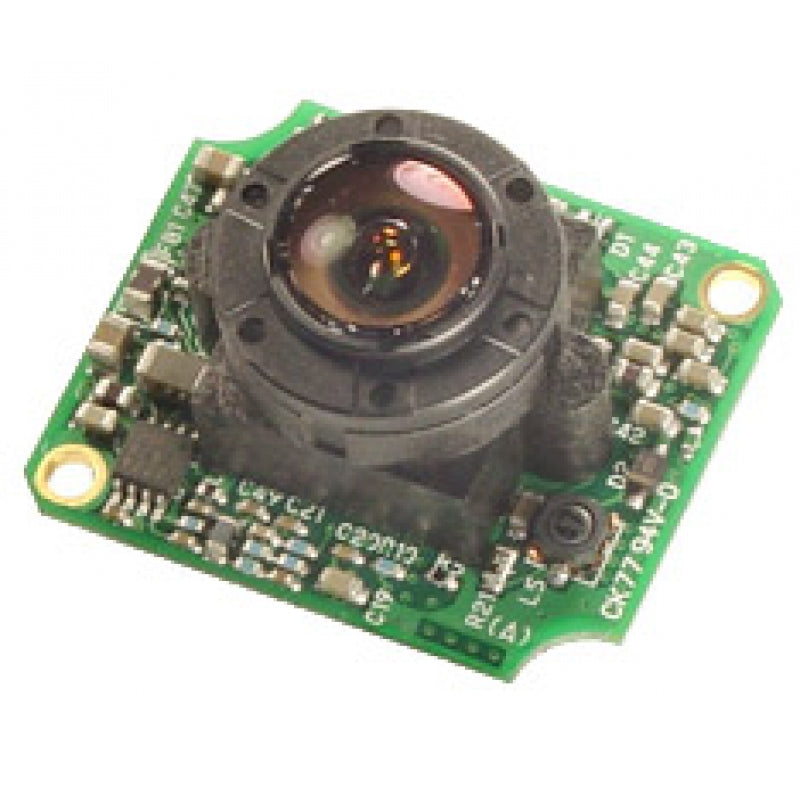

rhpq-755-800x800

RHPQ-755N Color Board Camera

$120.00

$120.00

Description
Specifications
Downloads

The RHPQ-755N is a powerful color OEM Board Camera for any application requiring a 26mmx22mm design and high quality image.

Board Camera Features

  • 1/4" Color Sony CCD
  • 26x22mm Single Board Camera
  • Aspherical Plastic Lens
    (to avoid defect by vibration)
  • Option: OLPF*/IR Cut Filter Removed for improved infrared (low light) sensitivity
  • 5 to 12 Volts DC Operation
  • High Temperature/Low Tolerance Components
  • Over/Reverse Current protection
  • Optical Low Pass Filter

* High Resolution Versions Available

Image Sensor

1/4" Inter-line Type CCD Image Sensor / SONY

Effective Pixels

510(H) x 492(V)

Horizontal Resolution

More than 350 TV Lines

Lens Options

2.7mm/F2.4 Aspherical with OLPF (IR Cut Filter), 2.7mm/F2.4 Aspherical without OLPF (IR Cut Filter)

AGC

+18 dB Max

Power

5-12 Volts DC

Dimensions

26mm(W) x 22mm(L) x 17mm(H) w/Lens

Weight

Apr. 5g without Lens

RHPQ-755N Datasheet

Download
