RHPC-890A Color Board Camera

$326.00

• 1/3" High Resolution Analog NTSC Color Board Camera
• Effective Pixels (NTSC): 768(H) x 494(V)
• 42 x 42mm Single Board
• Y/C (S-Video) & Composite Output
• Internal & External Synchronization
• 10.5 - 15 Volt DC Operation
• 0.5 Lux Sensitivity
• 4X Digital Zoom

SKU: RHPC-890A
rhpc-890-800x800

RHPC-890A Color Board Camera

$326.00

$326.00

Description
Specifications
Downloads

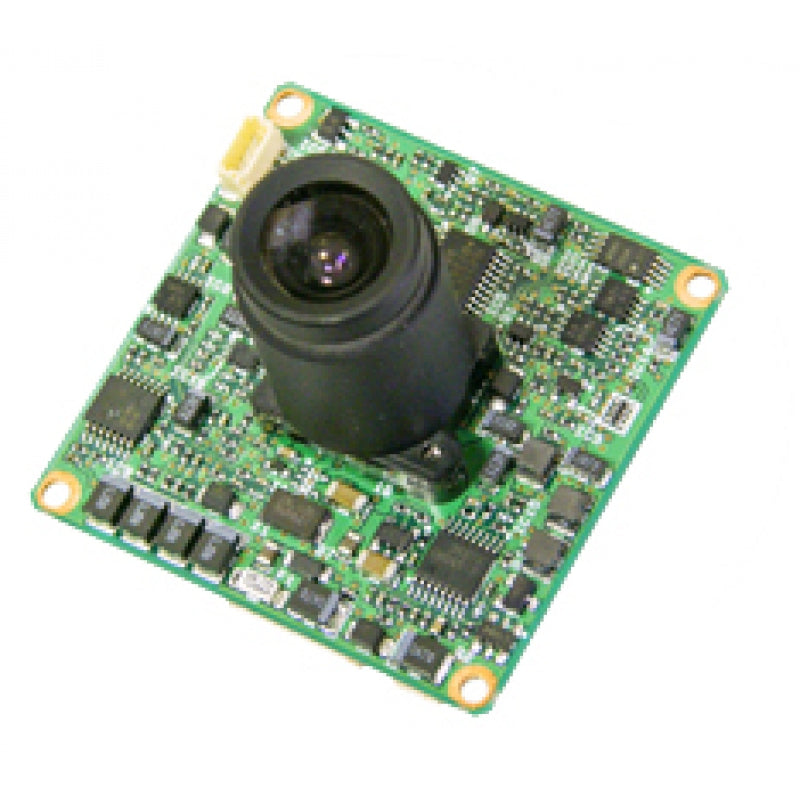

RHPC-890A 1/3 board camera

The RHPC-890A is a high resolution board camera that provides excellent color video and has extra functions controllable via PC Software.

The RHPC-890A is the replacement for our RHPC-790B-795B. This board camera presents a smaller form factor in a single board platform.

This 42 x 42mm Board Camera works using a 10.5 - 15 Volt DC connection for operation.

Board Camera Features

  • 1/3" Color CCD
  • 42 x 42mm Single Board
  • Y/C (S-Video) & Composite Output
  • Internal & External Synchronization
  • 10.5 - 15 Volt DC Operation
  • 0.5 Lux Sensitivity
  • 4X Digital Zoom

Various Parameters and Settings are Controllable Via: Software and Resistive Jumpers (RE600)

  • Gain
  • Shutter Speed
  • White Balance
  • 4X Digital Zoom
  • Back Light Compensation
  • External Synchronization
  • Phase Adjustment

Resolution

811 (H) x 508 (W)

Pixel Pitch

Approx. 370k Pixels

Frame Rate

29.97 fps

Shutter

OFF / Flicker less / EI /Other (Standard: Auto) * Setting by Software or Resistive Jumper

Continuous Digital Zoom

4x Digital Zoom

Dimensions

42(W) x 42(L)mm

Weight

Approx. 13g

Input Voltage

DC +10.5V to +15V

Video Output

Composite / 1 Vp-p 75 Ω

Control Channels

AWB (Auto White Balance): 3200/5600/ATW/Other (Standard: ATW) * Setting by Software or Resistive Jumper

Operating Temperature Range

Performance Guarantee: 0° to +40°C * (Humidity 20-80% without Condensation)

Non-Op. Temp. Range

Operation Guarantee: -5° to +50°C * (Humidity 20-80% without Condensation)

RHPC-890A Datasheet

Download
