RHPC-700 Color Board Camera

RHPC-700

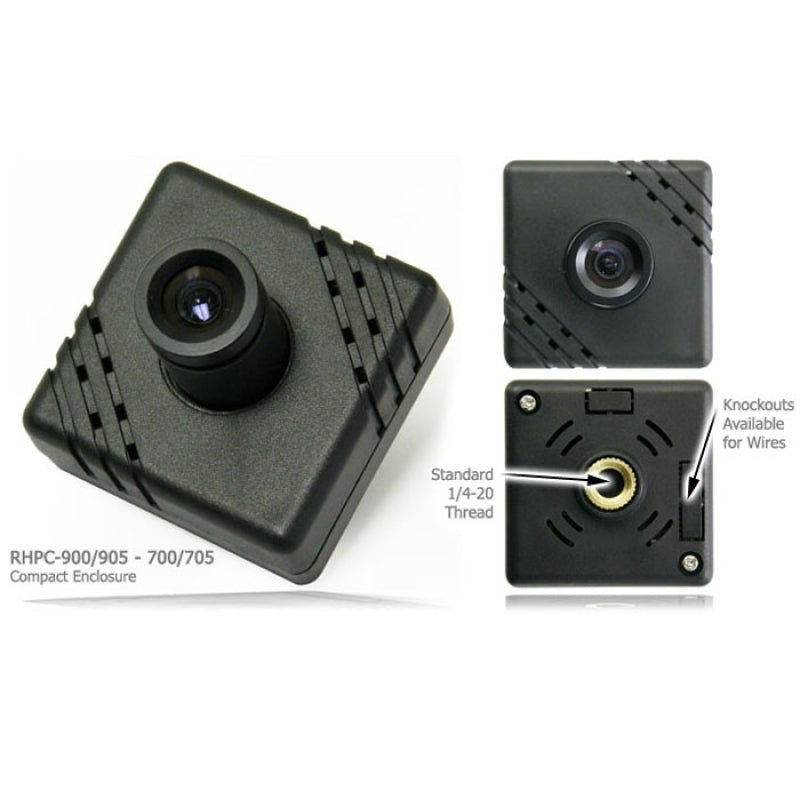

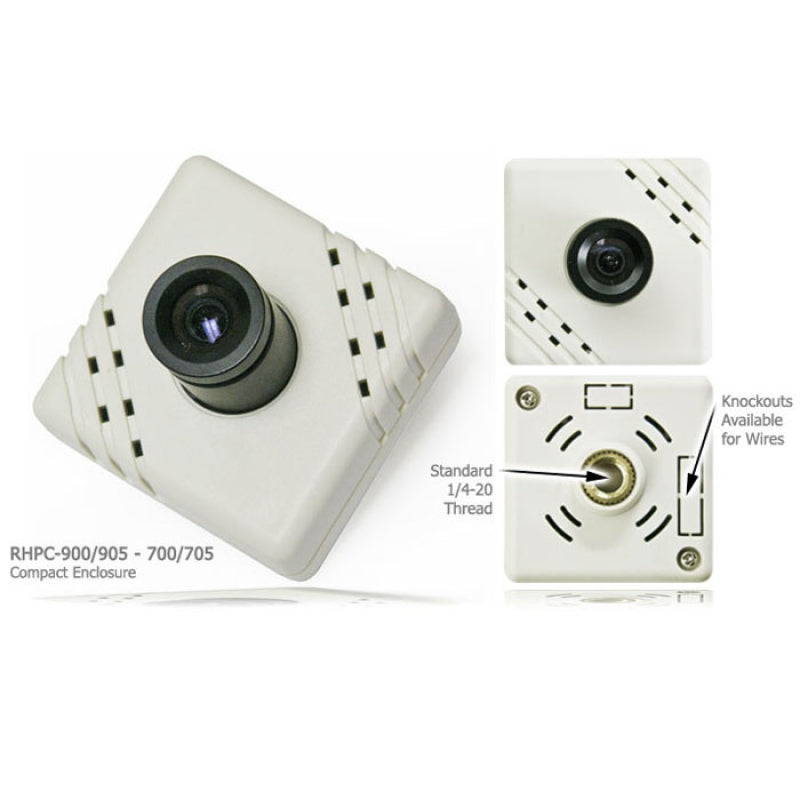

The RHPC-700/705 is a standard resolution version of the RHPC-900/905. Both cameras provide excellent color video and have extra functions controllable via PC Software.

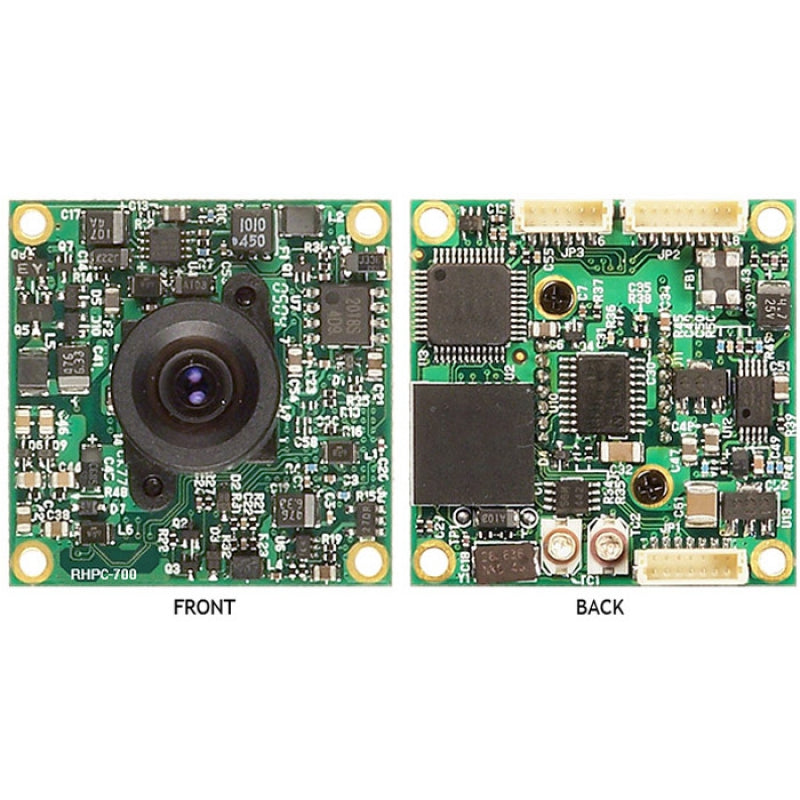

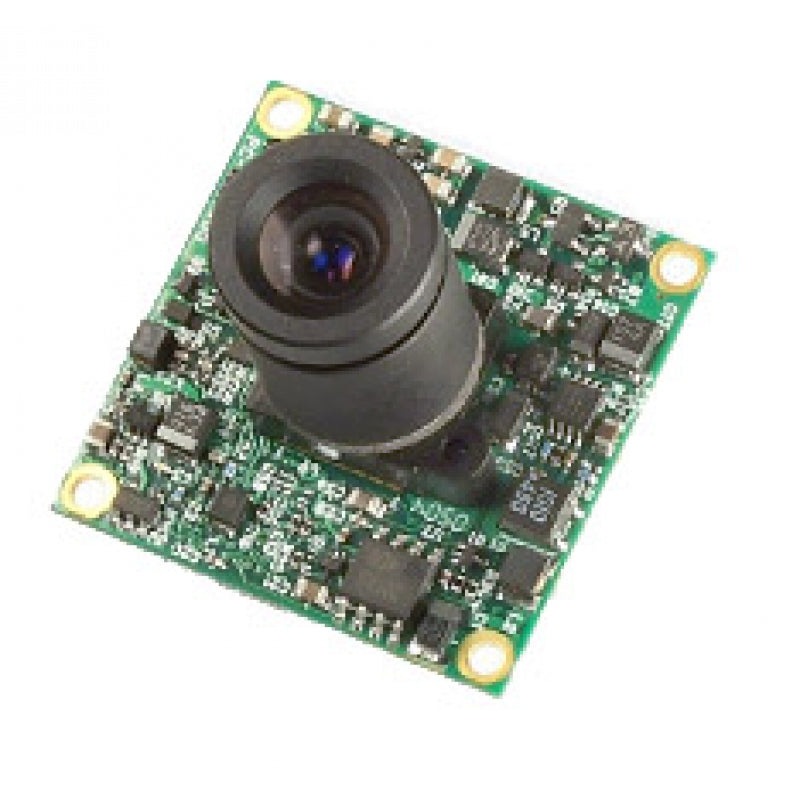

This 32x32mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution with crisp color images, and quality video.

The software provided with this unit allows plenty of options for enhancing and managing your video.

• 1/4" Color CCD
• 32x32mm Single Board
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

Parameters Controllable via PC Software:
* PC Interface Required (23X REM with Software)
* Software is highly recommended for engineers only

• Mirror Image
• Negative / Positive Image
• Gain Control
• Fixed Shutter Speed
• Edge Enhancement
• White Balance
• Croma
• Aperture
