RHPC-650WDR Color Board Camera

$199.00

• 1/3" 960H SONY Double Scan Super HAD CCD ll
• 750 TVL Horizontal Resolution
• True Day & Night with ICR Mechanism
• 38 x 38 mm
• Min. Illumination of 0.08 Lux (Color) / 0.04 Lux (B/W)

SKU: RHPC-650WDR

$199.00

Description

Specifications

Downloads

1/3" 960H SONY Double Scan Super HAD CCD ll
750 TVL Horizontal Resolution

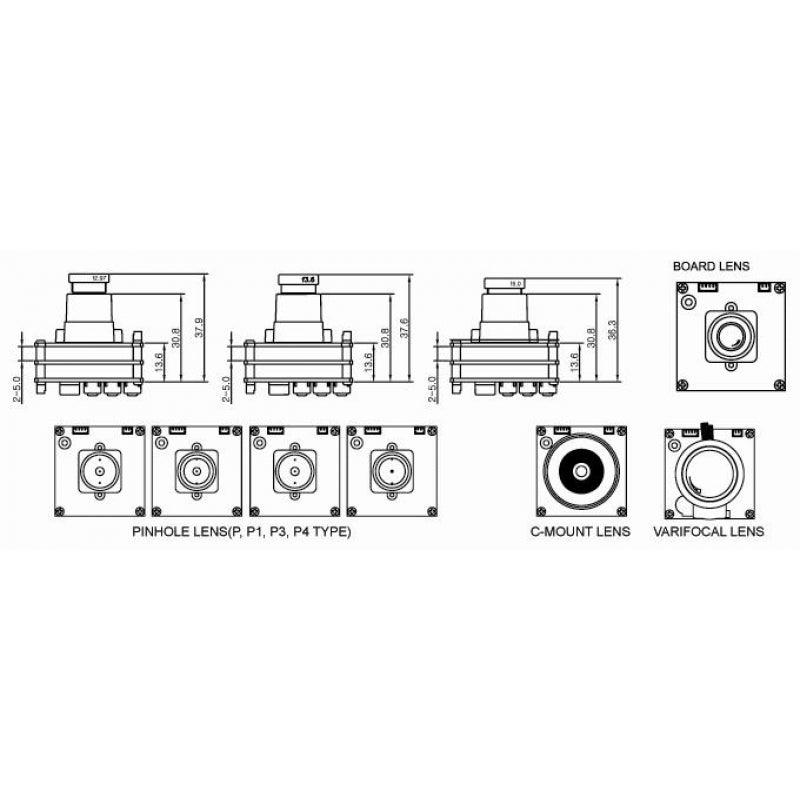

f = Pinhole, Board, DC IRIS (IR Remove) Varifocal Lens, C / CS (DC / Video)
Manual / DC Iris Lens
True Day & Night with ICR Mechanism
Size: 1.5 x 1.5 inch (38 x 38 mm)
Min. Illumination of 0.08 Lux (Color) / 0.04 Lux (B/W)
3D DNR / BLC / HLC / ATR / DSS / WDR /OSD
3x Digital Zoom
DC 12V Power

Image Sensor

1/3″ 960H SONY Double Scan Super HAD CCD II

Effective Pixels

976 x 494

Horizontal Resolution

750TV Lines

Lens Options

C / CS (DC / Video), Board, DC IRIS (IR Remove) Varifocal Lens, Pinhole

Gamma

.45 default

Power

12V (±10%), Max.170mA DC

Dimensions

1.5 x 1.5 inch (38 x 38 mm) x 3 Board

Weight

0.1 lbs (35 g)

RHPC-650 Datasheet

Download

RHPC-650WDR Specs with OSD

Download
