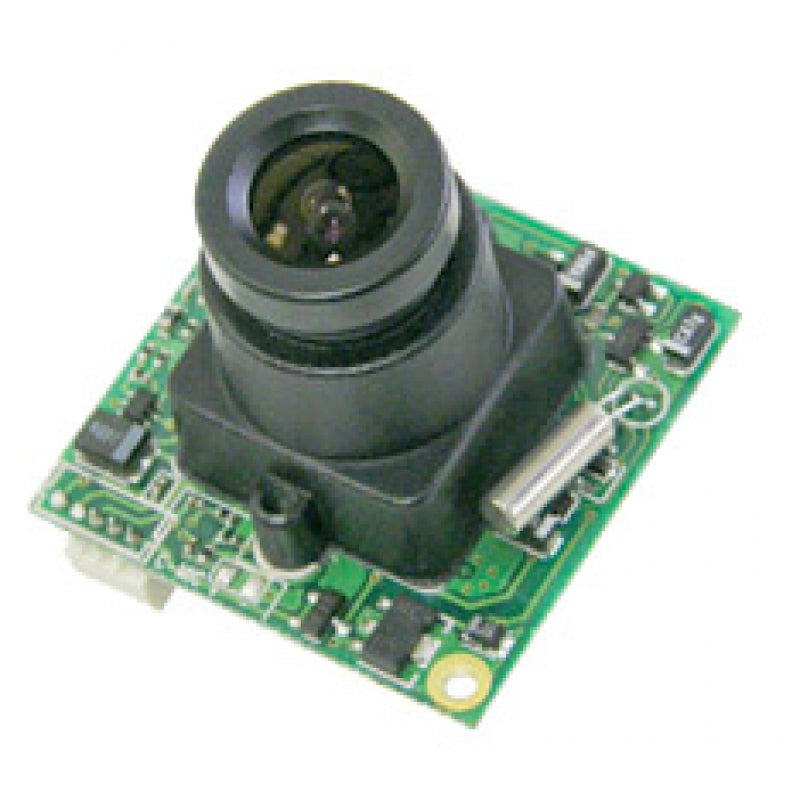

RHPC-600E 1/3” High Resolution Monochrome Board Camera

$119.00

• 30 x 30mm Single Board
• 12Volt DC Operation
• Power/Video Cable Included:
• Power Coaxial: 5.5mm x 2.1mm (Center Positive)
• Video: BNC Female

SKU: RHPC-600E

$119.00

Description

Specifications

Downloads

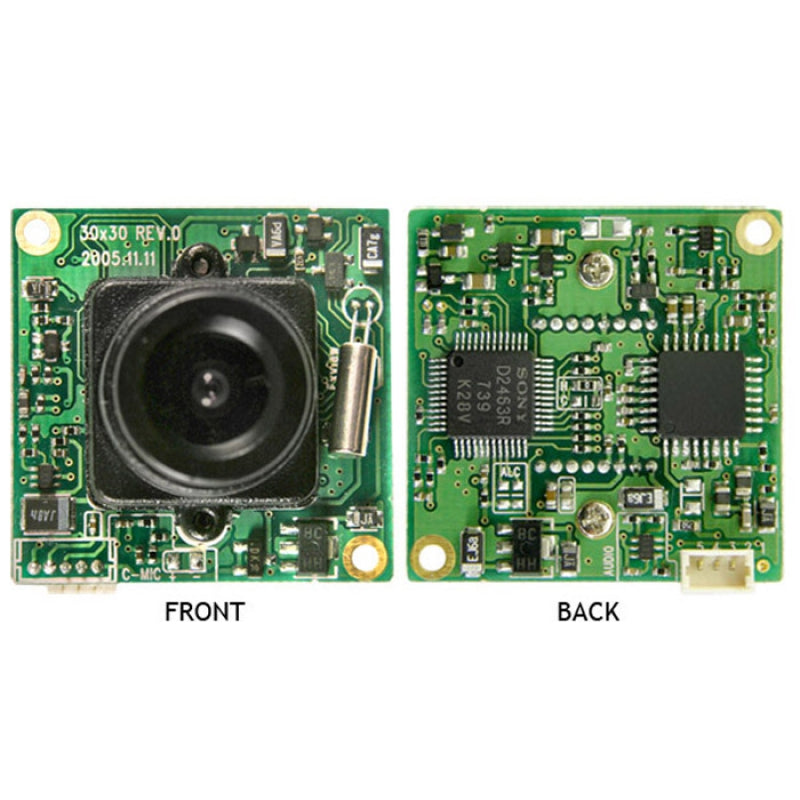

RHPC-600E

1/3” High Resolution Monochrome Board Camera

The RHPC-600 OEM board camera is a high resolution monochrome board camera that displays an extremely sharp image with 600 TV lines of resolution at a sensitivity of 0.003 Lux at Faceplate.

With a 1/3" SONY EXview HAD™ Monochrome CCD, 30x30mm board foot print, and 12Volt DC operation, this camera is our smallest and most powerful monochrome camera to date.

Board Camera Features

SONY 1/3" EXview HAD CCD (HI-RES Monochrome)
30 x 30mm Single Board
12Volt DC Operation
Power/Video Cable Included:
Power Coaxial: 5.5mm x 2.1mm (Center Positive)
Video: BNC Female

Resolution

811 (H) x 508 (W)

Pixel Pitch

768 (H) x 494 (V) Approx. 380k Pixels

Horizontal Resolution

600 TV Lines

Sensitivity

0.003 Lux @ Faceplate

Frame Rate

30 FPS

Shutter

—

Signal to Noise Ratio

>50dB (AGC off )

Continuous Digital Zoom

Internal

Symbology

—

Dimensions

—

Available Lenses

Board Lens: 2.1/2.45/2.97/3.6/6/8/12(mm) | Pinhole Lens: 3.7(mm)-F2.0, 4.3(mm)-F2.0

Dimensions (W x L)

30mm x 30mm

Weight

23g

Input Voltage

12 VDC

Power Consumption

Max. 100 mA

Video Channels

Composite / 1 Vp-p 75 Ω Unbalanced

Control Channels

Gain Control: Automatic

Operating Temperature Range

-5 °C - +40 °C - Max. 80% (No Condensation)

Non-Op. Temp. Range

-10°C - +50°C

RHPC-600 Datasheet

Download
