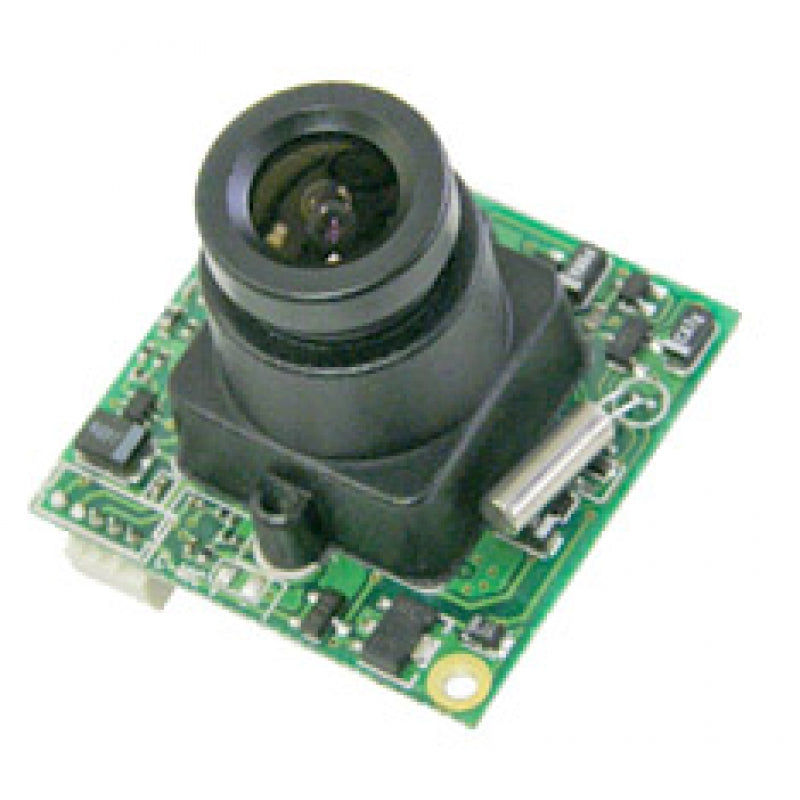

RHPC-600C High Resolution Monochrome Board Camera

$119.00

• 1/3" High Resolution Analog CCIR Monochrome Board Camera
• Effective PIxels768(H) x 494(V)
• 30 x 30mm Single Board
• 12Volt DC Operation
• Power/Video Cable Included:
Power Coaxial: 5.5mm x 2.1mm (Center Positive)
Video: BNC Female

SKU: RHPC-600C
rhpc-600-800x800_1

RHPC-600C High Resolution Monochrome Board Camera

$119.00

$119.00

Description
Specifications
Downloads

RHPC-600C

High Resolution Monochrome Board Camera

The RHPC-600 OEM board camera is a high resolution monochrome board camera that displays an extremely sharp image with 600 TV lines of resolution at a sensitivity of 0.003 Lux at Faceplate.

With a 1/3" SONY EXview HAD™ Monochrome CCD, 30x30mm board foot print, and 12Volt DC operation, this board camera is our smallest and most powerful monochrome camera to date.

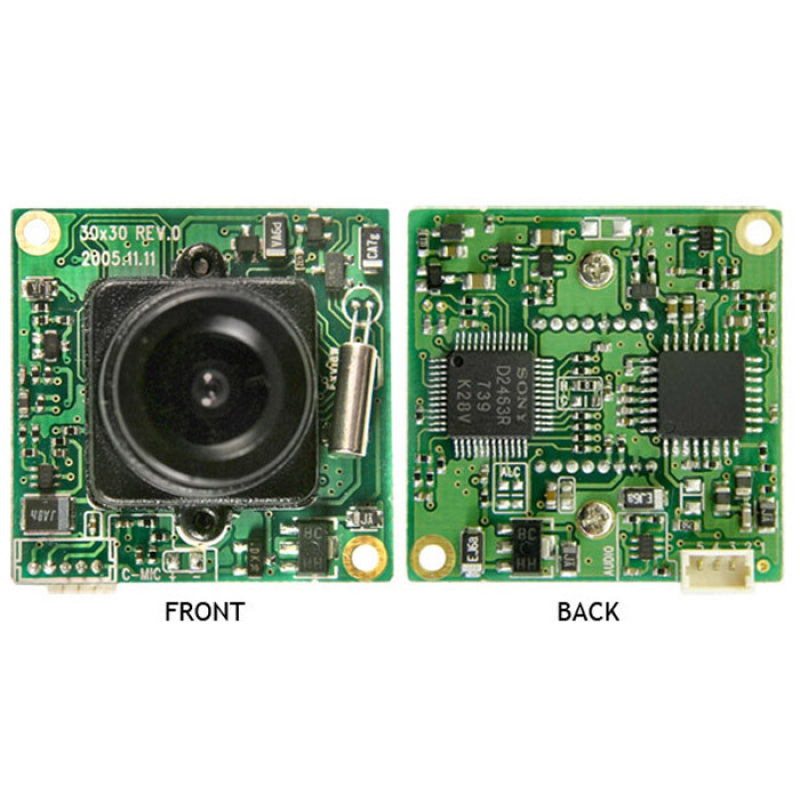

Board Camera Features

  • SONY 1/3" EXview HAD CCD (HI-RES Monochrome)
  • 30 x 30mm Single Board
  • 12Volt DC Operation
  • Power/Video Cable Included:
    Power Coaxial: 5.5mm x 2.1mm (Center Positive)
    Video: BNC Female

Resolution

811 (H) x 508 (W)

Pixel Pitch

768 (H) x 494 (V) Approx. 380k Pixels

Sensitivity

0.003 Lux @ Faceplate

Shutter

Automatic from 1/60 to 1/100,000 (NTSC), Automatic from 1/50 to 1/100,000 (PAL)

Frame Rate

30 FPS

Shutter

Internal

Gamma

.45 default

Continuous Digital Zoom

Composite 1V p-p 75ohm unbalanced

Symbology

<100mA

Power

12VDC(±10％)

Operating Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Dimensions

30(mm) x 30(mm)

Available Lenses

Board Lens: 2.1/2.45/2.97/3.6/6/8/12(mm) | Pinhole Lens: 3.7(mm)-F2.0, 4.3(mm)-F2.0

Weight

23 grams

Dimensions (W x L)

30mm x 30mm

Weight

23g

Input Voltage

12 VDC

Power Consumption

Max. 100 mA

Video Channels

Composite / 1 Vp-p 75 Ω Unbalanced

Control Channels

Gain Control: Automatic

Operating Temperature Range

-5 °C - +40 °C - Max. 80% (No Condensation)

Non-Op. Temp. Range

-10°C - +50°C

RHPC-600C Datasheet

Download
