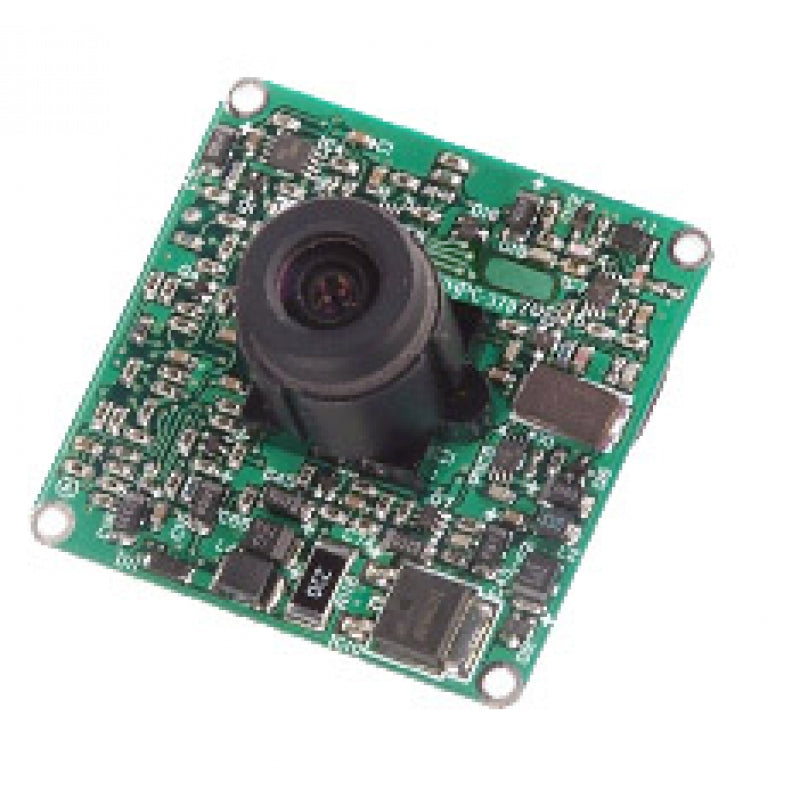

RHPC-375A High Resolution Analog CCIR Monochrome Board Camera

$192.00

• 1/3" High Resolution Analog CCIR (PAL) Monochrome Board Camera
• 1/3" Monochrome Super HAD CCD
• 42x42mm Single Board
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

SKU: RHPC-375A

$192.00

Description

Specifications

Downloads

The RHPC-375A is a high resolution monochrome board camera. This board camera provides excellent monochrome video and are also sensitive to infrared light.

This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide high resolution video with crisp monochrome images.

Board Camera Features

1/3" High Resolution Analog CCIR (PAL) Monochrome Board Camera
42x42mm Single Board
Internal or External Synchronization
12Volt DC Operation
Low Smear

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable via Jumpers & Contacts:

Back light Compensation
( Full Screen or Center )
Electronic Iris
Auto or OFF
Automatic Gain Control ON or OFF

Resolution

795 x 596

Pixel Pitch

768 (H) x 494 (V) Approx. 380k Pixels

Frame Rate

30 FPS

Shutter

—

Continuous Digital Zoom

—

Symbology

—

Dimensions (W x L)

42mm x 42mm

Weight

Approx. 16g

Input Voltage

12 VDC

Power Consumption

Max. 120 mA

Video Channels

Composite / 1 Vp-p 75 Ω

Control Channels

AGC (Auto Gain Control): On or Off Selectable Via Jumper

Operating Temperature Range

-5 °C ~ +40 °C - Max. 80% (No Condensation)

Non-Op. Temp. Range

-20°C ~ +60°C - Max. 95% (No Condensation)

RHPC-375A Datasheet

Download
