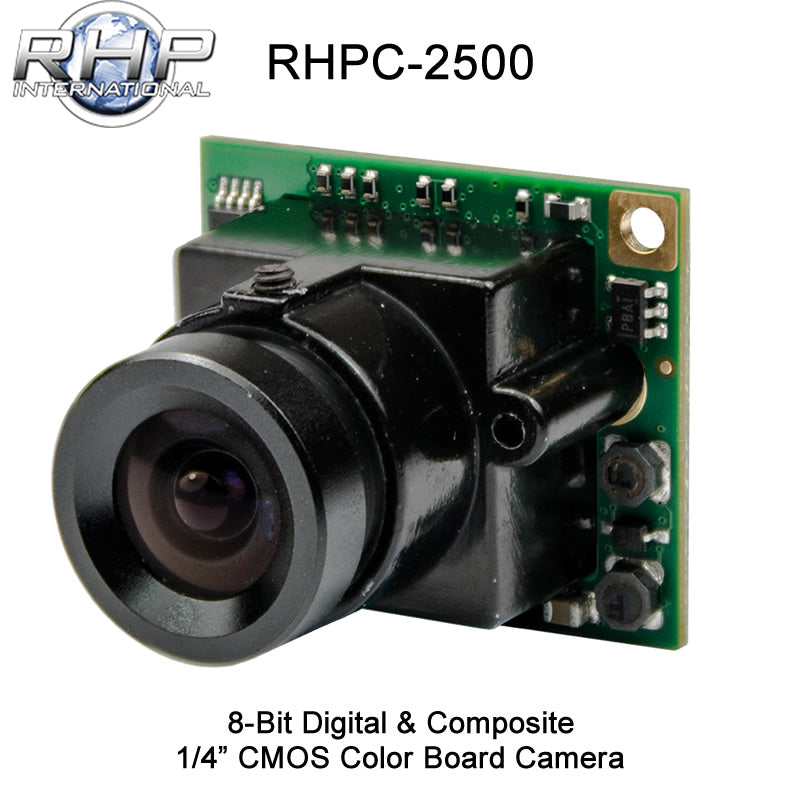

RHPC-2500 - 1/4'' CMOS Color Board Camera

$214.00

• 1/4" High Resolution Analog NTSC Color Board Camera
• 22x26 mm Single Board
• Extremely Compact
• High Resolution
• Lens sold separately
• 5 volt DC Operation
• 640x480 Resolution
• Up to 30fps

SKU: RHPC-2500

We usually have a majority of these items in stock.
Please call or contact us for availability.

Description
Specifications
Downloads

RHPC-2500

1/4" CMOS Color Board Camera

The RHPC-2500 is a high-resolution color board camera designed for OEM applications where image quality, compact size, and low-power operation are essential. Its compact 22 × 26 mm single-board design makes it an excellent choice for space-constrained imaging systems.

Operating on 5 V DC, the RHPC-2500 delivers quality color video in a compact, easy-to-integrate camera platform.

22 × 26 mm Compact Board Dimensions
5 V DC Low-Voltage Operation
Digital + Analog Simultaneous Video Outputs

Designed as a Replacement for Legacy Cameras

The RHPC-2500 is a direct replacement for the Panasonic GP-CX171 (High Res) and the RHPC-2000, offering a more compact alternative for existing camera designs.

  • Uses the same mounting-hole pattern
  • Maintains compatible connectors and pinout
  • Does not require the heat sink used with the former GP-CX171

Features & Capabilities

Camera Features

  • 1/4" color image sensor

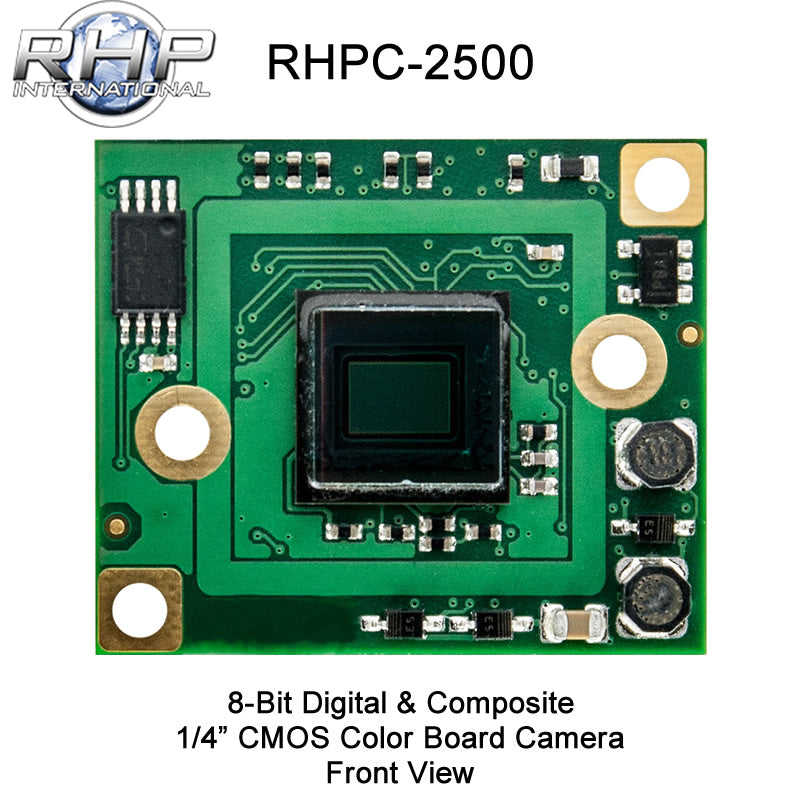

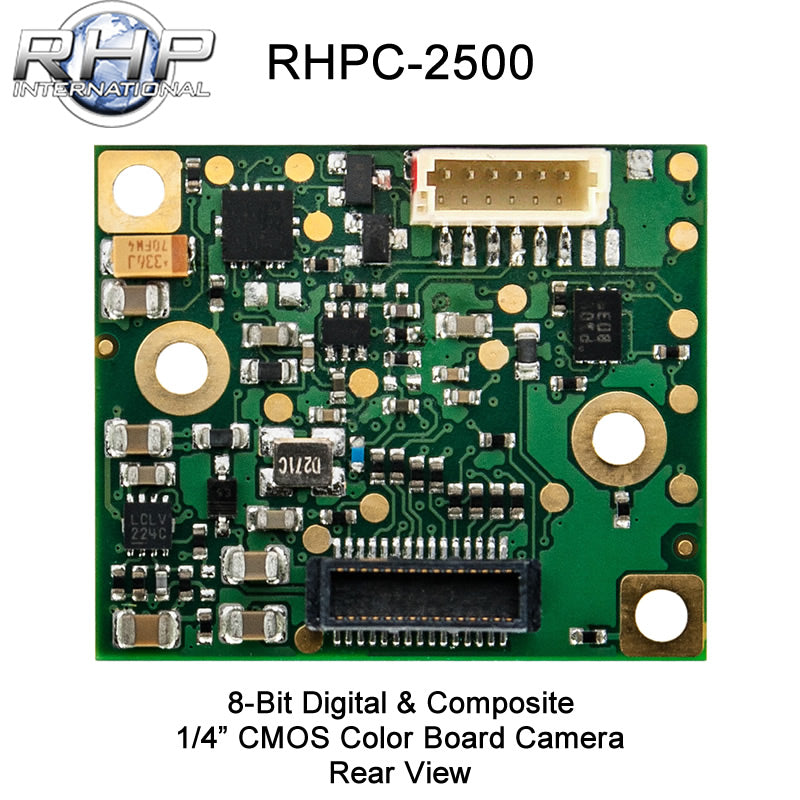

  • Compact 22 × 26 mm single-board construction
  • High-resolution color imaging
  • Low-power 5 V DC operation
  • 8-bit digital YUV output
  • Composite video output
  • Digital and composite outputs available simultaneously

PC-Configurable Image Controls

Optional PC software provides access to additional image adjustments and camera settings, including:

  • Electronic shutter
  • Gain control
  • White balance
  • Color balance
  • Backlight compensation
  • Mirror effect
  • Negative / positive image selection
  • Monochrome (B&W) mode

PC Interface & Software

Access the camera's additional configuration functions using the RHPC-I²C PC interface with software, available separately.

Note: The RHPC-I²C PC interface is required to configure the software-controlled camera functions. Interface and software are not included unless specified with your order.

Resolution

640 × 480

Frame Rate

30 fps

Sensitivity

< 0.05 lux, (50 IRE) F1.2, 3200°K, lens transmission 80%, scene reflection 75%

Signal to Noise Ratio

>46 dB digital output

Gamma

.45 default

Gain Control

Automatic 36dB (default)

Scan Mode

Interlaced

Mirror Mode

Selectable via software

Synchronization

Internal

Back Light Compensation

Default Off

White Balance

AWB (default) / fixed (selectable via software)

Contour Enhancement

Default on

Iris Control

Electronic Rolling Shutter

Shutter

Automatic from 1/60 to 1/100,000 (NTSC), Automatic from 1/50 to 1/100,000 (PAL)

Video Outputs

CVBS (75 Ohms)

Control communication

I²C control

Power Supply

4.5-12VDC +/- 5% (not polarity protected)

Power Consumption

<0.8W

Operating Temperature

-40°F ~ 122°F (-40°C ~ 50°C)

Operating Humidity

20% – 93% RH

Storage Temperature Range

-40°F ~ 194°F (-40°C ~ 90°C)

Storage Humidity

Up to 98% RH

Lifetime MTBF

> 150,000 hrs

Standard Package

ESD safe package

What's In The Box

1 – RHPC-2500 – 1/4'' CMOS Color Board Camera 1 – Lens Mount

Dimensions

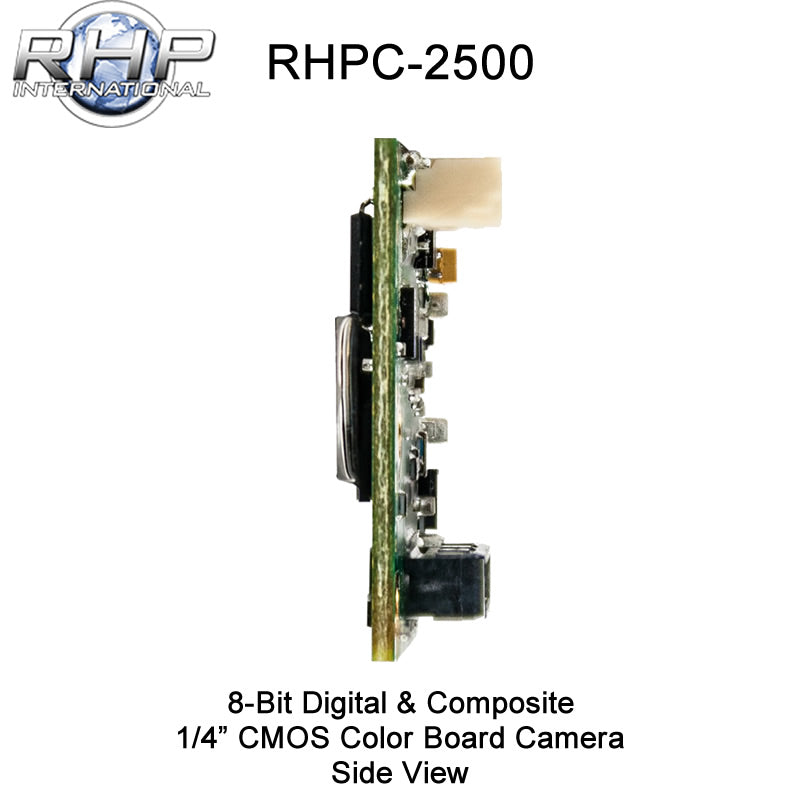

1" x 0.87" x 0.43" (22mm x 26mm x 11mm) W x H x D

Weight

6.4g (0.23 oz)

Available Lens Mounts

CS mount (available upon request), M-12 board mount (included – standard)

Available Lenses

12mm f2.0 1/3in, 16mm f2.0 1/3in, 2.1mm f2.0 1/3in, 25mm f2.5 1/3in, 3.0mm f2.0 1/3in, 3.6mm f2.0 1/3in, 3.8mm f2.0 1/3in, 4.0mm f2.0 1/3in, 6.0mm f2.0 1/3in, 8.0mm f2.0 1/3in

RHPC-2500 Datasheet

Download

RHPC-2500 Application Note

Download
