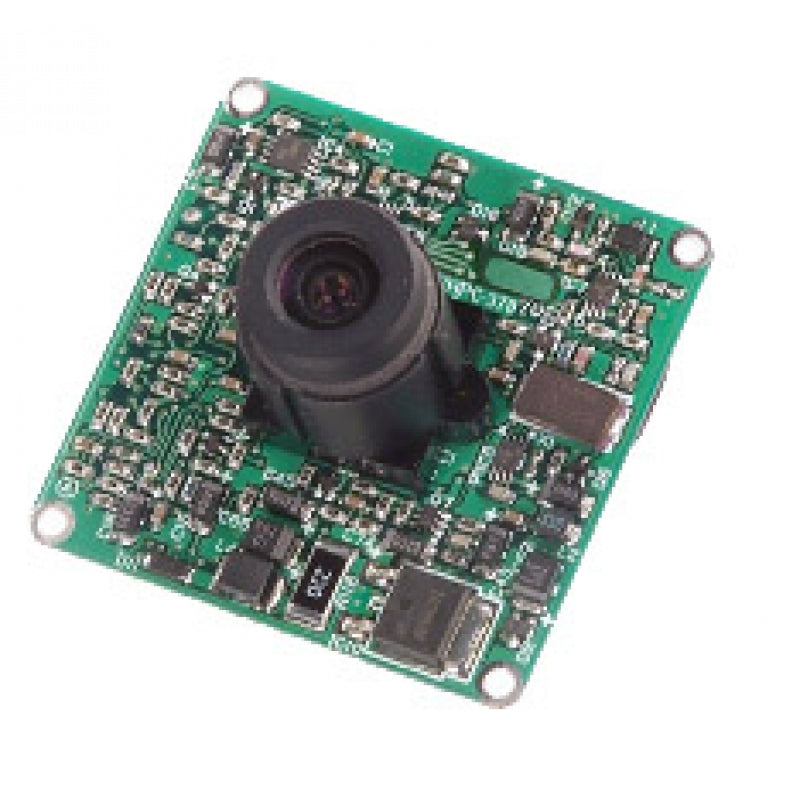

RHPC-170A Monochrome Board Camera

The RHPC-170A is a standard resolution monochrome board camera. This camera provides excellent monochrome video and are also sensitive to infrared light.

This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution with crisp monochrome images, and quality video.

Board Camera Features

• 1/3" Monochrome Super HAD CCD
• 42x42mm Single Board
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable via Jumpers & Contacts:

• Back light Compensation
  (Full Screen or Center)
• Electronic Iris
• Auto or OFF
• Automatic Gain Control ON or OFF
