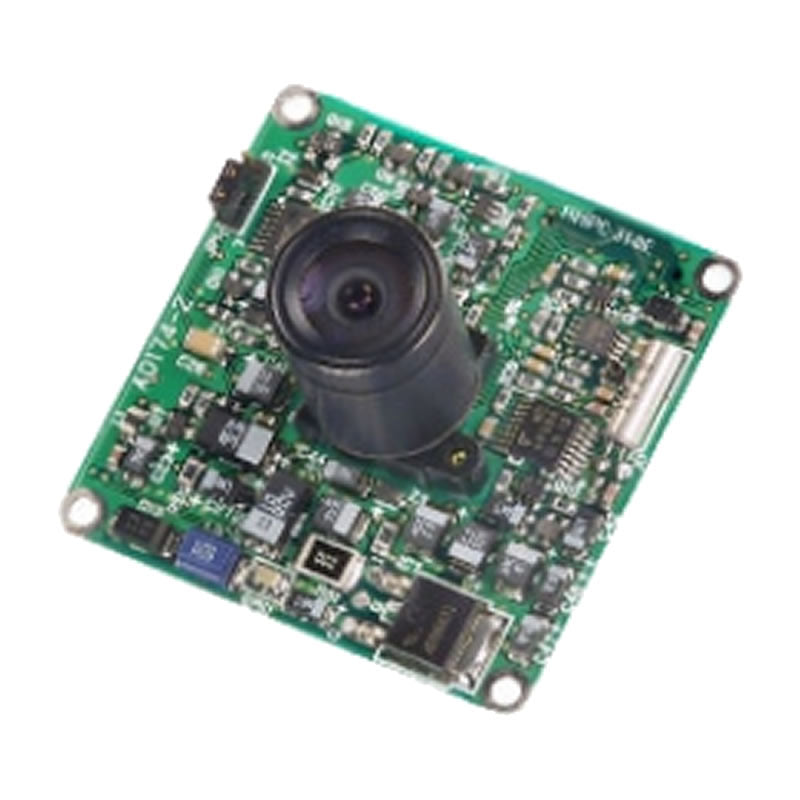

RHPC-110E Monochrome Board Camera

$138.00

• 1/4" Standard Resolution Analog EIA Monochrome Board Camera
• Active Pixels (NTSC): 510(H) x 492(W) - Apr. 250k Pixels
• 42x42mm Single Board Camera
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

SKU: RHPC-110E
rhpc-110e

RHPC-110E Monochrome Board Camera

$138.00

$138.00

Description
Specifications
Downloads

The RHPC-110E is a standard resolution monochrome board camera. Both cameras provide excellent monochrome video, and are also sensitive to infrared light.

This 42x42mm single board camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution (resolutions below) with crisp monochrome images, and high quality video.

Board Camera Features

  • 1/4" Monochrome Super HAD CCD
  • 42x42mm Single Board Camera
  • Internal or External Synchronization
  • 12Volt DC Operation
  • Low Smear

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable on PC Board:

  • Back light Compensation
    (Full Screen or Center)
  • Electronic Iris
  • Auto or OFF
  • Auto. Gain Control ON or MANUAL

Resolution

537 x 505

Pixel Pitch

—

Frame Rate

30 FPS

Shutter

—

Continuous Digital Zoom

—

Symbology

—

Dimensions (W x L)

42mm x 42mm

Weight

Approx. 15g

Input Voltage

12 VDC

Power Consumption

Max. 150 mA

Video Channels

Composite / 1 Vp-p 75 Ω

Control Channels

AGC (Auto Gain Control): Automatic or Manual Selectable Via Jumper

Operating Temperature Range

-5 °C - +40 °C - Max. 80% (No Condensation)

Non-Op. Temp. Range

-20°C - +60°C - Max. 95% (No Condensation)

RHPC-110E Datasheet

Download
