RHP-802H Monochrome Board Camera

$249.00 $149.00

SKU: RHP-802H

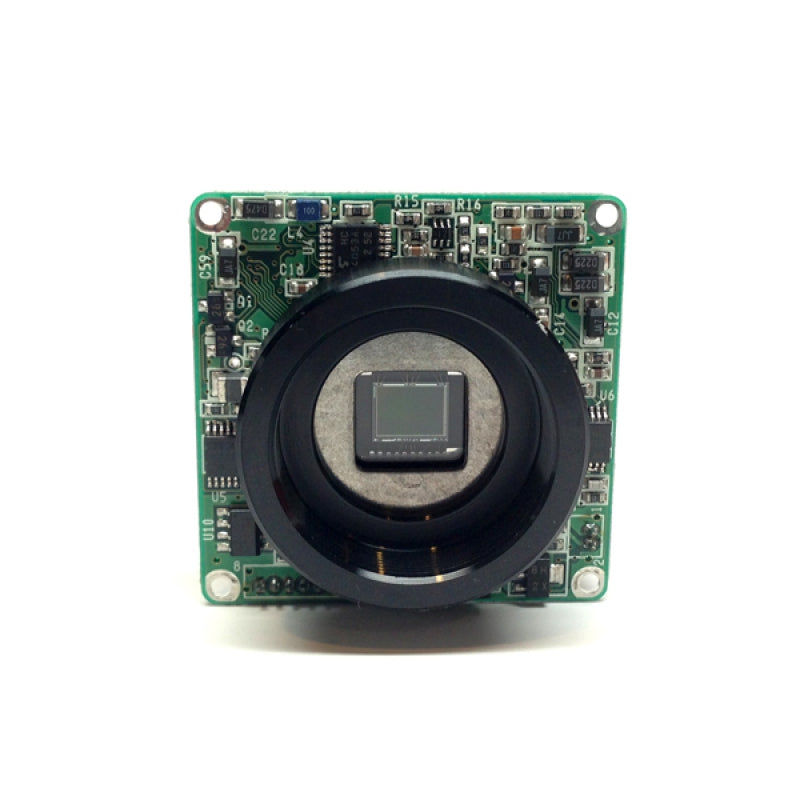

rhp-802h-800x800

RHP-802H Monochrome Board Camera

$249.00 $149.00
$249.00 $149.00
Description
Specifications
Downloads

RHP-802H Monochrome Board Camera

Super High Sensitivity Adjacent to Near Infra-Red Ray Exposed Single PC Board.

Quick Specs (NTSC):

Effective Pixels: 380k
Scanning system: 2:1 Interlace
Synchronizing system: Internal
Gain Control: AGC HI:5~50B, LO: 5~32Db, <(OFF=5dB)>*
Gamma Correction: γ≒0.45, <(γ≒1.0>*
Min. Illumination: 0.0003lux @ F1.4
B.L.C.: ON/OFF
Shutter Speed: EI(1/60~1/100,000), *
S/N Ratio: 50dB
Weight: 25g

*Available factory set options

CCD: 1/2"
Resolution: 570TVL
Power: DC+12V±10% 12VDC

Resolution

795(H) X 596(V)

Pixels

EIA 811(H) X 508(V)

Frame Rate

29.97 FPS

Shutter

1/60 - 1/100,000

Dimensions

1.65:(W) x 1.65"(H) x .59"(L)

Weight

Approx 2.47 ounces

Input Voltage

DC 12V +10% (180 mA)

Video Output

I VP-P 75 OHMS (Unbalanced)

Control Channels

Backlight Compensation: ON/OFF

Operating Temperature Range

14ºF to 104ºF

Non-Op. Temp. Range

-22ºF to 158ºF
