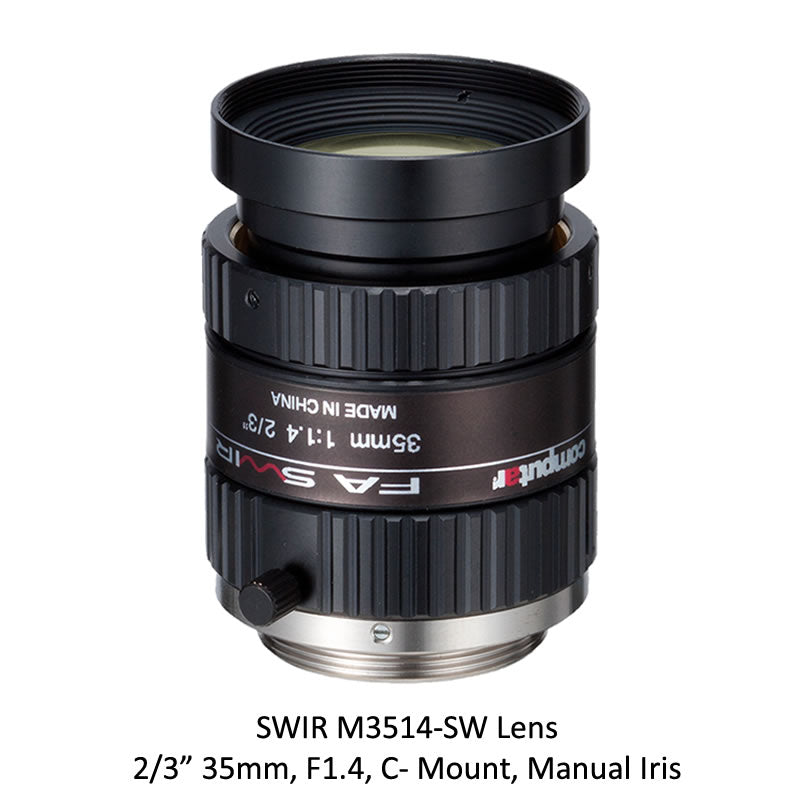

SWIR M3514-SW 2/3 in. 35mm, F1.4, C- Mount, Manual Iris
SWIR M3514-SW 2/3 in. 35mm, F1.4, C- Mount, Manual Iris
$652.17
Unit price per
SKU: SWIR-M3514-SW
$652.17
Unit price per
Description
Specifications
Downloads
SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.
- Unique coating technology delivers high transmission from 800nm-1,700nm
- High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
- Also available in 16mm, 25mm and 50mm
- Designed around the popular φ12.3mm image circle format
- The industry’s most compact form factor. Fits in most applications
- Compatible with FLIR TAU SWIR
| Model No. | M3514-SW | |
| Focal Length | 35mm | |
| Max. Aperture Ratio | 1:1.4 | |
| Max. Image Circle | φ12.3mm | |
| Operation Range | ||
| Iris | F1.4‐ F16C | |
| Focus | 0.3m ‐ Inf. | |
| Control | ||
| Iris | Manual | |
| Focus | Manual | |
| Object Dimension at M.O.D | ||
| 2/3 type | 8.0cm x 6.0cm | |
| 1/2 type | 5.8cm x 4.4cm | |
| Angle of View | ||
|
D |
2/3 type H8.80mm x V6.60mm | 18.4° |
| H | 14.7° | |
| V | 11.1° | |
| D | 1/2 type H6.40mm x V4.80mm | 13.4° |
| H | 10.7° | |
| V | 8.1° | |
| Angle of View ( InGaAs Detector) |
||
| D | 640 x 512 （Pixel Pitch ： 15μm） H9.60mm x V7.68mm |
20.5° |
| H | 16.0° | |
| V | 12.9° | |
| D | 320 x 256 （Pixel Pitch ： 25μm） 8.00mm x V6.40mm |
17.1° |
| H | 13.4° | |
| V | 10.7° | |
| D | 320 x 256 （Pixel Pitch ： 20μm） H6.40mm x V5.12mm |
13.7° |
| H | 10.7° | |
| V | 8.6° | |
| Operating Temperature | -10℃ ‐ +50℃ | |
| Effective Lens Aperture | ||
| Front | φ24mm | |
| Rear | φ12.0mm | |
| Distortion | ||
| 2/3 Type | -0.1% (y=5.5) | |
| 1/2 Type | 0% (y=4.0) | |
| Back Focal Length | 14.6mm | |
| Flange Back Length | 17.526mm | |
| Mount | C-Mount | |
| Filter Size | M30.5 P=0.5mm | |
| Dimensions | φ33.5mm x 38.2mm | |
| Weight | 87g | |
