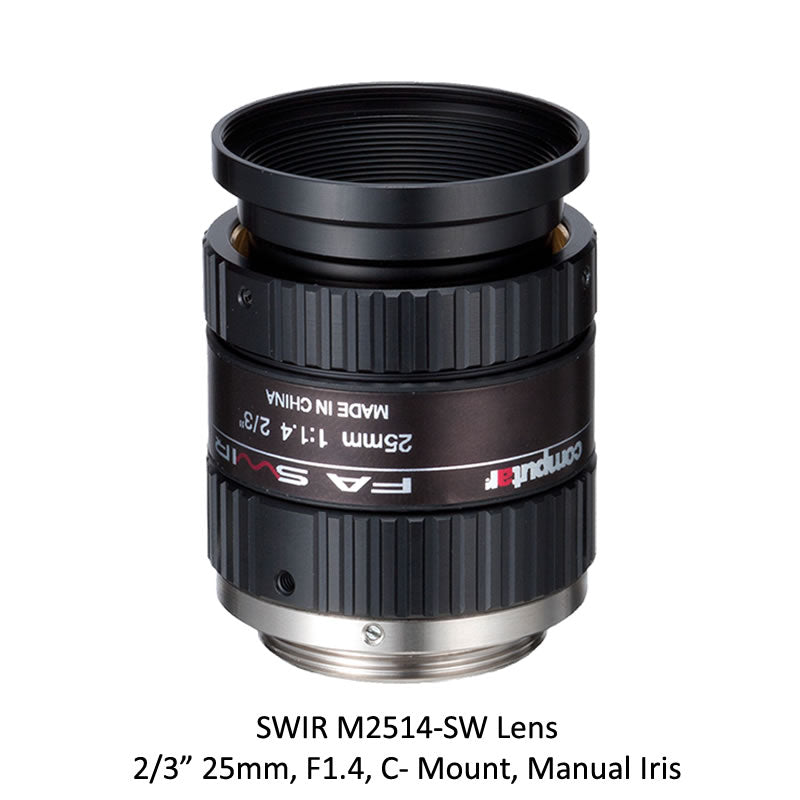

SWIR M2514-SW 2/3 in. 25mm, F1.4, C- Mount, Manual Iris

$652.17


SKU: M2514-SW

We usually have a majority of these items in stock.
Please call or contact us for availability.

Description
Specifications
Downloads

SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.

  • Unique coating technology delivers high transmission from 800nm-1,700nm
  • High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
  • Also available in 16mm, 35mm and 50mm
  • Designed around the popular φ12.3mm image circle format
  • The industry’s most compact form factor. Fits in most applications
  • Compatible with FLIR TAU SWIR

Model No. M2514-SW
Focal Length 25mm
Max. Aperture Ratio 1:1.4
Max. Image Circle φ12.3mm
Operation Range
Iris F1.4‐ F16C
Focus 0.3m ‐ Inf.
Control
Iris Manual
Focus Manual
Object Dimension at M.O.D
2/3 type 10.5cm x 7.8cm
1/2 type 7.6cm x 5.7cm
Angle of View

D

 2/3 type H8.80mm x V6.60mm 24.7°
H 19.8°
V 14.9°
D 1/2 type H6.40mm x V4.80mm 18.1°
H 14.5°
V 10.9°
Angle of View
( InGaAs Detector)
D 640 x 512
（Pixel Pitch ： 15μm）
H9.60mm x V7.68mm		 27.6°
H 21.6°
V 17.3°
D 320 x 256
（Pixel Pitch ： 25μm）
8.00mm x V6.40mm		 23.0°
H 18.1°
V 14.5°
D 320 x 256
（Pixel Pitch ： 20μm）
H6.40mm x V5.12mm		 18.5°
H 14.5°
V 11.6°
Operating Temperature -10℃ ‐ +50℃
Effective Lens Aperture
Front φ17.8mm
Rear φ12.0mm
Distortion
2/3 Type -0.5% (y=5.5)
1/2 Type -0.2% (y=4.0)
Back Focal Length 13.4mm
Flange Back Length 17.526mm
Mount C-Mount
Filter Size M30.5 P=0.5mm
Dimensions φ33.5mm x 36mm
Weight 71.2g
