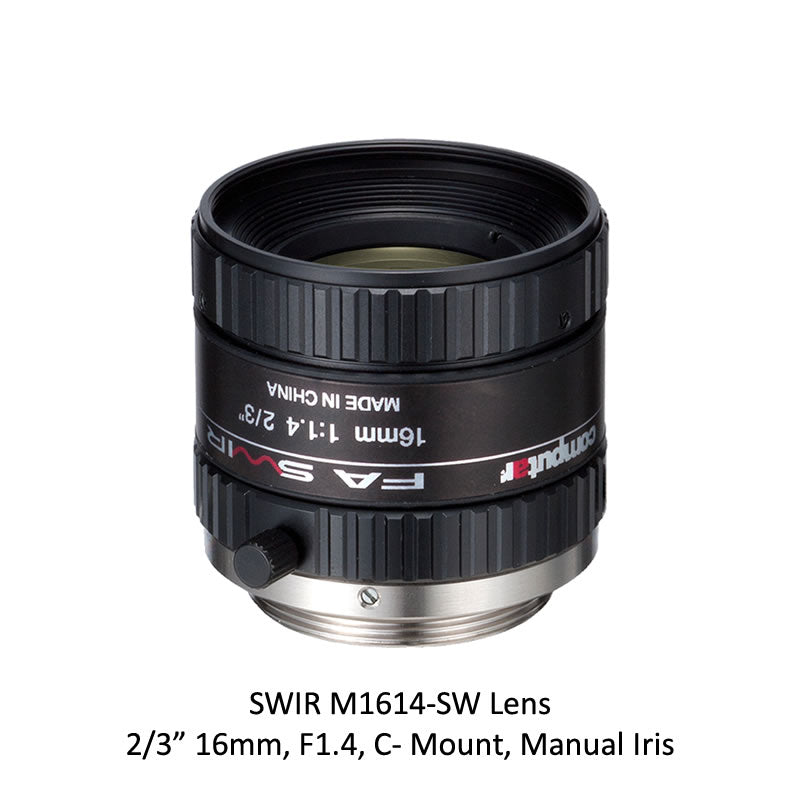

SWIR M1614-SW 2/3 inch 16mm, F1.4, C- Mount, Manual Iris

$410.00

SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.

•Unique coating technology delivers high transmission from 800nm-1,700nm
•High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
•Also available in 25mm, 35mm and 50mm
•Designed around the popular φ12.3mm image circle format
•The industrys most compact form factor. Fits in most applications
Compatible with FLIR TAU SWIR

SKU: M1614-SW

$410.00

Description

Specifications

Downloads

Model No.	M1614-SW
Focal Length	16mm
Max. Aperture Ratio	1:1.4
Max. Image Circle	φ12.3mm
Operation Range
Iris	F1.4‐ F16C
Focus	0.3m ‐ Inf.
Control
Iris	Manual
Focus	Manual
Object Dimension at M.O.D
2/3 type	17.0cm x 12.7cm
1/2 type	12.3cm x 9.2cm
Angle of View
D	2/3 type H8.80mm x V6.60mm	37.7°
H		30.6°
V		23.2°
D	1/2 type H6.40mm x V4.80mm	27.9°
H		22.5°
V		16.9°
Angle of View ( InGaAs Detector)
D	640 x 512 （Pixel Pitch ： 15μm） H9.60mm x V7.68mm	41.7°
H		33.2°
V		26.8°
D	320 x 256 （Pixel Pitch ： 25μm） 8.00mm x V6.40mm	35.3°
H		27.9°
V		22.5°
D	320 x 256 （Pixel Pitch ： 20μm） H6.40mm x V5.12mm	28.6°
H		22.5°
V		18.0°
Operating Temperature	-10℃ ‐ +50℃

Effective Lens Aperture
Front	φ18.5mm
Rear	φ13.2mm
Distortion
2/3 Type	-0.5% (y=5.5)
1/2 Type	-0.5% (y=4.0)
Back Focal Length	13.3mm
Flange Back Length	17.526mm
Mount	C-Mount
Filter Size	M30.5 P=0.5mm
Dimensions	φ33.5mm x 28.2mm
Weight	60g
