HIRMP8-85M Series

$0.00

• 10x (8.5-85mm) Infrared Corrected Motorized Zoom Lens
• Special Low Dispersion Glass
• 2 Megapixel Lens
• 1/2" sensor
• f = 8.5 - 85mm
• F1.5
• Full HD
• True NIR
• OPTIONS: Manual Override Iris Potentiometer
• C-Mount

This item is available by quote only. View your quote list

SKU: HIRMP8-85M

$0.00

Description
Specifications
Downloads

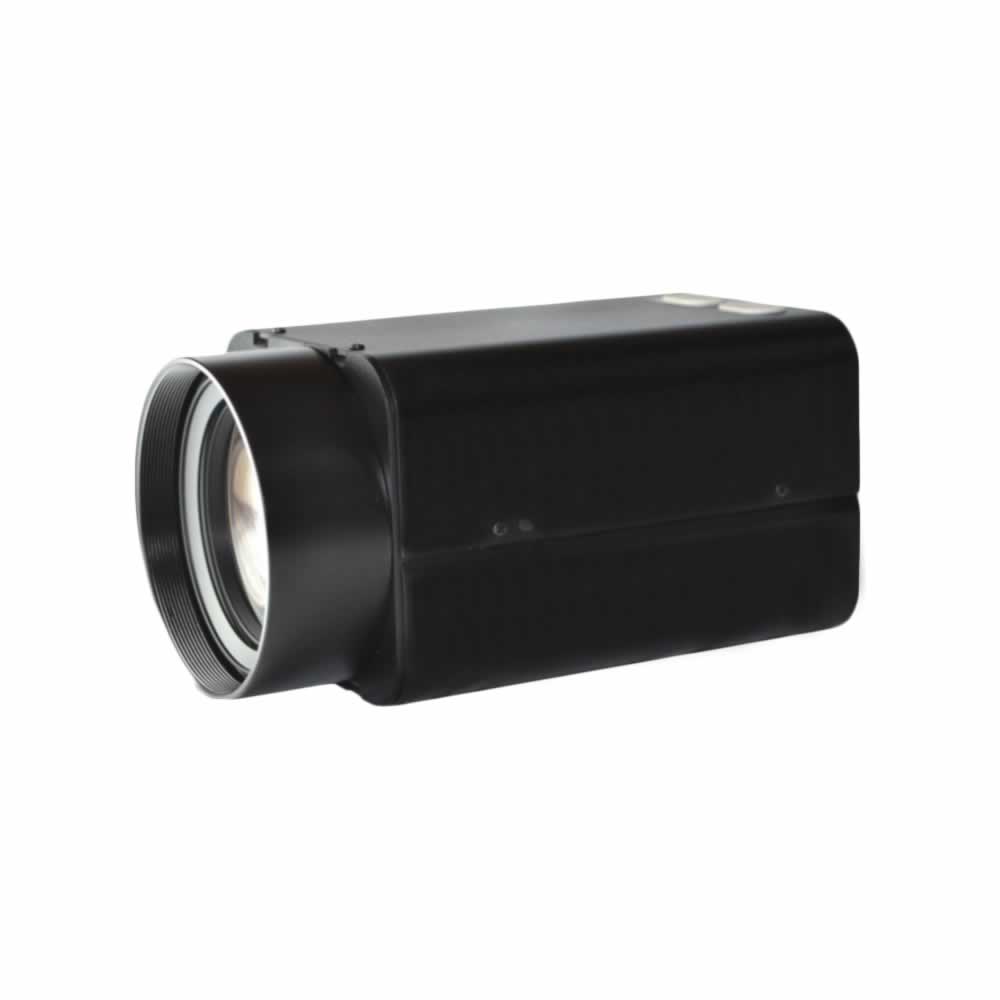

HIRMP8-85M Series

The HIRMP8-85 lenses are powerful 2 megapixel infrared (IR) corrected motorized zoom lenses. The IR corrected SD Glass (special low dispersion glass) has lower chromatic abberation than ED glass (extra-low dispersion glass) which allows the lens to always stay in focus, from visible light to infrared light. With a 8-85mm focal length the HIR8-85 can benefit almost any application. Designed to fit a C-Mount camera with a 1/2" CCD or smaller, this can also be used on a CS-Mount camera with an additional C/CS adapter.

Range Testing

5 mile range testing

Special Low Dispersion Glass

special low dispersion glass

Visible Lens vs. IR Corrected Lens: Notice with this IR Corrected lens utilizing the Haze Filter:
You can see through haze revealing details in the mountains.

Visible Mode vs IR Corrected Mode with Haze Filter
Visible Mode vs IR Corrected Mode with Haze Filter
