Teledyne FLIR Tau PCB Wearsaver with Solder Pads
$136.00
Unit price / per
$136.00
Unit price / perFLIR Tau PCB Wearsaver with Solder Pads
A low-profile adapter that attaches to the Tau's 50-pin Hirose connector, furnishing a solder pad interface. Schematic included.
The Tau2 Wearsaver was designed to be an internal engineering/manufacturing calibration accessory, rather than an OEM interface.

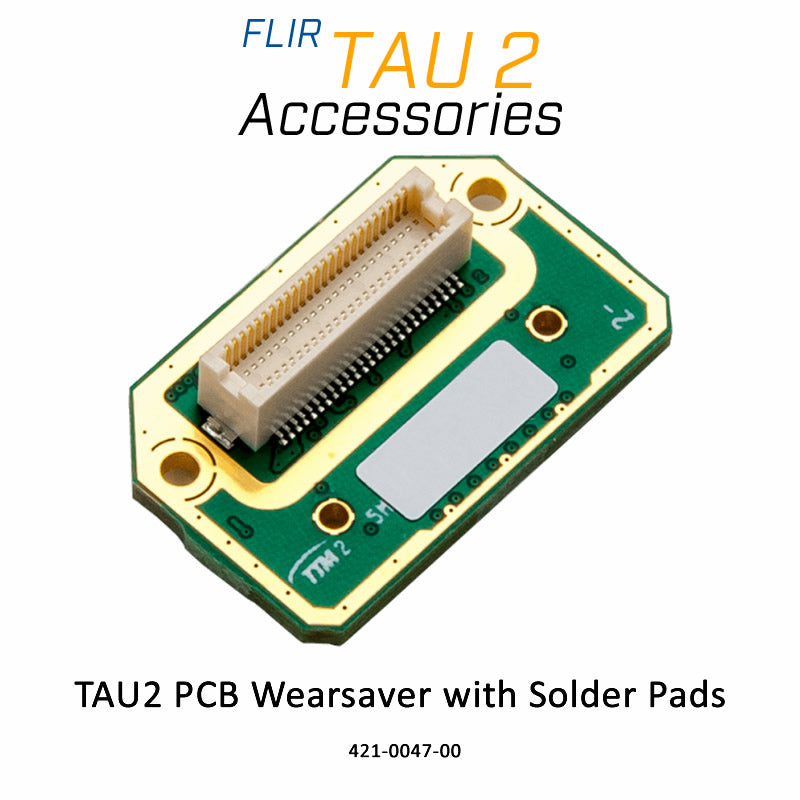

There is a Hirose mating connector on one side of the board, as shown in the picture below:
When the Wearsaver is attached to the Tau2 camera, there are no exposed connectors, just the solder pads for a 20-pin Samtec (and 14 pads for pogo pins).
The pad connections are limited to input power, RS-232, analog video, and LVDS.
The Wearsaver board does NOT provision for External Sync, Discretes, or CMOS signals.

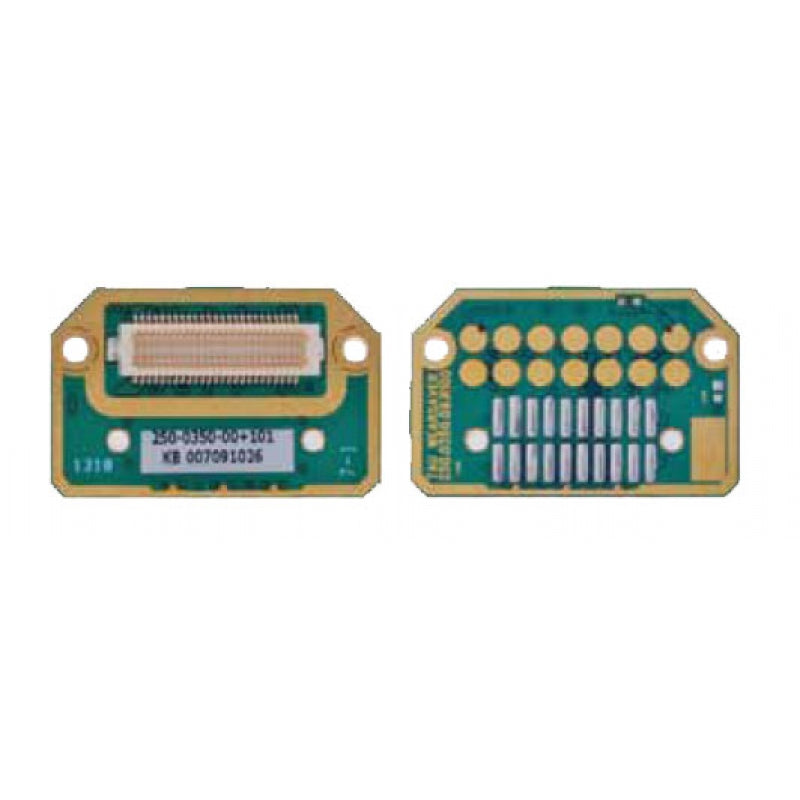

The physical layout is shown in the picture below:
What's In The Box
