Teledyne FLIR FC-632 AI 640 x 512 19MM 32° HFOV - LWIR Thermal Security Camera

$8,799.00

•Uncooled VOx Microbolometer
•Frame Rate: NTSC: 30 Hz - PAL: 25 Hz / 8.3 Hz
•Array: 640 x 480
•FoV: 32°(H) x 26°(V)
•19mm Lens
•Pixel Pitch: 17µm
•Focal Length: f/1.0
•Best-in-class perimeter protection
•Integrates with analytics
•Industry-Leading image quality
•High Performance Lens

Notice: This product is export controlled. This item is subject to US export controls. By checking this box, I acknowledge that this thermal imaging camera requires an export license for international shipments.

SKU: FC632AI30

Teledyne FLIR FC-632 AI 640 x 512 19MM 32° HFOV - LWIR Thermal Security Camera

$8,799.00

Description

Specifications

Downloads

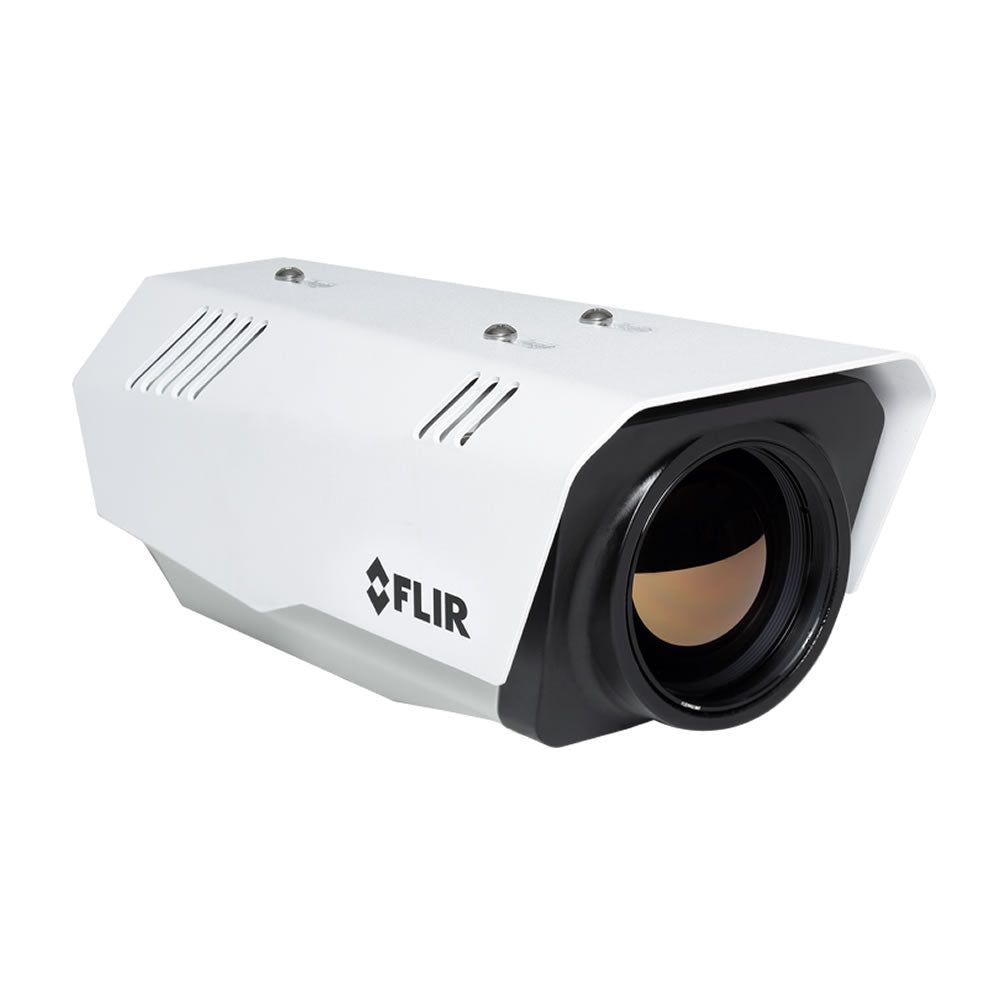

FLIR FC-632 AI

Thermal AI Analytics Camera

The FLIR FC-Series AI is a thermal analytics security camera designed to deliver reliable and cost-effective perimeter protection. Combining deep neural network (DNN) and motion analytics, it enhances situational awareness and improves incident detection for better decision-making and operational efficiency.

With thermal sensitivity of <25 mK NETD, the FC-Series AI delivers crisp image clarity that improves analytics performance. It also offers a wide range of lens options and seamless, cyber-hardened integration with FLIR UVMS and third-party video management systems.

ACCURATE HUMAN & VEHICLE DETECTION

Advanced DNN analytics distinguish real threats from nuisance alarms—even against deliberate evasion attempts.

WIDE RANGE OF LENS OPTIONS

Choose from 8 high-performance lenses ranging from narrow to wide fields of view for flexible deployment.

ENHANCED SITUATIONAL AWARENESS

Target geolocation enables precise PTZ handoff for improved coordination and faster response.

Resolution

640 x 512

Pixel Pitch

17 µm

Spectral Band

LWIR | 7.5 µm – 13.5 µm

Sensitivity/NEdT

<25 mK @ 25°C (77°F) for f/1.0

Frame Rate

30 Hz

Zoom

4x continuous E-Zoom

Radiometry

Field of View

32°(H) × 26°(V)

Focal Length

19mm

f-number

f/1.0

Dimensions (L x W x H)

259 × 114 × 106 mm

Weight

2.2kg (4.75 lbs.)

Input Voltage

Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC(VA) Heater off: <9 W <10 W <9 W <15 W Heater on (@ 100%): <25 W <28 W <25W <32W

Composite Video NTSC or PAL

Hybrid system with IP & analog video

Analytics Features

Region Entrance/Intrusion Detection, Crossover/Fence Trespassing, CNN classifier

Analytics Management

Web-based configuration and management, Masking of analytic detection areas, adjustable sensitivity,automatic responses, remote I/O control

Digital Video Compression

Two independent channels of H.264 / H.265 or MJPEG

IP Rating

IP66 & IP67

Humidity

0-95% relative humidity

Image Uniformity Opt.

Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers

Certifications

IEC 62368-1: 2018

Effective Resolution

327,680 pixels

Streaming Resolution

640 × 512

Operating Temperature Range

-40°C to 70°C

Storage Temperature Range

-50°C to 85°C

Thermal AGC Region of Interest

Default, Presets, and User definable to ensure optimal image quality on subjects of interest

Ethernet

10/100 Mbps

FLIR FC-Series AI Datasheet

Download
