Imaging Source Edge Cameras

$0.00



• Platform: NVIDIA Jetson Xavier NX
• Two camera resolutions (36M series): 1.6 MP (IMX296) and 5.1 MP (IMX568)
• Delivered with NVIDIA JetPack software
• HALCON Ready

This item is available by quote only. View your quote list

SKU: edge_cameras

$0.00

Description
Specifications
Downloads

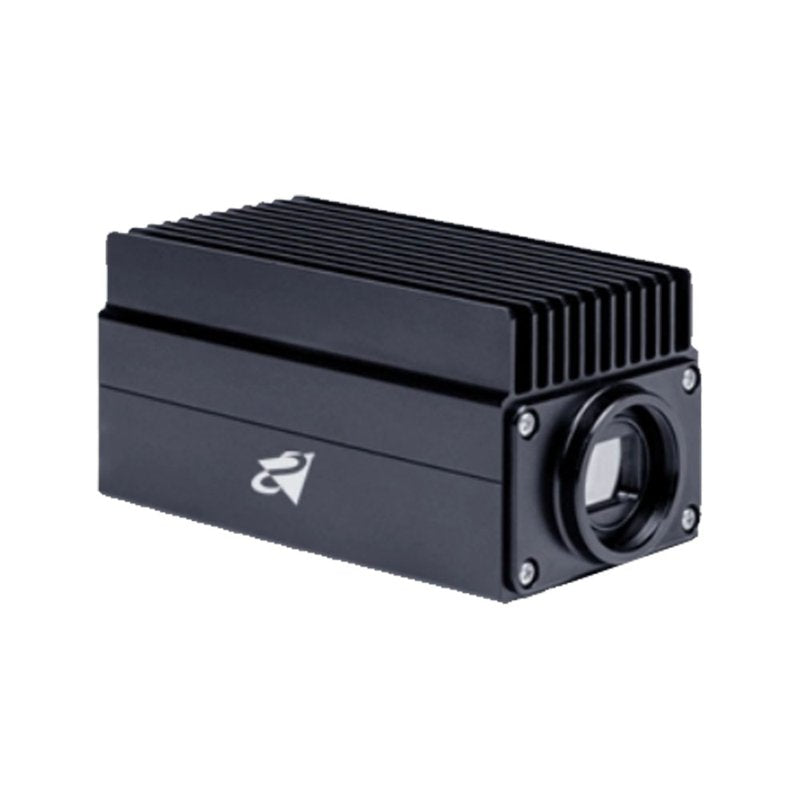

Imaging Source Edge Cameras

Compact, Integrated Imaging System for Deep Learning and AI Vision Applications

The new edge camera family from The Imaging Source features an integrated imaging system, which combines an image sensor with the computing power of NVIDIA® Jetson Xavier™ NX in a compact package. Two global-shutter sensors are available: 1.6 MP and 5.1 MP. The cameras are offered with either active or passive cooling. The cameras are delivered with NVIDIA JetPack software, which offers extensive deep learning functionality as well as a host of additional tools and libraries. For general image processing tasks and deep learning applications, the HALCON software library can also be installed and used.

Weight

850 g / 30 oz without lens

Processor

NVIDIA Jetson Xavier NX system on module (SOM)

Supply voltage

PoE+ or 10 pin Hirose connector 14 – 24 V / 30 W

Color and Mono Camera Selection

DxM 36MX290-ML (1.6 MP); DxM 36MX568-ML (5.1 MP)

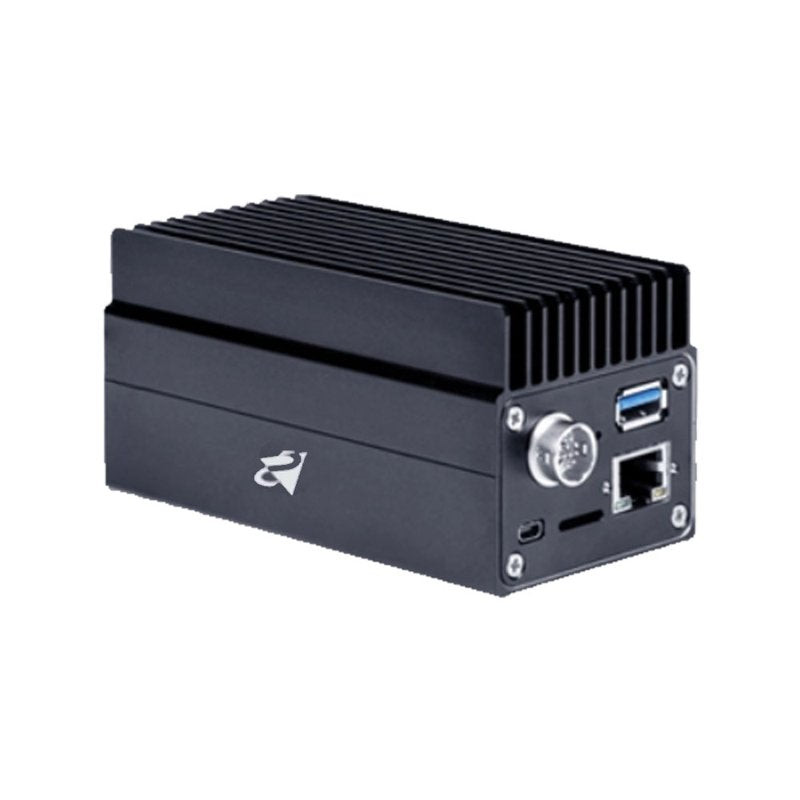

External Interface

1x USB 3.0 1 GigE interface, RJ 45 1x HDMI 1x SD card 10 pin Hirose connector, (power, CAN, UART/I2C, trigger, strobe/GPOUT)
