Imaging Source DMM 42BUC03-ML USB 2.0 monochrome board camera

$171.00



• 1/3 inch Micron CMOS sensor (MT9M021)
• 1,280x960 (1.2 MP), up to 25 fps
• Global shutter
• Trigger and I/O inputs
• Manufactured by The Imaging Source
• Windows software included

SKU: DMM 42BUC03-ML

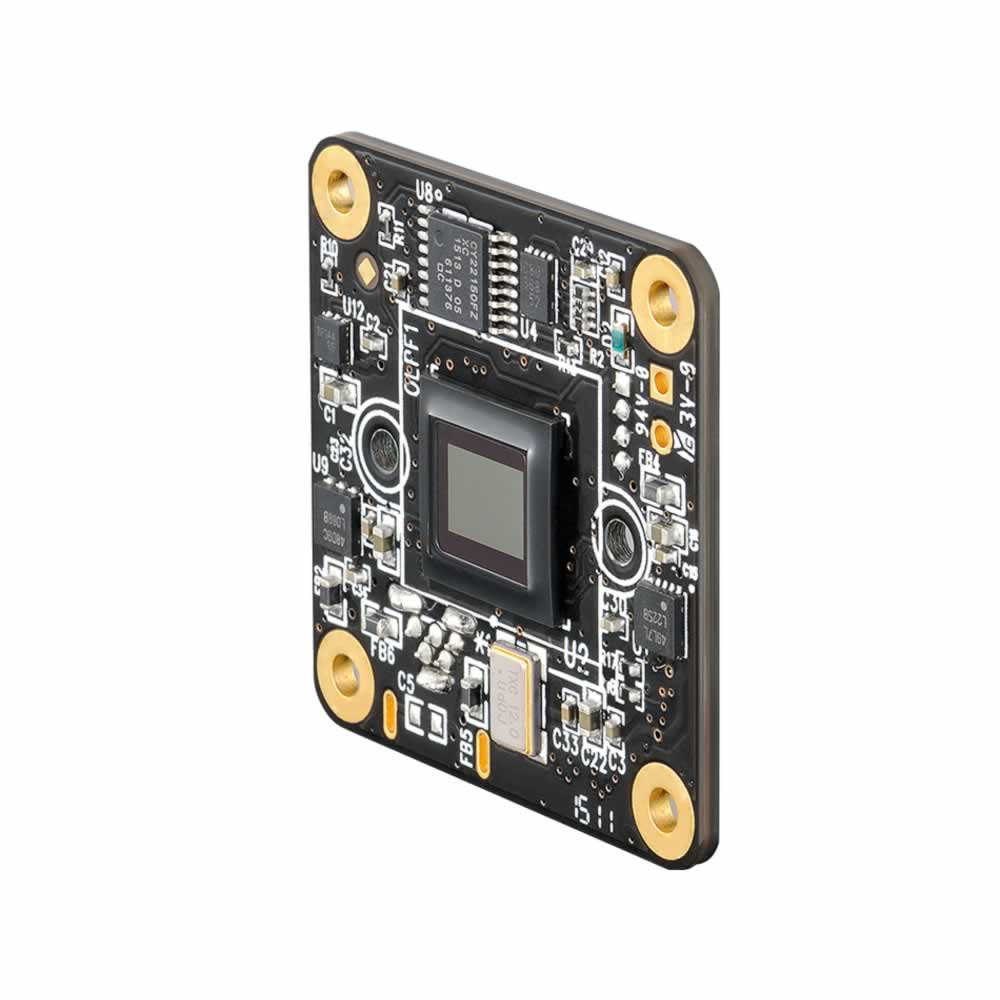

pph224272blh-front

Imaging Source DMM 42BUC03-ML USB 2.0 monochrome board camera

$171.00

$171.00

Description
Specifications
Downloads

DMM 42BUC03-ML

USB 2.0 monochrome board camera

The DMM 42BUC03-ML camera is a high quality USB 2.0 CMOS Monochrome Board Camera with Trigger at an unbelievably low cost. With resolutions from 640x480 to 1280x960, this board camera can provide great detail in every image with its Progressive Scan CMOS CCD image sensor. Frame rates can reach up to 49 frames per second at 640x480.

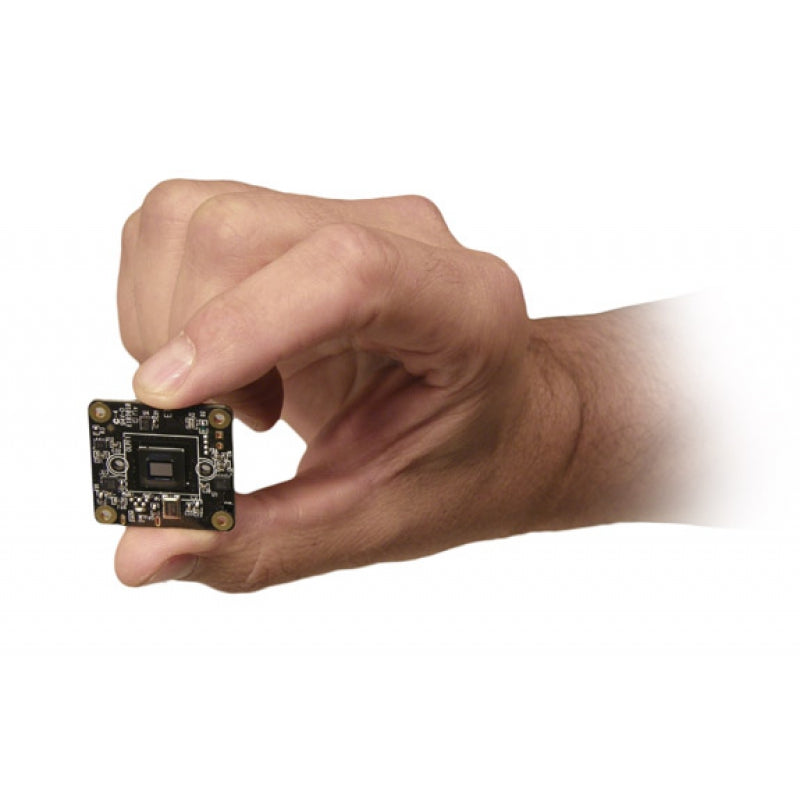

With an amazingly compact 30(H) x 30(W) x 25(L)mm form factor, this cost effective USB board camera is one of the best cameras you will find. Drivers and Software are included with this camera. Please note, lens is not included.

Please note:

  • Lens Mount and Lens Not Included
  • This camera is also on a 2-4 week lead time on all new orders

System Requirements

  • Pentium III/800 MHz, 128 MB of Ram
  • Graphics Card with 24/32 bit Color
  • Windows XP, Vista (32 & 64 bit) or Windows 7 (32 & 64 bit)
  • DirectX 9.0c or Higher

Resolution Format Frames Per
Second (FPS)		 Sensitivity
640x480
(RGB24/Y800)		 1/5.5" 49 2.0 V/lux-sec
1024x768
(RGB24/Y800)		 1/4" 31 2.0 V/lux-sec
1280x720
(RGB24/Y800)		 1/3" 33 2.0 V/lux-sec
1280x960
(RGB24/Y800)		 1/3" 25 2.0 V/lux-sec
* Configurable with the shipped software

Dynamic Range

8 bit

Video Format

1280 × 960 (1.2 MP) RGB24 @ 25 fps, 1280 × 960 (1.2 MP) Y800 @ 25 fps

IR-Cut Filter

No

Sensor Type

CMOS

Sensor Specification

onsemi AR0134

Shutter

Global

Format

1/3 inch

Pixel Size

H: 3.75 µm x V: 3.75 µm

MP

1.2 MP

Resolution

1280 x 960

FPS

25 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

USB 2.0 (forwards compatible)

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

No

Trigger

No

I/O

No

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

7g

Adjustable Shutter

1/10000 s to 30 s

Gain

0 dB to 18 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
