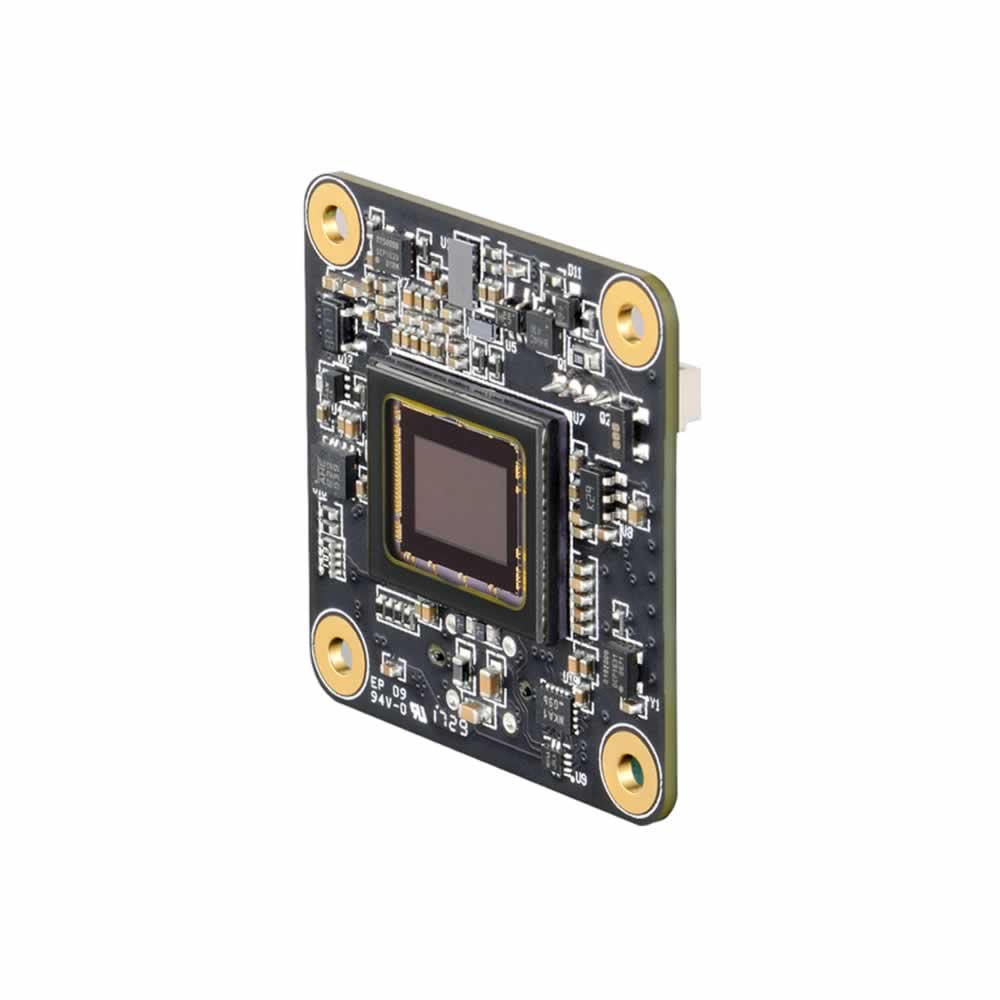

Imaging Source DMM 37UX290-ML USB 3.1 monochrome board camera

$309.00

•1/2.8 inch Sony CMOS STARVIS sensor (IMX290LLR)
•1,920x1,080 (2.1 MP), up to 143 fps
•Rolling shutter
•Lens Mount Size: M12x0.5
•Trigger and I/O inputs

SKU: DMM 37UX290-ML

$309.00

Description

Specifications

Downloads

Imaging Source DMM 37UX290-ML USB 3.1 monochrome board camera

The Imaging Source DMM 37UX290-ML USB 3.1 Monochrome Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 2.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact design and support a variety applications.

The DMM 37UX290-ML color camera supports multiple pixel formats with variable bits per-pixel settings. The names of the pixel formats and the way to select them depends on the driver used to control the camera.

Dynamic Range

10 bit

Video Format

1920 x 1080 (2.1 MP)

IR-Cut Filter

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX290

Shutter

Rolling

Format

1/2.8 inch

Pixel Size

H: 2.9 µm x V: 2.9 µm

2.1 MP

Resolution

1920 x 1080

FPS

143 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 540 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 15 mm

Mass

Adjustable Shutter

20 µs to 30 s

Gain

0 dB to 72 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
