Imaging Source DMM 37UX264-ML USB 3.1 Monochrome board camera

$776.00

•2/3 inch Sony CMOS Pregius sensor (IMX264LLR)
•2,448x2,048 (5 MP), up to 38 fps
•Global shutter
•Trigger and I/O inputs
•Windows and Linux software included

SKU: DMM 37UX264-ML

$776.00

Description

Specifications

Downloads

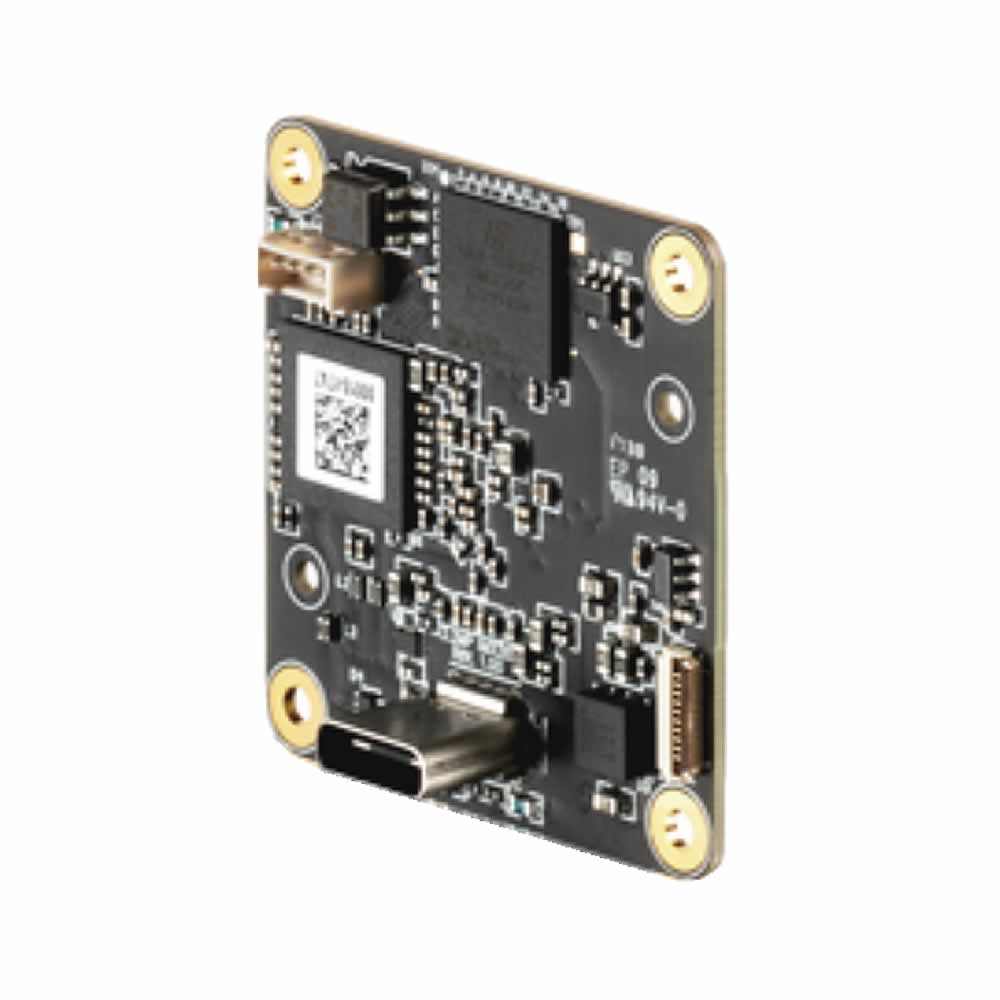

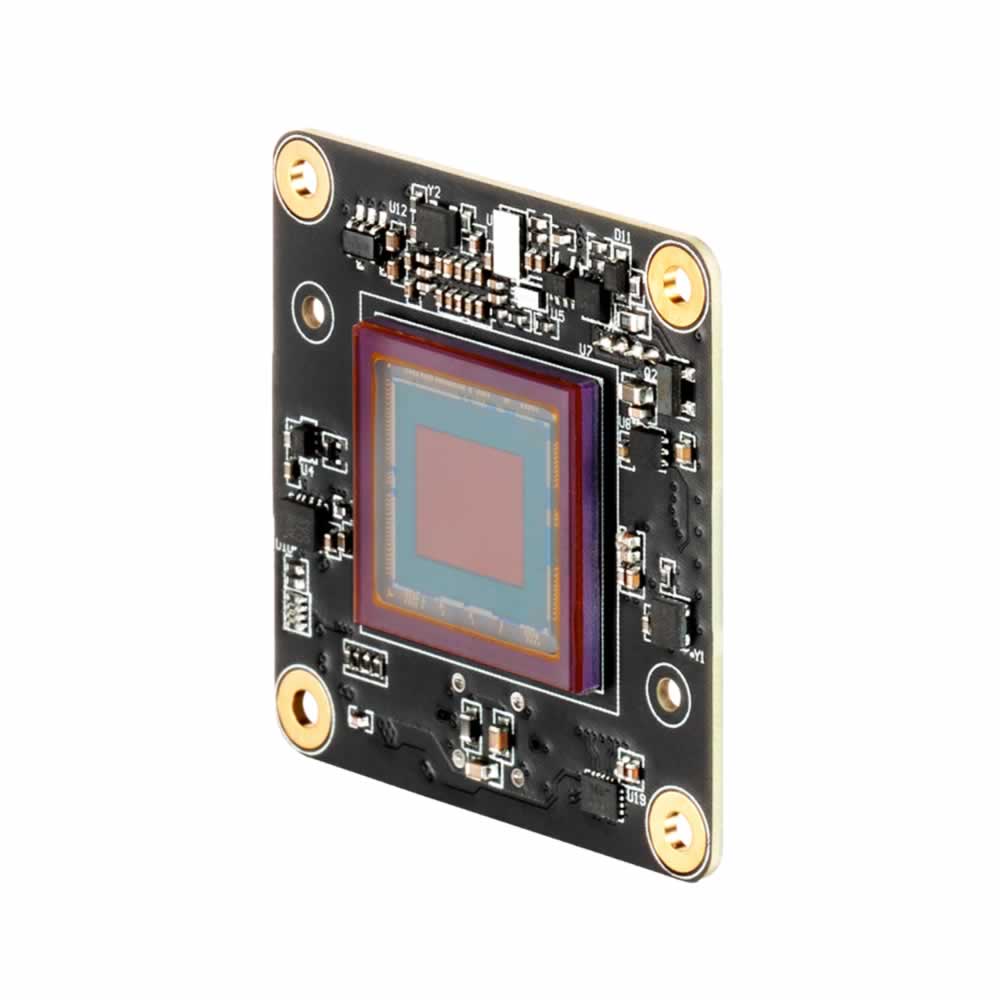

DMM 37UX264-ML USB 3.1 Monochrome board camera

The DMM 37UX264-ML USB 3.1 Monochrome Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX264LLR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 5 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.

Additionally, their sensor size (2/3") means they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

12 bit

Video Format

2448 × 2048 (5 MP)

IR-Cut Filter

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX264

Shutter

Global

Format

2/3 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

5 MP

Resolution

2448 x 2048

FPS

38 FPS

Mono/Color

Monochrome

Lens Mount

M12x0.5, optional

Interface

USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 360 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 15 mm

Mass

Adjustable Shutter

1 µs to 4 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
