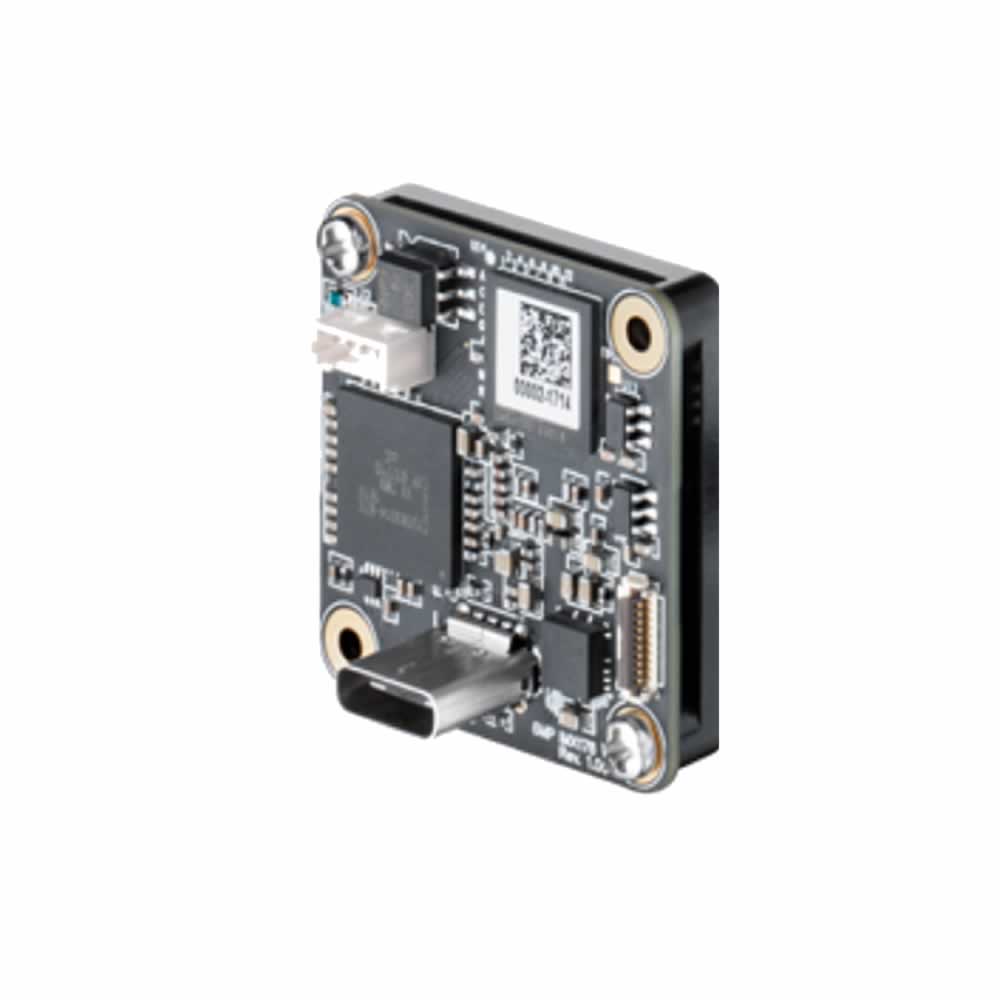

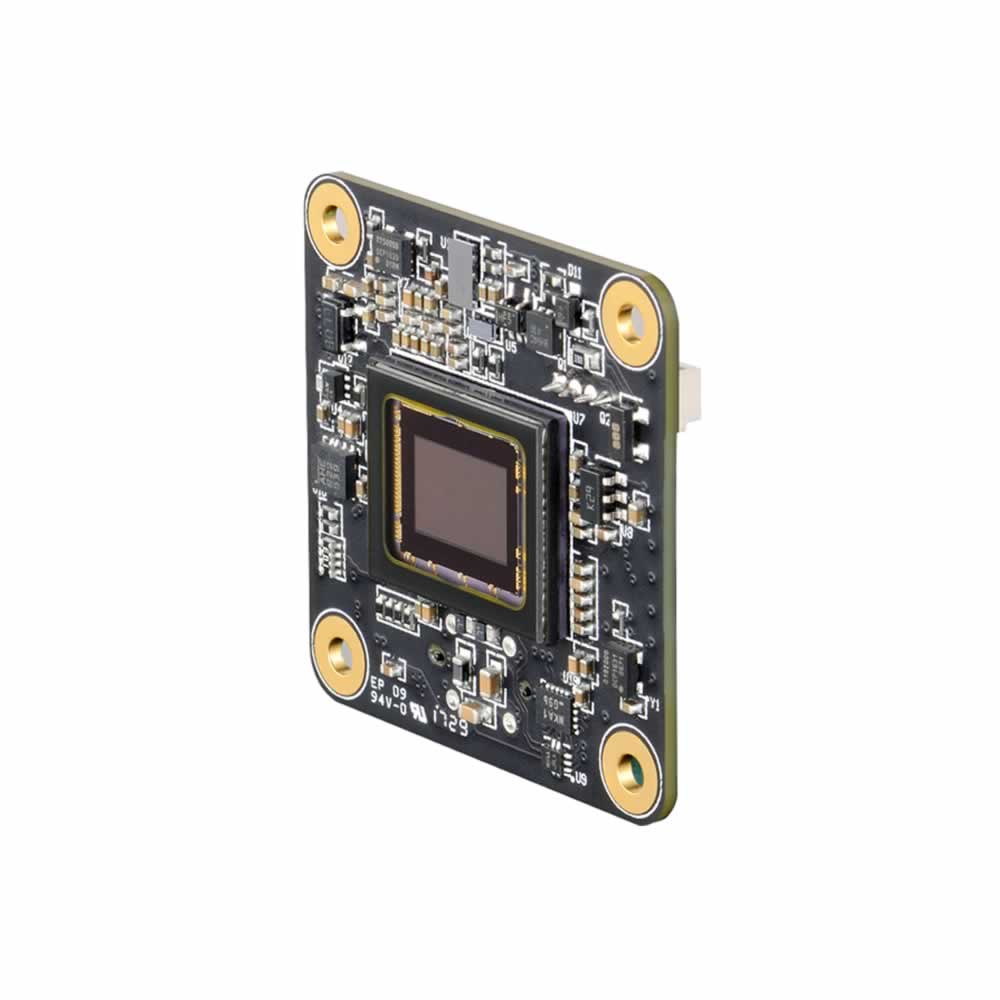

Imaging Source DMM 37UX178-ML USB 3.1 monochrome board camera

$344.00

•1/1.8 inch Sony CMOS STARVIS sensor (IMX178)
•3,072x2,048 (6.3 MP), up to 60 fps
•Rolling shutter
•Trigger and I/O inputs

SKU: DMM 37UX178-ML

$344.00

Description

Specifications

Downloads

DMM 37UX178-ML

USB 3.1 monochrome board camera

The Imaging Source DMM 37UX178-ML USB 3.1 monochrome board cameras are equipped with highly-sensitive, low-noise Sony STARVIS (IMX178LLJ) rolling-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 6.3 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.

Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

12 bit

Video Format

3072 × 2048 (6.3 MP)

IR-Cut Filter

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX178

Shutter

Rolling

Format

1/1.8 inch

Pixel Size

H: 2.4 µm x V: 2.4 µm

6.3 MP

Resolution

3072 x 2048

FPS

60 FPS

Mono/Color

Monochrome

Lens Mount

M12x0.5, optional

Interface

USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 320 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 15 mm

Mass

Adjustable Shutter

1 µs to 4 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
