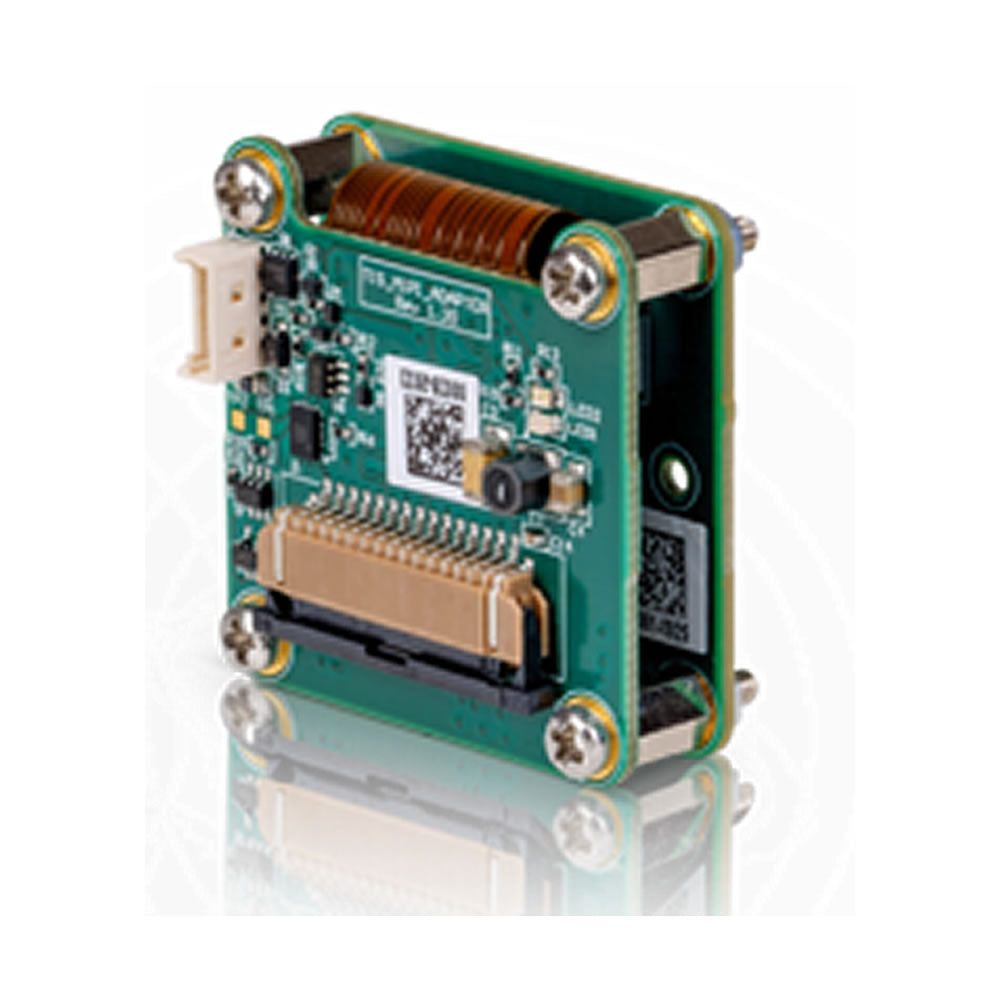

Imaging Source DMM 36AX335-ML MIPI CSI-2 15 pin design-in monochrome board camera

$229.00

• 1/2.8 inch Sony CMOS STARVIS sensor (IMX335)
• 2,592x1,944 (5 MP), up to 30 fps
• Rolling shutter
• I/O input
• Linux software included

SKU: DMM 36AX335-ML

$229.00

Description

Specifications

Downloads

DMM 36AX335-ML

15 pin design-in monochrome board camera

These high-performance design-in board cameras from The Imaging Source for embedded vision applications offer a 15-pin CSI-2 interface for plug-and-play integration with embedded development kits for NVIDIA® Jetson™ and Raspberry Pi.

The Imaging Source's 15-pin design-in board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses.

The included software allows you to adjust parameters such as gain, exposure, frame rate,

Dynamic Range

12 bit

Video Format

2592 × 1944 (5 MP)

IR-Cut Filter

Sensor Type

CMOS STARVIS

Sensor Specification

IMX290

Shutter

Rolling

Format

1/2.8 inch

Pixel Size

H: 2 µm x V: 2 µm

5 MP

Resolution

2592 x 1944

FPS

30 FPS

Mono/Color

Monochrome

Lens Mount

M12x0.5, optional

Interface

15-pin Raspberry Pi-compatible connector

Supply Voltage

3.3 VDC

Current Consumption

Approx. 220 mA @ 3.3 VDC

Auto Iris Control

Trigger

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 16.2 mm

Mass

12g

Adjustable Shutter

20 µs to 0.5 s

Gain

0 dB to 72 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
