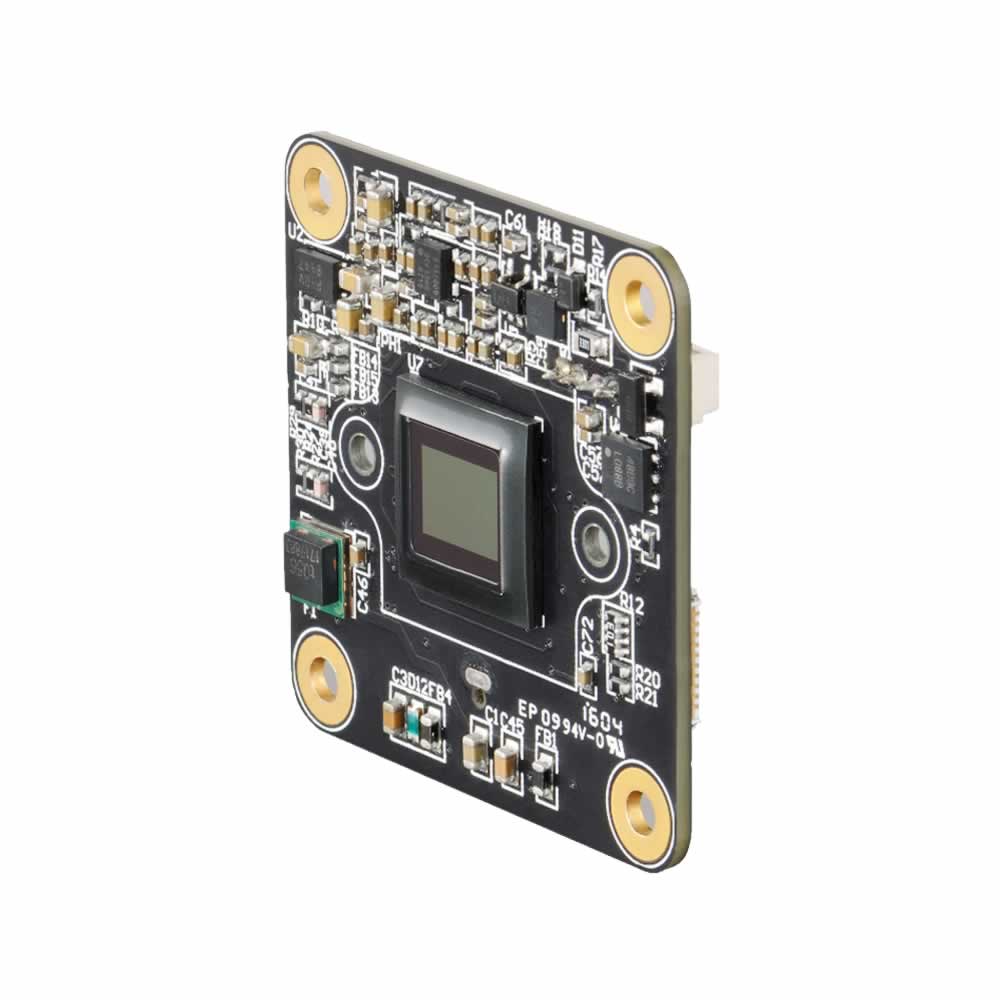

Imaging Source DMM 27UR0135-ML USB 3.0 monochrome board camera

$201.00

•1/3 inch On Semiconductor CMOS sensor (AR0135)
•1,280x960 (1.2 MP), up to 60 fps
•Global shutter
•Trigger and I/O inputs

SKU: DMM 27UR0135-ML

$201.00

Description

Specifications

Downloads

DMM 27UR0135-ML

USB 3.0 monochrome board camera

The Imaging Source DMM 27UR0135-ML camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The camera ships with the very sensitive 1/3 inch On Semiconductor CMOS AR0135 sensor.

With up to 60 images per second, the DMM 27UR0135-ML is a low cost, yet highly versatile imaging solution. The optional lens holders in various lengths, makes the camera compatible to M12 board lenses. Using the optional C and CS mount lens holder, the camera is also compatible to C and CS mount lenses.

Dynamic Range

8/12 bit

Video Format

1280 x 960 (1.2 MP)

IR-Cut Filter

Sensor Type

CMOS

Sensor Specification

onsemi AR0135

Shutter

Global

Format

1/3 inch

Pixel Size

H: 3.75 µm x V: 3.75 µm

1.2 MP

Resolution

1280 x 960

FPS

60 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 10 mm

Mass

15g

Adjustable Shutter

1/10000 s to 1 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
