Imaging Source DMK 38UX304 USB 3.1 Monochrome Industrial Camera

$2,404.00

•1.1 inch Sony CMOS Pregius sensor (IMX304LLR)
•4,096x3,000 (12.3 MP), up to 26 fps
•Global shutter
•Trigger and I/O inputs

SKU: DMK 38UX304

We usually have a majority of these items in stock.
Please call or contact us for availability.

Description
Specifications
Downloads

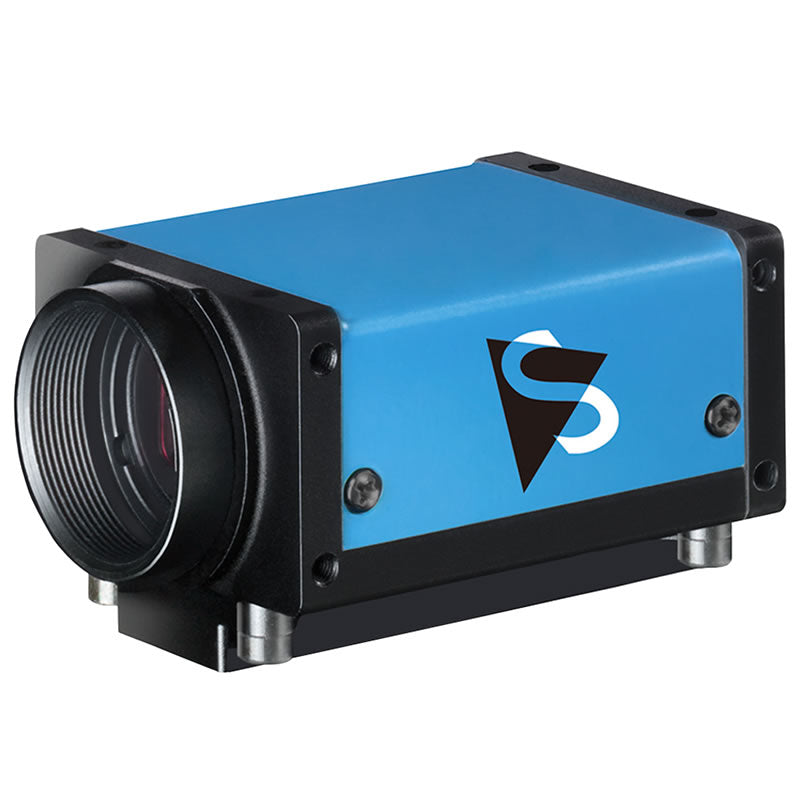

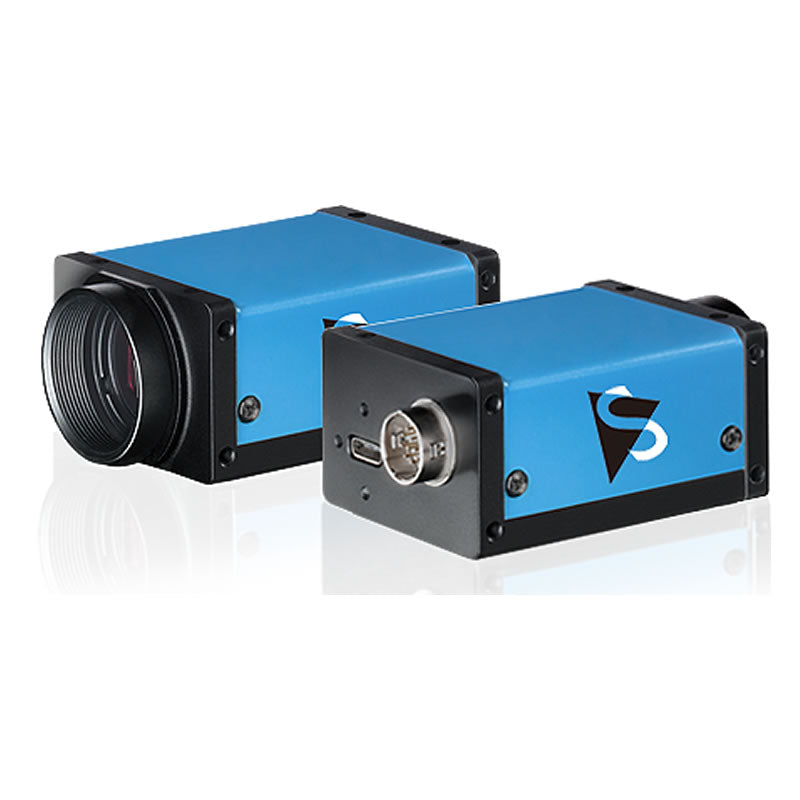

Imaging Source DMK 38UX304

USB 3.1 Monochrome Industrial Camera

The Imaging Source DMK 38UX304 USB 3.1 Monochrome Industrial Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity. The 9 and 12 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy. Additionally, their sensor sizes (2/3" and 1/1.8") mean they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

12 bit

Video Format

4096×3000 (12.3 MP)

IR-Cut Filter

No

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX304

Shutter

Global

Format

1.1 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

MP

12.3 MP

Resolution

4096 x 3000

FPS

26 FPS

Mono/Color

Monochrome

Lens Mount

C (CS optional)

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 810 mA @ 5 VDC

Auto Iris Control

No

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 44 mm x L: 60 mm

Mass

110g

Adjustable Shutter

2 µs to 4 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
