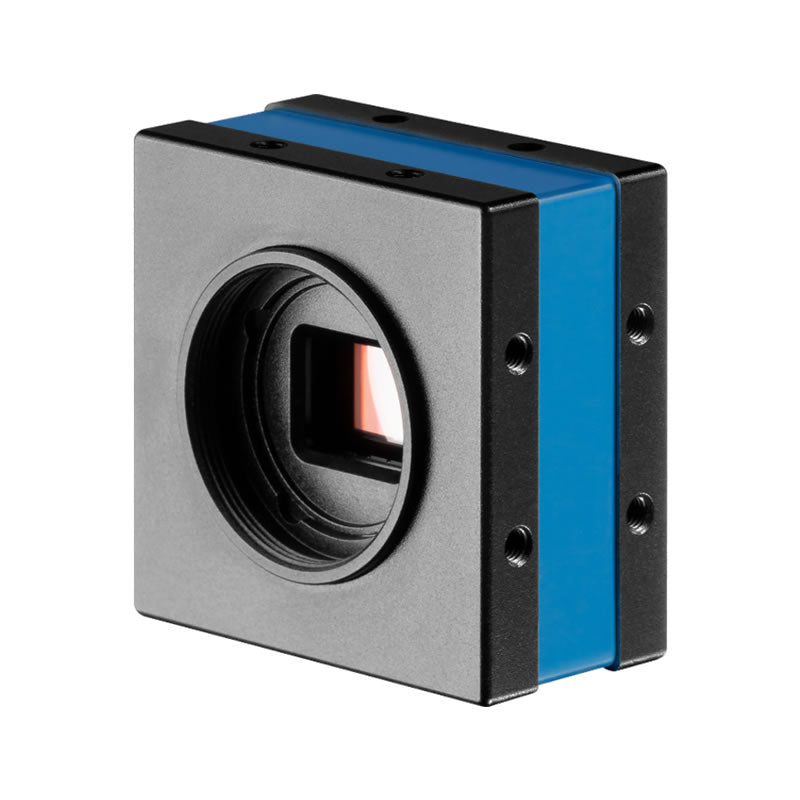

Imaging Source DMK 37BUX273 USB 3.1 Monochrome Industrial Camera

$470.00

•1/2.9 inch Sony CMOS Pregius sensor (IMX273LLR)
•1,440x1,080 (1.6 MP), up to 238 fps
•Global shutter
•Trigger and I/O inputs

SKU: DMK 37BUX273

$470.00

Description

Specifications

Downloads

Imaging Source DMK 37BUX273

USB 3.1 Monochrome Industrial Camera

The Imaging Source DMK 37BUX273 USB 3.1 Monochrome Industrial Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity. The 9 and 12 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy. Additionally, their sensor sizes (2/3" and 1/1.8") mean they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

10 bit

Video Format

1440 × 1080 (1.6 MP)

IR-Cut Filter

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX273

Shutter

Global

Format

1/2.9 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

1.6 MP

Resolution

1440 x 1080

FPS

238 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 380 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

1 µs to 30 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
