Imaging Source DMK 37BUX265 USB 3.1 Monochrome Industrial Camera

$725.00

•1/1.8 inch Sony CMOS Pregius sensor (IMX265LLR)
•2,048x1,536 (3.1 MP), up to 60 fps
•Global shutter
•Trigger and I/O inputs
•Pixel Size: H: 3.45 µm, V: 3.45 µm

SKU: DMK 37BUX265

$725.00

Description

Specifications

Downloads

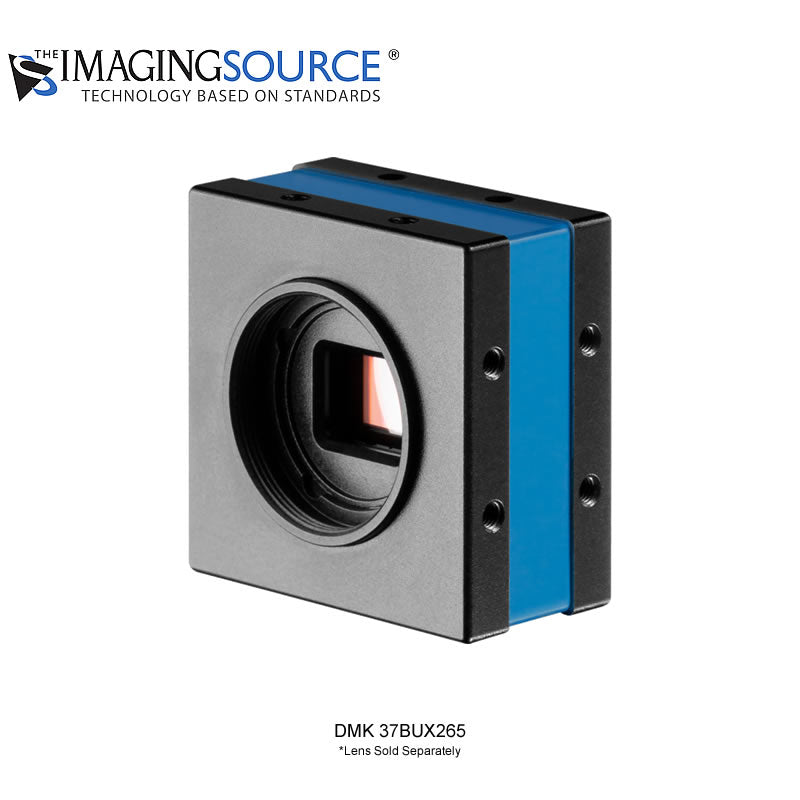

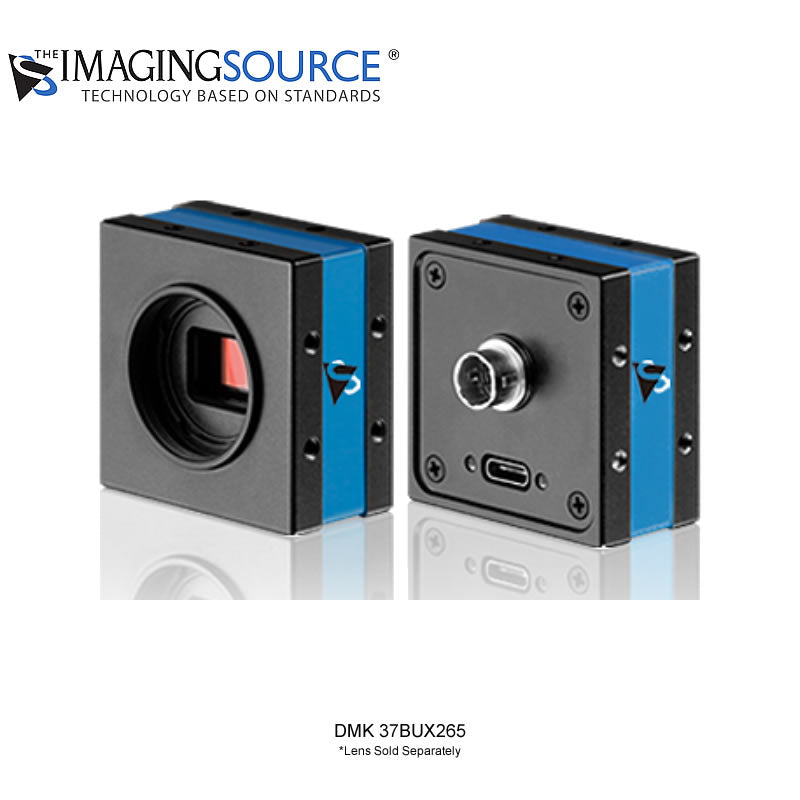

Imaging Source DMK 37BUX265

USB 3.1 Monochrome Industrial Camera

The Imaging Source DMK 37BUX264 USB 3.1 Color Industrial Cameras are equipped with highly-sensitive, low-noise Sony IMX265LLR global-shutter sensors which offer exceptional distortion-free image quality and color fidelity. This camera supports the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Also available in color, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy. Additionally, their sensor sizes (2/3" and 1/1.8") mean they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

12 bit

Video Format

2048 × 1536 (3.1 MP)

IR-Cut Filter

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX265

Shutter

Global

Format

1/1.8 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

3.1 MP

Resolution

2048 x 1536

FPS

60 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 360 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 42 mm x W: 42 mm x L: 25 mm

Mass

76g

Adjustable Shutter

1 µs to 4 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
