Imaging Source DMK 37BUX226 USB 3.1 Monochrome Industrial Camera

$539.00

• 1/1.7 inch Sony CMOS STARVIS sensor (IMX226)
• 4,000x3,000 (12 MP), up to 30 fps
• Rolling shutter
• Trigger and I/O inputs

SKU: DMK 37BUX226

$539.00

Description

Specifications

Downloads

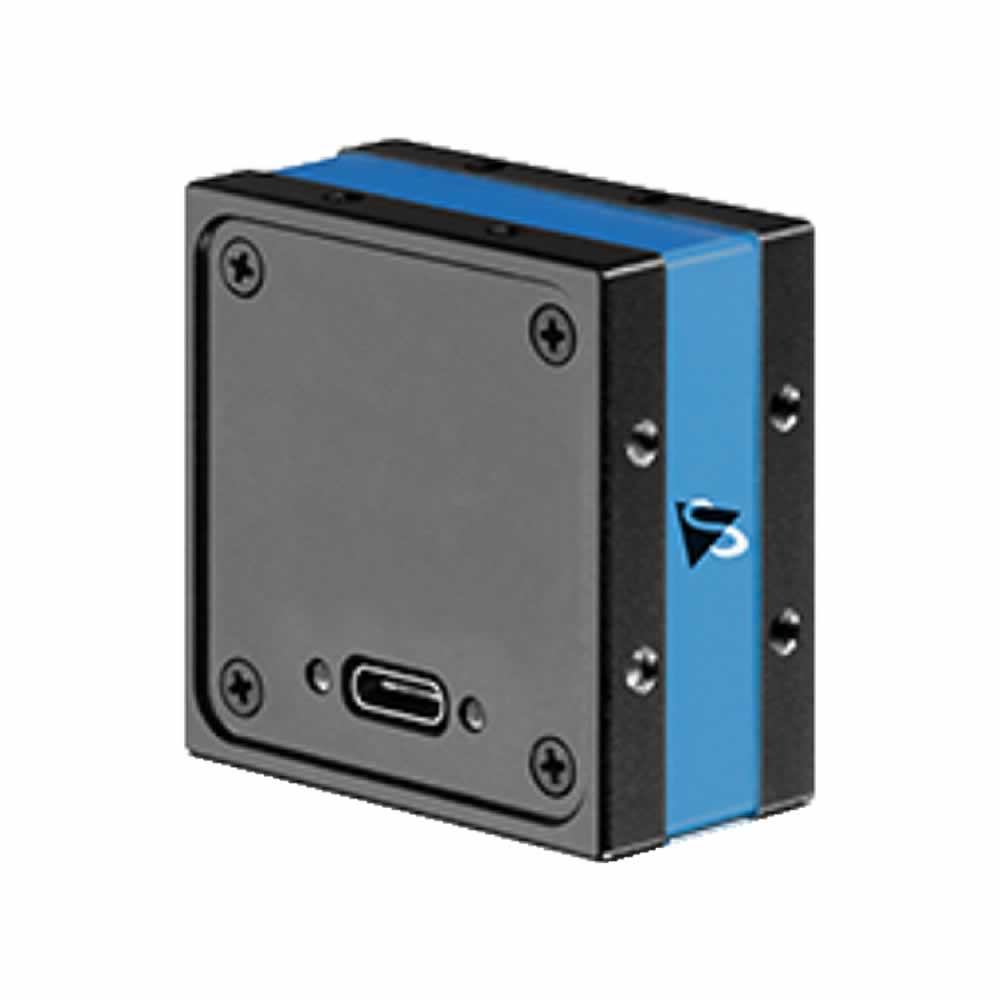

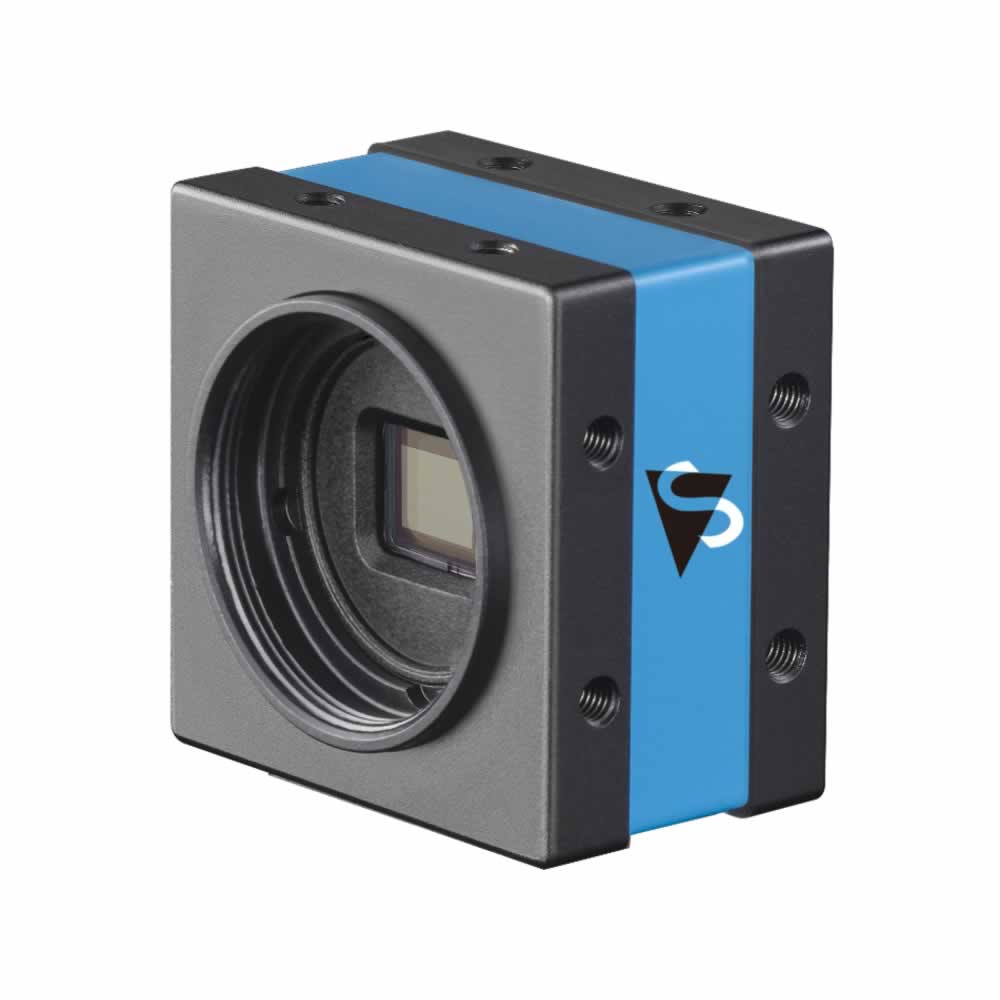

Imaging Source DMK 37BUX226

USB 3.1 monochrome industrial camera

The Imaging Source DMK 37BUX226 USB 3.1 monochrome industrial cameras are equipped with highly-sensitive, low-noise Sony Pregius Rolling shutter sensors which deliver outstanding image quality and good NIR sensitivity. The DMK 37BUX226 camera can automatically control gain and exposure time. These automatic functions are enabled by default.

The USB3 Vision standard (USB 3.1- Gen. 1), ensures stability and compatibility for easy integration and flexible configuration. Even at high frame rates, the DMK 37BUX226 delivers distortion-free images and are well-suited for applications such as intelligent traffic systems (ITS), automated optical inspection (AOI) and microscopy.

Dynamic Range

12 bit

Video Format

4000 × 3000 (12 MP)

IR-Cut Filter

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX226

Shutter

Rolling

Format

1/1.7 inch

Pixel Size

H: 1.85 µm x V: 1.85 µm

12 MP

Resolution

4000 x 3000

FPS

30 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 320 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

50 µs to 30 s

Gain

0 dB to 27.04 dB

White Balance

N/A

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
