Imaging Source DMK 37BUX178 USB 3.1 Monochrome Industrial Camera

$516.00

•1/1.8 inch Sony CMOS STARVIS sensor (IMX178LLJ)
•3,072x2,048 (6.3 MP), up to 60 fps
•Rolling shutter
•Trigger and I/O inputs

SKU: DMK 37BUX178

We usually have a majority of these items in stock.
Please call or contact us for availability.

Description
Specifications
Downloads

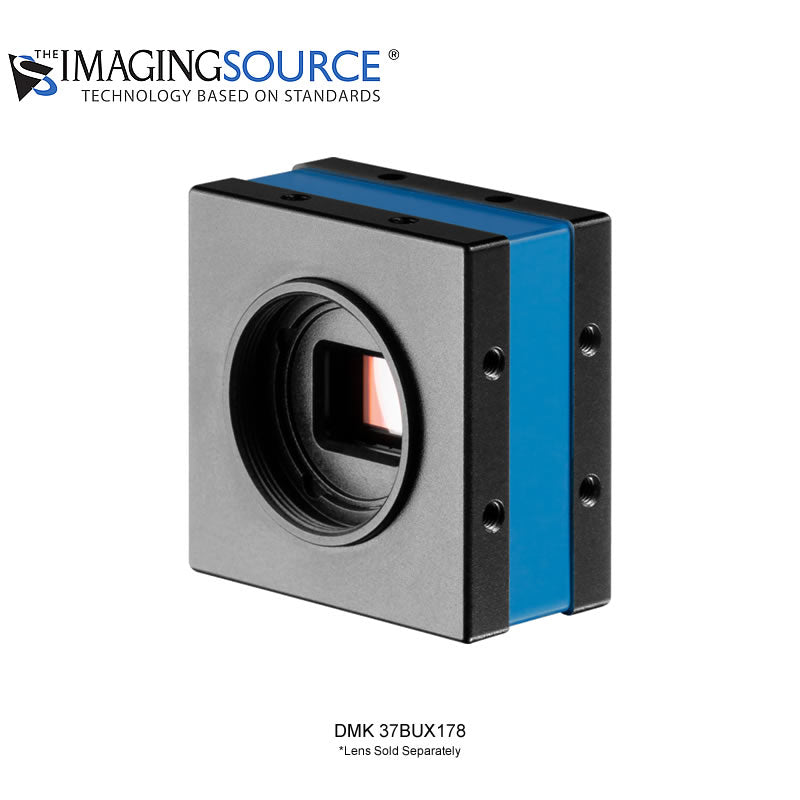

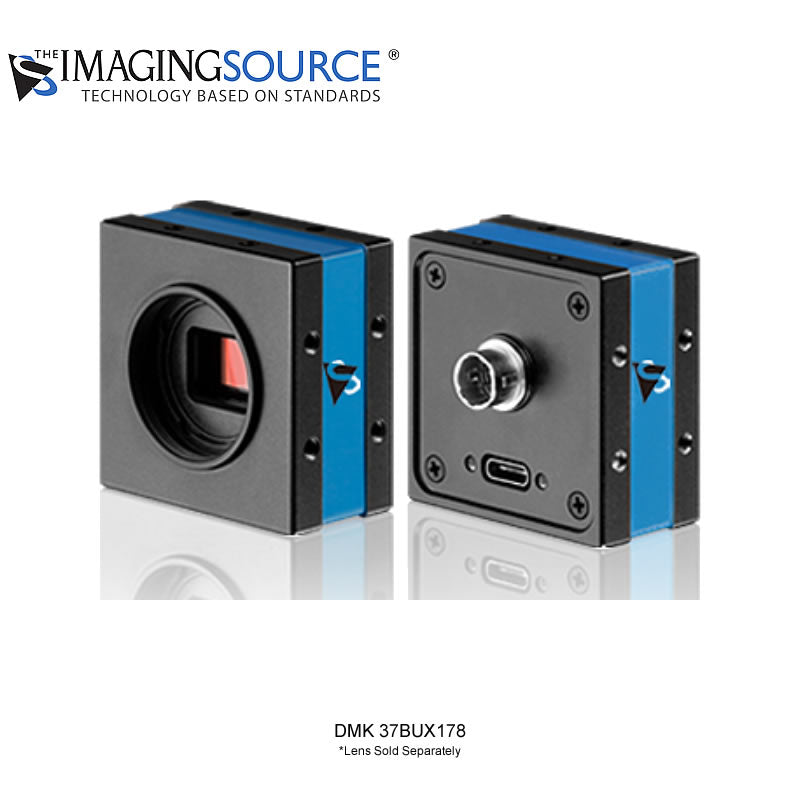

Imaging Source DMK 37BUX178

USB 3.1 Monochrome Industrial Camera
The DMK 37BUX178 USB 3.1 monochrome industrial cameras are equipped with highly-sensitive, low-noise Sony Starvis Rolling-shutter sensors which offer exceptional distortion-free image quality and color fidelity. The 9 and 12 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration.

Also available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy. Additionally, their sensor sizes (2/3" and 1/1.8") mean they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

12 bit

Video Format

3072 × 2048 (6.3 MP)

IR-Cut Filter

No

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX178

Shutter

Rolling

Format

1/1.8 inch

Pixel Size

H: 2.4 µm x V: 2.4 µm

MP

6.3 MP

Resolution

3072 x 2048

FPS

60 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 320 mA @ 5 VDC

Auto Iris Control

No

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

20 µs to 60 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
