Imaging Source DMK 37AUX290 USB 3.1 Monochrome Industrial Camera

$447.00

• 1/2.8 inch Sony CMOS STARVIS sensor (IMX290)
• 1,920x1,080 (2.1 MP), up to 143 fps
• Rolling shutter

SKU: DMK 37AUX290

$447.00

Description

Specifications

Downloads

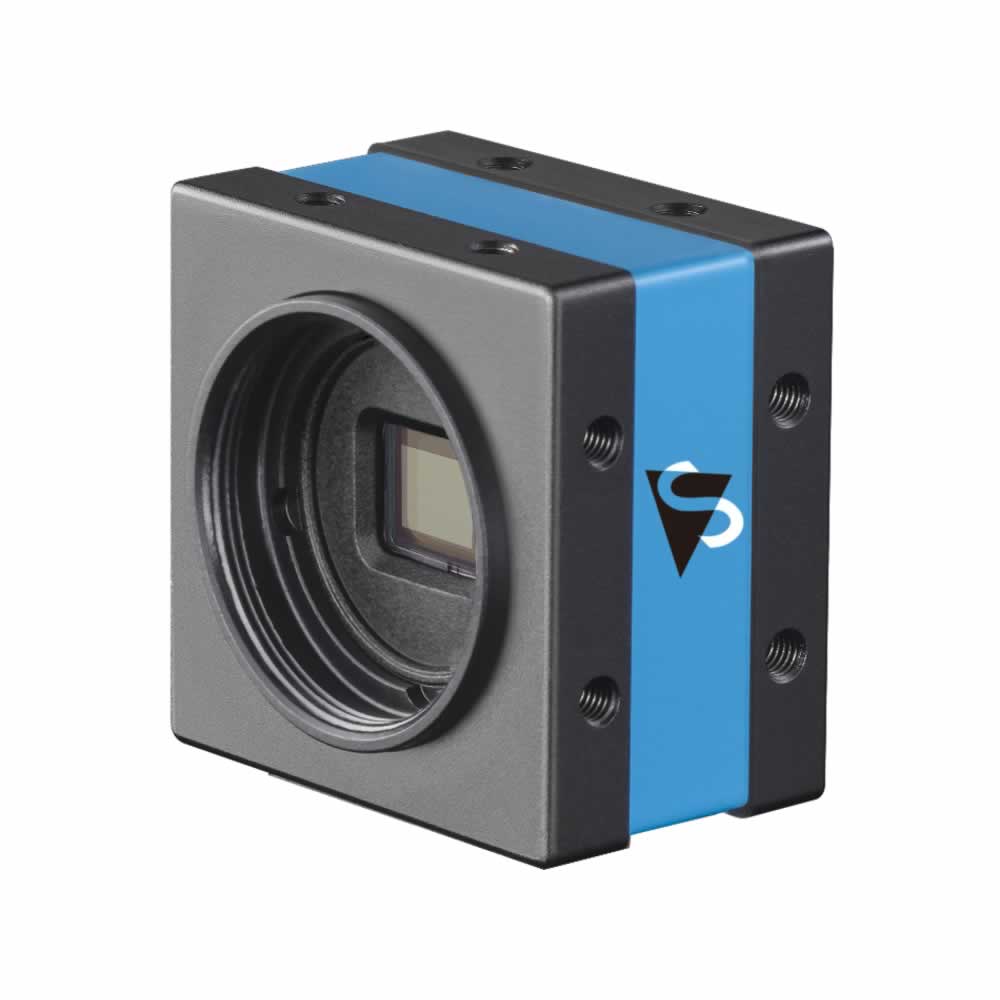

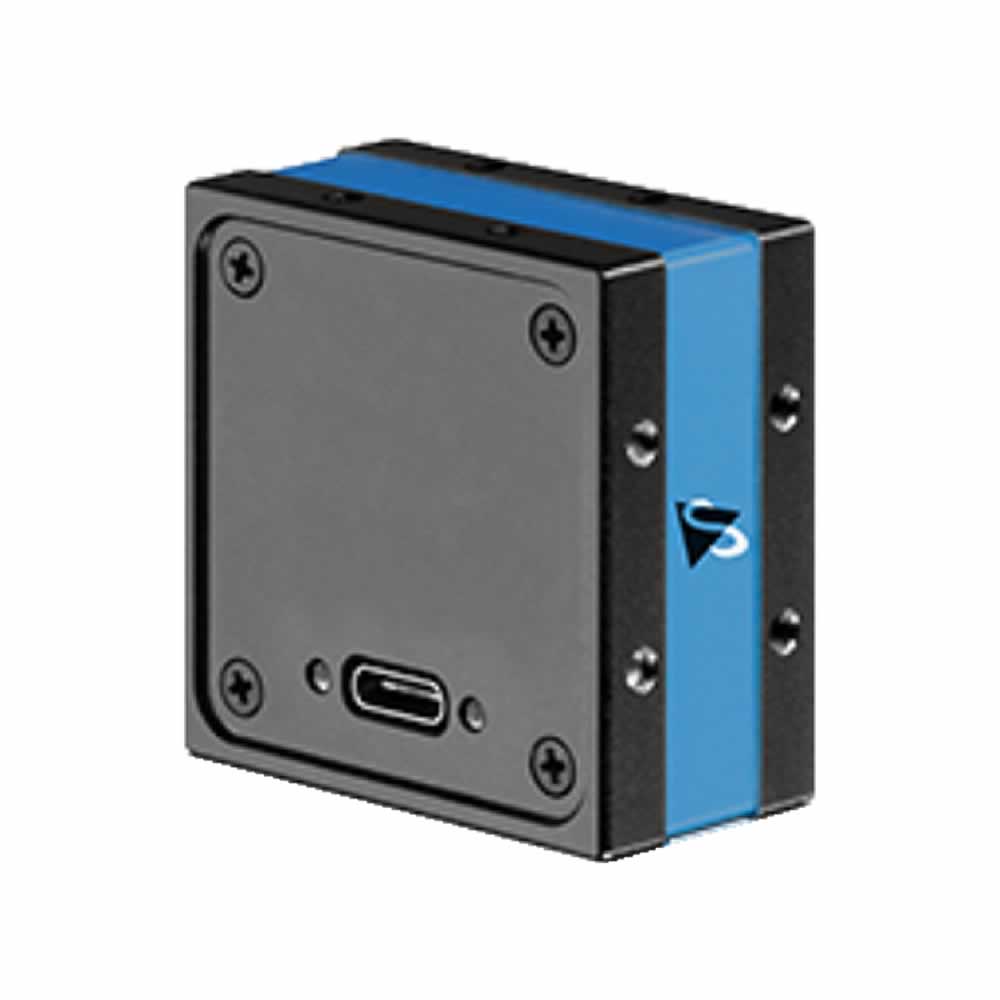

Imaging Source DMK 37AUX290

USB 3.1 monochrome industrial camera

The Imaging Source DMK 37AUX290 USB 3.1 monochrome industrial cameras are equipped with highly-sensitive, low-noise Sony Pregius Rolling shutter sensors which deliver outstanding image quality and good NIR sensitivity. The DMK 37AUX290 camera can automatically control gain and exposure time. These automatic functions are enabled by default.

The USB3 Vision standard (USB 3.1- Gen. 1), ensures stability and compatibility for easy integration and flexible configuration. Even at high frame rates, the DMK 37AUX290 delivers distortion-free images and are well-suited for applications such as intelligent traffic systems (ITS), automated optical inspection (AOI) and microscopy.

Dynamic Range

10 bit

Video Format

1920 × 1080 (2.1 MP)

IR-Cut Filter

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX290

Shutter

Rolling

Format

1/2.8 inch

Pixel Size

H: 2.9 µm x V: 2.9 µm

2.1 MP

Resolution

1920 x 1080

FPS

143 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 260 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

20 µs to 30 s

Gain

0 dB to 72 dB

White Balance

N/A

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
