Imaging Source DMK 37AUX265 USB 3.1 Monochrome Industrial Camera

$702.00

• 1/1.8 inch Sony CMOS Pregius sensor (IMX265)
• 2,048x1,536 (3.1 MP), up to 60 fps
• Global shutter

SKU: DMK 37AUX265

$702.00

Description

Specifications

Downloads

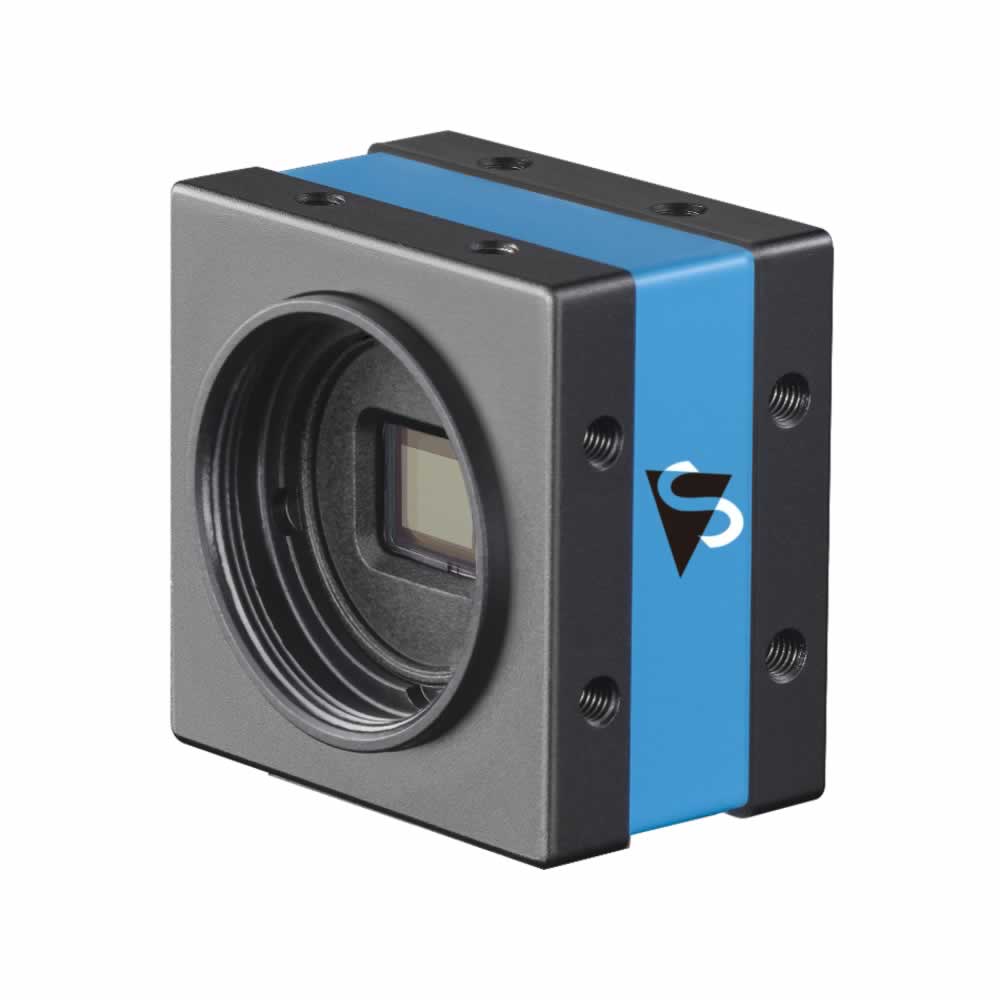

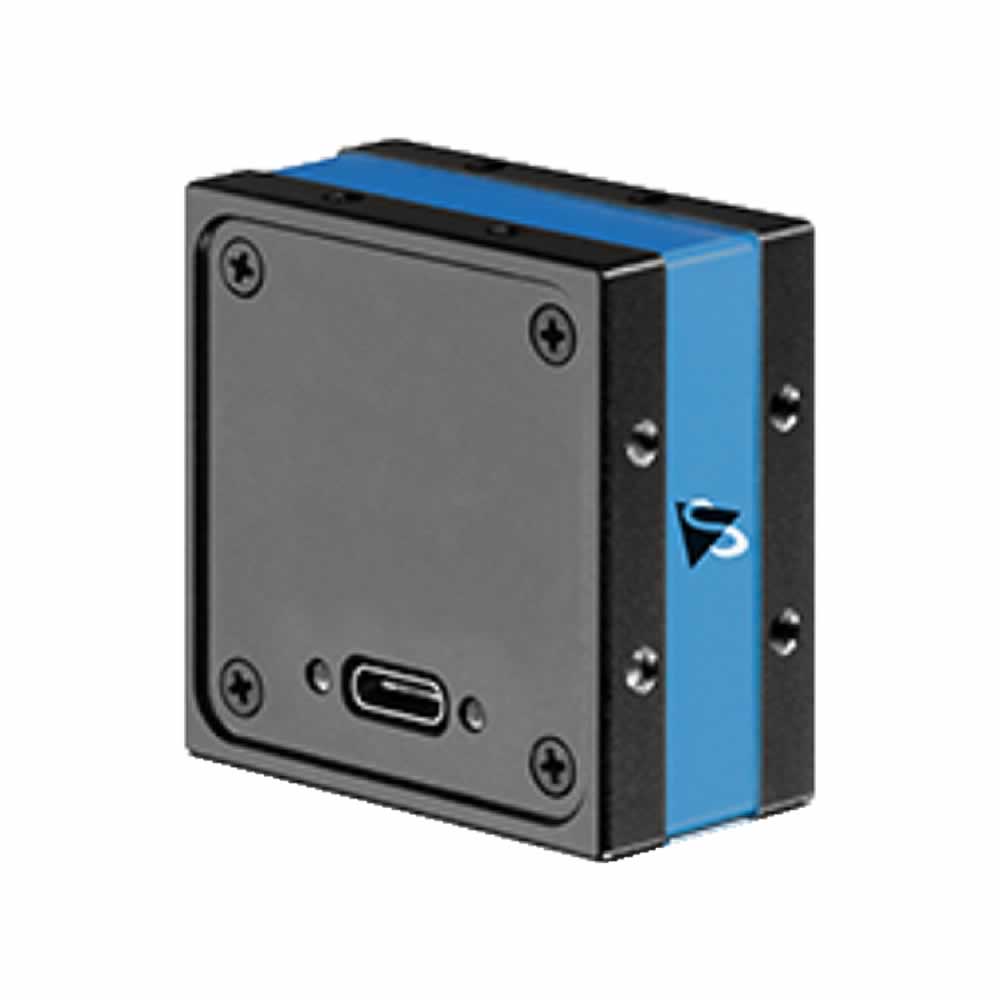

Imaging Source DMK 37AUX265

USB 3.1 monochrome industrial camera

The Imaging Source DMK 37AUX265 USB 3.1 monochrome industrial cameras are equipped with highly-sensitive, low-noise Sony Pregius Global shutter sensors which deliver outstanding image quality and good NIR sensitivity. The DMK 37AUX265 camera can automatically control gain and exposure time. These automatic functions are enabled by default.

The USB3 Vision standard (USB 3.1- Gen. 1), ensures stability and compatibility for easy integration and flexible configuration. Even at high frame rates, the DMK 37AUX265 delivers distortion-free images and are well-suited for applications such as intelligent traffic systems (ITS), automated optical inspection (AOI) and microscopy.

Dynamic Range

12 bit

Video Format

2048 × 1536 (3.1 MP)

IR-Cut Filter

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX265

Global

Format

1/1.8 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

3.1 MP

Resolution

2048 x 1536

FPS

60 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 360 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Dimensions (H x W x L)

H: 42 mm x W: 42 mm x L: 25 mm

Mass

76g

Adjustable Shutter

1 µs to 4 s

Gain

0 dB to 48 dB

White Balance

N/A

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
